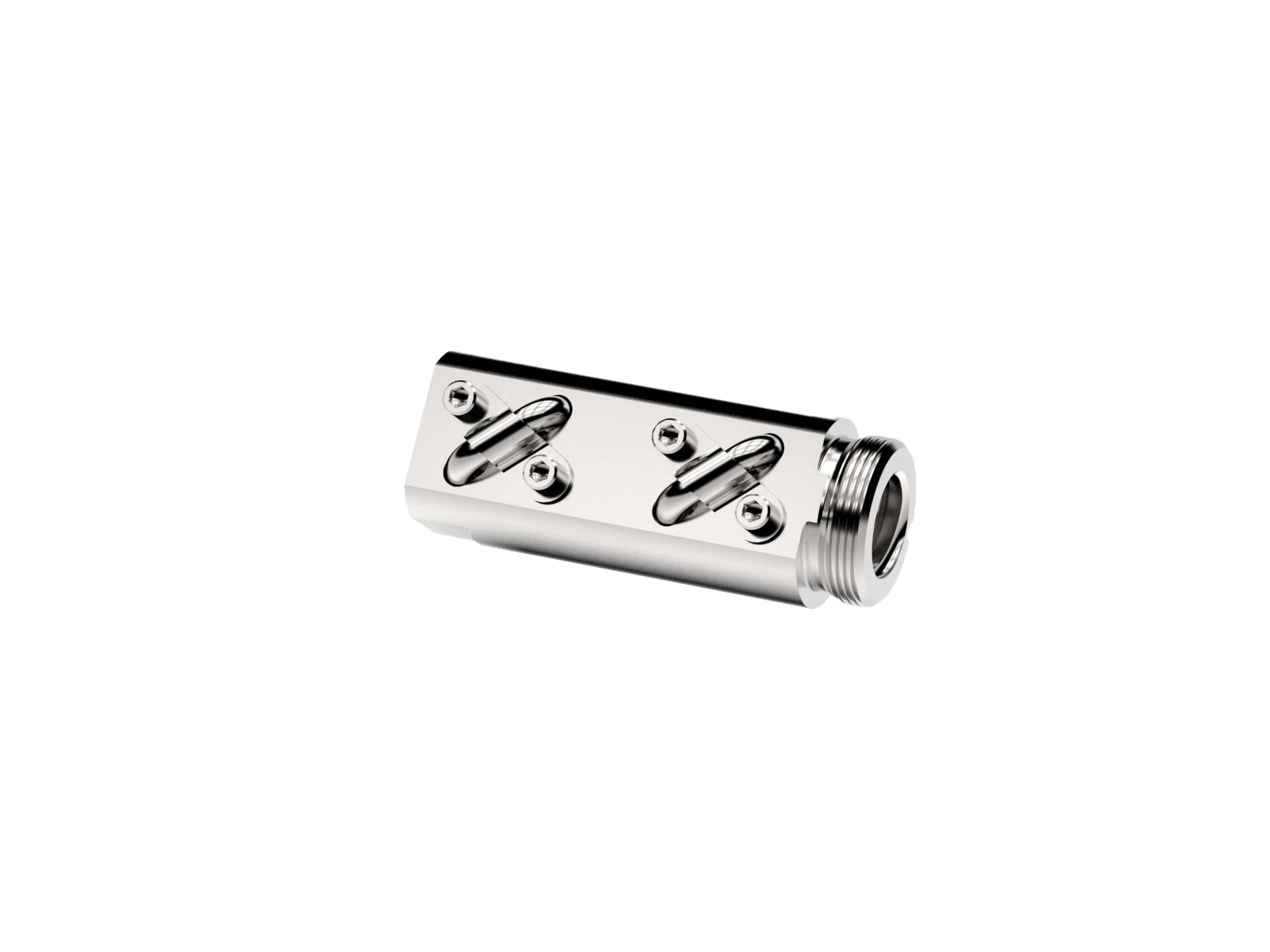

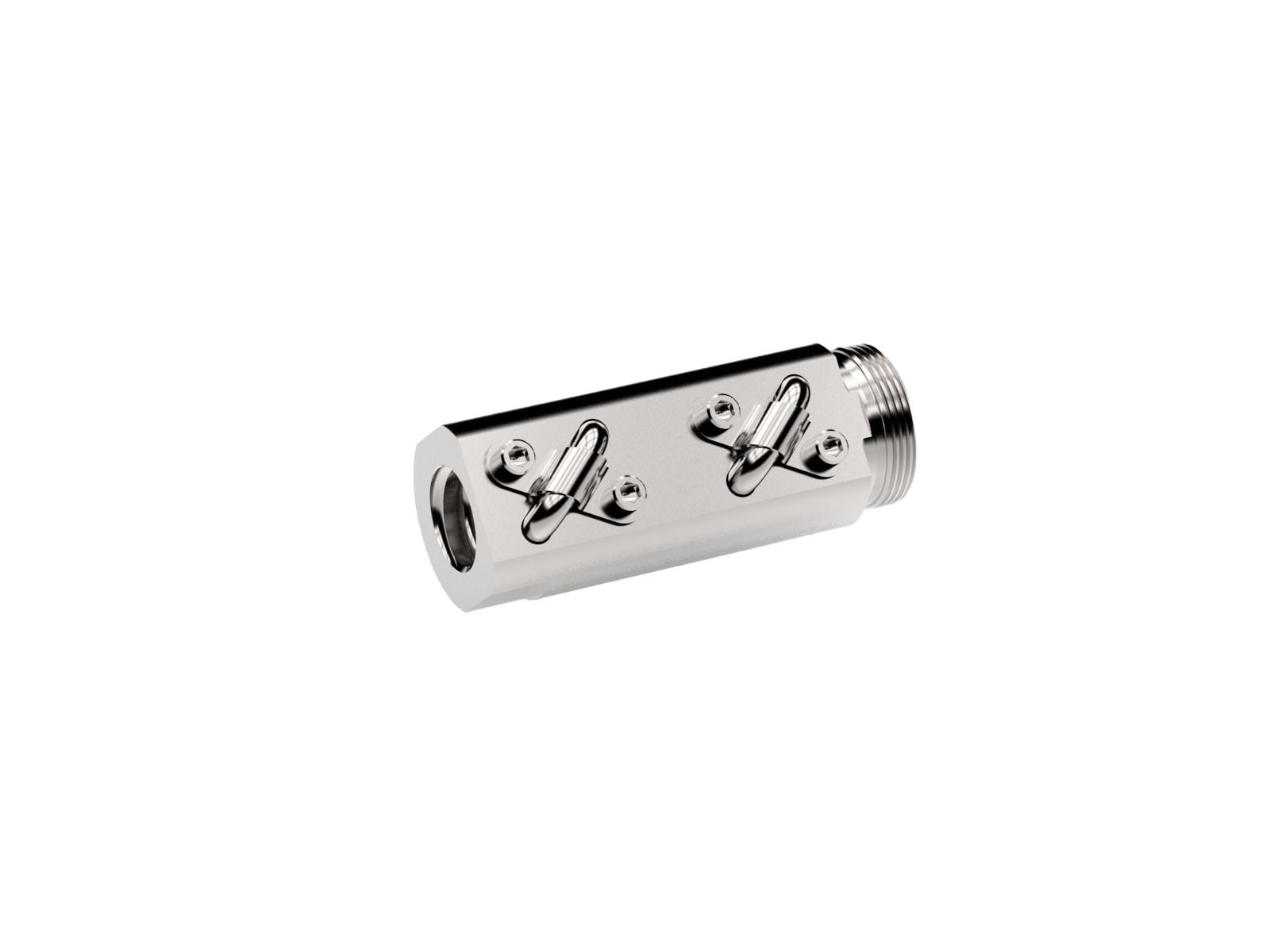

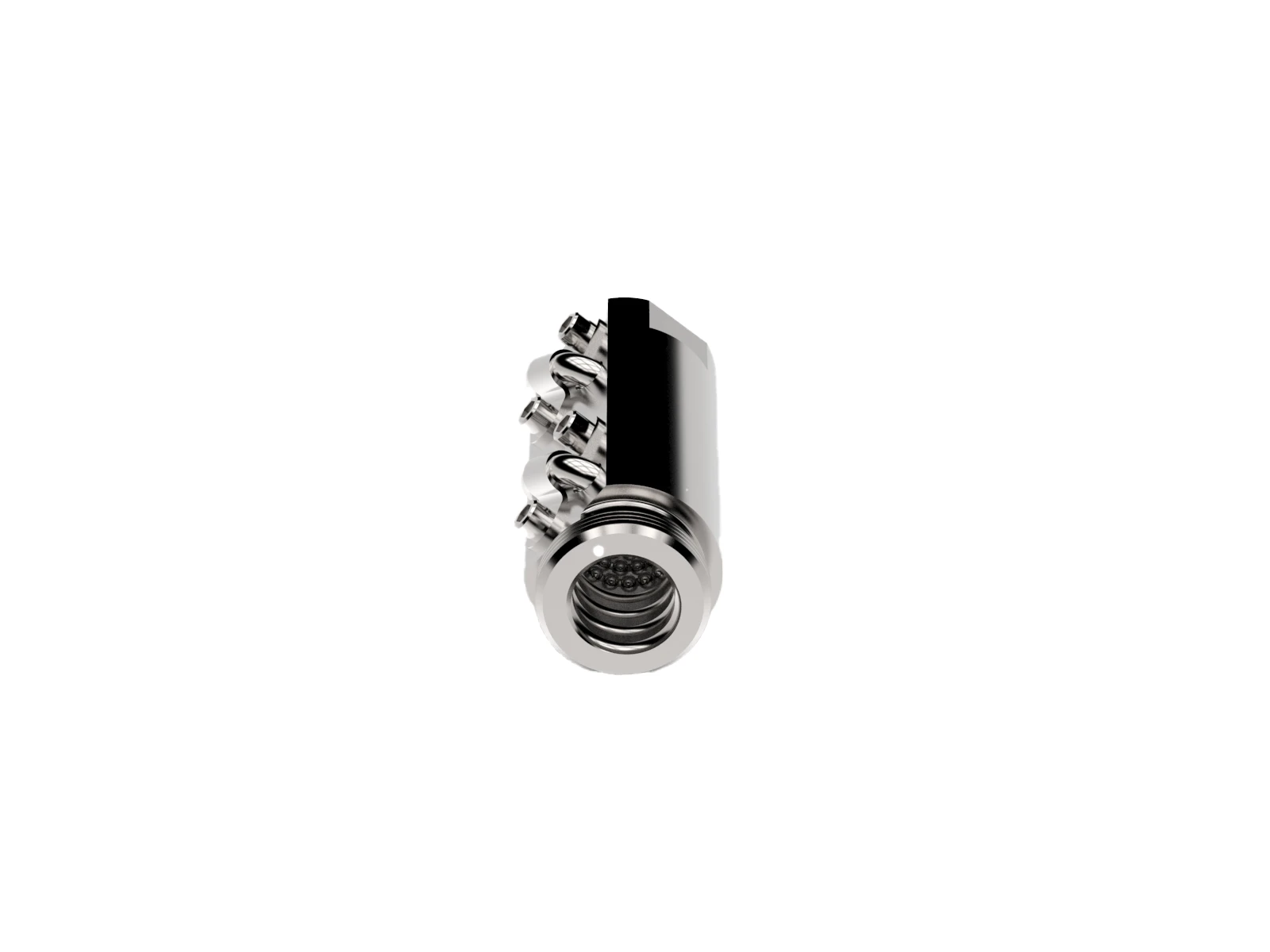

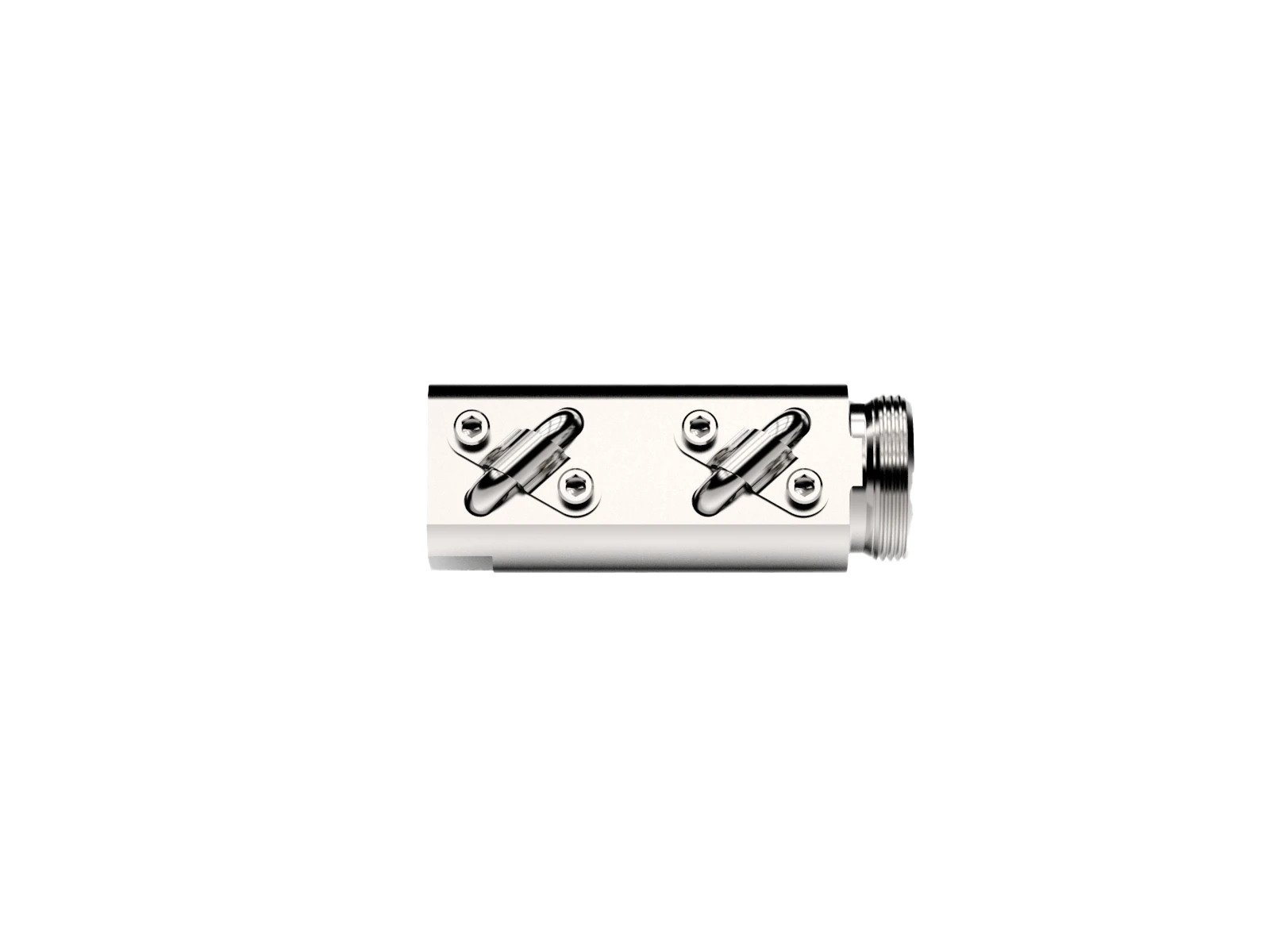

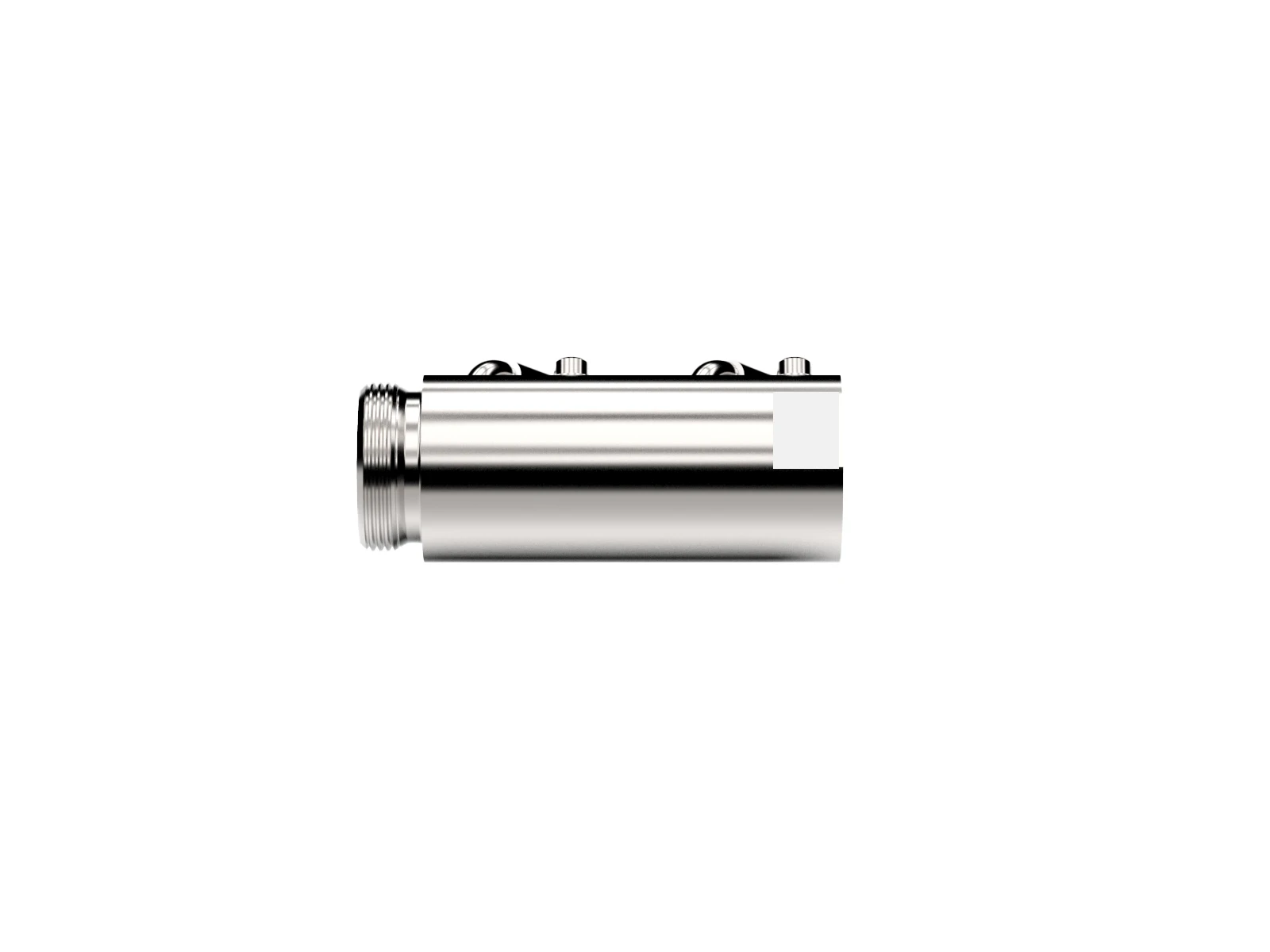

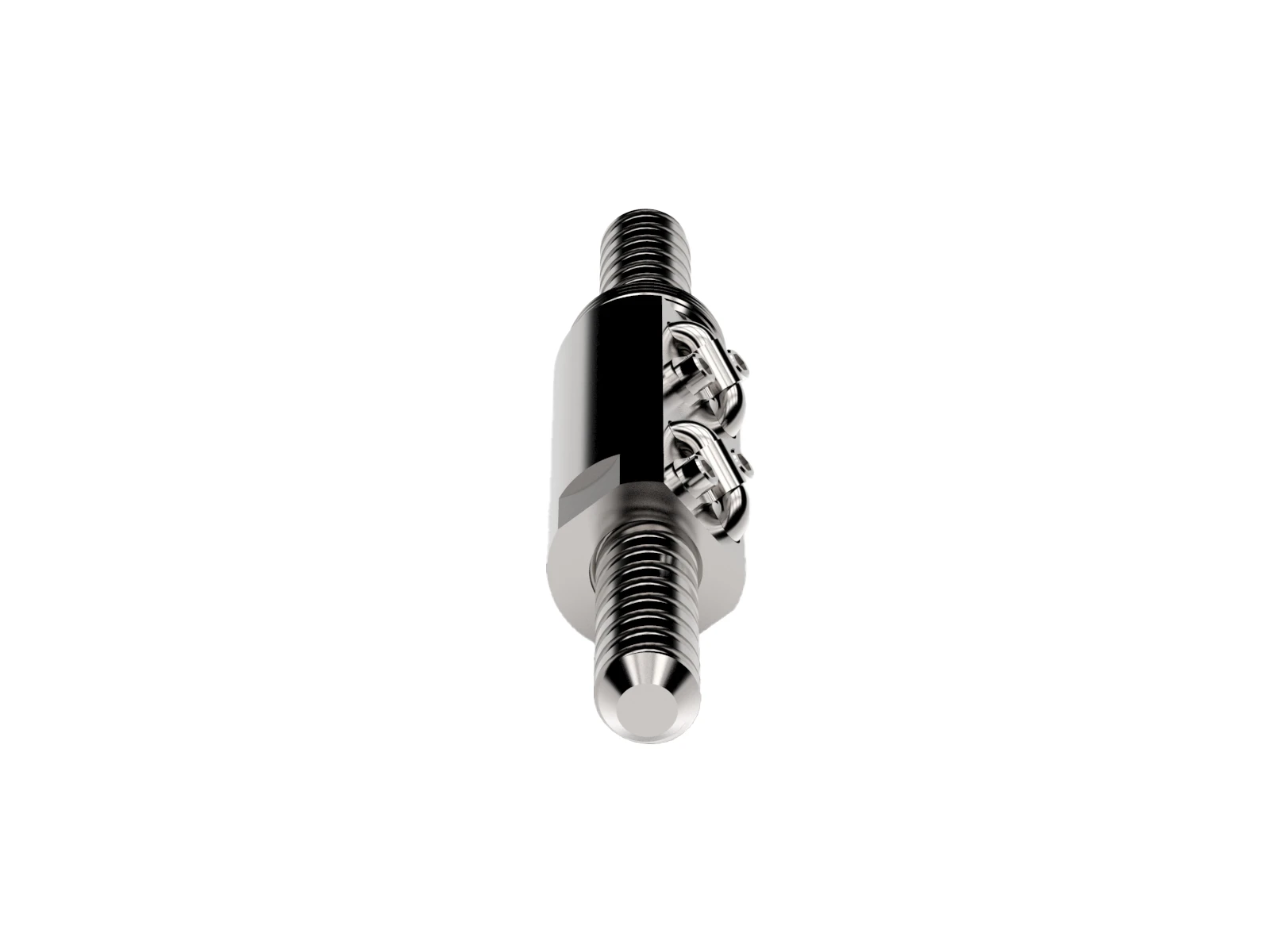

Stainless threaded inch ball screw nut with 0.375 in. diameter, 0.125 in. lead, and 2 circuits
HBN3754
Stainless threaded ball screw nut with 0.375 in. diameter, 0.125 in. lead, and 2 circuit(s). Nut only.
Read more
Loading...
Loading...
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Home
Ball Screws
Inch Ball Screws
Inch Ball Nuts
Dimensions Lead
Lead (in)
0.125
Lead (mm)
3.1750
Material & Finish
Material
Stainless
Performance & Tolerances
Measurement system
Metric
Product Info
Ball Circle Diameter (in)
0.375
Ball Circle Diameter (mm)
9.5250
Ball Nut Weight (lbs)
0.21
Ball Screw Weight (lb/ft)
0.5
Circuits
2
Dynamic Load (lbs) for 1M (in)
51
Preloaded Y/N
No
Screw Minor Dia.
0.3
Torque to Raise 1 lb (in-lb)
0.022
Max Static Load (lbs)
510
Thread Details
Thread Direction
RH
Price:
USD 471.57
Agregar al carrito
Request a Quote
