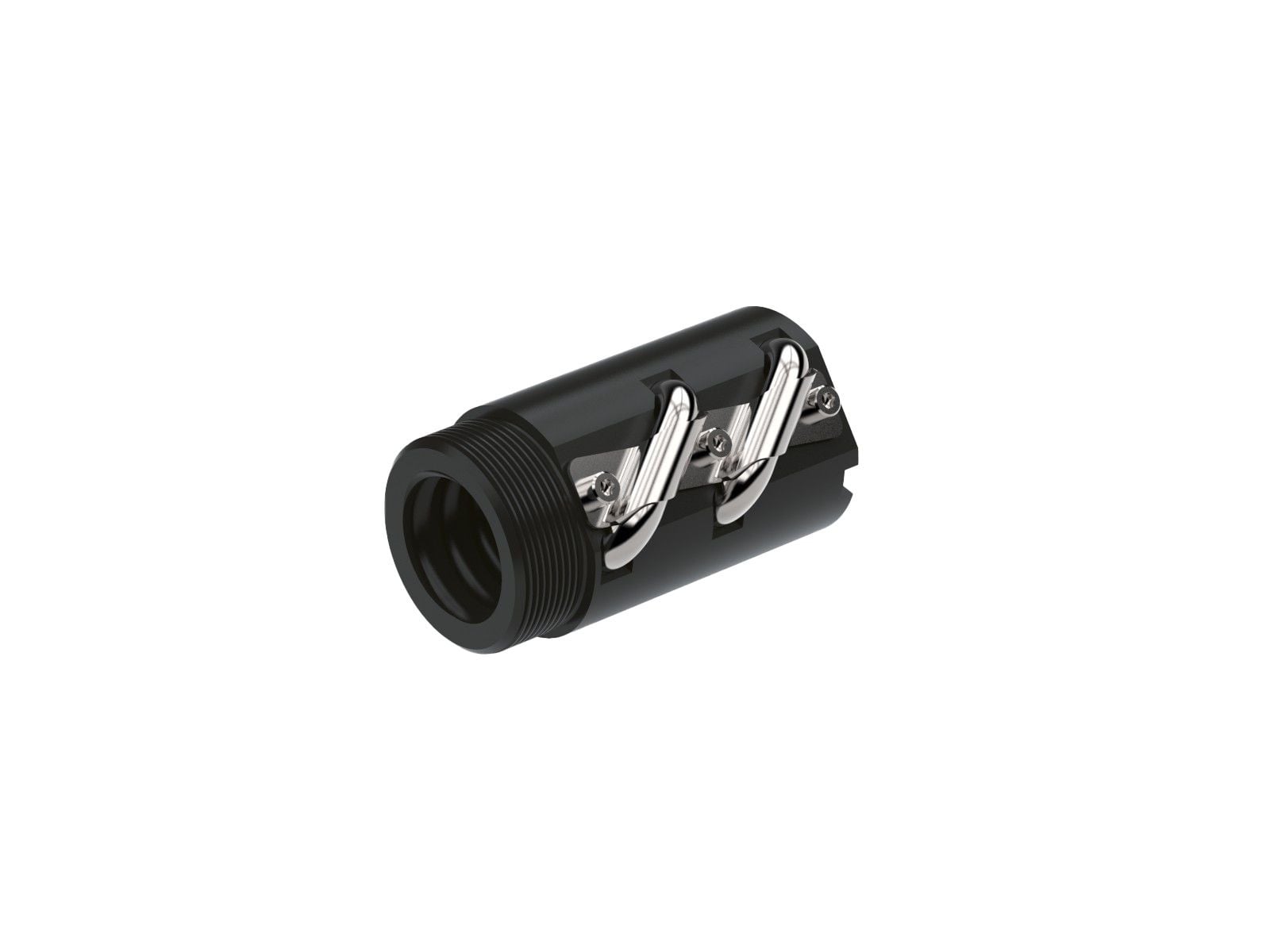

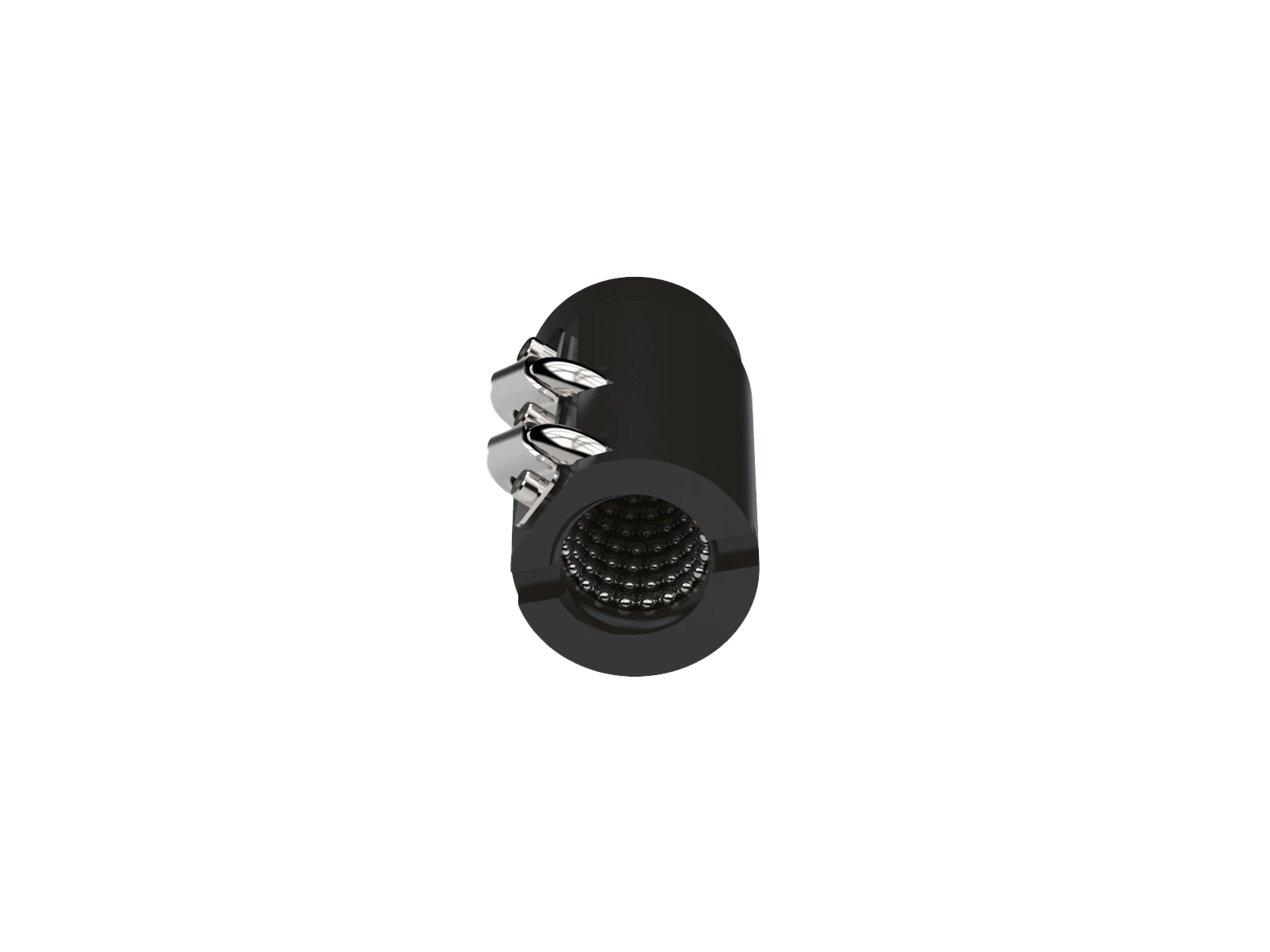

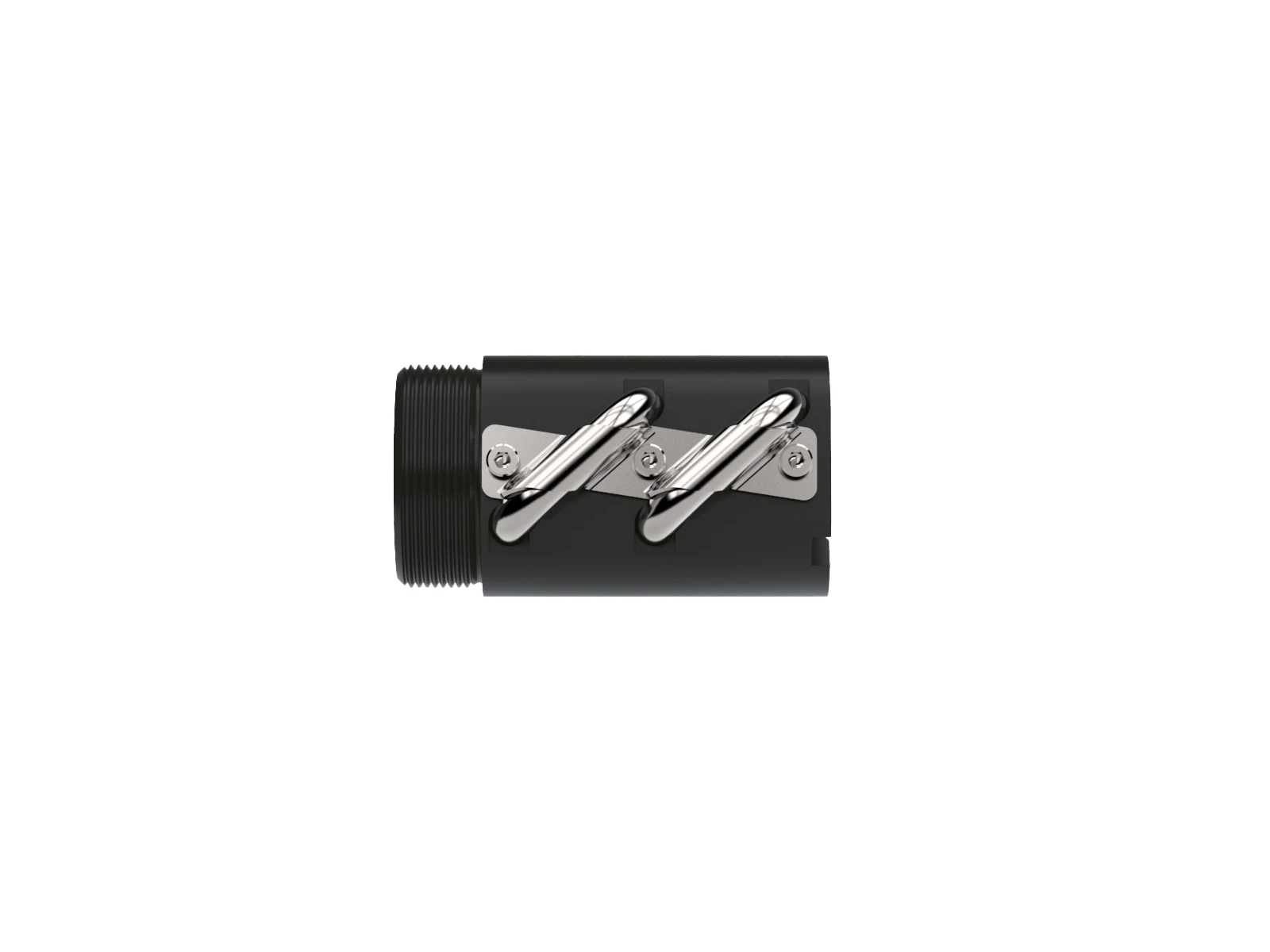

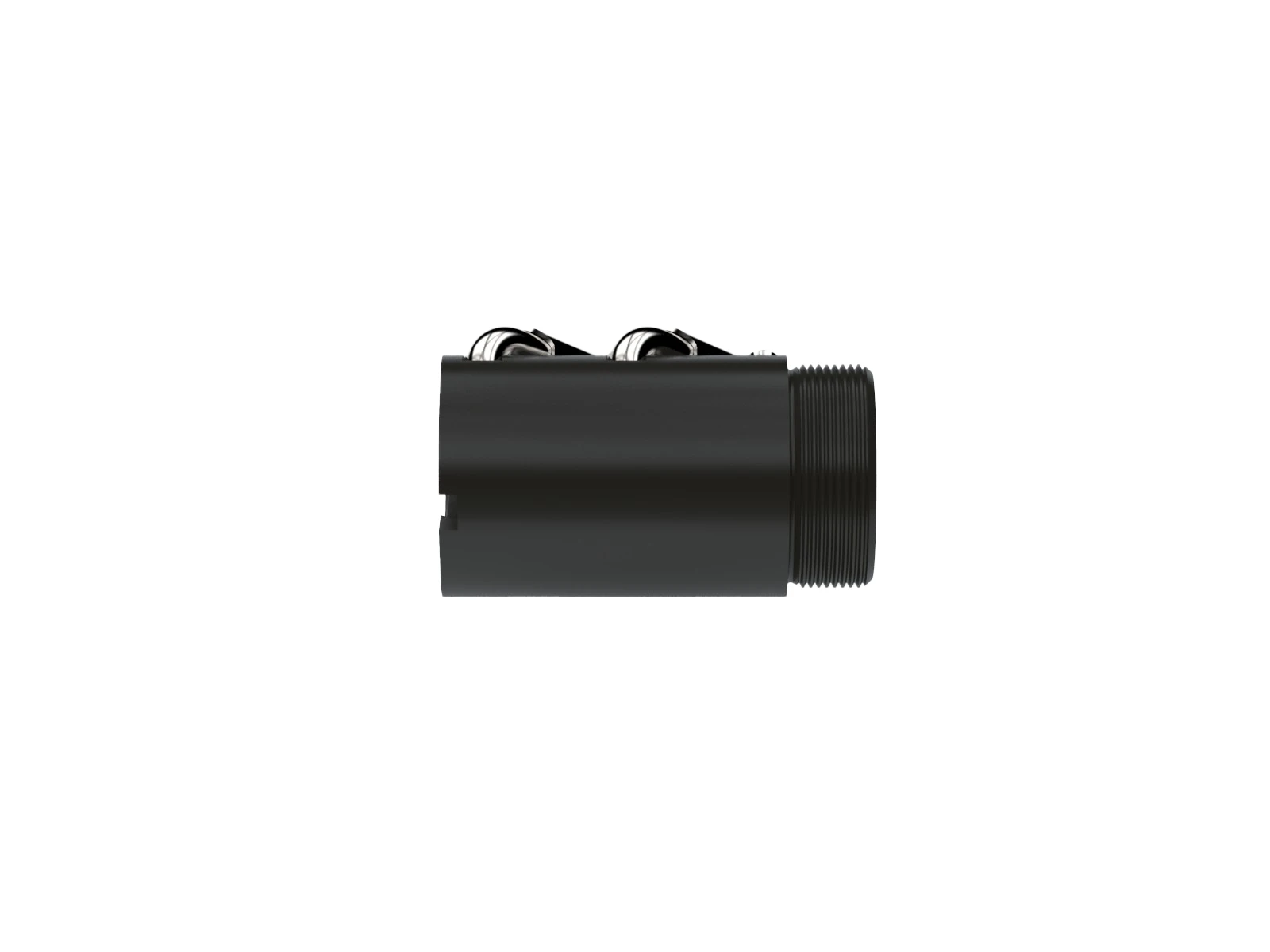

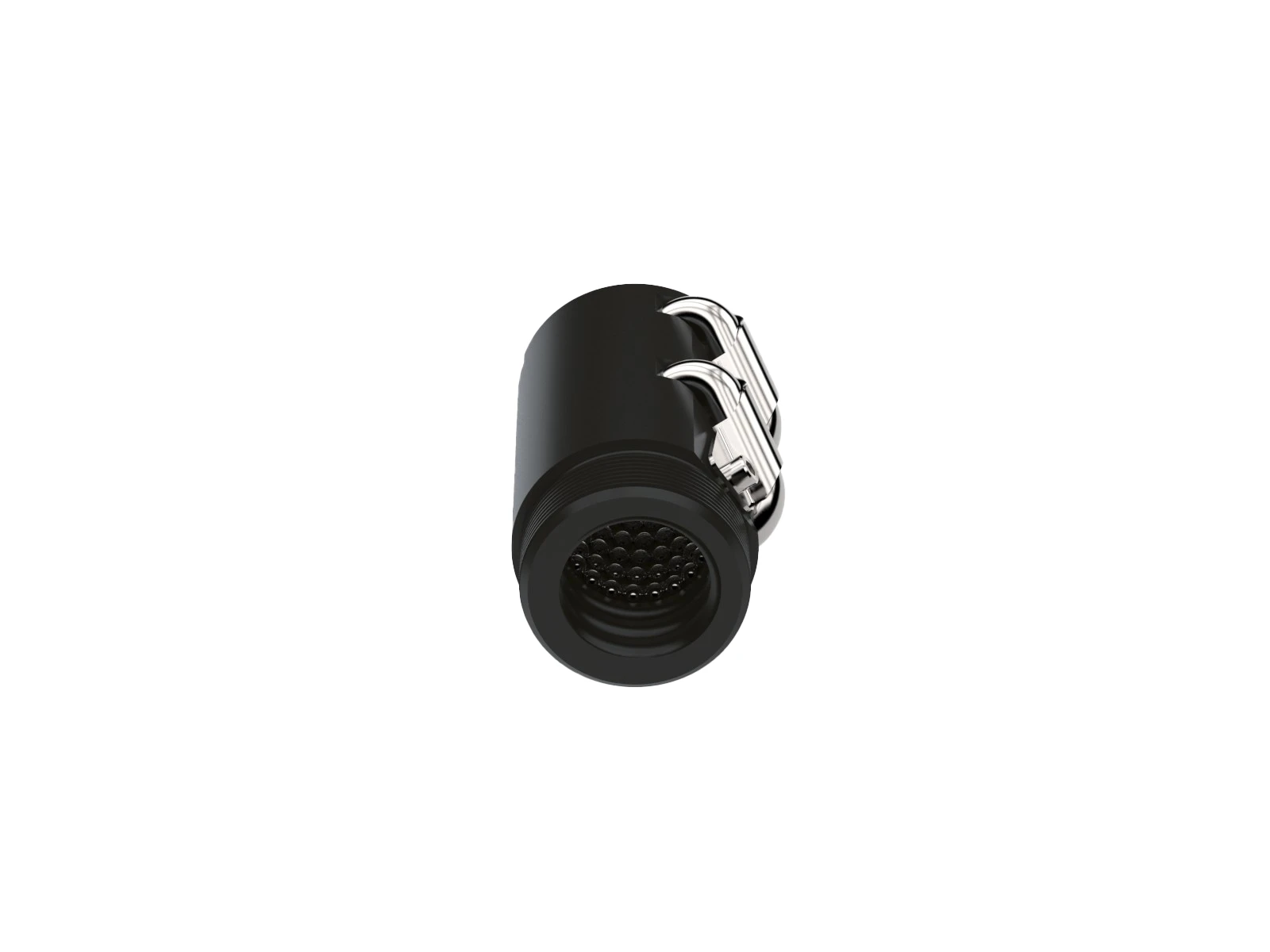

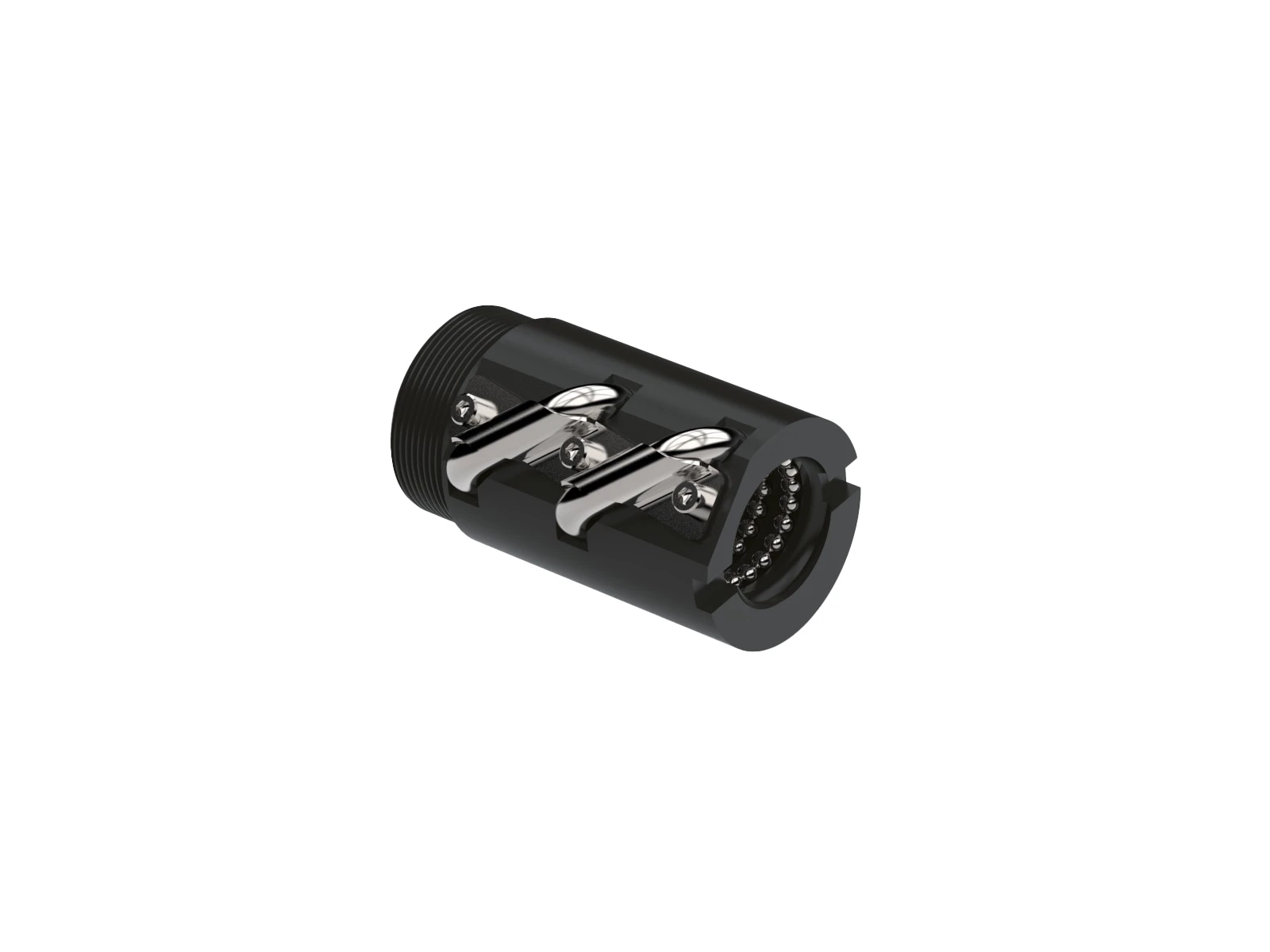

Alloy threaded inch ball screw nut with 0.75 in. diameter, 0.2 in. lead, and 2 circuits
HBN7502
Alloy threaded ball screw nut with 0.75 in. diameter, 0.2 in. lead, and 2 circuit(s). Nut only.
Read more
Loading...
Loading...
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Home
Ball Screws
Inch Ball Screws
Inch Ball Nuts
Dimensions Lead
Lead (in)
0.2
Lead (mm)
5.08
Material & Finish
Material
Alloy
Performance & Tolerances
Measurement system
Metric
Product Info
Ball Circle Diameter (in)
0.75
Ball Circle Diameter (mm)
19.050
Ball Nut Weight (lbs)
0.79
Ball Screw Weight (lb/ft)
1.2
Circuits
2
Dynamic Load (lbs) for 1M (in)
2205
Preloaded Y/N
No
Screw Minor Dia.
0.602
Torque to Raise 1 lb (in-lb)
0.035
Max Static Load (lbs)
17140
Thread Details
Thread Direction
RH
Price:
USD 392.41
Agregar al carrito
Request a Quote
