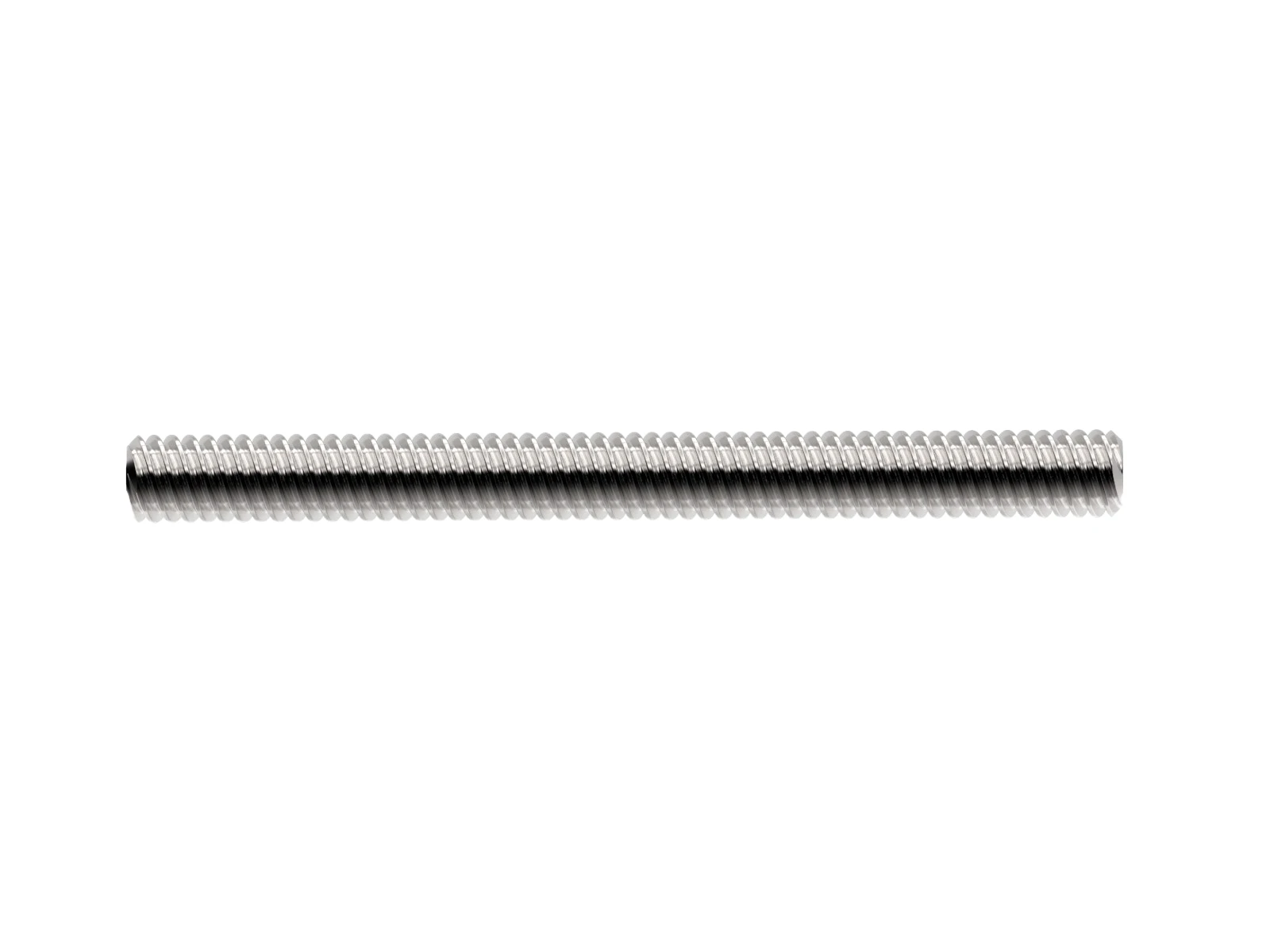

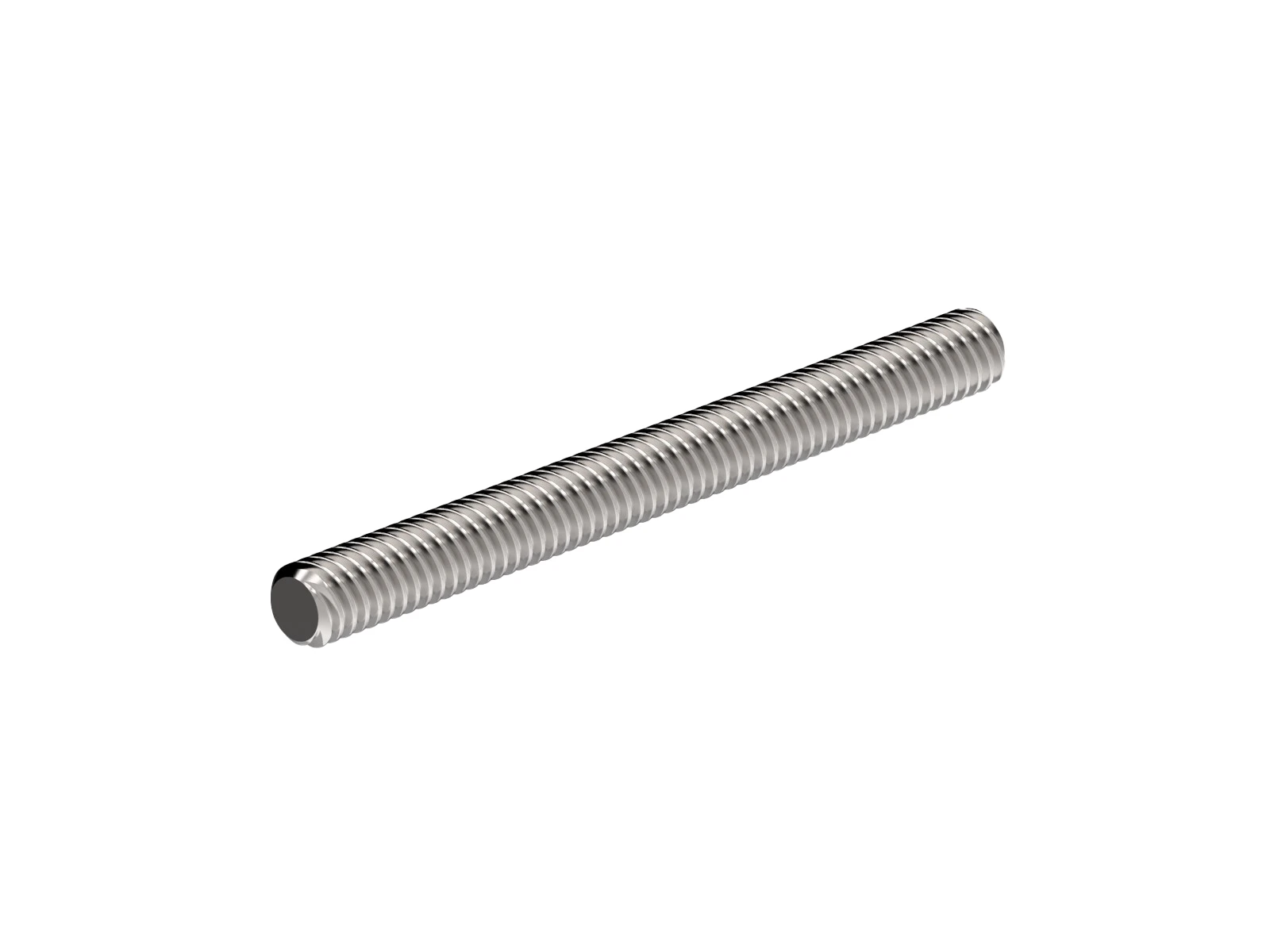

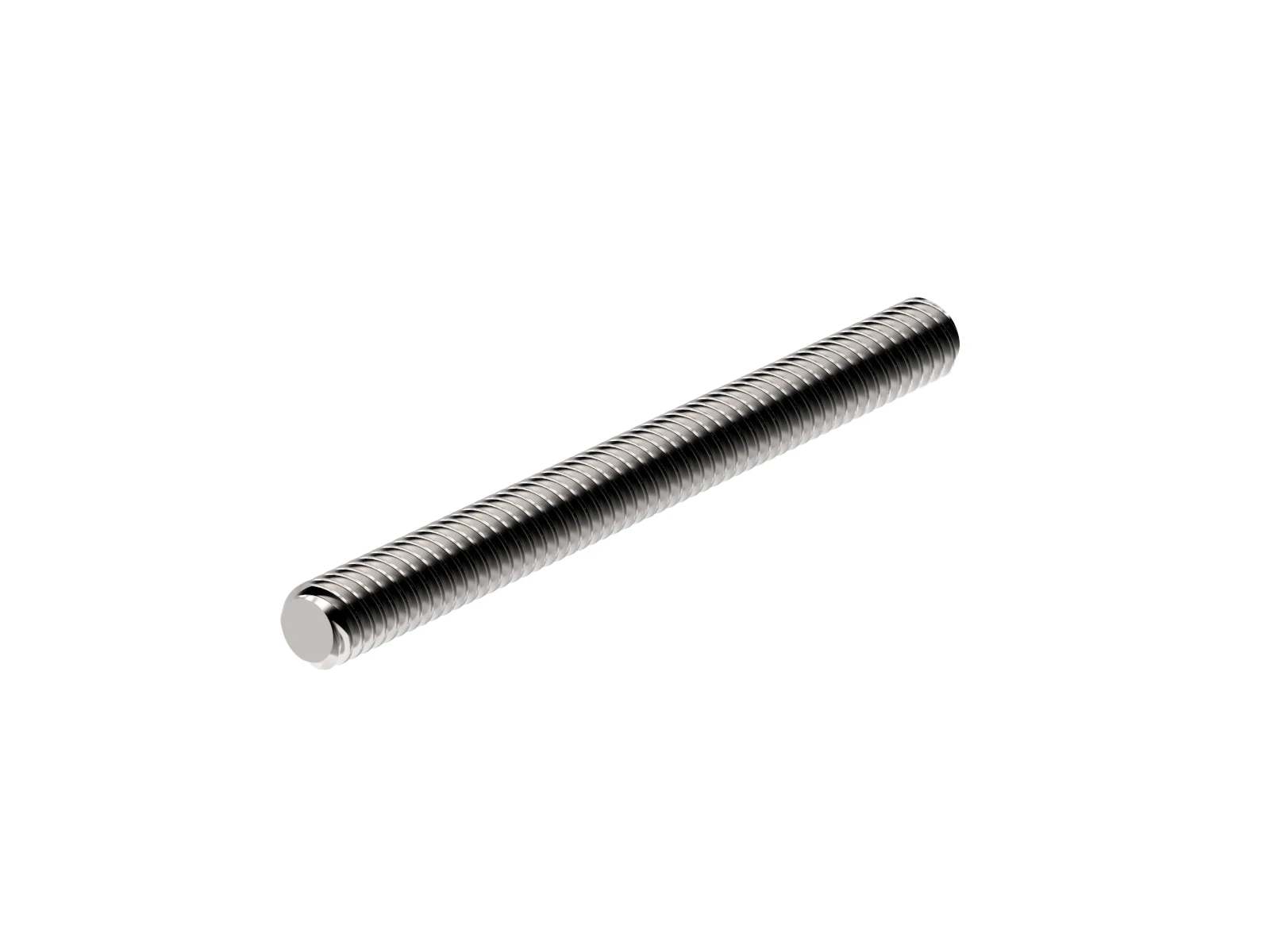

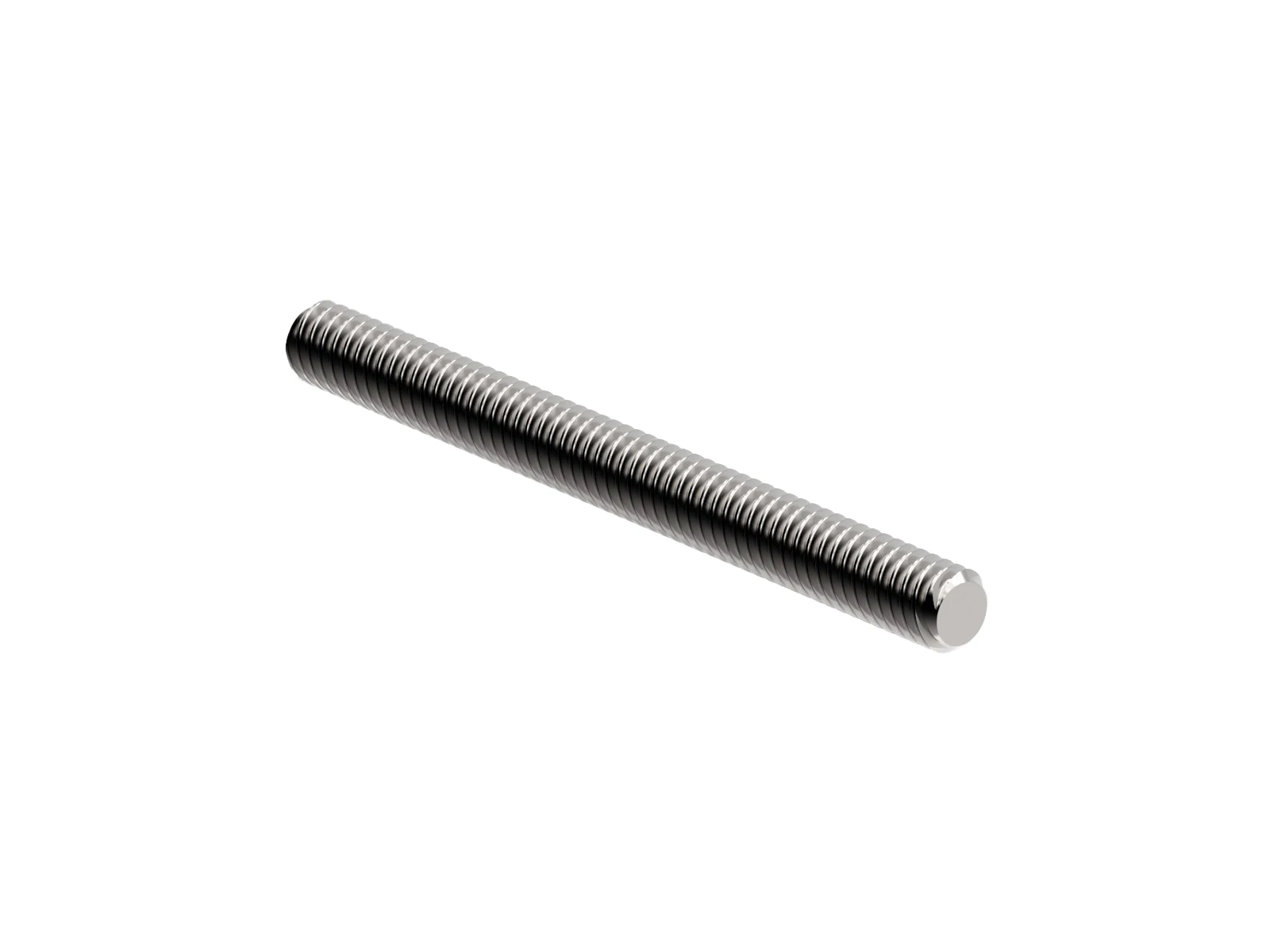

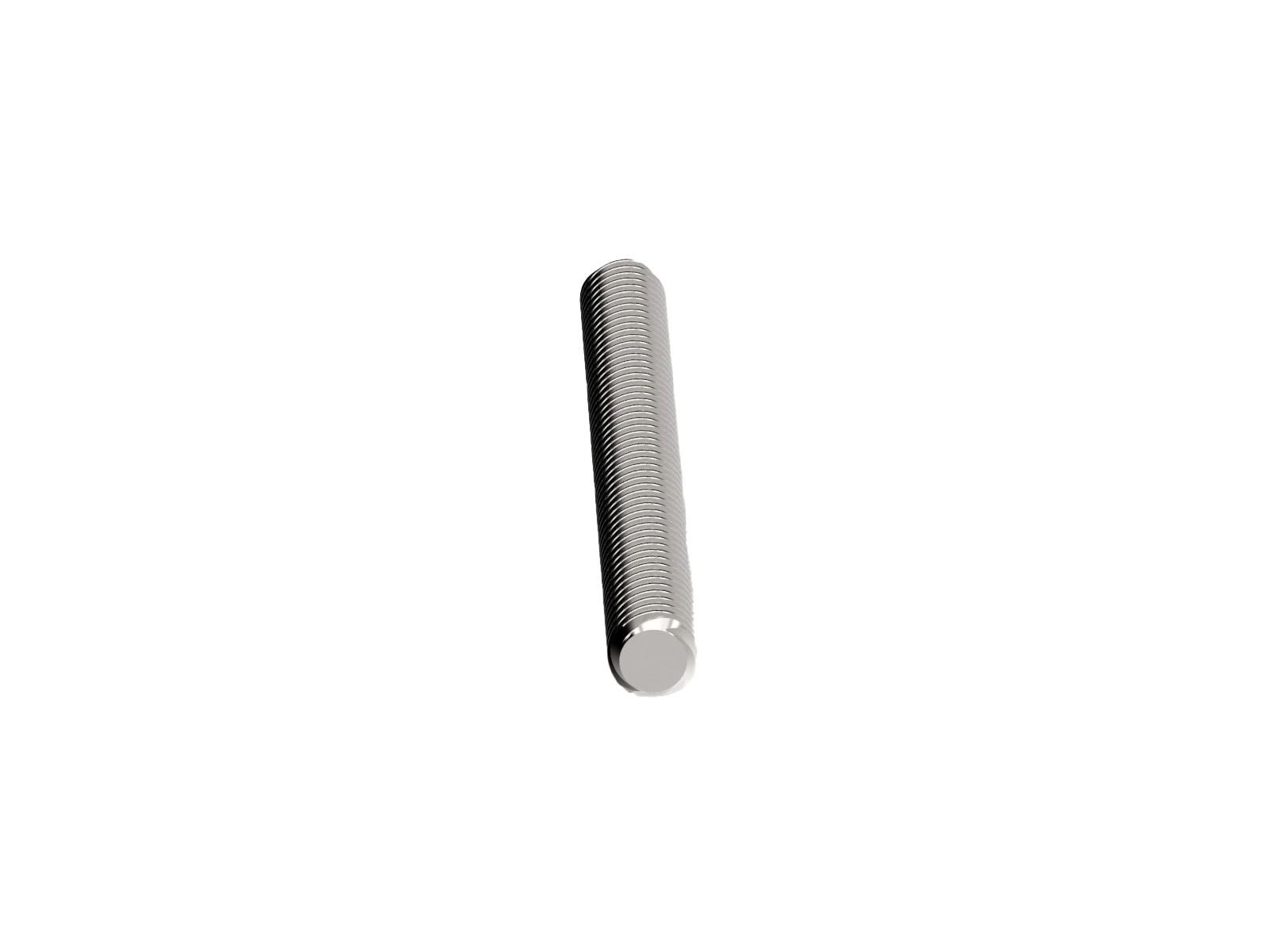

0.32" Diameter x 0.59" Lead - Precision Lead Screw

32590

0.32 inch x 0.59 inch lead screw with 1 start(s), and 0.0003 inch/inch lead accuracy. Screw only. Custom end machining available on request.

Torque, speed & efficiency

Printable specs & data

32590

0.32 inch x 0.59 inch lead screw with 1 start(s), and 0.0003 inch/inch lead accuracy. Screw only. Custom end machining available on request.

Torque, speed & efficiency

Printable specs & data

Weight (lb./ft)0.18

Screw Length (in)6, 12, 18, 24, 30, 36, 42, 48, 54, 60, 66, 72

Screw Length (mm)152.4, 304.8, 457.2, 609.6, 762.0, 914.4, 1066.8, 1219.2, 1371.6, 1524.0, 1676.4, 1828.8

Turns Per Inch1.69

CoatingNo Coating, Yes Coating

MaterialA-4140 Series Alloy Steel, S-300 Series Stainless Steel

Measurement systemImperial

Lead Accuracy (in)0.0003

Lead Accuracy (mm)0.00762

Lead Accuracy +/- (in/in)0.0003

Starts1

Screw Diameter - A (in)0.3

Screw Diameter - A (mm)7.62

Screw Lead (in)0.59

Screw Lead (mm)14.986

Screw Pitch (in)0.59, 0.098

Screw Pitch (mm)14.986, 2.4892

Screw Thread FormAcme

Screw Diameter (in)0.32

Screw Diameter (mm)8.128

Thread DirectionRH, LH
