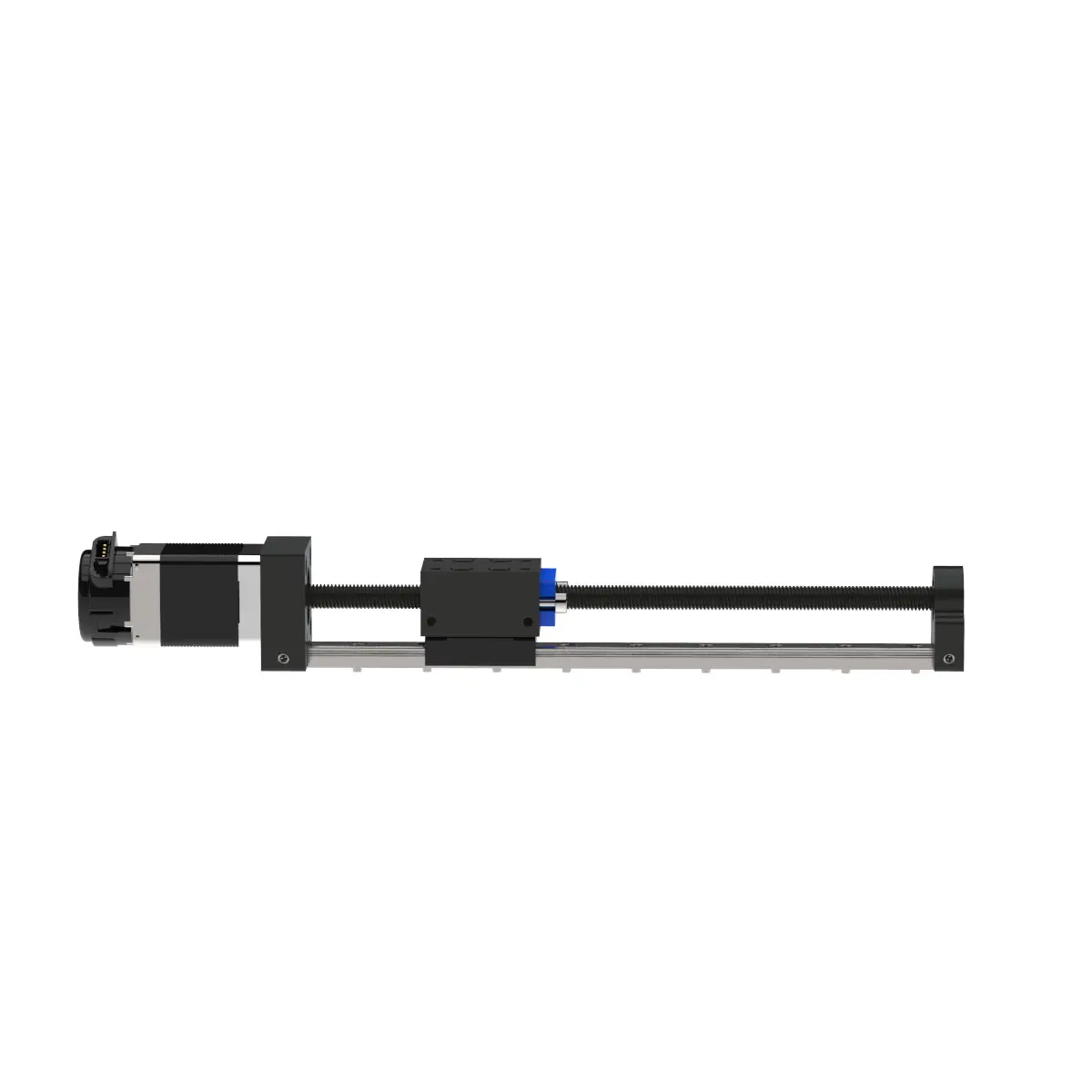

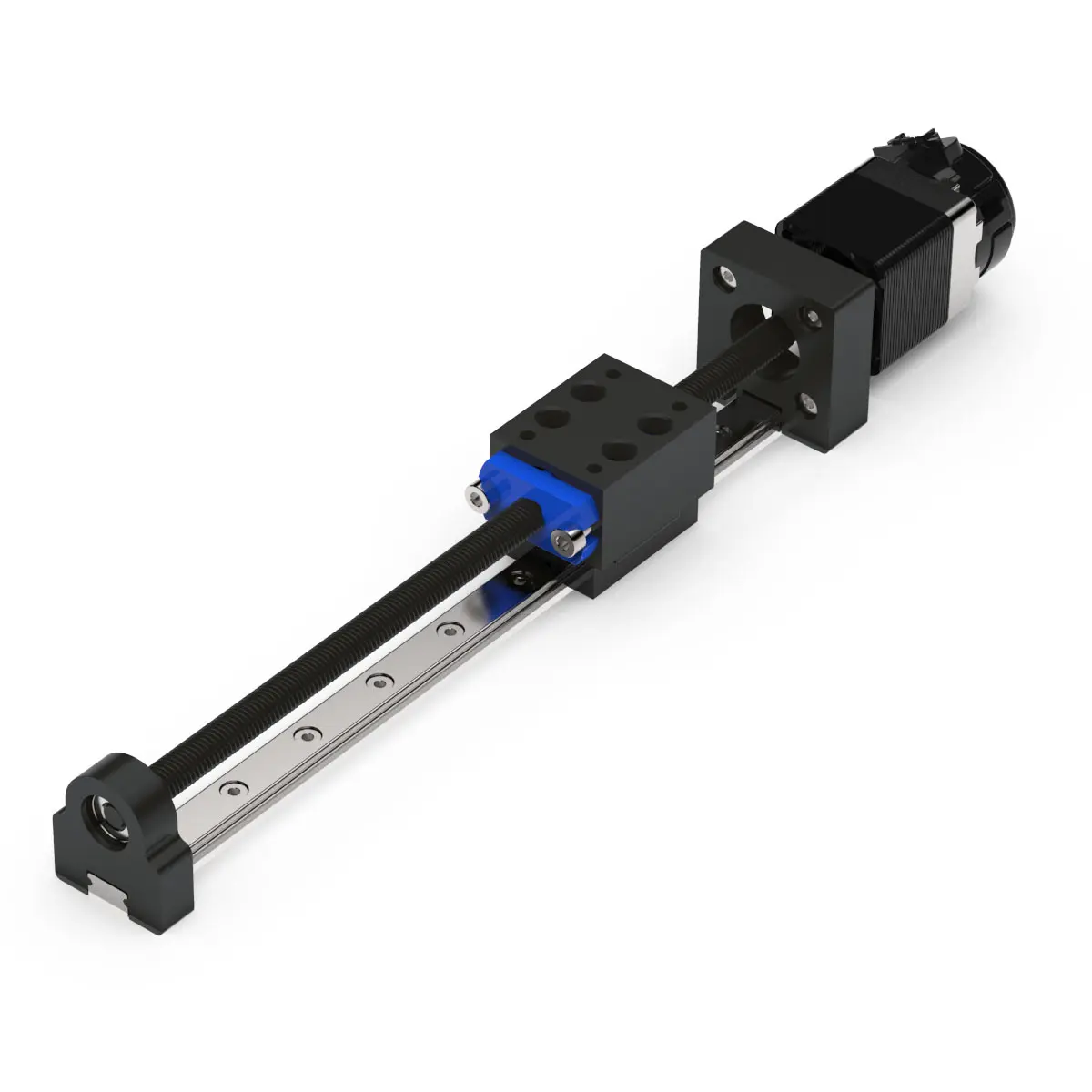

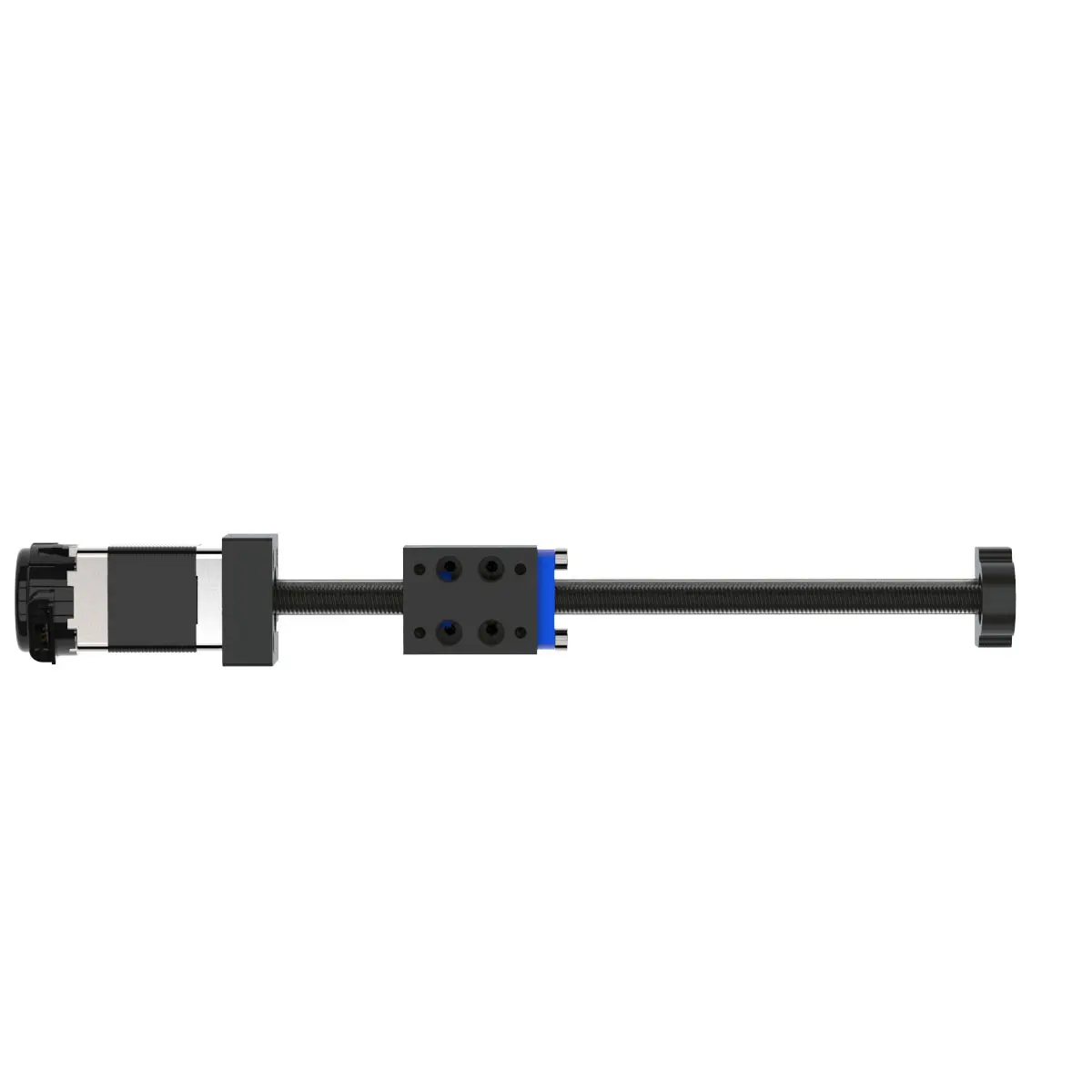

Name: Linear Guide Rail System
SKU: 91892
Price: 771.70 USD
Availability: InStock

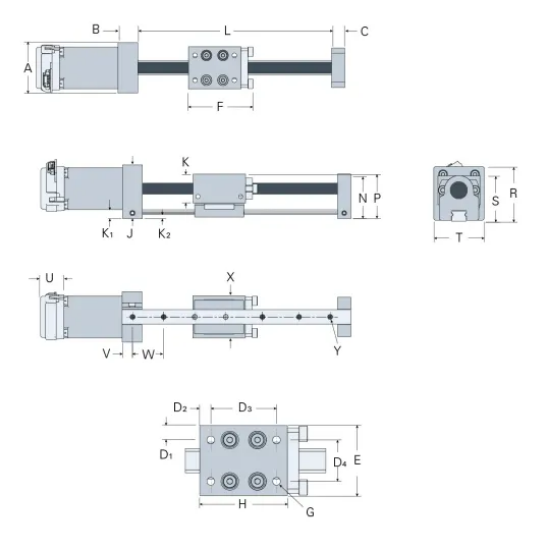

A (in)	0.960
A (mm)	24.384
Actuator Length (in)	2.900
Actuator Length (mm)	73.660
Axial Dynamic Load Capacity (lbs)	35
Axial Static Load Capacity (lbs)	100
B (in)	0.380
B (mm)	9.652
C (in)	0.250
C (mm)	6.350
D2 (in)	0.130
D2 (mm)	3.302
D3 (in)	0.750
D3 (mm)	19.050
D4 (in)	0.470
D4 (mm)	11.938
Diameter Code	18
Diameter D (in)	0.188
Diameter D (mm)	4.763
E (in)	0.800
E (mm)	20.320
Encoder	1000 CPR
F (in)	1.220
F (mm)	30.988
Fz - Dynamic Normal Load (lbs)	200
Fz - Static Normal Load (lbs)	323.7
G	4-40 UNC
G1 (in)	0.130
G1 (mm)	3.302
H (in)	1
H (mm)	25.400
Inductance/Phase (mH)	6.7
K (in)	0.550
K (mm)	13.970
K1 (in)	0.190
K1 (mm)	4.826
K2 (in)	0.050
K2 (mm)	1.270
L (in)	2.900
L (mm)	73.660
Lead (in)	0.039
Lead (mm)	1.001
Lead Code	39
Lead Time	2 Weeks
Length Adder (in)	1.900
Length Adder (mm)	48.260
Motor Size (NEMA)	NEMA 8
Motor Stack	Single Stack
Motor Voltage (V)	5
Motor Weight (g)	43
Motor Weight (oz)	1.5
Mx - Maximum Moment Load (in/lbs)	29
My - Maximum Moment Load (in/lbs)	46
Mz - Maximum Moment Load (in/lbs)	29
N (in)	0.870
N (mm)	22.098
Nut Type	Axial Anti-backlash Nut
P (in)	0.860
P (mm)	21.844
Power Consumption (W)	4.2
R (in)	1.140
R (mm)	28.956
Rated Current (A)	0.24
S (in)	1.040
S (mm)	26.416
Screw Drive Type	Lead Screw
Step Angle (°)	1.8
Temperature Rise (°C)	75
Travel (in)	1
Travel (mm)	25.400
Travel Per Step (in)	0.000
Travel Per Step (mm)	0.005
U (in)	0.450
U (mm)	11.430
V (in)	0.200
V (mm)	5.080
W (in)	0.591
W (mm)	15
Wiring	Bipolar
Wiring Leads	4
X (in)	0.660
X (mm)	16.764
Y (in)	0.090
Y (mm)	2.286
Zero Lash Axial Dynamic Load Capacity (lbs)	5

Linear Guide Rail System PRA-8S5-039-A-2.90-E1000-A
