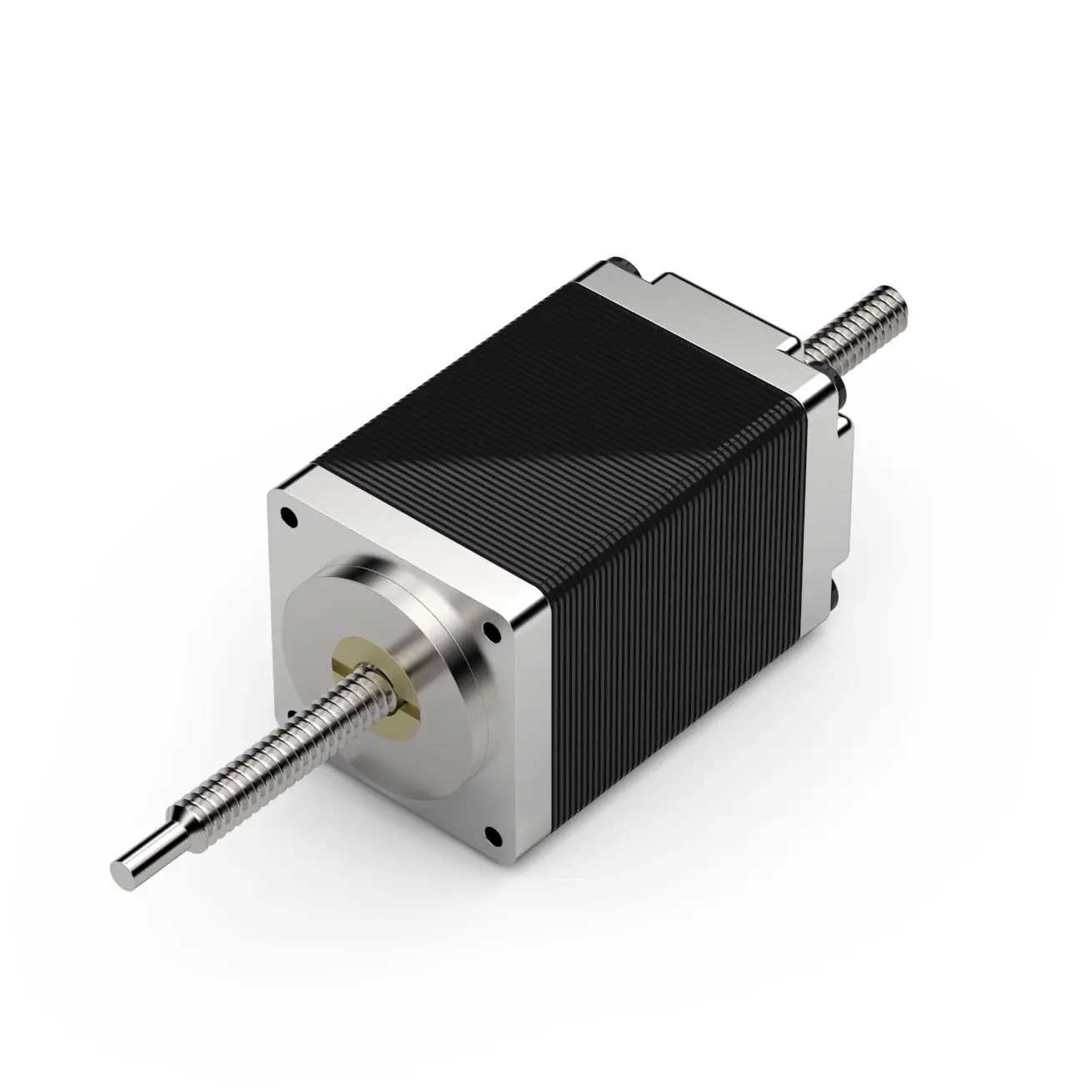

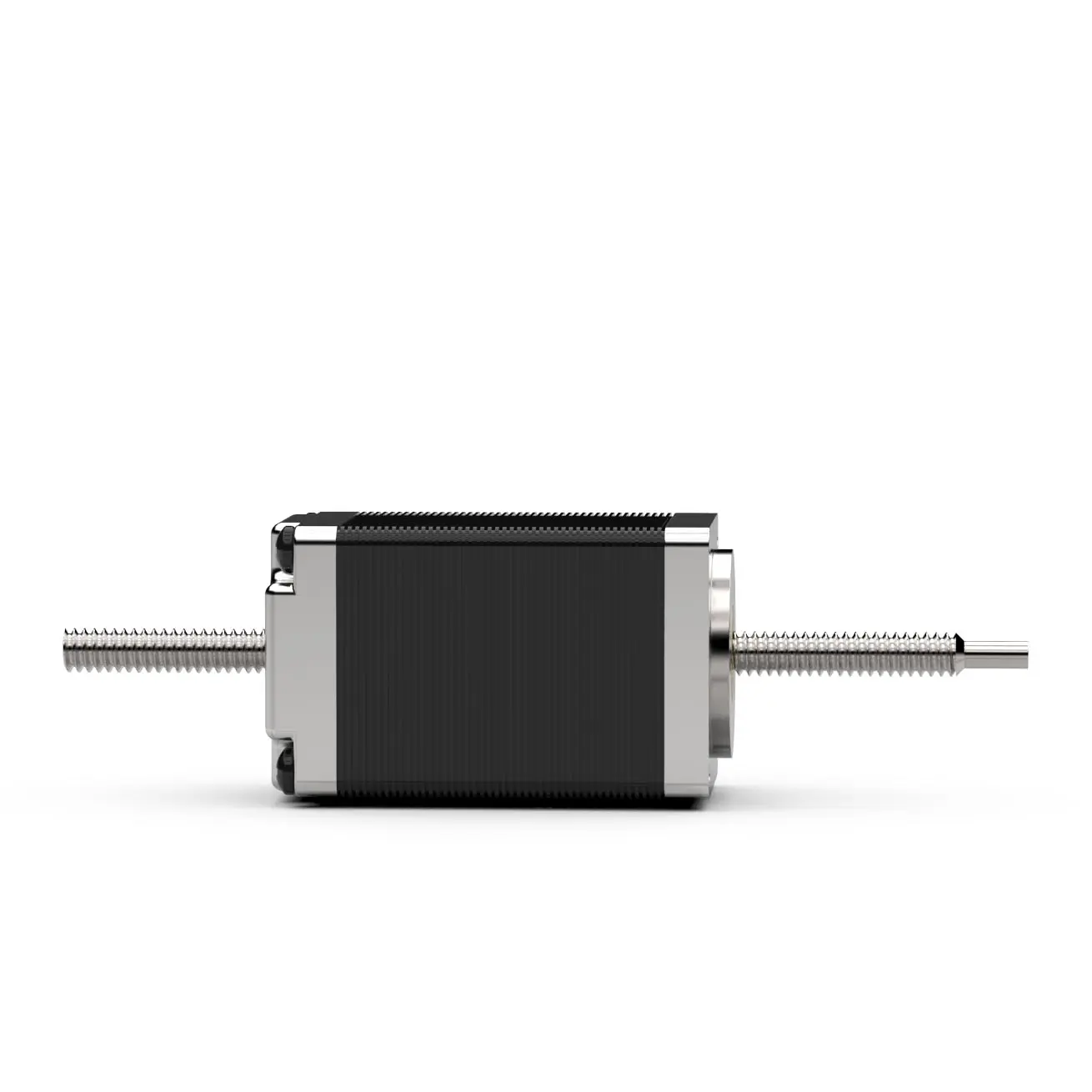

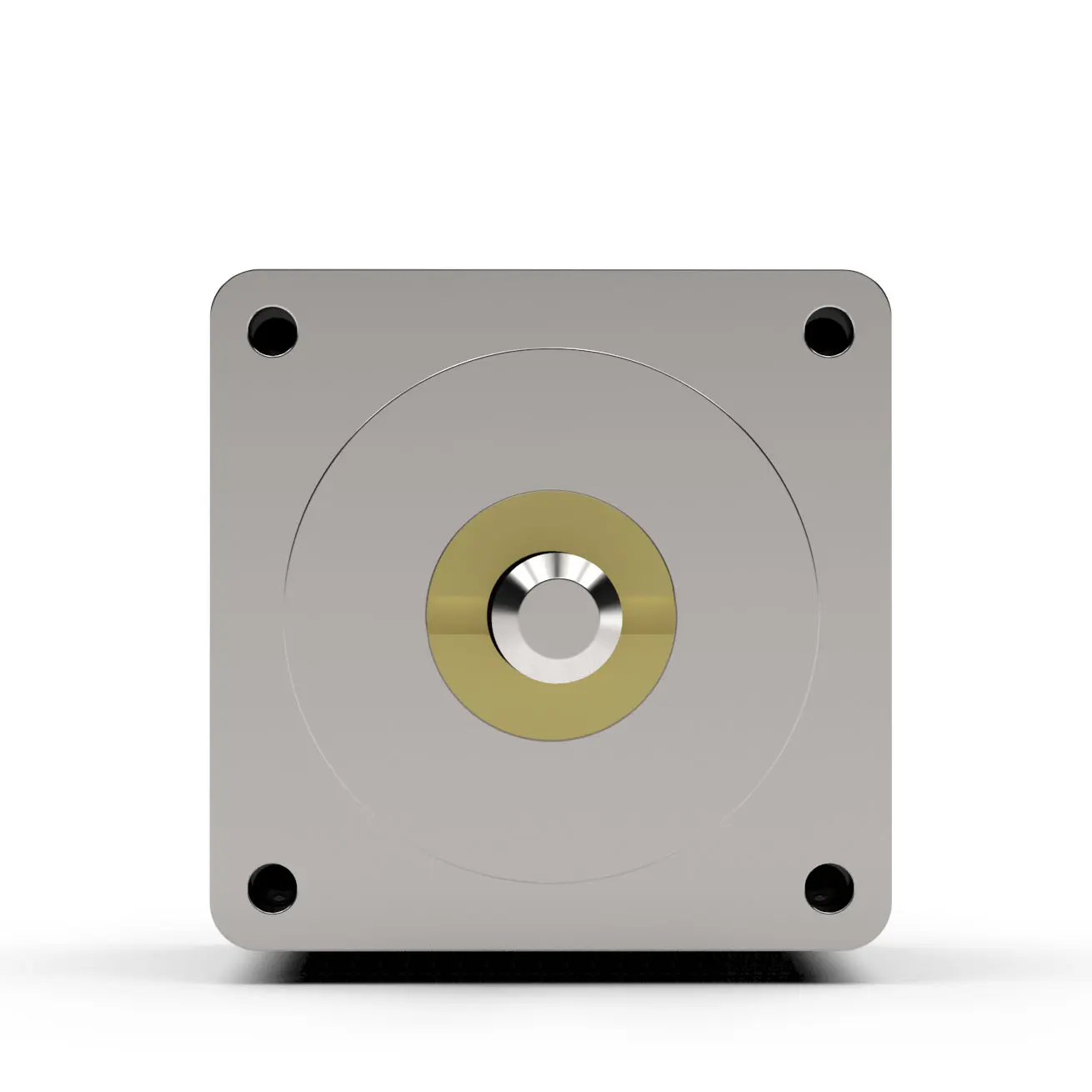

Non-captive Stepper Motor Linear Actuator, SMA-11D5-N-W18025-8.00-ME-R-00

A (in)	36 max
A (mm)	914.4 max
Actuator Style	Non-Captive
Bearing Load Limit (N)	140
D (in)	0.26
D (mm)	6.604
Diameter (in)	0.188
Diameter (mm)	4.763
Diameter Code	W18
E (in)	0.078
E (mm)	1.981
Encoder	Encoder-Ready
End Machining	Metric End Machining
F (in)	0.87
F (mm)	22.098
G (in)	0.188
G (mm)	4.763
Inductance/Phase (mH)	5.8
J (in)	1.11
J (mm)	28.194
K (in)	0.9
K (mm)	22.86
L (in)	1.81
L (mm)	46
Lead (in)	0.025
Lead (mm)	0.635
Lead Code	25
Lead Screw Lead Accuracy +/- (mm/mm)	0.1/300
Lead Time	2 Weeks
M	M2.5
Motor Size (NEMA)	11
Motor Stack	Double Stack
Motor Voltage (VDC)	5
Motor Weight (g)	180
N (in)	0.098
N (mm)	2.5
P (in)	11.81
P (mm)	299.974
Power Consumption (W)	7.5
Q	AWG26#
Rated Current (A)	0.75
Screw Drive Type	Lead Screw
Screw Length (in)	8
Screw Length (mm)	203.2
Step Angle (°)	1.8
Temperature Rise (°C)	75
Temperature Rise (°F)	167
Travel Per Step (in)	0.127
Travel Per Step (mm)	0.005
Wiring	Bipolar
Wiring Leads	4

Non-captive Stepper Motor Linear Actuator SMA-11D5-N-W18025-8.00-ME-R-00
