Nut CodeKTA
Anti-Backlash Nut Life with H10X Coating (in)200 to 250 Million
Anti-Backlash Nut Life without H10X Coating (in)100 to 125 Million
Connection TypeThreaded
D - Thread Size (in)1-1/8-16
Diameter Code55
Dynamic Load Capacity (lb)75
E - Thread Length (in)0.37
Efficiency (%)48.18980416
F - Hex Across Flats (in)1.25
Flange Part No - RoundHF60
Flange Weight (lb)0.14
G - Hex Thickness (in)0.31
Mating Screw Part No055118L, 055118R
Maximum Axial Lash (in)FALSE
Nut Diameter B (in)1.3
Nut Length C (in)2.5

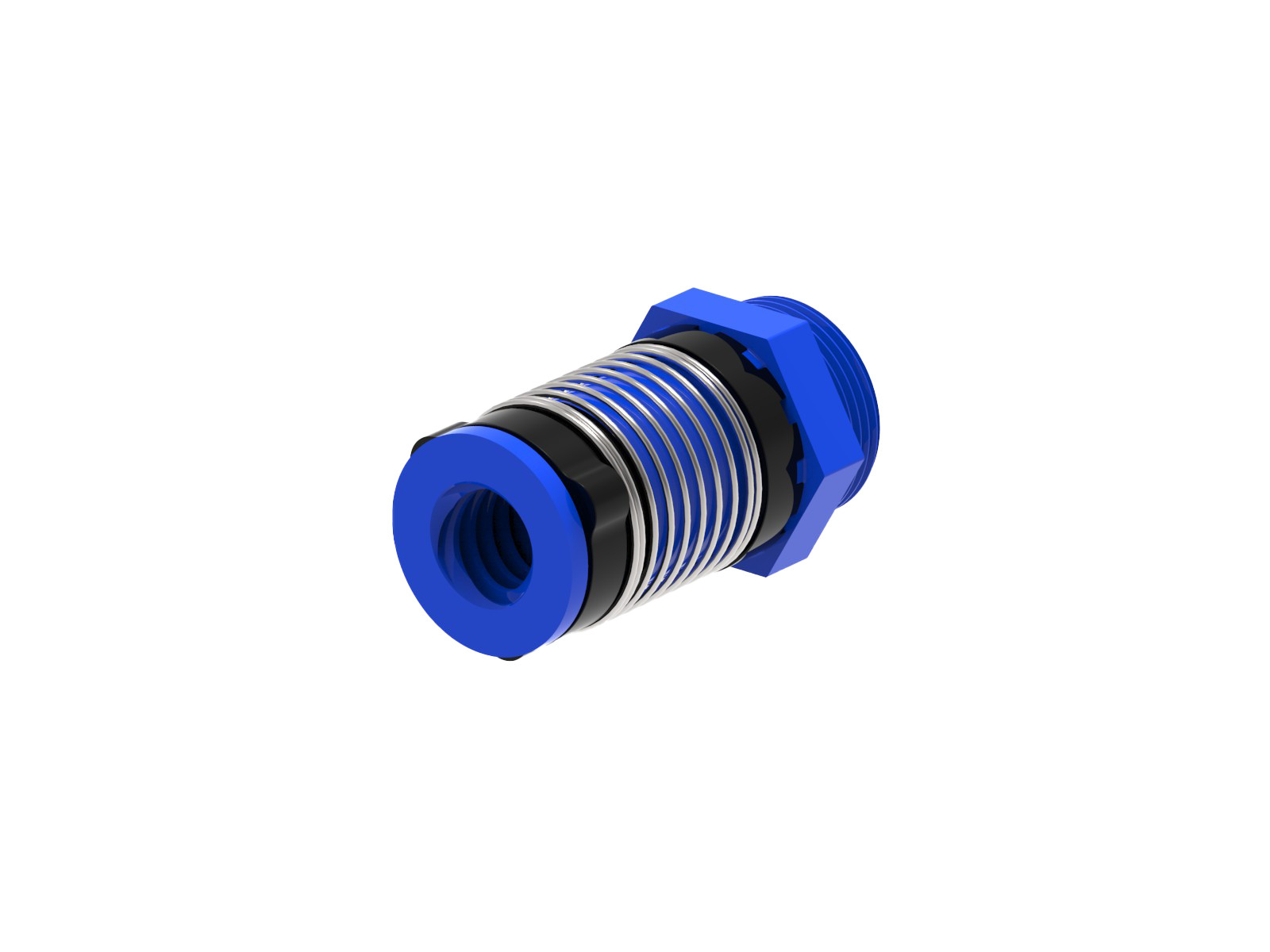

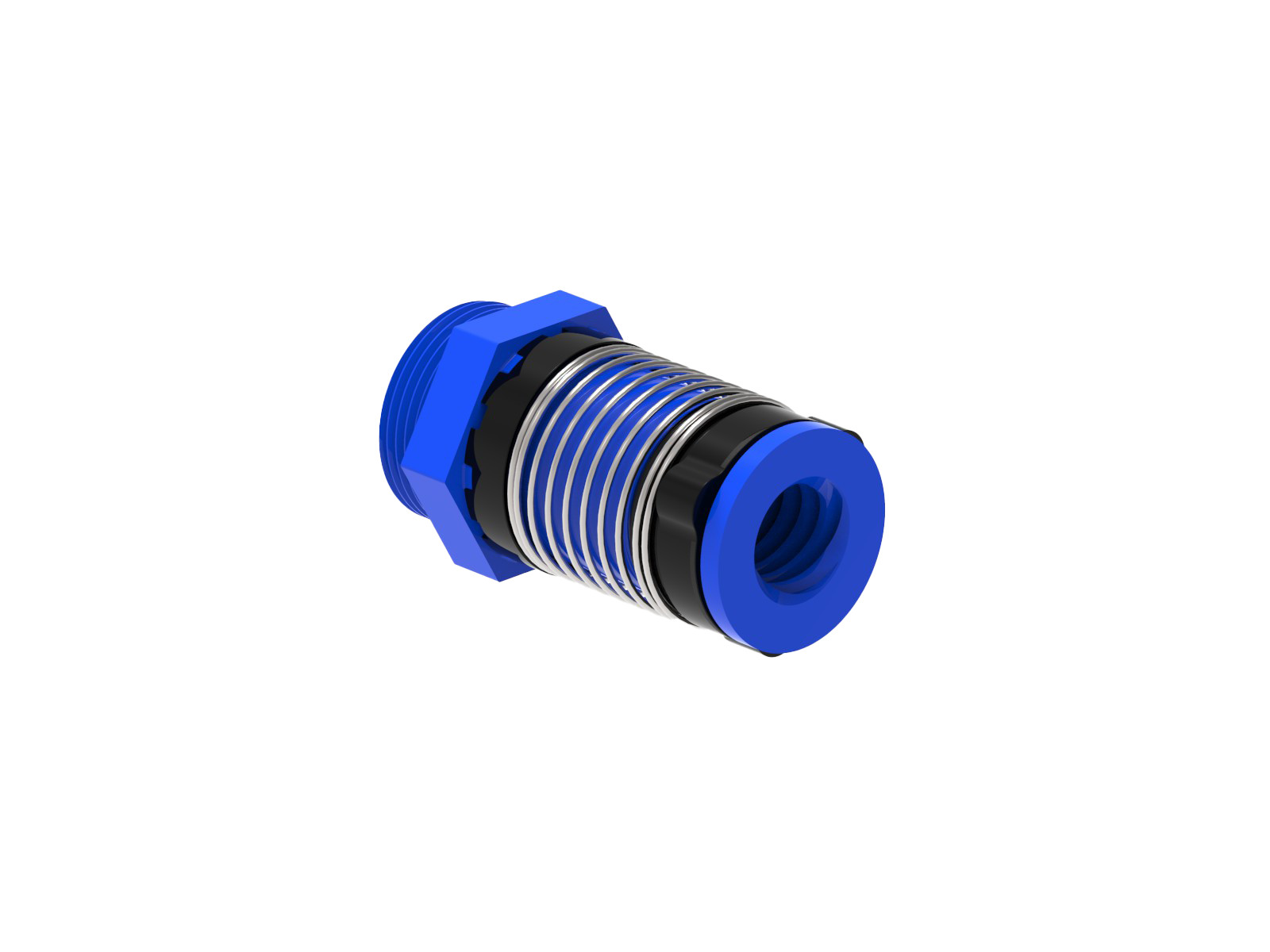

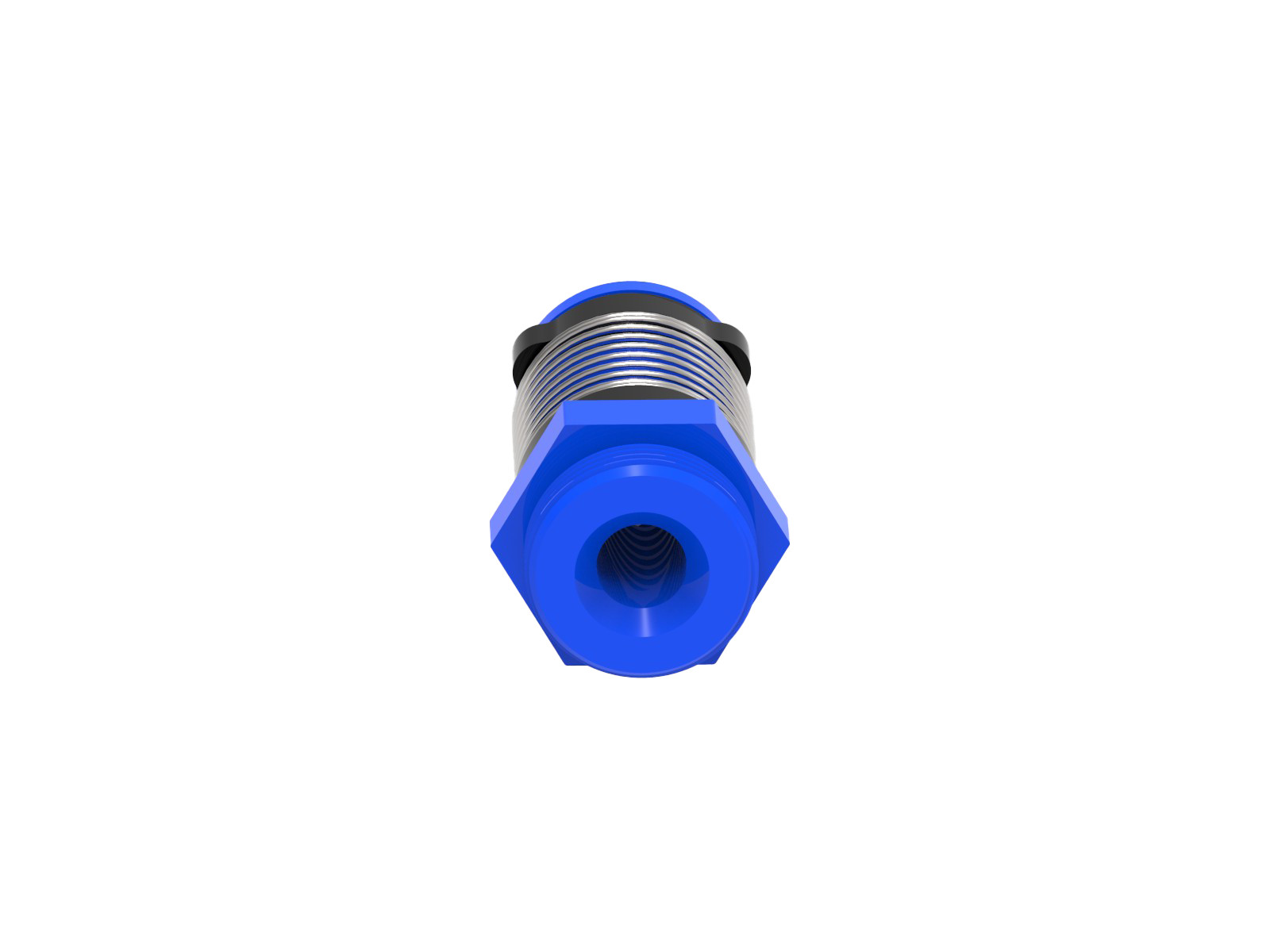

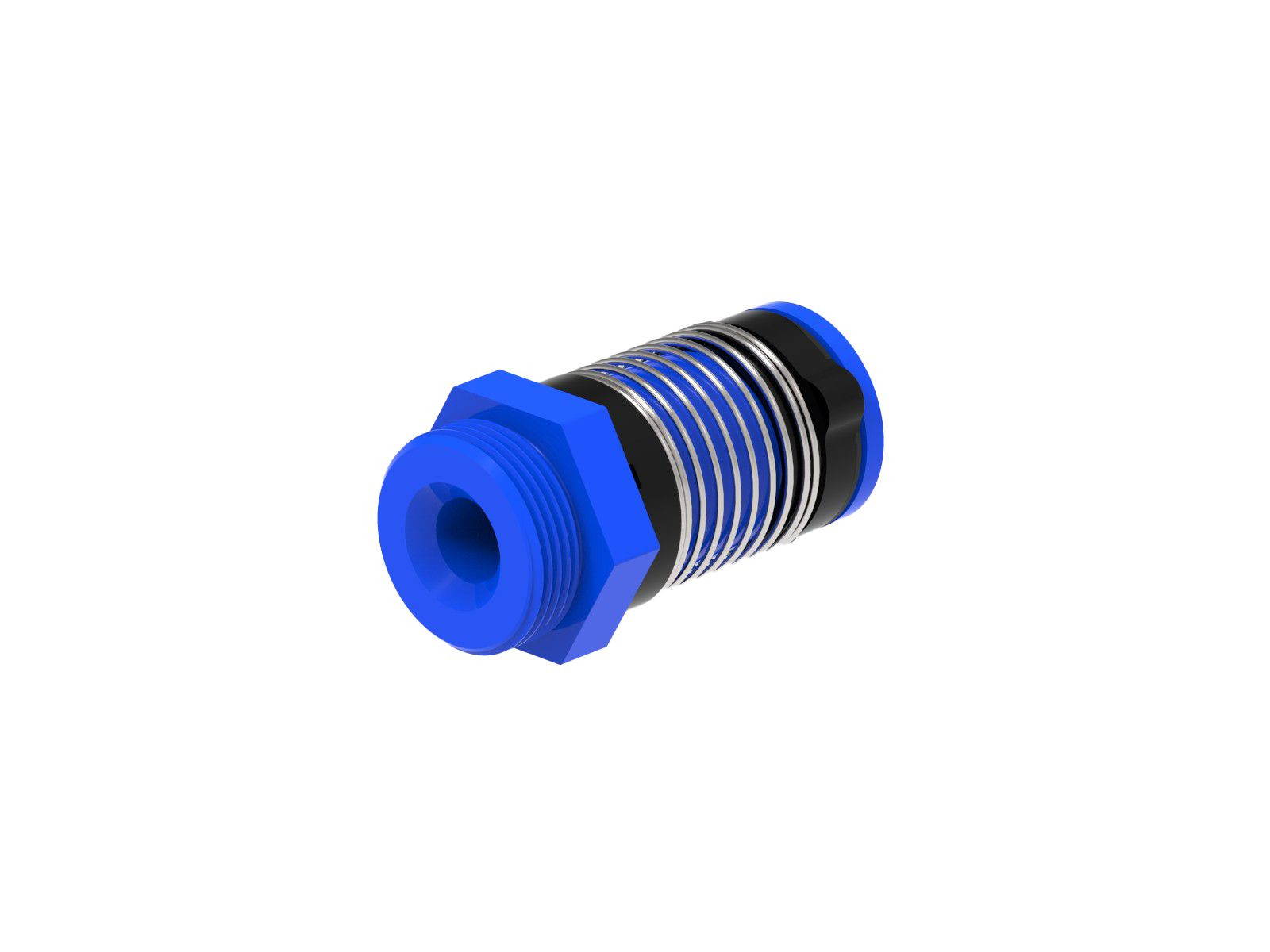

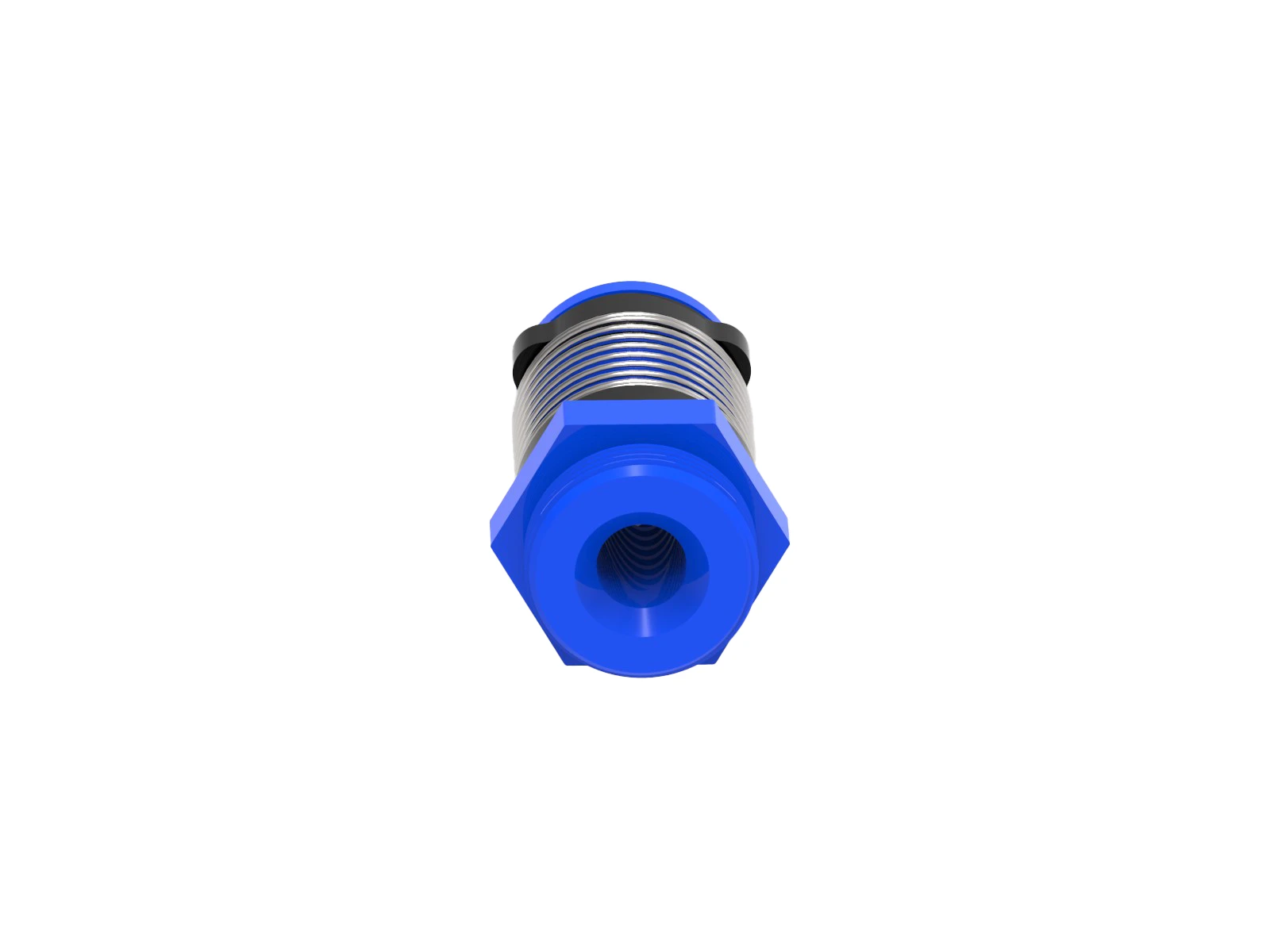

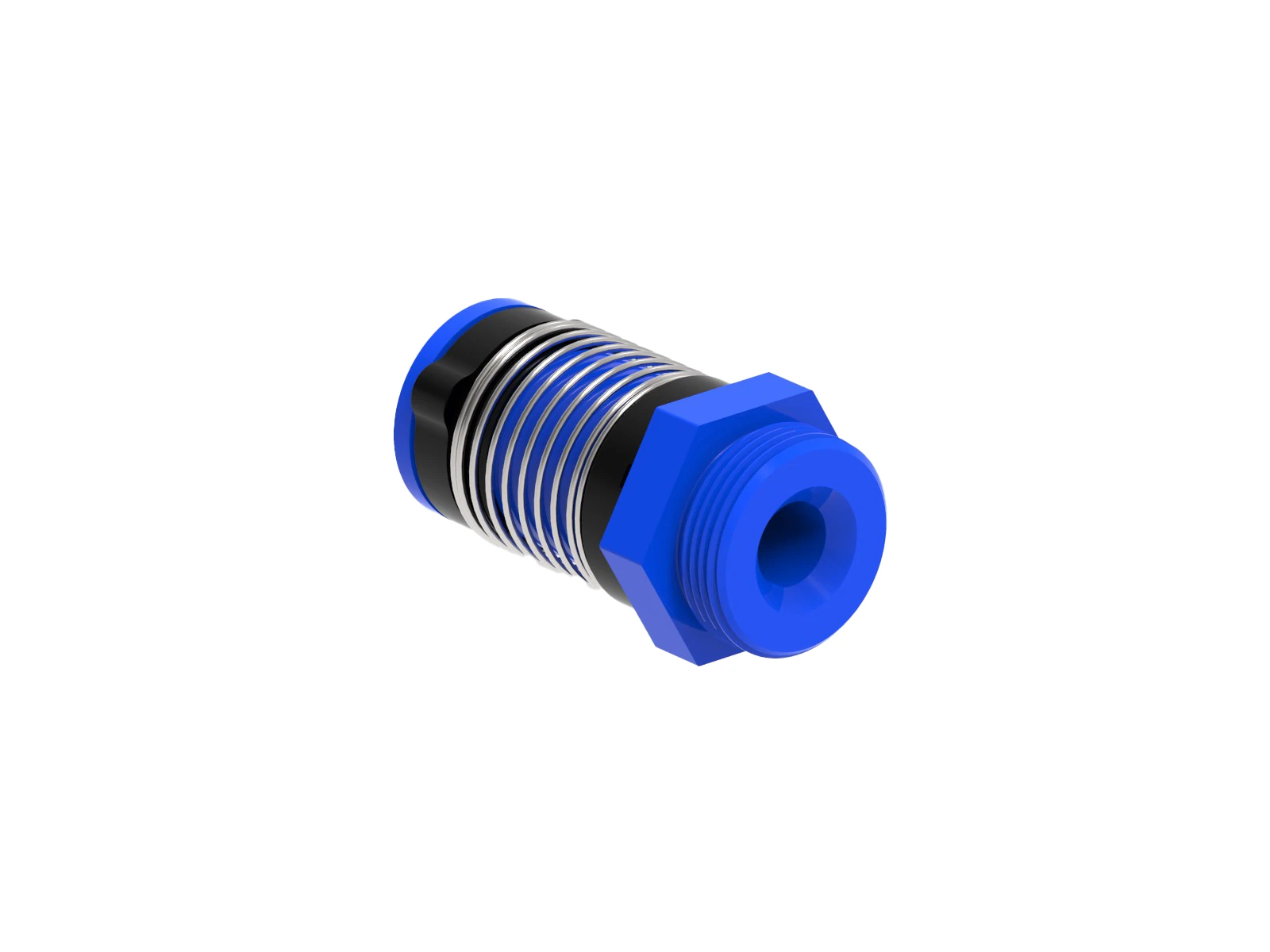

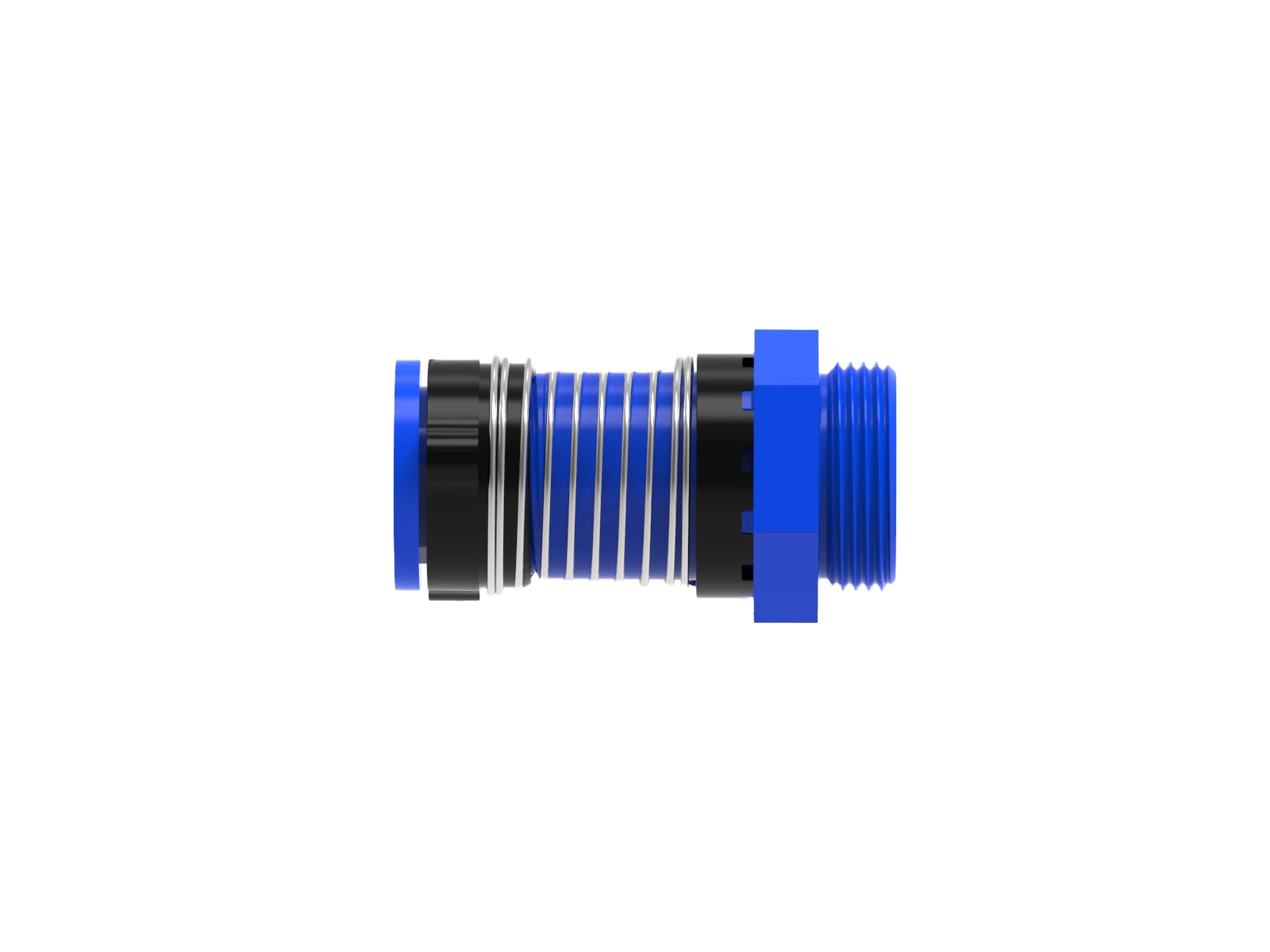

Nut TypeTorsional Anti-Backlash Nut with mounting threads
Nut Weight (lb)0.06
Standard Operating Temperature Range (F°)32-200
