212 Series Linear Slide, 212-8-L30-050100-A23-B | Helix Linear Technologies

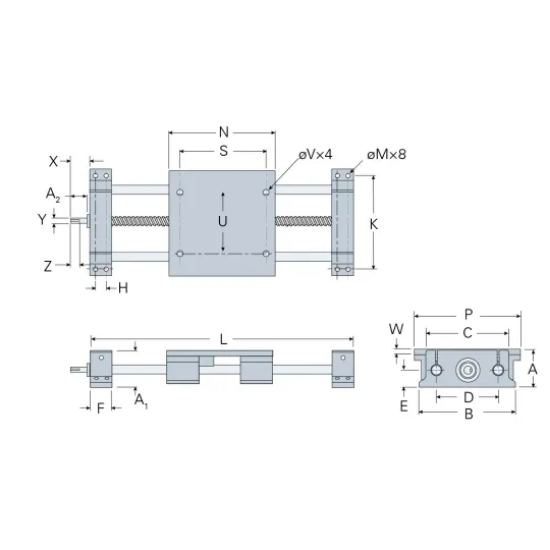

A +/- 0.003 (in)	2.187
A +/- 0.003 (mm)	55.550
Bellows Boot	Yes
L - overall length (in)	30
Lead Time	2 Weeks
Maximum System Load [lbf]	700
Maximum System Load [N]	3113.754
Model Number	212
Motor Adaptor (NEMA)	23
Screw Code	50100
Screw Diameter (in)	0.500
Screw Diameter (mm)	12.700
Screw Lead (in)	0.100
Screw Lead (mm)	2.540
Shaft Diameter (in)	0.500
Support Type	End Supported
Travel (in)	21.500
Travel (mm)	546.100
V (thread)	1?4-20
