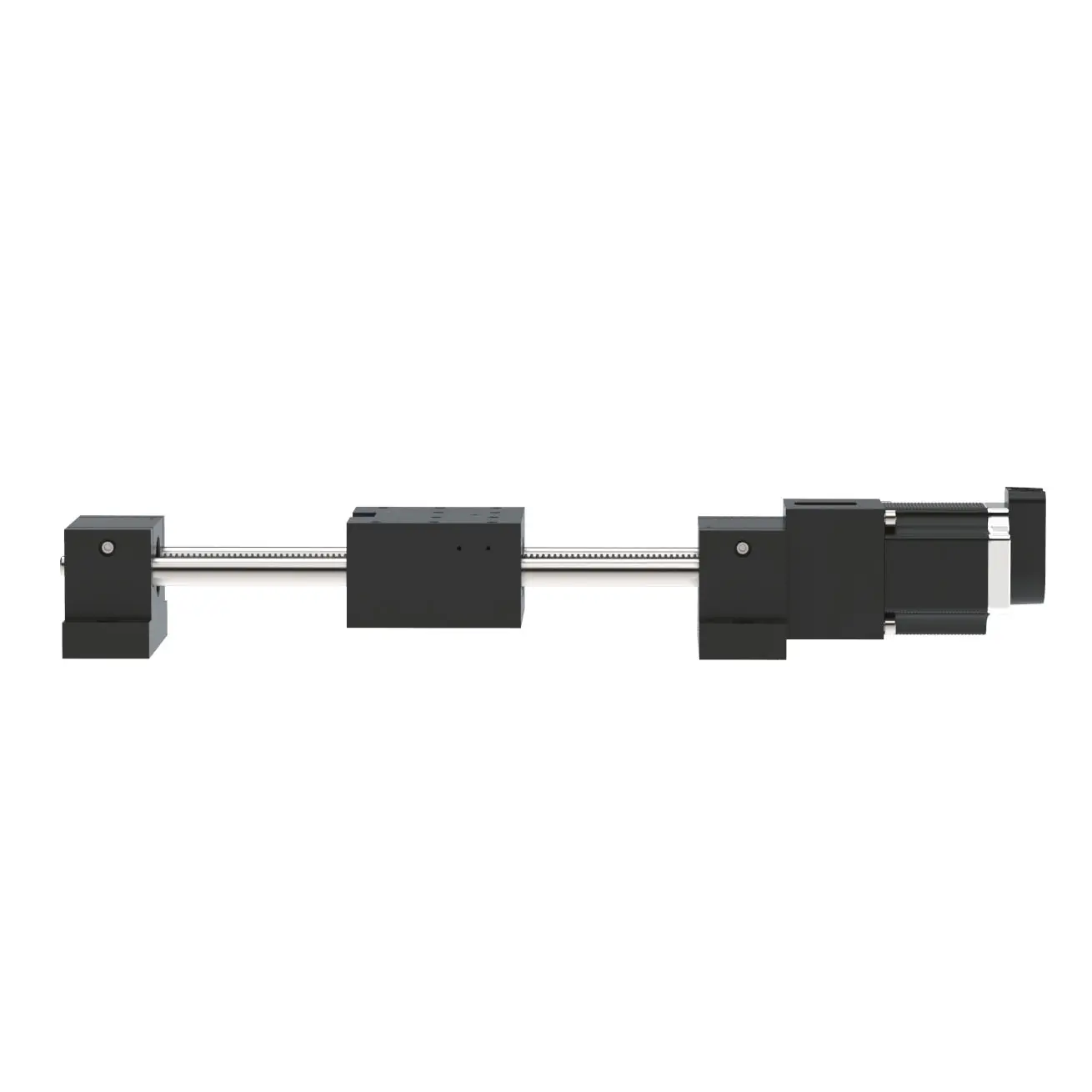

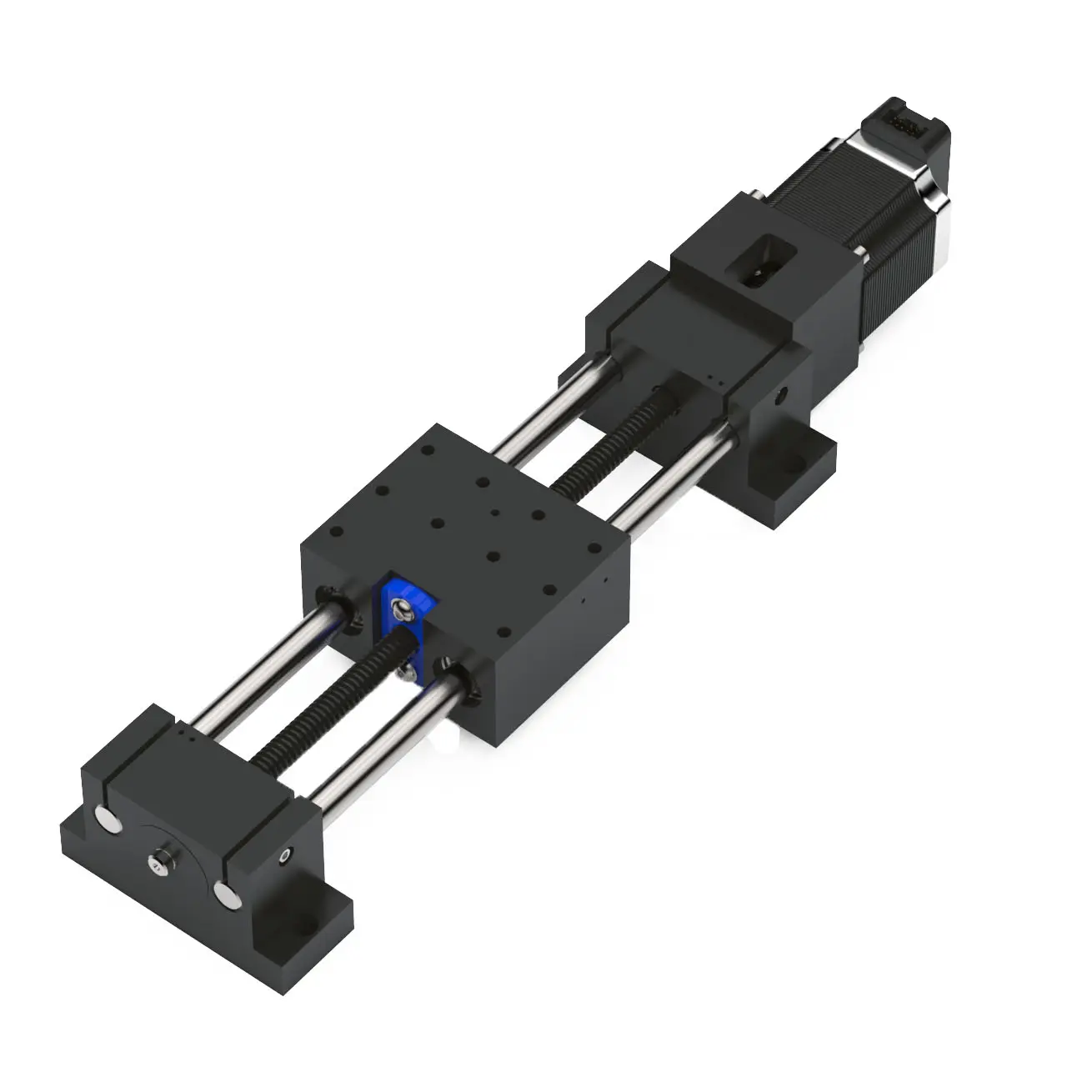

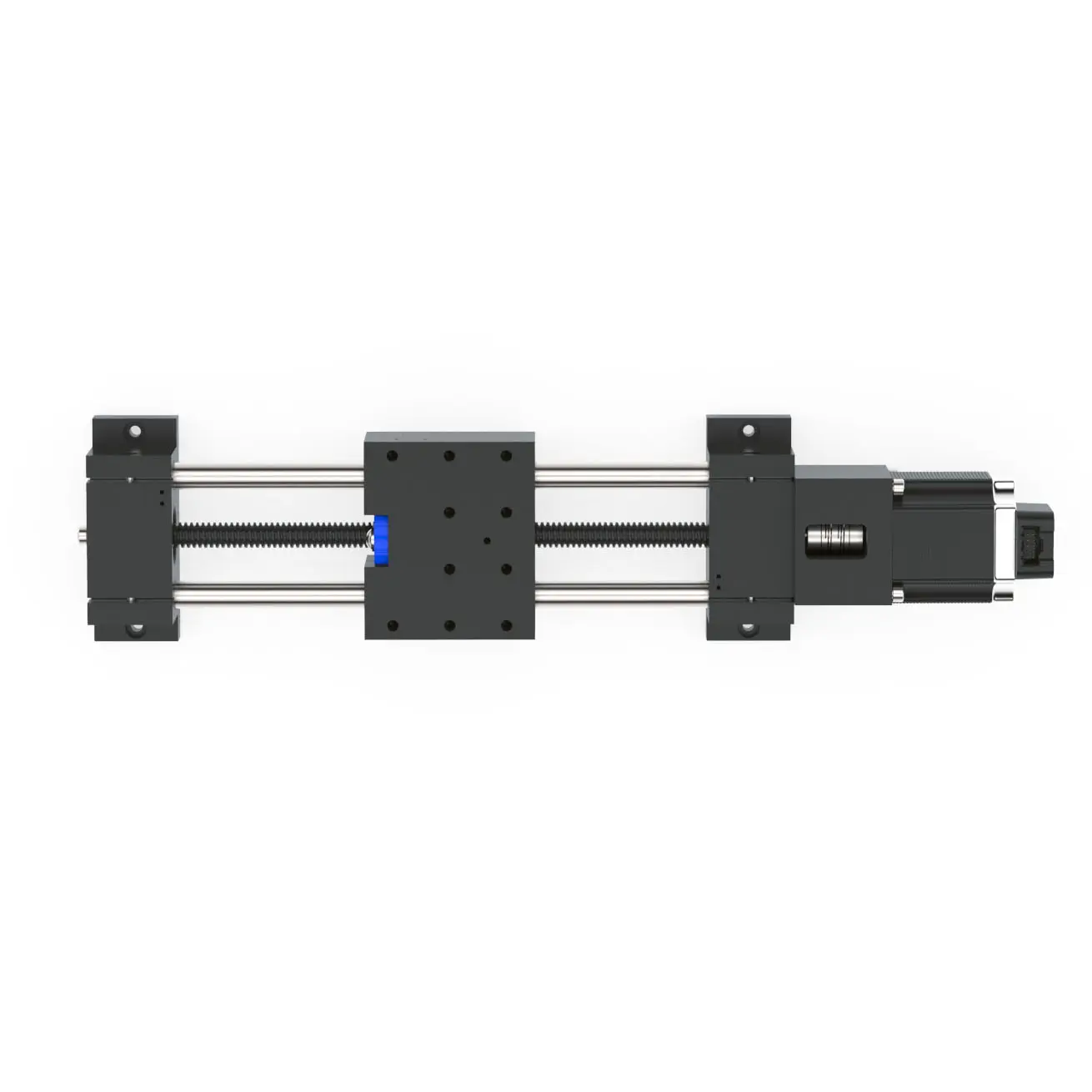

- 300 Series Linear Slide

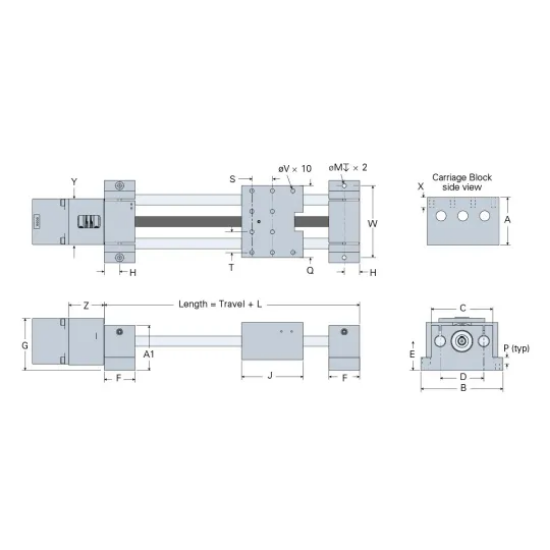

| Carriage Height A (in) | 2.330 |
|---|---|
| Carriage Mounting Hole Internal Thread U | 1/4-20 UNC-2B |
| Encoder | 1000 CPR |
| Encoder Position | A |
| End Sensors | No Sensors |
| Guide Rod Length (in) | 20 |
| Guide Rod Length (mm) | 508 |
| Holding Torque (N-m) | 1.26 |
| Lead Accuracy (in/in) | 0.0003 |
| Lead Code | 25 |
| Lead Time | 2 Weeks |
| Model Number | 323 |
| Motor Length | Double Stack |
| Motor Size (NEMA) | 23 |
| Motor Type | Bipolar |
| Motor Voltage (V) | 3.25 |
| Operating Temperature (°C) | 0 to 93 |
| Rated Current (Amps/Phase) | 2.8 |
| Screw Diameter (in) | 0.500 |
| Screw Diameter (mm) | 12.700 |
| Screw Lead (in) | 0.025 |
| Screw Lead (mm) | 0.635 |
| Screw Material | 300 Series Stainless Steel |
| Screw Type | Lead Screw |
| Step Angle° | 1.8 |
| Travel Per Step (in) | 0.000 |
| Travel Per Step (mm) | 0.003 |
