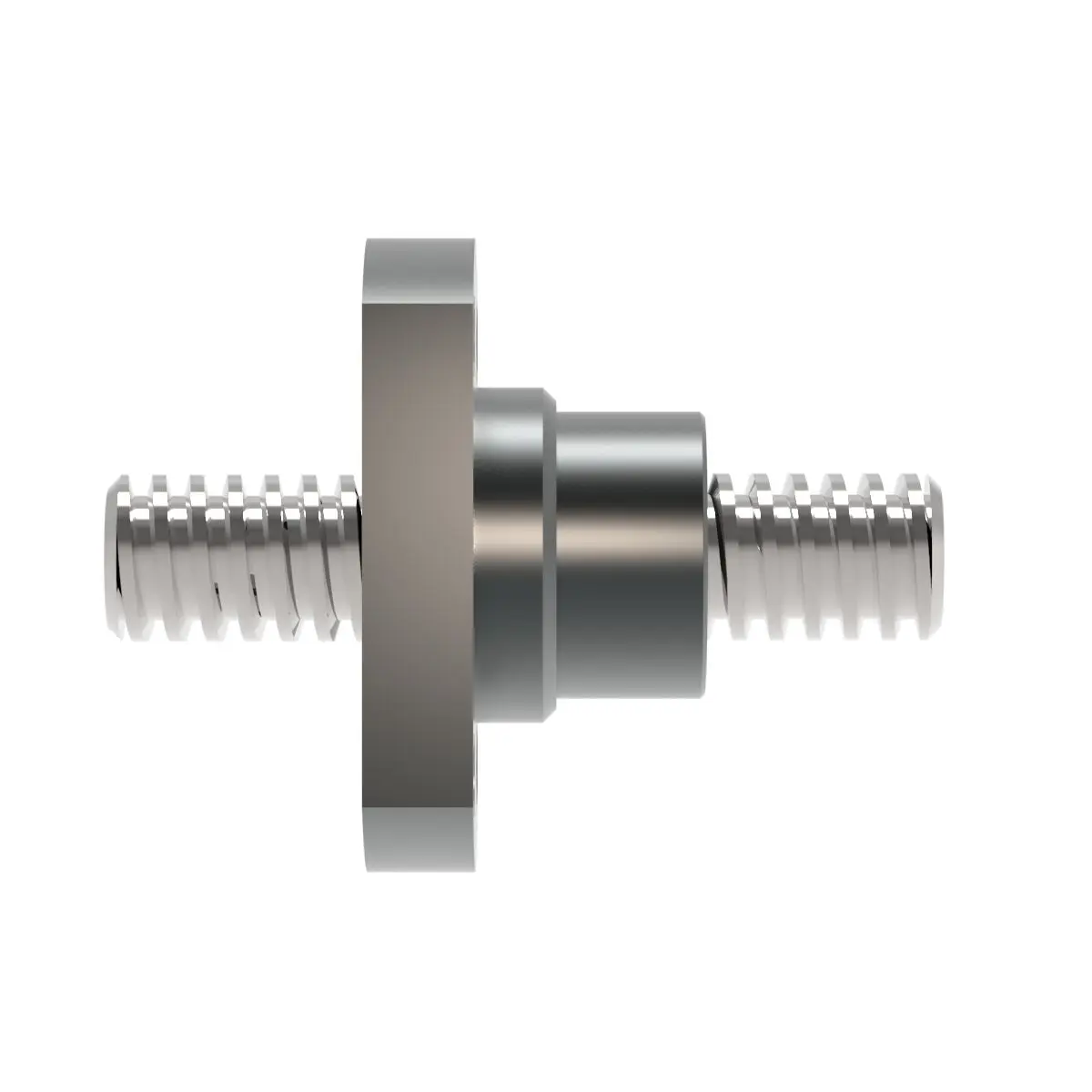

Name: Ball Nut Replacement (BNR)
SKU: 264312
Price: 57.11 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	NA - Typical Backlash 0.003 to 0.011
Connection Type	Flanged

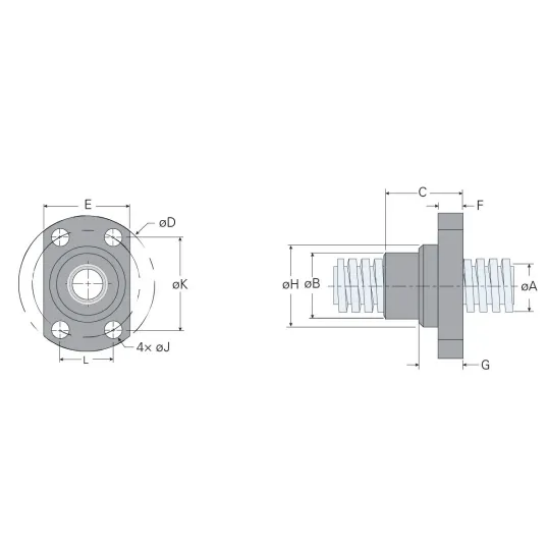

D - Flange Diameter (in)	0.940
Diameter Code	025
Dynamic Load Capacity (lbs)	115
E - Flange Height (in)	0.625
Efficiency (%)	45.12892841
G - Shoulder Height (in)	0.420
H - Shoulder Diameter (in)	0.690
Imperial or Metric	TRUE
J - Mounting Hole Diameter	0.13
K - Mounting Hole Width	0.61
L - Mounting Hole Height	0.35
Lead (in)	0.096
Lead Accuracy +/- (in/in)	0.0003
Lead Code	96
Lead Time	2 Weeks
Material	TPS Heavy Load Resin
Mating Screw Part No	025096R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.250
Nut Code	BNR
Nut Diameter B (in)	0.610
Nut Length C (in)	0.630
Nut Size	2
Nut Type	Standard nut with mounting flange
Nut Weight (lb)	0.02
Pitch (in)	0.048
Pitch (mm)	1.219
Product Category	Lead Screw Nut
Product Sub Category	Ball Nut Repalcement Nut
Product Sub Category 1	Freewheeling
Standard Operating Temperature Range (F°)	32-200
Starts	2
Thread Class	Centralizing
Thread Direction	RH
Thread Type	Modified Acme
Threads Per Inch	20.83333333
Torque to Raise 1 lb. (in-lb)	0.03385605437
Turns Per Inch of Travel (in)	10.417
Type 1,2,3	4
Type 4	3*

Ball Nut Replacement (BNR) BNR025096R
