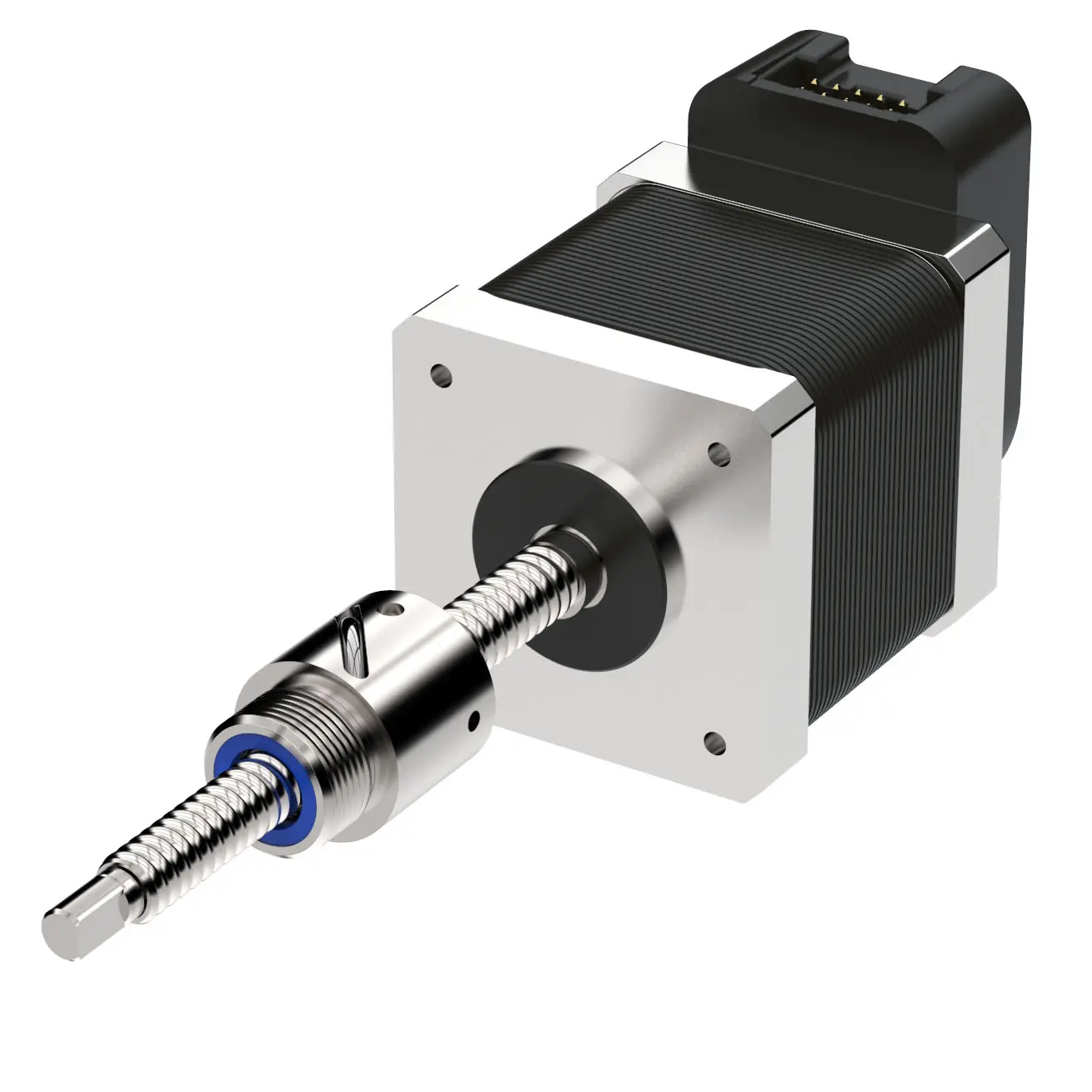

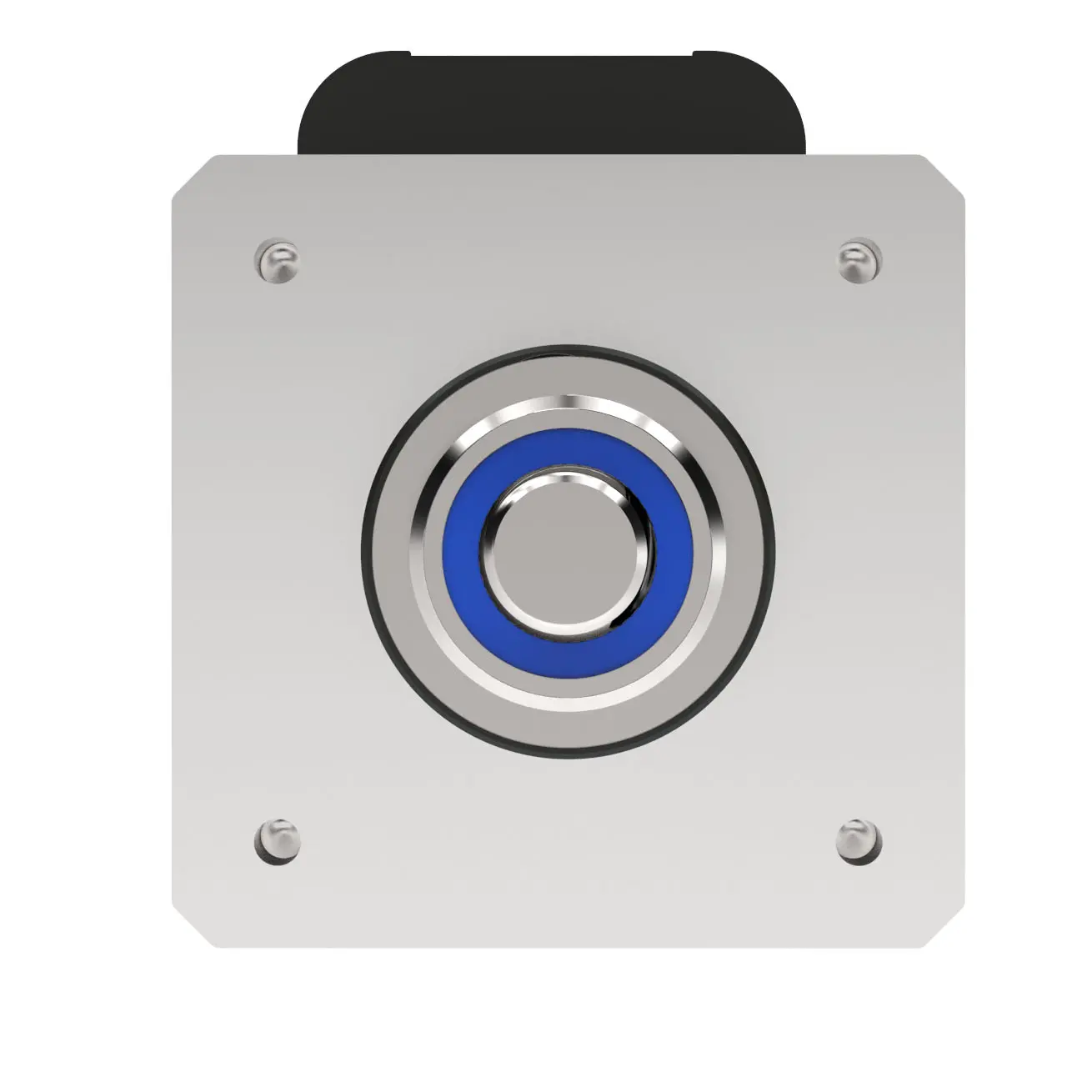

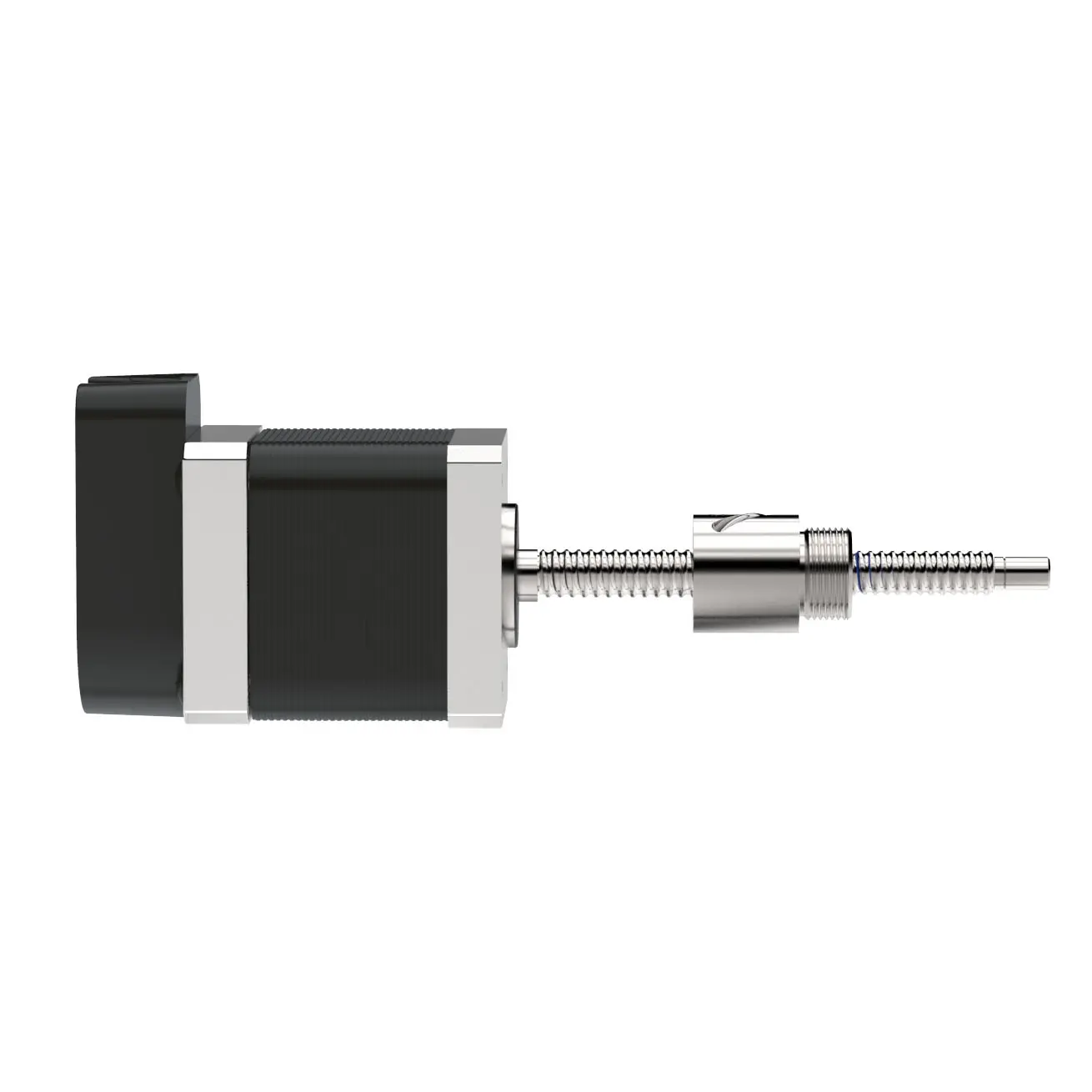

- Ball Screw Actuator
| Actuator Style | External |
|---|---|
| Ball Nut Dynamic Load (N) | 1400 |
| Ball Screw Lead Accuracy +/- (mm/mm) | 0.1/300 |
| Ball Screw Size & Nut Style Code | B08020-FG |
| Ball Screw Size (mm) | 8x2 |
| Bearing Load Limit (N) | 300 |
| Diameter Code | B08 |
| Diameter D (in) | 0.315 |
| Diameter D (mm) | 8 |
| Encoder | 1000 CPR |
| End Machining | 8N End-machining |
| Inductance/Phase (mH) | 7.63 |
| J (in) | AWG26# |
| Lead (in) | 0.079 |
| Lead (mm) | 2 |
| Lead Code | 20 |
| Lead Time | 2 Weeks |
| Motor Length (in) | 1.736 |
| Motor Length (mm) | 44.100 |
| Motor Size (NEMA) | NEMA 17 |
| Motor Stack Type | Double Stack |
| Motor Voltage (VDC) | 5 |
| Nut Type | Threaded Ball Nut |
| Power Consumption (W) | 9.1 |
| Rated Current (A) | 0.91 |
| Screw Drive Type | Ball Screw |
| Screw Length (in) | 31 |
| Screw Length (mm) | 787.400 |
| Step Angle (°) | 1.8° |
| Temperature Rise (°C) | 57 |
| Travel Per Step (in) | 0.010 |
| Travel Per Step (mm) | 0.254 |
| Weight | 240 |
| Wiring | Bipolar |
| Wiring Leads | 4 |
