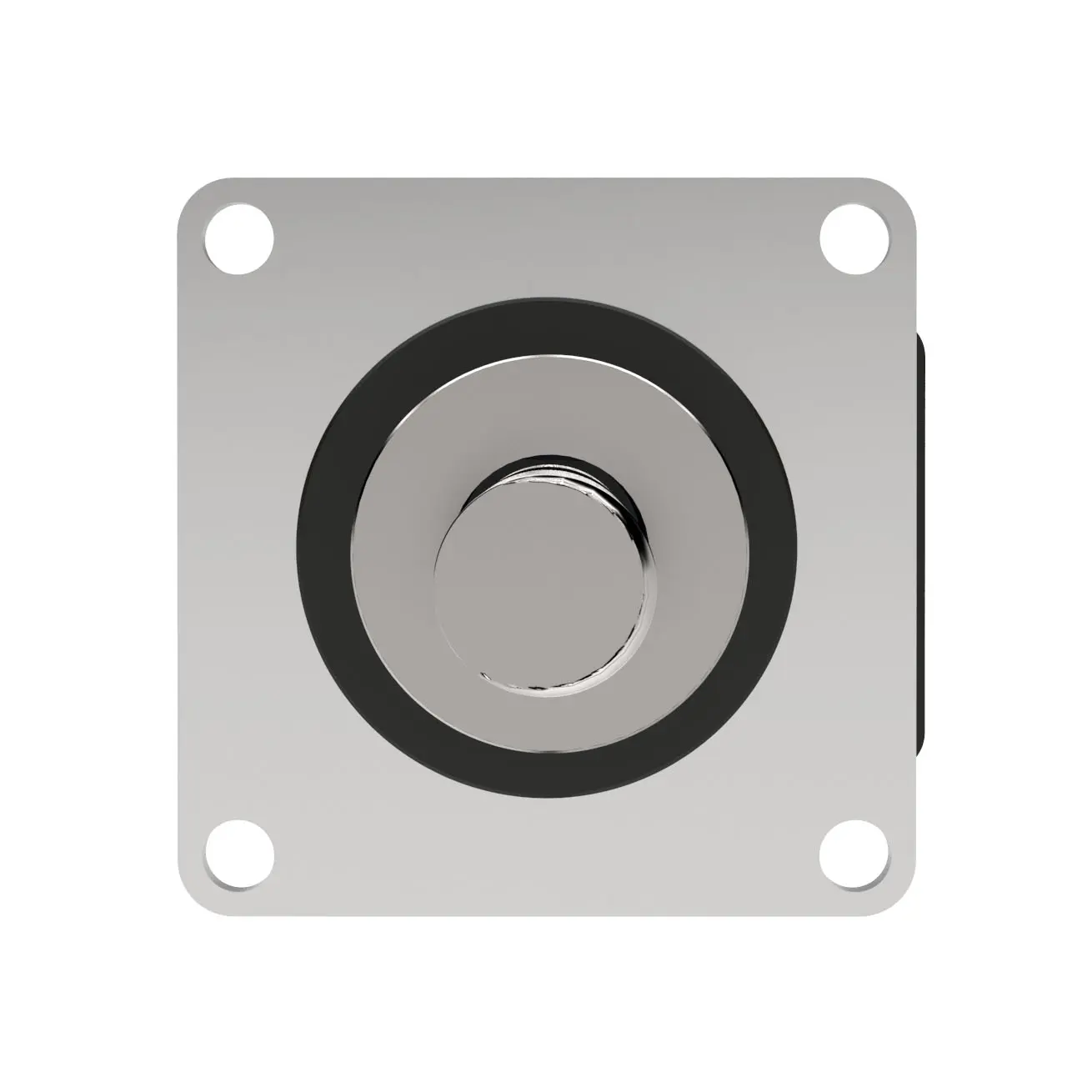

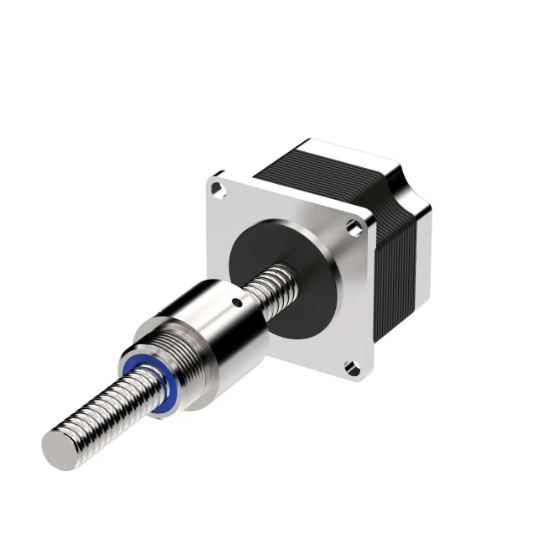

- Ball Screw Actuator
| Actuator Style | External |
|---|---|
| Ball Nut Dynamic Load (N) | 4100 |
| Ball Screw Lead Accuracy +/- (mm/mm) | 0.1/300 |
| Ball Screw Size & Nut Style Code | B10040-FG |
| Ball Screw Size (mm) | 10x4 |
| Bearing Load Limit (N) | 975 |
| Diameter Code | B10 |
| Diameter D (in) | 0.394 |
| Diameter D (mm) | 10 |
| Encoder | No Encoder |
| End Machining | No End-machining |
| Inductance/Phase (mH) | 10.5 |
| J (in) | AWG22# |
| Lead (in) | 0.157 |
| Lead (mm) | 4 |
| Lead Code | 40 |
| Lead Time | 2 Weeks |
| Motor Length (in) | 1.780 |
| Motor Length (mm) | 45.200 |
| Motor Size (NEMA) | NEMA 23 |
| Motor Stack Type | Single Stack |
| Motor Voltage (VDC) | 5 |
| Nut Type | Threaded Ball Nut |
| Power Consumption (W) | 13 |
| Rated Current (A) | 1.3 |
| Screw Drive Type | Ball Screw |
| Screw Length (in) | 31 |
| Screw Length (mm) | 787.400 |
| Step Angle (°) | 1.8° |
| Temperature Rise (°C) | 57 |
| Travel Per Step (in) | 0.020 |
| Travel Per Step (mm) | 0.508 |
| Weight | 511 |
| Wiring | Bipolar |
| Wiring Leads | 4 |
