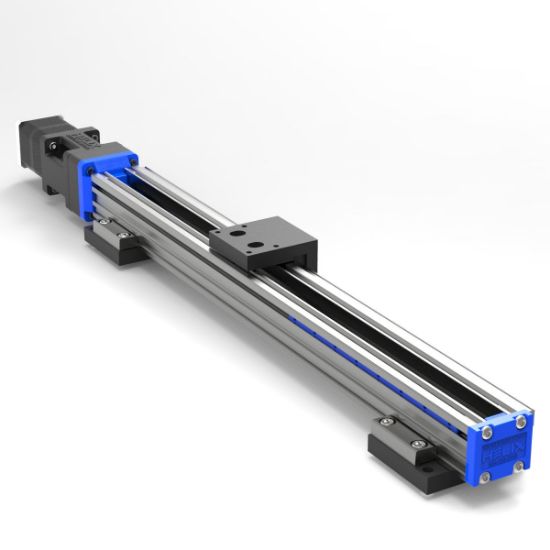

Name: Micro Precision Coupled Motor Linear Actuator (CPA)
SKU: 243368
Price: 996.88 USD
Availability: InStock

A (in)	1.370
A (mm)	35
Actuator Length (in)	17.520
Actuator Length (mm)	445
C (in)	1.360
C (mm)	34.500
Carriage Style	L-shaped
D (in)	1.630
D (mm)	41.400
Diameter Code	37
E (in)	0.250
E (mm)	6.400
Encoder	No Encoder
F (in)	2.060
F (mm)	52.300
Fx - Dynamic Normal Load (lbs)	323.7
Fx - Static Normal Load (lbs)	1256.7
Fy - Axial Dynamic Load Capacity (lbs)	75
Fy - Axial Static Load Capacity (lbs)	350
Fz - Dynamic Normal Load (lbs)	323.7
Fz - Static Normal Load (lbs)	1256.7
G (in)	1.590
G (mm)	40.400
Inductance/Phase (mH)	1.95
J (in)	0.240
J (mm)	6.200
K (in)	1.610
K (mm)	40.600
Lead (in)	0.039
Lead (mm)	0.998
Lead Code	39
Lead Screw Accuracy +/- (in/in)	0.0003
Lead Time	2 Weeks
Linear Guide Supports	1 Rail - Left
M (in)	0.520
M (mm)	13.100
M2 (in)	0.140
M2 (mm)	3.600
Motor Weight (g)	240
Motor Weight (oz)	8.47
Mx - Maximum Moment Load (in/lbs)	239
My - Maximum Moment Load (in/lbs)	386
Mz - Maximum Moment Load (in/lbs)	239
N (in)	0.170
N (mm)	4.200
Number of Runner Blocks	1
Nut Type	Anti-backlash
P (in)	1.420
P (mm)	36
Power Consumption (W)	9.1
Q (in)	0.710
Q (mm)	18
R (in)	1.860
R (mm)	47.400
Rated Current (A)	2
S	M4× 0.7
Screw Diameter (in)	0.375
Screw Diameter (mm)	9.530
Screw Drive Type	Lead Screw
Series	CPA
Step Angle (°)	1.8
T (in)	1.750
T (mm)	44.500
Travel (in)	15.750
Travel (mm)	400
U (in)	1.380
U (mm)	34.900
V (in)	0.440
V (mm)	11.100
W (in)	1.190
W (mm)	30.200
Wiring	Bipolar
Wiring Leads	4
X1 (in)	0.252
X1 (mm)	6.400
X2 (in)	0.189
X2 (mm)	4.800
X3 (in)	2
X3 (mm)	50.800
X4 (in)	0.217
X4 (mm)	5.500
Y1 (in)	2.374
Y1 (mm)	60.300
Y2 (in)	2
Y2 (mm)	50.800
Y3 (in)	0.374
Y3 (mm)	9.500
Z1 (in)	0.705
Z1 (mm)	17.900
Z2 (in)	1.500
Z2 (mm)	38.100
Zero Lash Axial Dynamic Load Capacity (lbs)	8

Micro Precision Coupled Motor Linear Actuator (CPA) CPA-C-039-AB-14-445-D-00-S
