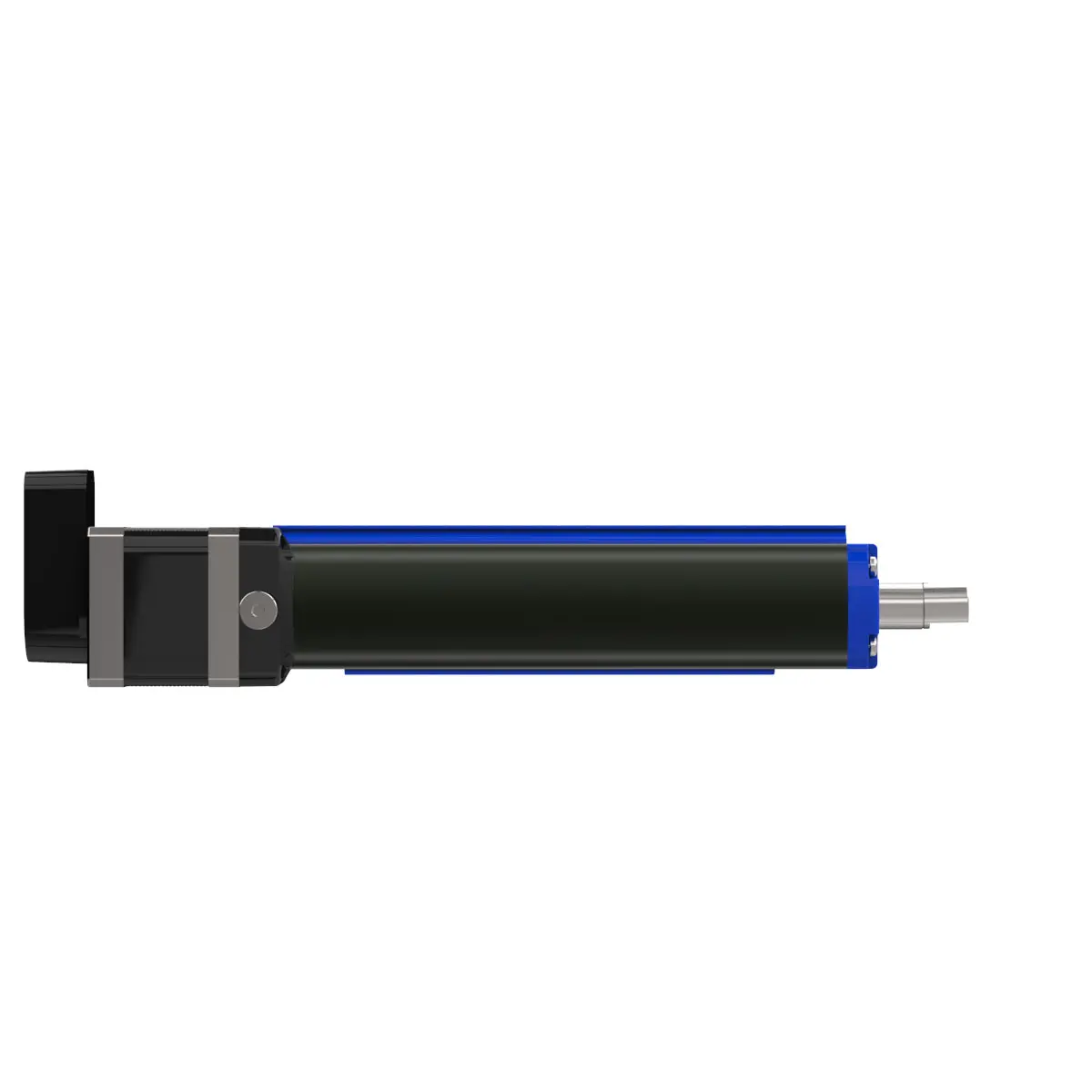

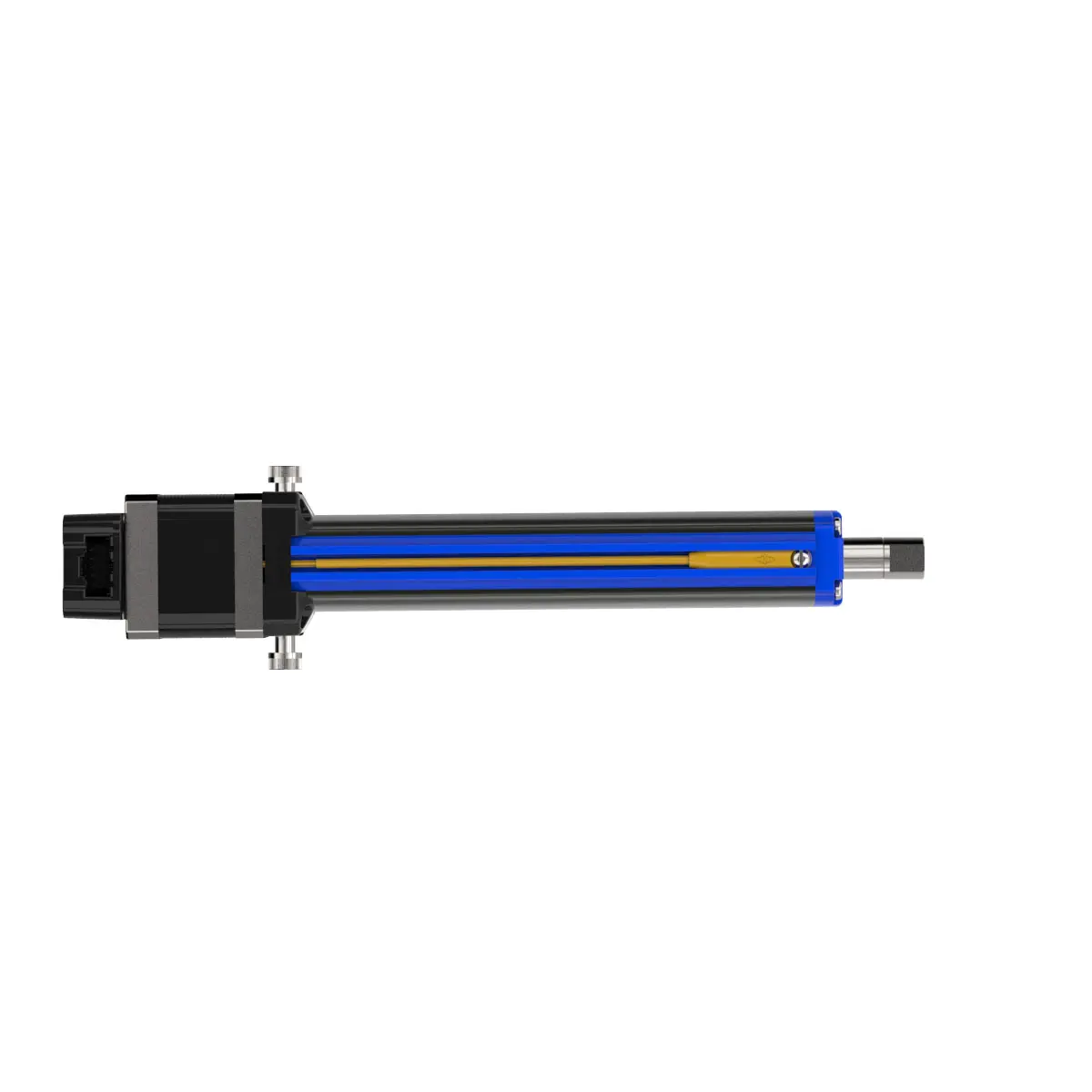

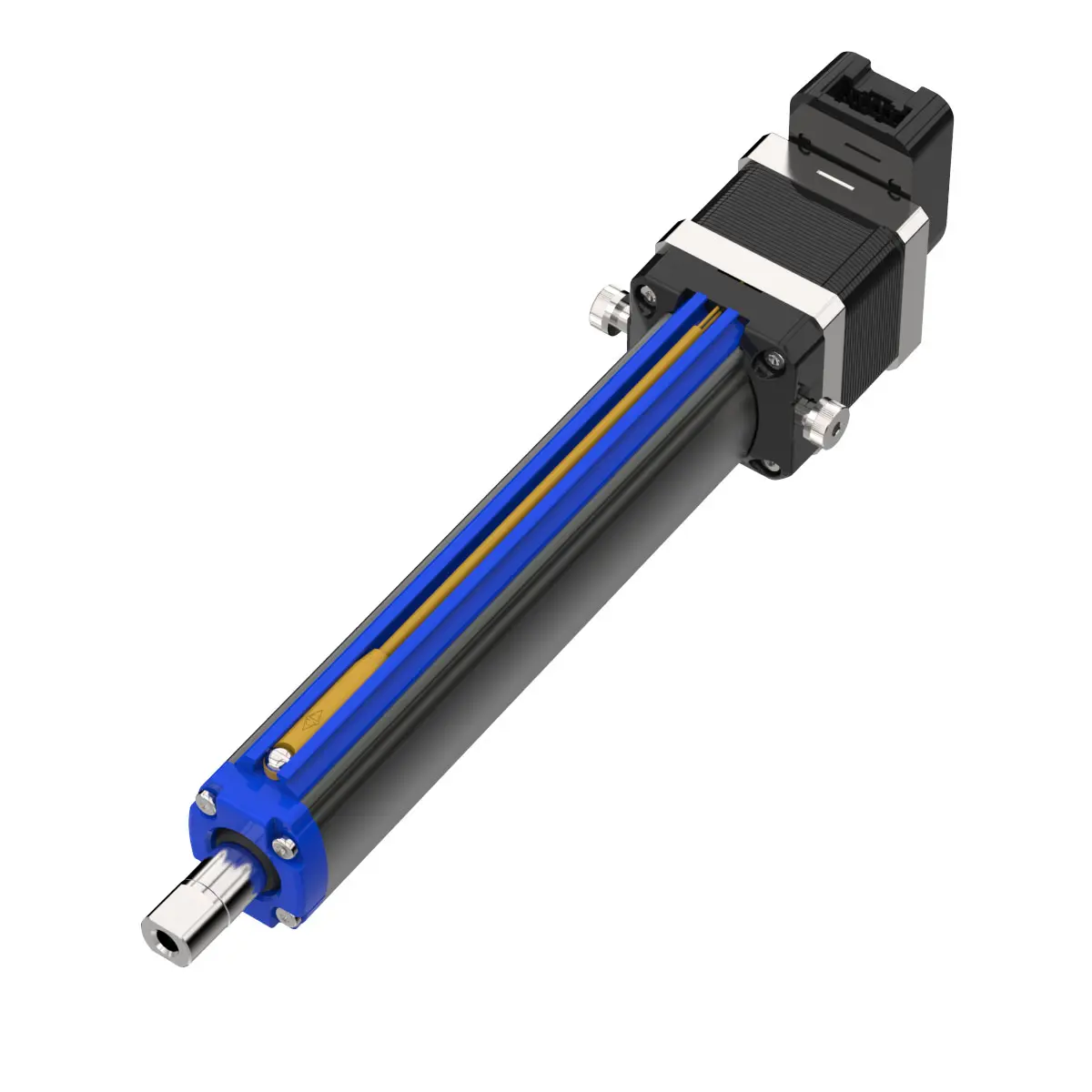

- Electric Cylinder
| Amps (A) | 1.5 |
|---|---|
| Ball Screw Lead Accuracy +/- mm/mm | 0.1/300 |
| Encoder | 500CPR |
| Front Mount | None |
| Insulation Resistance (Mohm @ VDC) | 100 @ 500 |
| L2 Max (in) | 1.980 |
| L2 Max (mm) | 50.600 |
| LA (in) | 2.510 |
| Lead Accuracy +/- in/in | 0.0003 |
| Lead Code | 78 |
| Lead Time | 2 Weeks |
| Magnet Wire Insulation (°C ) | Class B 130 |
| Motor Length | Single Stack |
| Motor Mount | Trunion |
| Motor Size (NEMA) | 17 |
| Motor Voltage | 2.33 |
| Nut Style | Ball Nut |
| Operating Temperature (°C) | -28 to 121 |
| Rod End | Imperial Internal Threaded |
| Screw Diameter (mm) | 6 |
| Screw Drive Type | Ball Screw |
| Screw Lead (in) | 0.078 |
| Screw Lead (mm) | 2 |
| Step Angle° | 1.8 |
| Stroke Length (in) | 8 |
| Stroke Length (mm) | 203.200 |
| Travel Per Step (in) | 0.000 |
| Travel Per Step (mm) | 0.010 |
