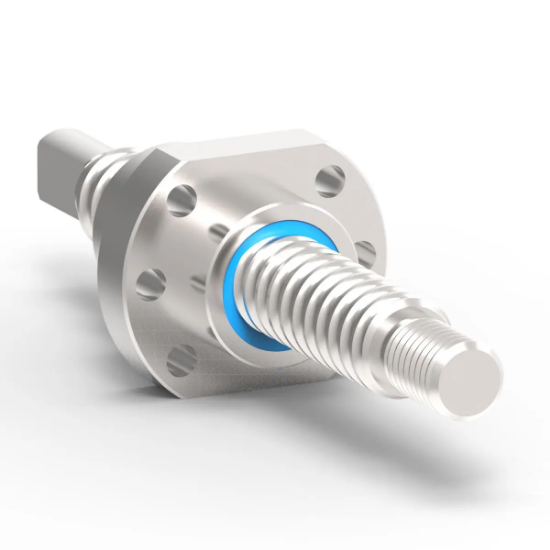

- Metric Ball Nut
| A (in) | 1.244 |
|---|---|
| A (mm) | 31.600 |
| A1 (in) | 1.118 |
| A1 (mm) | 28.400 |
| B1 (in) | 2.047 |
| B1 (mm) | 52 |
| B2 (in) | 2.520 |
| B2 (mm) | 64 |
| Ball Diameter (in) | 3.500 |
| Ball Diameter (mm) | 0.138 |
| Ball Return Code | R |
| Ball Return Style | Tube |
| Bg6 (in) | 2.028 |
| Bg6 (mm) | 51.500 |
| C (in) | 2.441 |
| C (mm) | 62 |
| D (in) | 3.228 |
| D (mm) | 82 |
| Dynamic Load (lbs) | 20,000.00 |
| Dynamic Load (N) | 4,496.00 |
| E (in) | 0.472 |
| E (mm) | 12 |
| F (in) | 0.354 |
| F (mm) | 9 |
| G (in) | 2.638 |
| G (mm) | 67 |
| Imperial or Metric | Metric |
| K (in) | 0.394 |
| K (mm) | 10 |
| Lead (in) | 0.394 |
| Lead (mm) | 10 |
| Lead Time | 2 Weeks |
| M (in) | M6 |
| M (mm) | M6 |
| Material | Alloy Steel |
| Maximum Standard Backlash (in) | 0.070 |
| Maximum Standard Backlash (mm) | 0.003 |
| Number of Ball Circulations | 2x2.5 |
| Nut Style | Rectangular Flanged |
| Nut Style Code | FB |
| Nut Type | Ball Nut |
| Screw Diameter - mm | 32 |
| Size | 32x10 |
| Static Load (lbs) | 55,000.00 |
| Static Load (N) | 12,364.00 |
| Thread Direction | RH |
| Wiper Code | S |
| Wipers | Yes |
