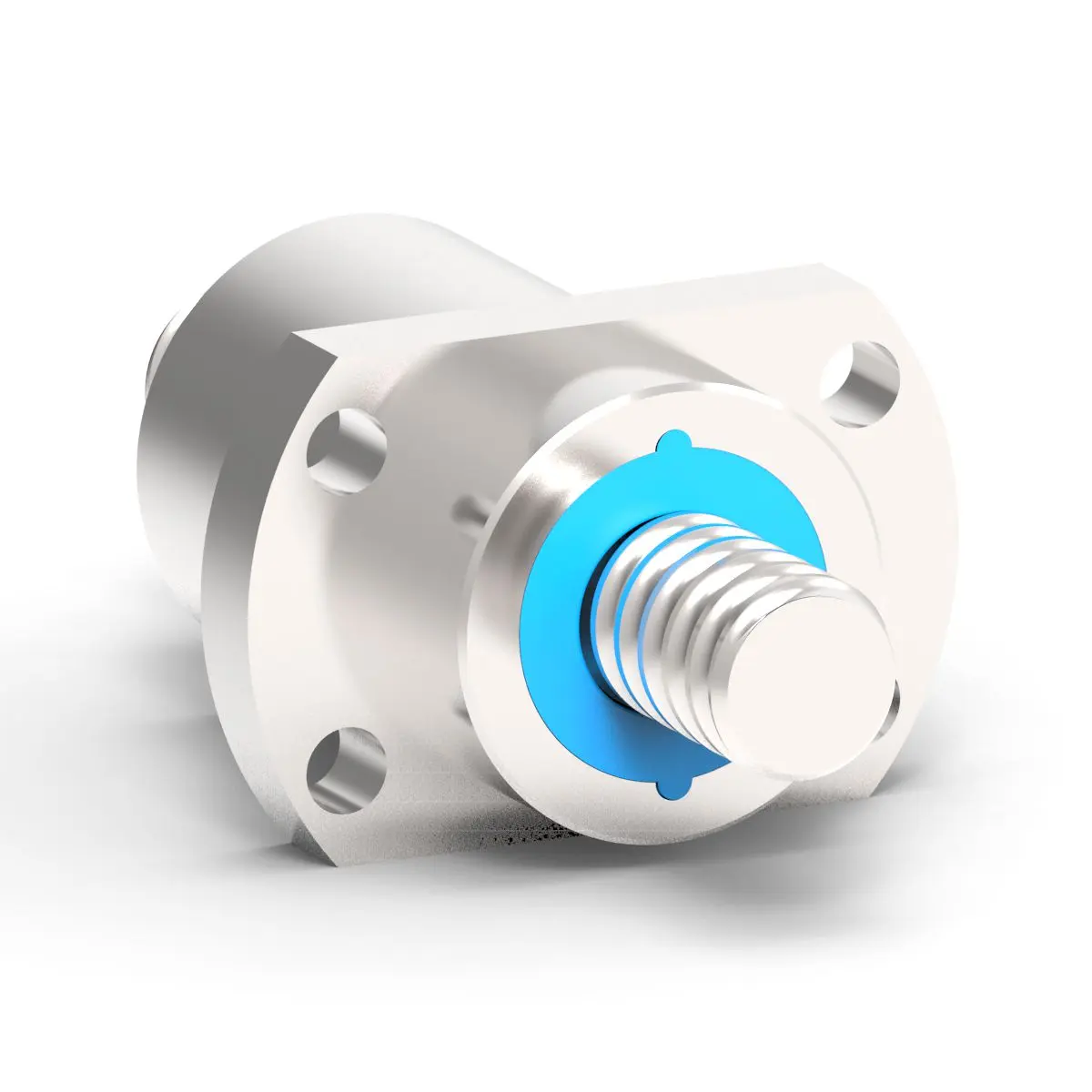

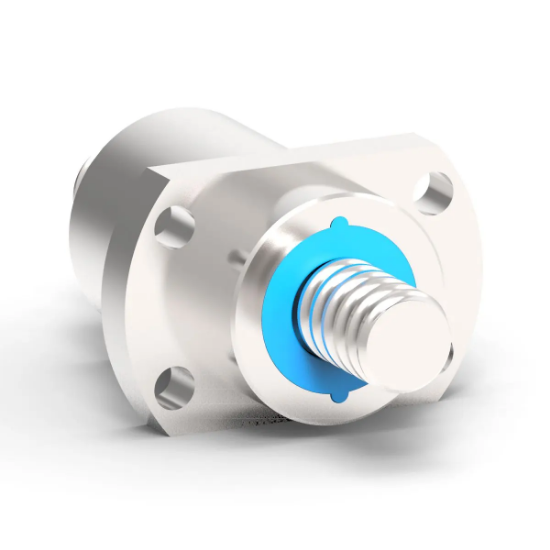

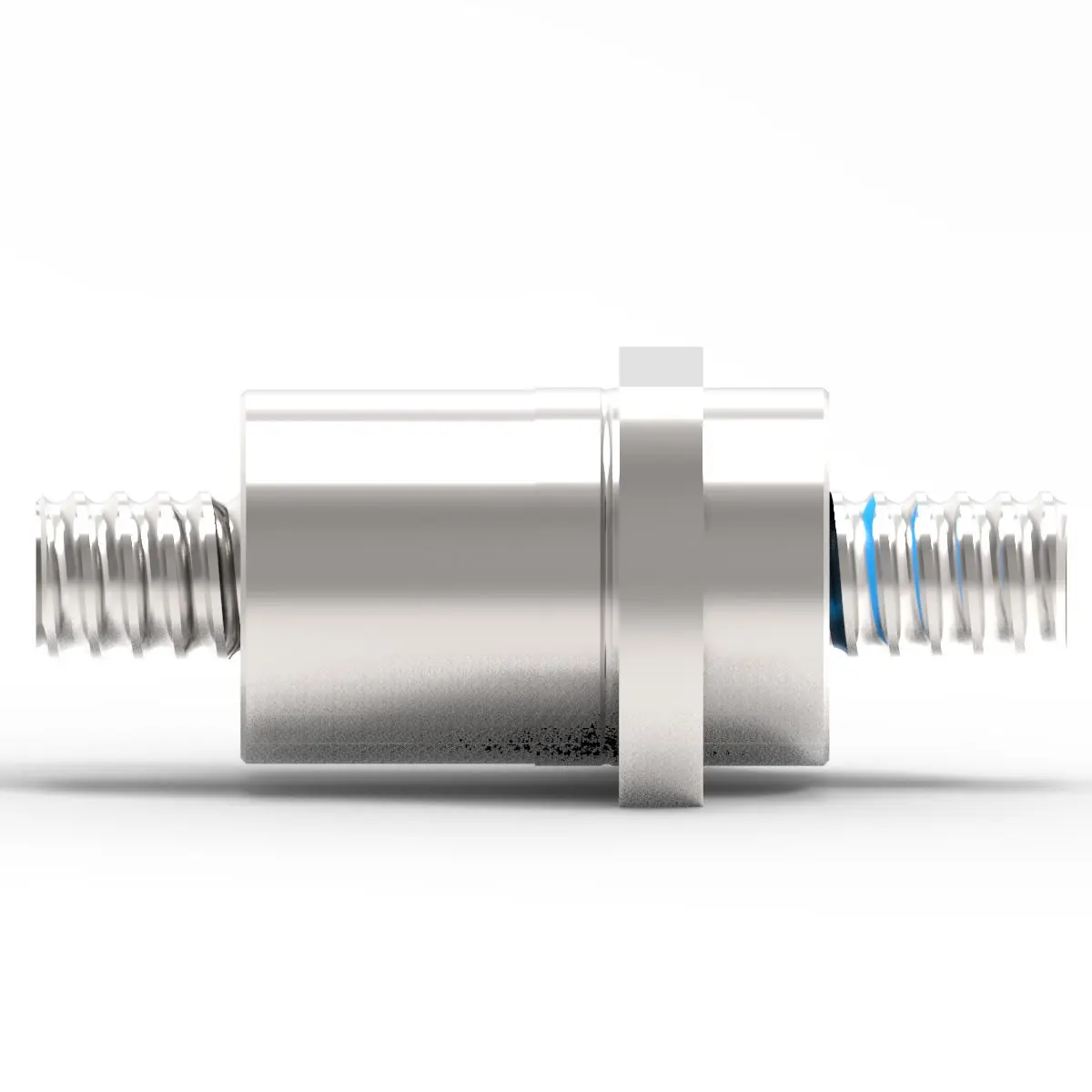

Name: Metric Ball Nut
SKU: 175585
Price: 306.79 USD
Availability: InStock

A (in)	0.315
A (mm)	8
A1 (in)	0.264
A1 (mm)	6.700
B1 (in)	0.709
B1 (mm)	18
B2 (in)	0.787
B2 (mm)	20
Ball Diameter (in)	1.500
Ball Diameter (mm)	0.059
Ball Return Code	E
Ball Return Style	End Cap E
Bg6 (in)	0.701
Bg6 (mm)	17.800
C (in)	1.102
C (mm)	28
D (in)	1.181
D (mm)	30
Dynamic Load (lbs)	1,400.00
Dynamic Load (N)	314
E (in)	0.157
E (mm)	4
F (in)	0.134
F (mm)	3.400
G (in)	0.984
G (mm)	25
Imperial or Metric	Metric
J (in)	0.236
J (mm)	6
K (in)	0.157
K (mm)	4
Lead (in)	0.472
Lead (mm)	12
Lead Time	2 Weeks
M (in)	ø.079
M (mm)	ø2
Material	Alloy Steel
Maximum Standard Backlash (in)	0.050
Maximum Standard Backlash (mm)	0.002
Number of Ball Circulations	2x1.5
Nut Style	Rectangular Flanged
Nut Style Code	FB
Nut Type	Ball Nut
Screw Diameter - mm	8
Size	8x12
Static Load (lbs)	2,300.00
Static Load (N)	517
Thread Direction	RH
Wiper Code	S
Wipers	Yes

Metric Ball Nut ECN-8X12-FBE RH-S-A
