Name: Metric Ball Nut
SKU: 175593
Price: 216.31 USD
Availability: InStock

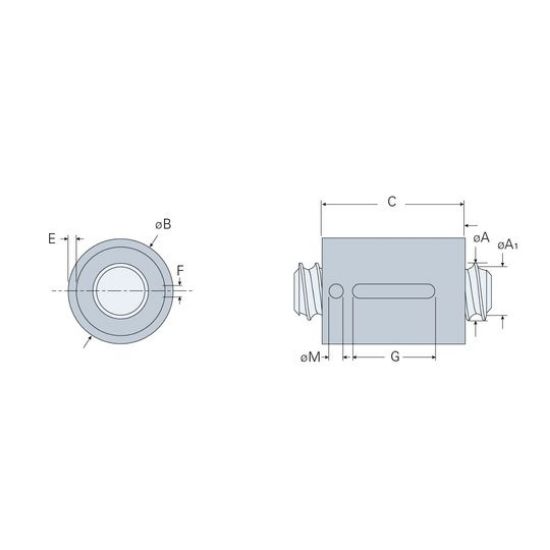

A (in)	0.315
A (mm)	8
A1 (in)	0.256
A1 (mm)	6.500
Ball Diameter (in)	0.063
Ball Diameter (mm)	1.590
Ball Return Code	R
Ball Return Style	Tube
Bg6 (in)	0.709
Bg6 (mm)	18
C (in)	0.551
C (mm)	14
Dynamic Load (lbs)	449.62
Dynamic Load (N)	2,000.00
E (in)	0.047
E (mm)	1.200
FP9 (in)	0.079
FP9 (mm)	2
G (in)	0.315
G (mm)	8
Imperial or Metric	Metric
Lead (in)	0.079
Lead (mm)	2
Lead Time	2 Weeks
Material	Alloy Steel
Maximum Standard Backlash (in)	0.002
Maximum Standard Backlash (mm)	0.060
Number of Ball Circulations	1x3.5
Nut Style	Cylindrical
Nut Style Code	ZY
Nut Type	Ball Nut
Screw Diameter - mm	8
Size	8x2
Static Load (lbs)	719.39
Static Load (N)	3,200.00
Thread Direction	RH
Wiper Code	N
Wipers	No

Metric Ball Nut ECN-8X2-ZYR RH-N-A
