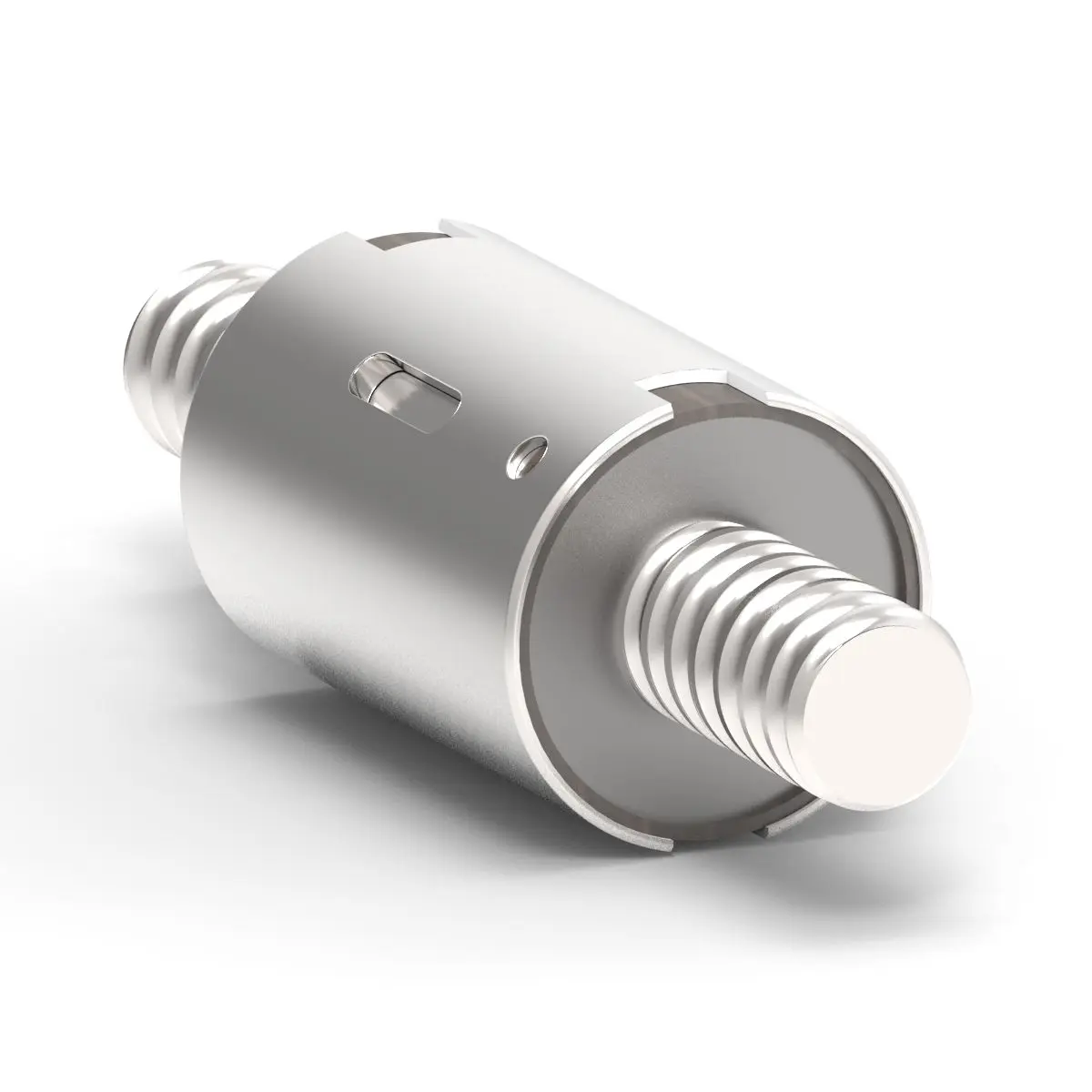

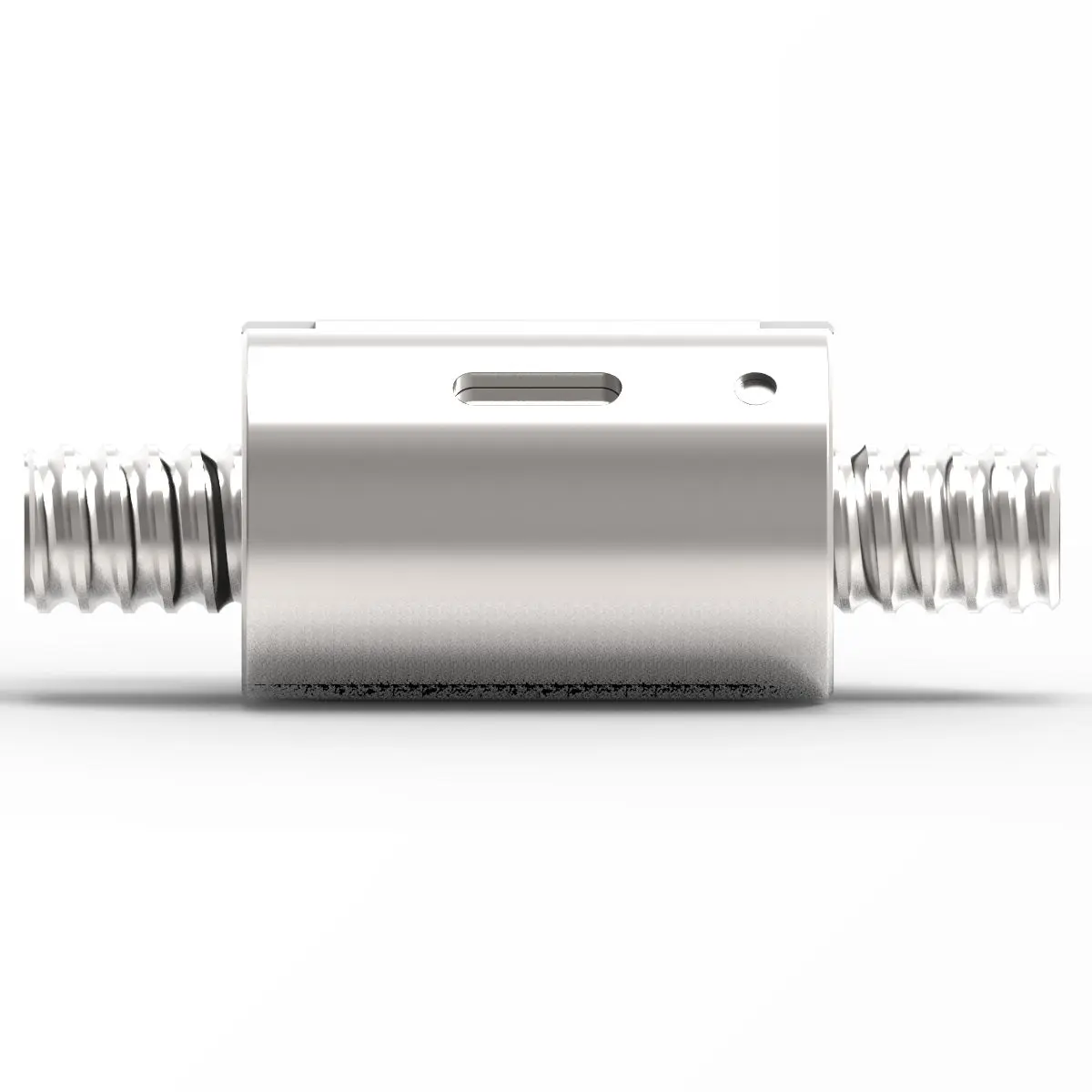

Name: Metric Ball Screw and Nut Assembly
SKU: 204172
Price: 314.32 USD
Availability: InStock

A (in)	0.315
A (mm)	8
A1 (in)	0.264
A1 (mm)	6.700
Ball Diameter (in)	0.059
Ball Diameter (mm)	1.500
Ball Return Code	E
Ball Return Style	End Cap E
Bg6 (in)	0.709
Bg6 (mm)	18
C (in)	1.102
C (mm)	28
Dynamic Load (lbs)	314.7325194
Dynamic Load (N)	1400
E (in)	0.047
E (mm)	2
FP9 (in)	0.079
FP9 (mm)	2
G (in)	0.315
G (mm)	8
Lead (in)	0.472
Lead (mm)	12
Lead Accuracy	? 0.1 mm/300 mm
Lead Time	2 Weeks
M (in)	ø.079
M (mm)	ø2
Major Diameter (in)	0.315
Major Diameter (mm)	8
Material	Alloy Steel
Maximum Standard Backlash (in)	0.002
Maximum Standard Backlash (mm)	0.050
Minor Diameter (in)	0.264
Minor Diameter (mm)	6.700
Number of Ball Circulations	2x1.5
Nut Style	Cylindrical
Nut Style Code	ZY
Nut Type	Ball Nut
Pitch (in)	0.118
Pitch (mm)	3
Screw Length (in)	8.858
Screw Length (mm)	225
Size	8x12
Starts	4
Static Load (lbs)	517.0605676
Static Load (N)	2300
Thread Direction	Right Hand
Thread Direction Code	RH
Turns Per Inch	2.116666667
Turns per mm	0.083333333
Wiper Code	S
Wipers	Yes

Metric Ball Screw and Nut Assembly ECS-8X12-00-00-ZY-E-RH-S-A-225-G9
