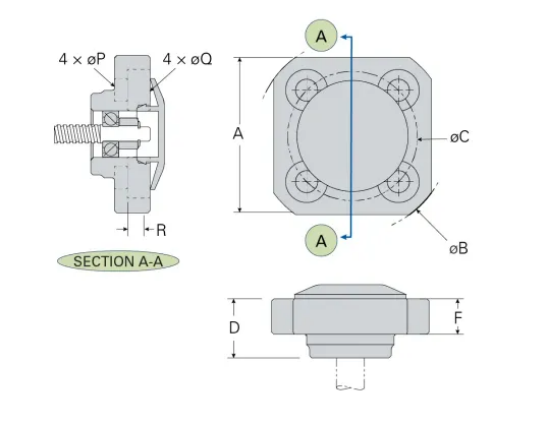

| A (in) | 1.630 |
|---|---|
| A (mm) | 41.400 |
| Acme Screw Diameter - (in) | 0.200 |
| B (in) | 2 |
| B (mm) | 50.800 |
| Ball Screw Diameter - (in) | 0.375 |
| C (in) | 1.500 |
| C (mm) | 38.100 |
| D (in) | 0.750 |
| D (mm) | 19.050 |
| F (in) | 0.330 |
| F (mm) | 8.380 |
| 4 end type | 3 |
| Lead Time | 2 Weeks |
| 1,2,3 end type | 5 |
| P (in) | 0.200 |
| P (mm) | 5.080 |
| Q (in) | 0.380 |
| Q (mm) | 9.650 |
| R (in) | 0.210 |
| R (mm) | 5.330 |
| Single/Double | Single |
| Style | Flange |
| Trapezoidal Screw Diameter (mm) | 8 |
