Name: Flanged Torsional Anti-Backlash Nut (GFD)
SKU: 264585
Price: 69.62 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	180-230 Million
Anti-Backlash Nut Life without H10X Coating (in)	80 to 100 Million
Connection Type	Flanged

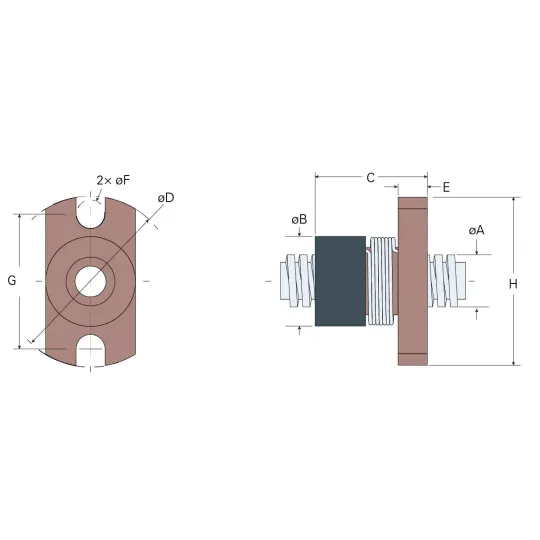

D - Flange Diameter (in)	0.400
Diameter Code	016
Dynamic Load Capacity (lbs)	5
E - Flange Thickness (in)	0.130
Efficiency (%)	84.27065793
F - Slot Width/Hole Diameter (in)	0.120
G - Bolt Circle Diameter (in)	0.600
Imperial or Metric	TRUE
Lead (in)	0.375
Lead Accuracy +/- (in/in)	0.0003
Lead Code	375
Lead Time	2 Weeks
Material	Delrin AF
Mating Screw Part No	016375R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.158
Nut Code	GFD
Nut Diameter B (in)	0.400
Nut Length C (in)	0.500
Nut Size	1
Nut Type	Torsional anti-backlash nut with mounting flange
Nut Weight (lb)	0.02
Pitch (in)	0.031
Pitch (mm)	0.794
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Torsional
Standard Operating Temperature Range (F°)	32-200
Starts	12
Thread Class	Centralizing
Thread Direction	RH
Thread Type	Modified Acme
Threads Per Inch	32
Turns Per Inch of Travel (in)	2.667
Type 1,2,3	3
Type 4	1

Flanged Torsional Anti-Backlash Nut (GFD) GFD016375R
