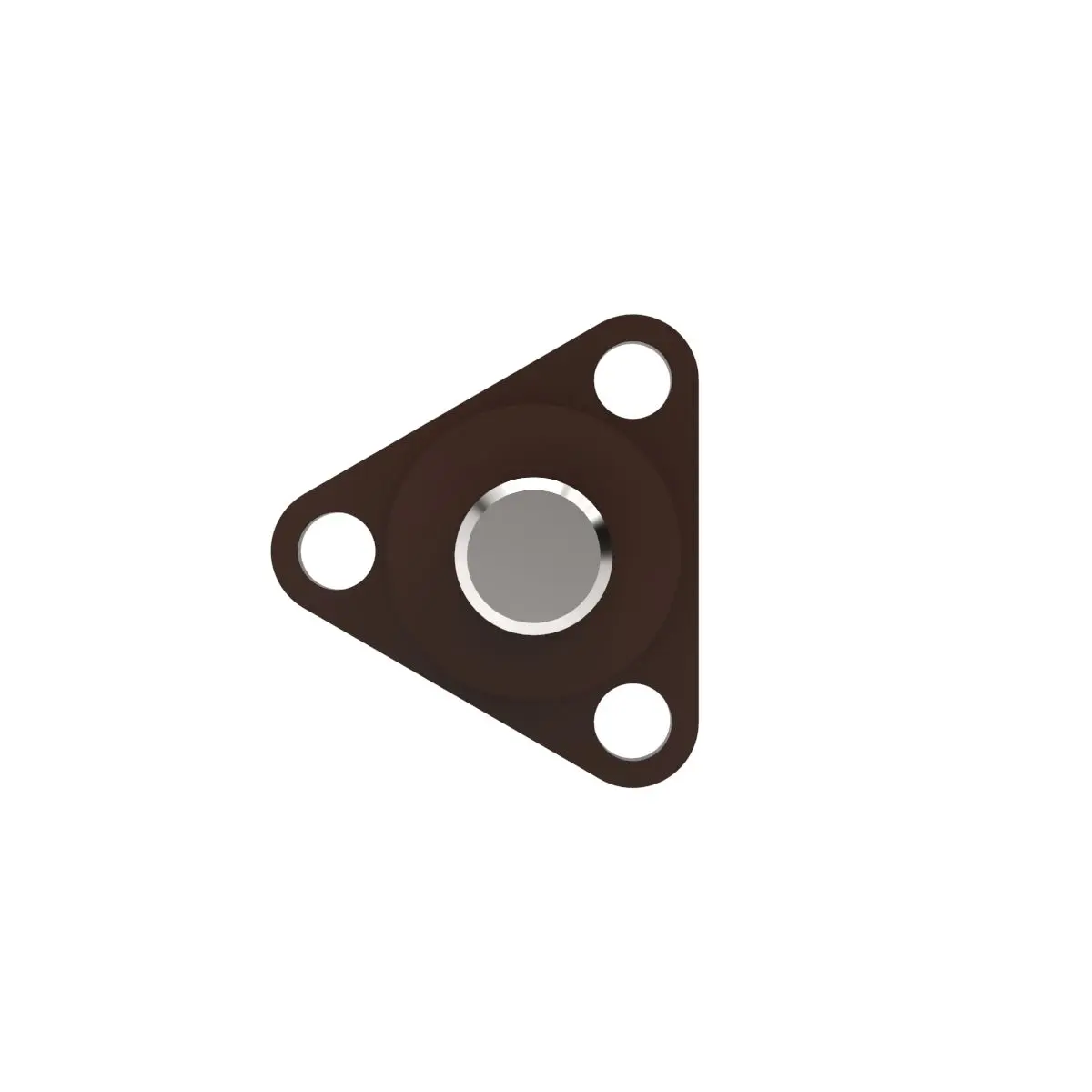

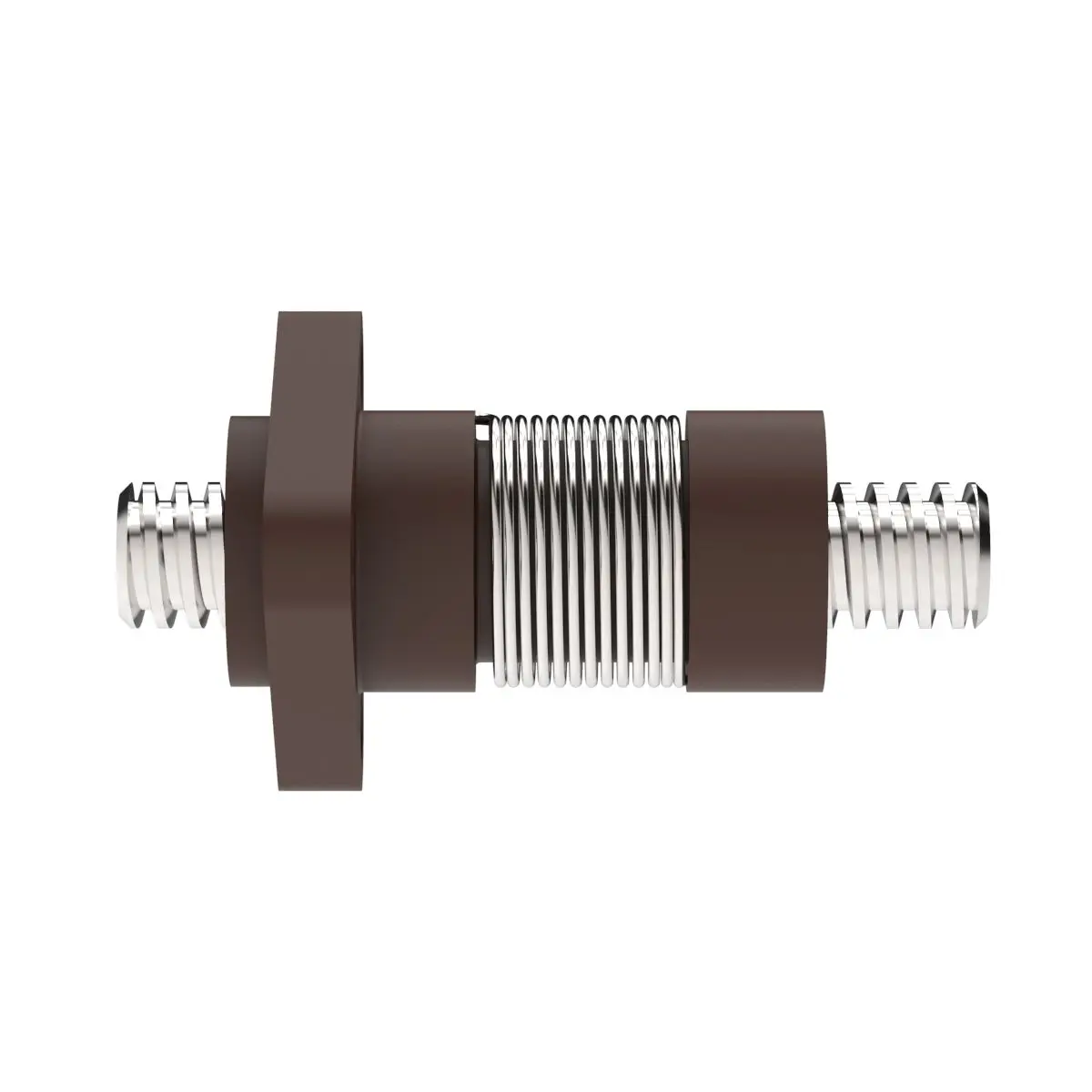

Name: Flanged Torsional Anti-Backlash Nut (GFD)
SKU: 264694
Price: 101.69 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	180-230 Million
Anti-Backlash Nut Life without H10X Coating (in)	80 to 100 Million
Connection Type	Flanged

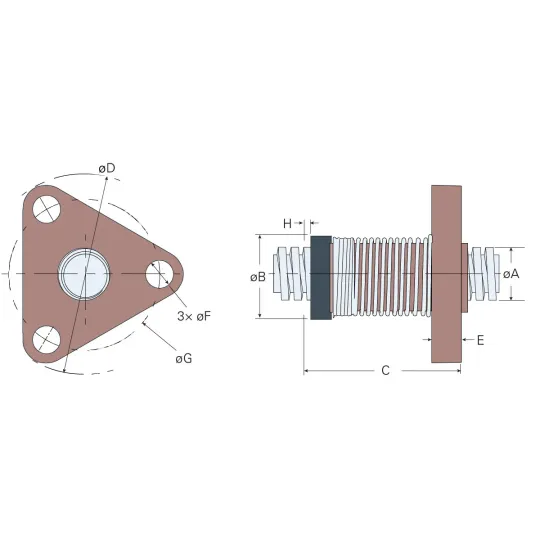

D - Flange Diameter (in)	1.500
Diameter Code	032
Dynamic Load Capacity (lbs)	75
E - Flange Thickness (in)	0.200
Efficiency (%)	68.53624797
F - Slot Width/Hole Diameter (in)	0.200
G - Bolt Circle Diameter (in)	1.125
Imperial or Metric	TRUE
Lead (in)	0.157
Lead Accuracy +/- (in/in)	0.0003
Lead Code	157
Lead Time	2 Weeks
Material	Delrin AF
Mating Screw Part No	032157L
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.319
Nut Code	GFD
Nut Diameter B (in)	0.800
Nut Length C (in)	1.800
Nut Size	3
Nut Type	Torsional anti-backlash nut with mounting flange
Nut Weight (lb)	0.02
Pitch (in)	0.079
Pitch (mm)	2
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Torsional
Standard Operating Temperature Range (F°)	32-200
Starts	2
Thread Class	7e
Thread Direction	LH
Thread Type	Trapezoidal
Threads Per Inch	12.7000254
Turns Per Inch of Travel (in)	6.350
Type 1,2,3	6*
Type 4	3

Flanged Torsional Anti-Backlash Nut (GFD) GFD032157L
