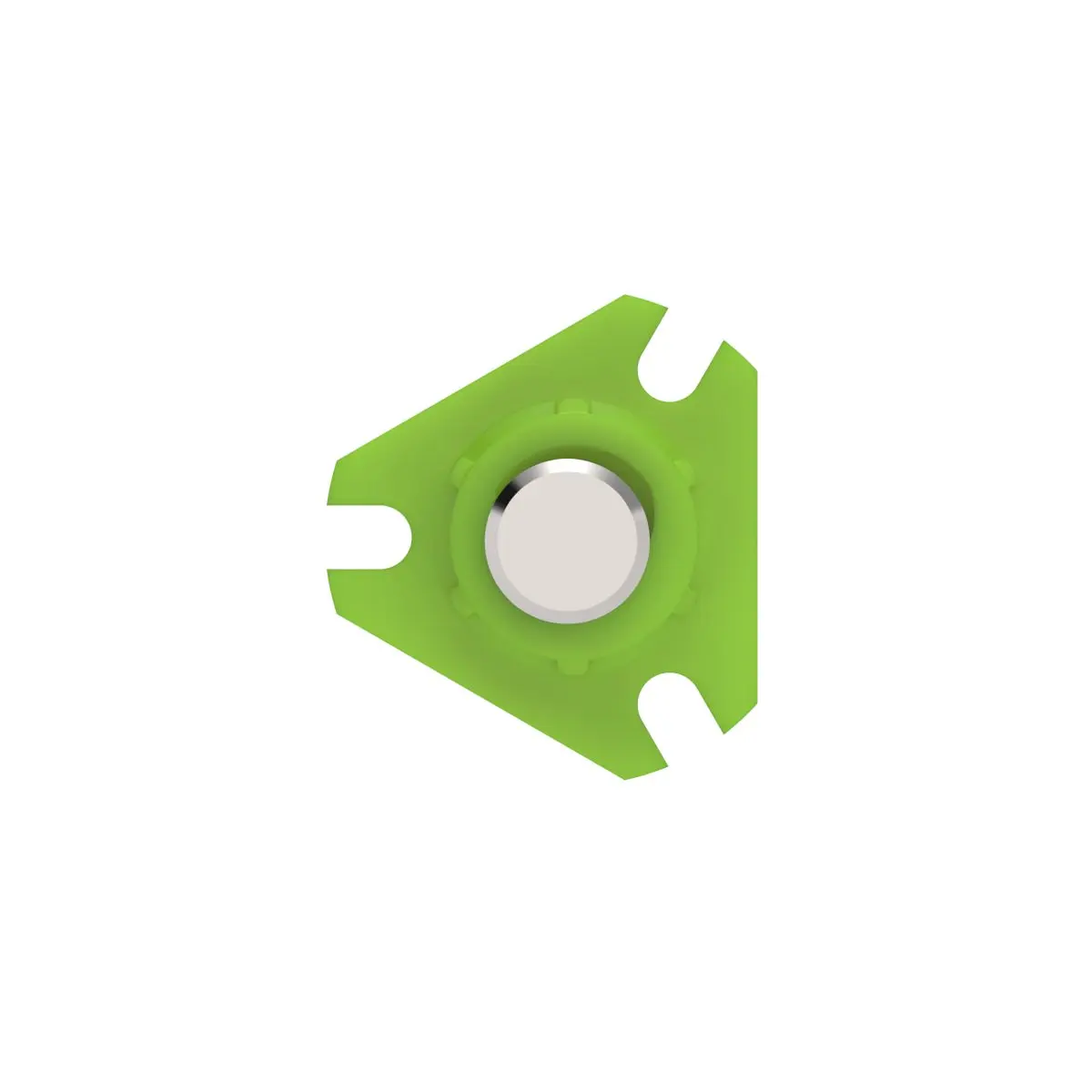

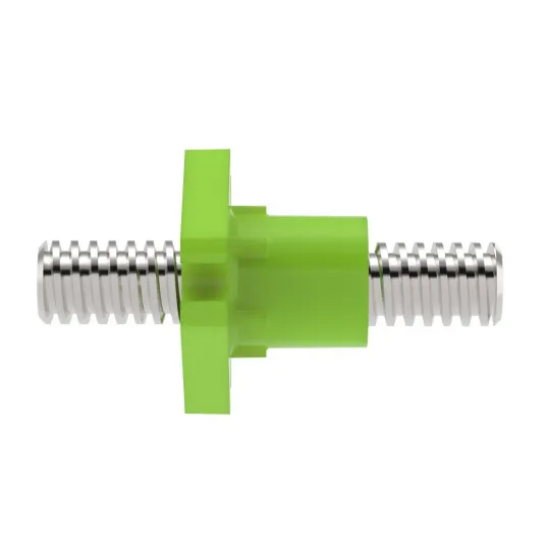

Name: Freewheeling Hurricane Nut (HNFA)
SKU: 270533
Price: 306.63 USD
Availability: InStock

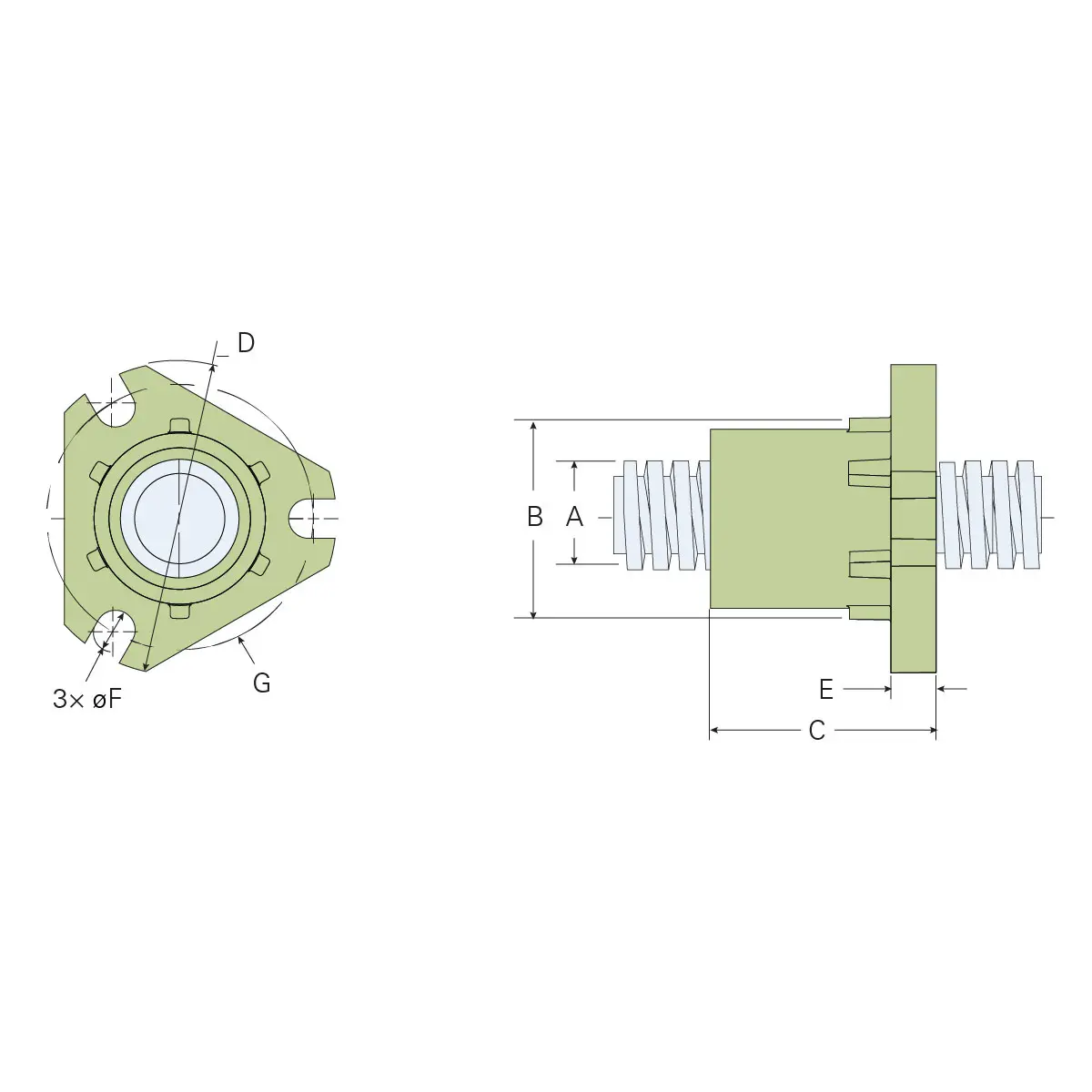

Bolt Circle Diameter G (in)	1.875
Connection Type	Flanged
Diameter Code	75
Dynamic Load Capacity (lbs)	350
Efficiency (%)	49.60721639
Flange Diameter D (in)	2.25
Flange Thickness E (in)	0.313
Imperial or Metric	TRUE
Lead (in)	0.167
Lead Accuracy +/- (in/in)	0.0003
Lead Code	166
Lead Time	2 Weeks
Material	Helital
Mating Screw Part No	075166L
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.75
Nut Code	HNFA
Nut Diameter B (in)	1.5
Nut Length C (in)	2.675
Nut Size	5
Nut Type	Axial Anti-Backlash Hurricane Nut with 3-hole flange
Pitch (in)	0.167
Pitch (mm)	4.234
Product Category	Lead Screw Nut
Product Sub Category	Standard
Product Sub Category 1	Freewheeling
Slot Width F (in)	0.257
Standard Operating Temperature Range (F°)	32 - 200
Starts	1
Thread Class	2C
Thread Direction	LH
Thread Type	Acme
Threads Per Inch	5.99880024
Turns Per Inch of Travel	5.99880024
Type 1,2,3	12
Type 4	8

Freewheeling Hurricane Nut (HNFA) HNFA075166L
