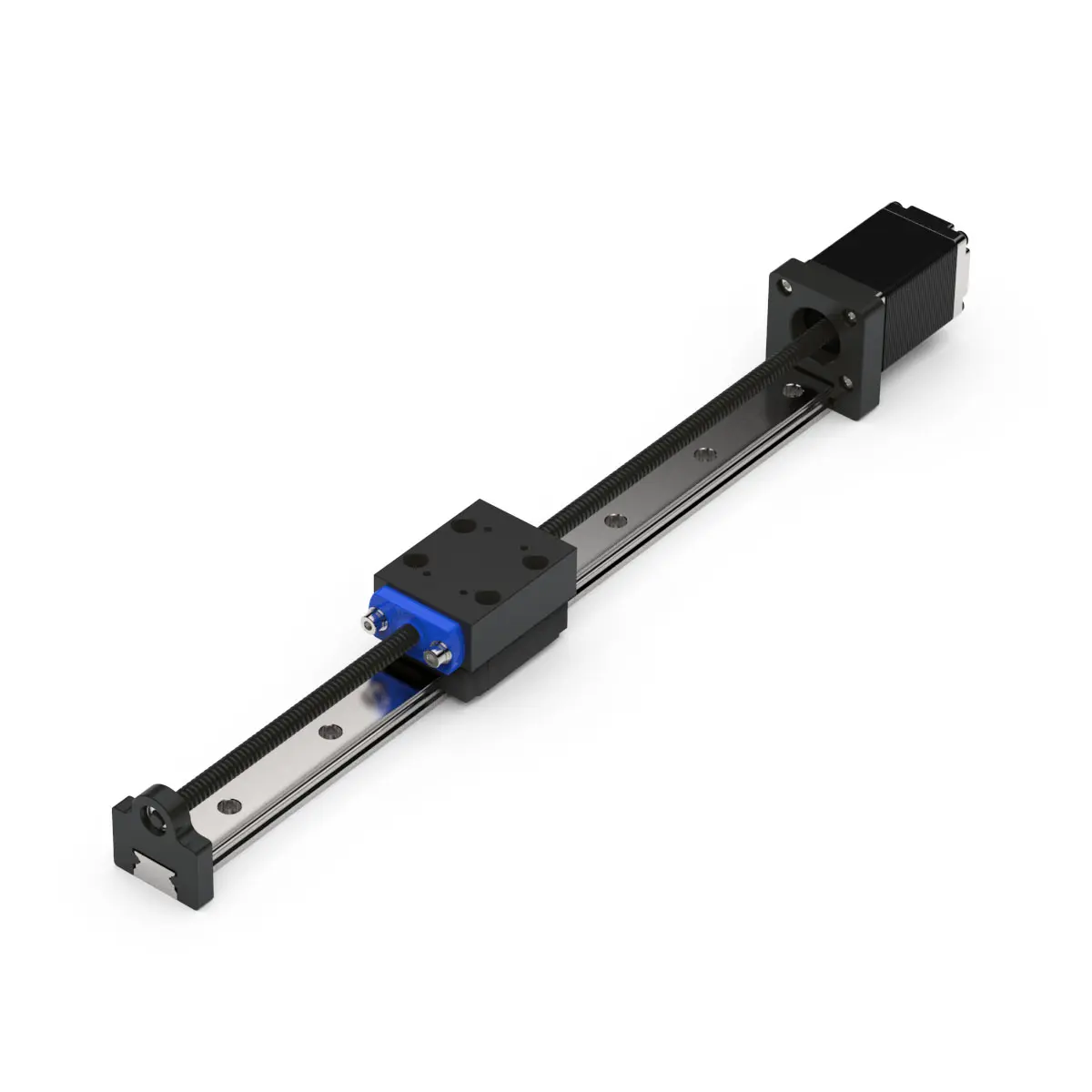

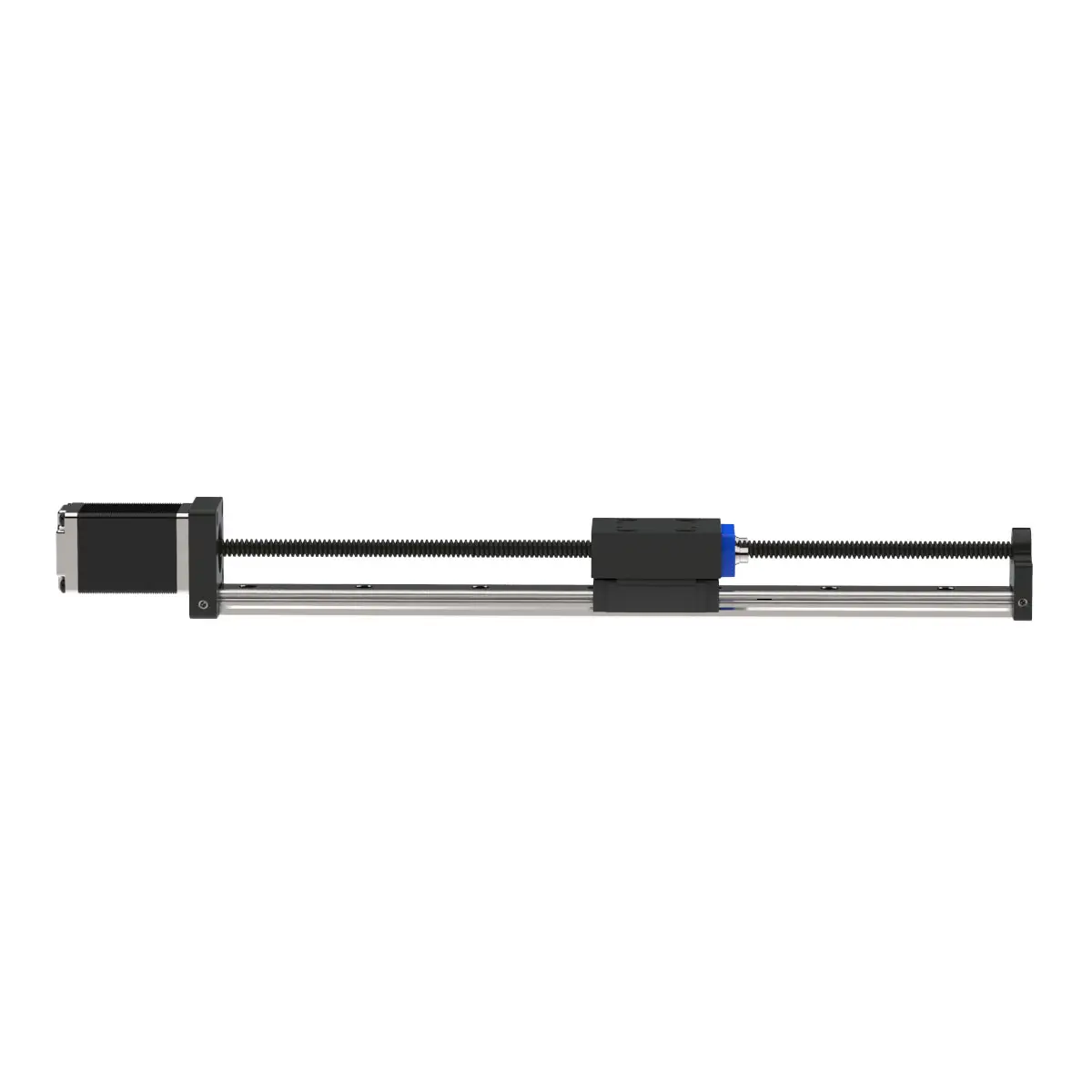

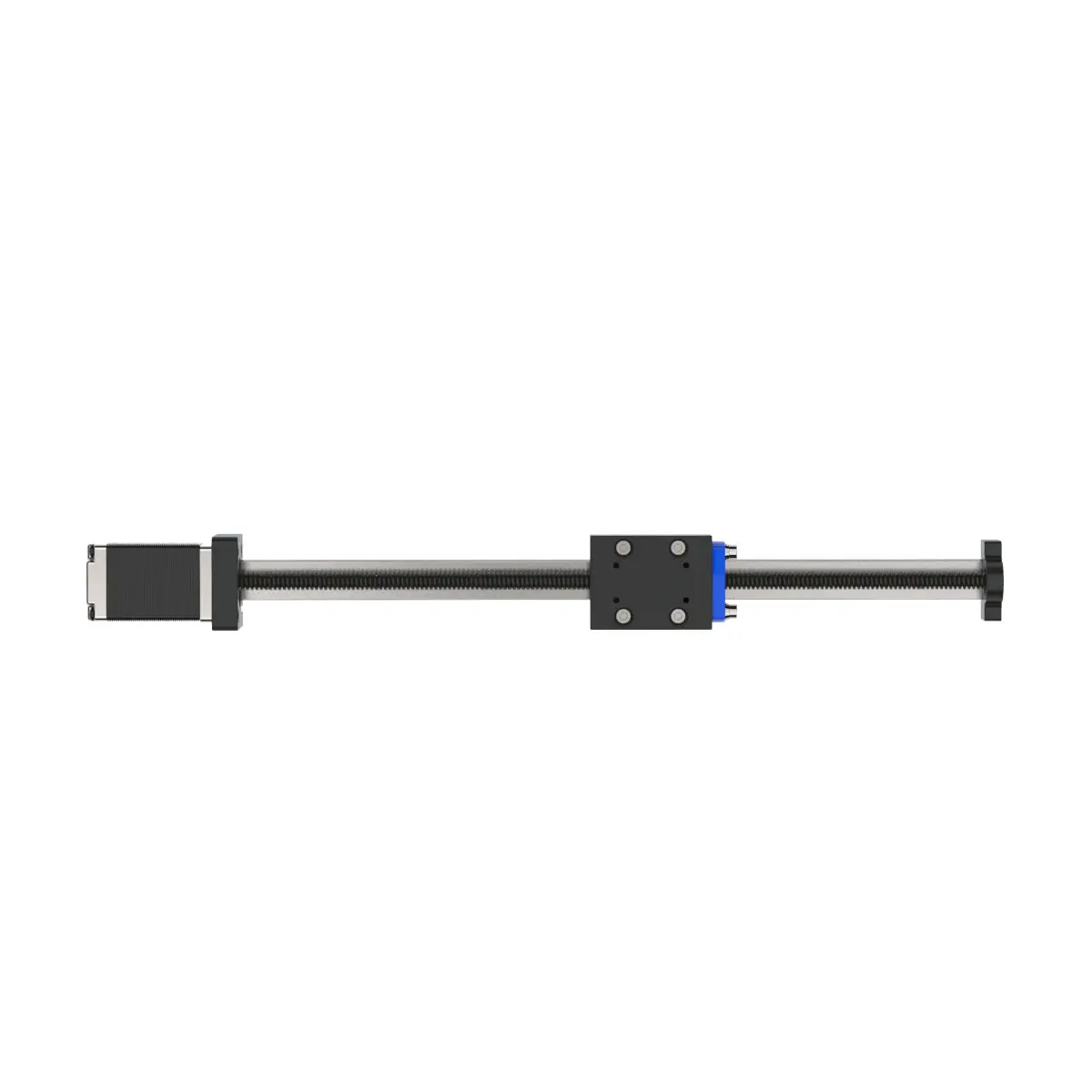

Name: Linear Guide Rail System
SKU: 87015
Price: 750.56 USD
Availability: InStock

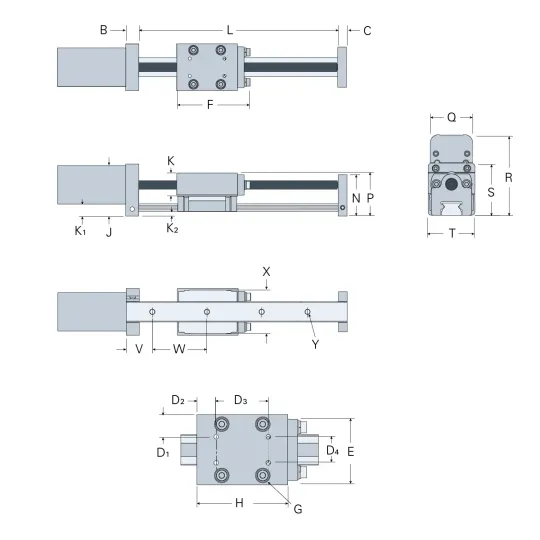

A (in)	1.350
A (mm)	34.290
Actuator Length (in)	9.600
Actuator Length (mm)	243.840
Axial Dynamic Load Capacity (lbs)	50
Axial Static Load Capacity (lbs)	150
B (in)	0.380
B (mm)	9.652
C (in)	0.250
C (mm)	6.350
D1 (in)	0.430
D1 (mm)	10.922
D2 (in)	0.380
D2 (mm)	9.652
D3 (in)	1
D3 (mm)	25.400
D4 (in)	0.500
D4 (mm)	12.700
Diameter Code	25
Diameter D (in)	0.250
Diameter D (mm)	6.350
E (in)	1.350
E (mm)	34.290
Encoder	No Encoder
F (in)	1.940
F (mm)	49.276
Fz - Dynamic Normal Load (lbs)	856.5
Fz - Static Normal Load (lbs)	1256.7
G	4-40 UNC-2B
G1 (in)	0.220
G1 (mm)	5.588
H (in)	1.750
H (mm)	44.450
Inductance/Phase (mH)	5.8
J (in)	1.520
J (mm)	38.608
K (in)	0.630
K (mm)	16.002
K1 (in)	0.360
K1 (mm)	9.144
K2 (in)	0.160
K2 (mm)	4.064
L (in)	9.600
L (mm)	243.840
Lead (in)	1
Lead (mm)	25.400
Lead Code	999
Lead Time	2 Weeks
Length Adder (in)	2.600
Length Adder (mm)	66.040
Motor Size (NEMA)	NEMA 11
Motor Stack	Double Stack
Motor Voltage (V)	5
Motor Weight (g)	180
Motor Weight (oz)	6.3
Mx - Maximum Moment Load (in/lbs)	239
My - Maximum Moment Load (in/lbs)	386
Mz - Maximum Moment Load (in/lbs)	239
N (in)	1.210
N (mm)	30.734
Nut Type	Axial Anti-backlash Nut
P (in)	1.260
P (mm)	32.004
Power Consumption (W)	7.5
Q (in)	1.220
Q (mm)	30.988
R (in)	2.340
R (mm)	59.436
Rated Current (A)	0.75
S (in)	1.520
S (mm)	38.608
Screw Drive Type	Lead Screw
Step Angle (°)	1.8
T (in)	1.160
T (mm)	29.464
T1 (in)	1.350
T1 (mm)	34.290
Temperature Rise (°C)	75
Travel (in)	7
Travel (mm)	177.800
Travel Per Step (in)	0.001
Travel Per Step (mm)	0.025
V (in)	0.750
V (mm)	19.050
W (in)	1.575
W (mm)	40
Wiring	Bipolar
Wiring Leads	4
X (in)	1.260
X (mm)	32.004
Y (in)	0.130
Y (mm)	3.302
Zero Lash Axial Dynamic Load Capacity (lbs)	5

Linear Guide Rail System PRA-11D5-999-A-9.60-00-00
