Name: Precision Torque Spline Assembly
SKU: 257783
Price: 256.11 USD
Availability: InStock

Anti-Backlash	Yes

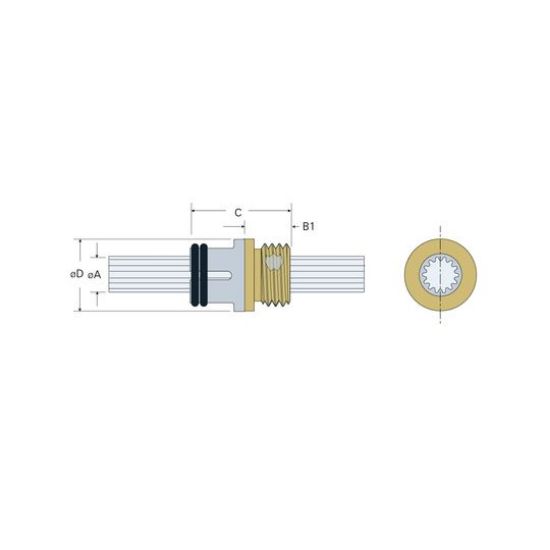

Bushing Diameter D (in)	0.500
Bushing Diameter D (mm)	12.700
Bushing Length C (in)	0.750
Bushing Length C (mm)	19.050
Bushing Material	High strength bronze and composite polymer
Bushing Style	PTA - Anti-Backlash Bushing
End Machining	Cut to length (request a quote for standard and custom end machinging options)
Equivalent Diameter (in) ± .002	0.226
Equivalent Diameter (mm) ± .05 mm	5.740
Lead Time	2 Weeks
Length - IN	62
Mounting Thread E	7/16-20 UNF
Mounting Thread Length B1 (in)	0.250
Mounting Thread Length B1 (mm)	6.350
Root Diameter (in)	0.202
Root Diameter (mm)	5.130
Rotational Lash (in)	0
Shaft Diameter A (in) ± .002	0.250
Shaft Diameter A (mm) ± .05 mm	6.350
Spline Material	304 Stainless Steel with H10X Teflon Coating
Spline Teeth	14
Straightness (in/ft)	0.005
Temperature Range (°F)	-65 to 185

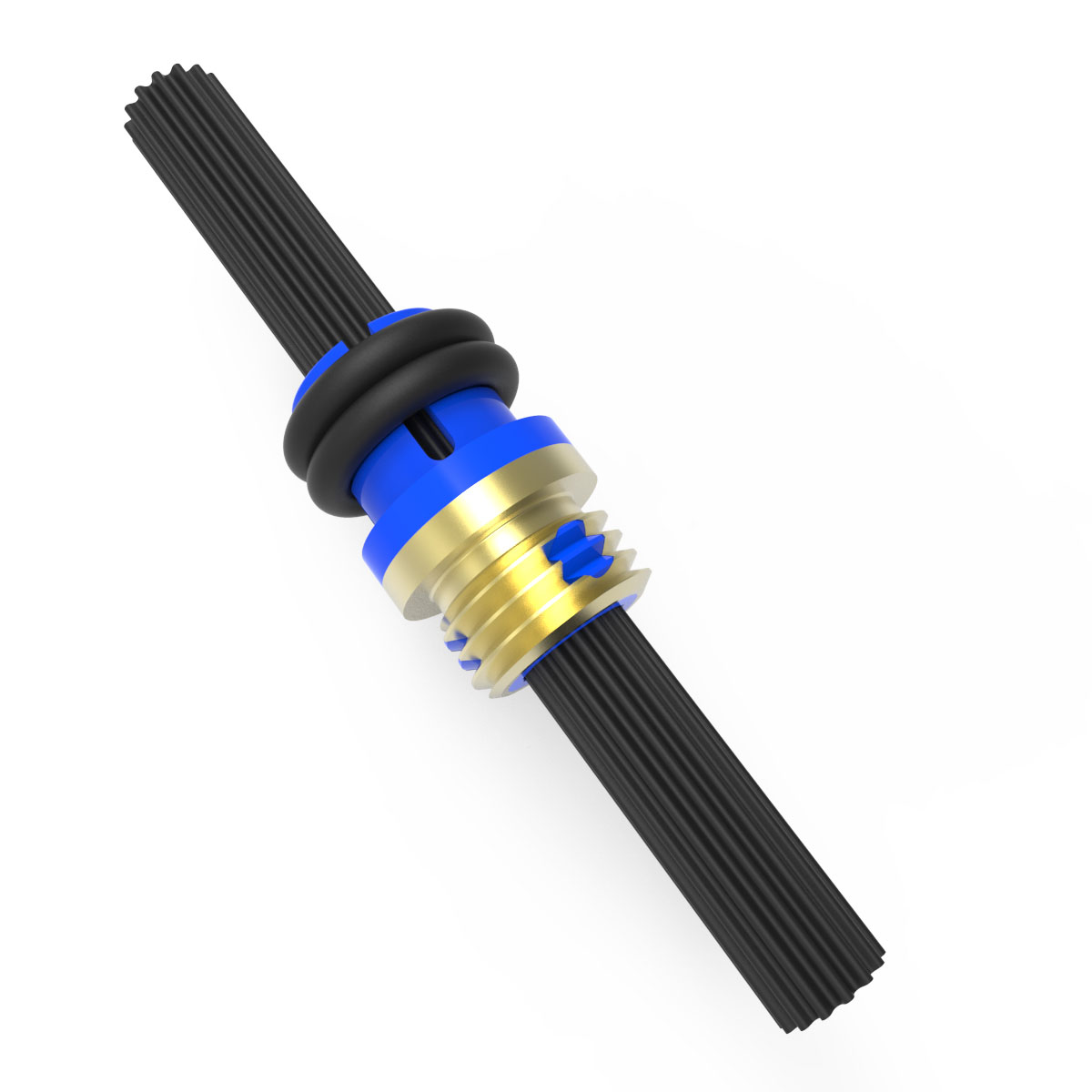

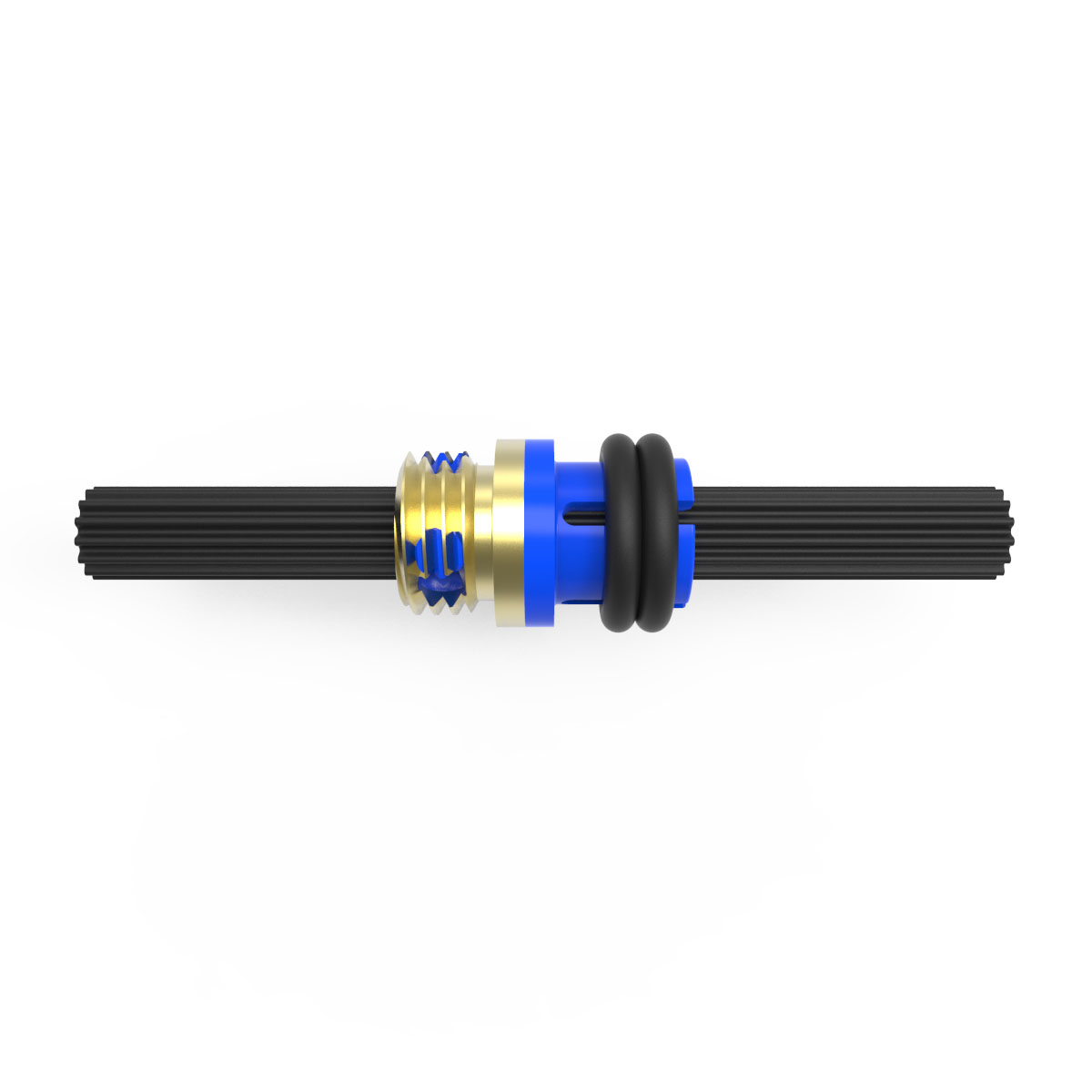

Precision Torque Spline Assembly PTA-04T-02T-62.00
