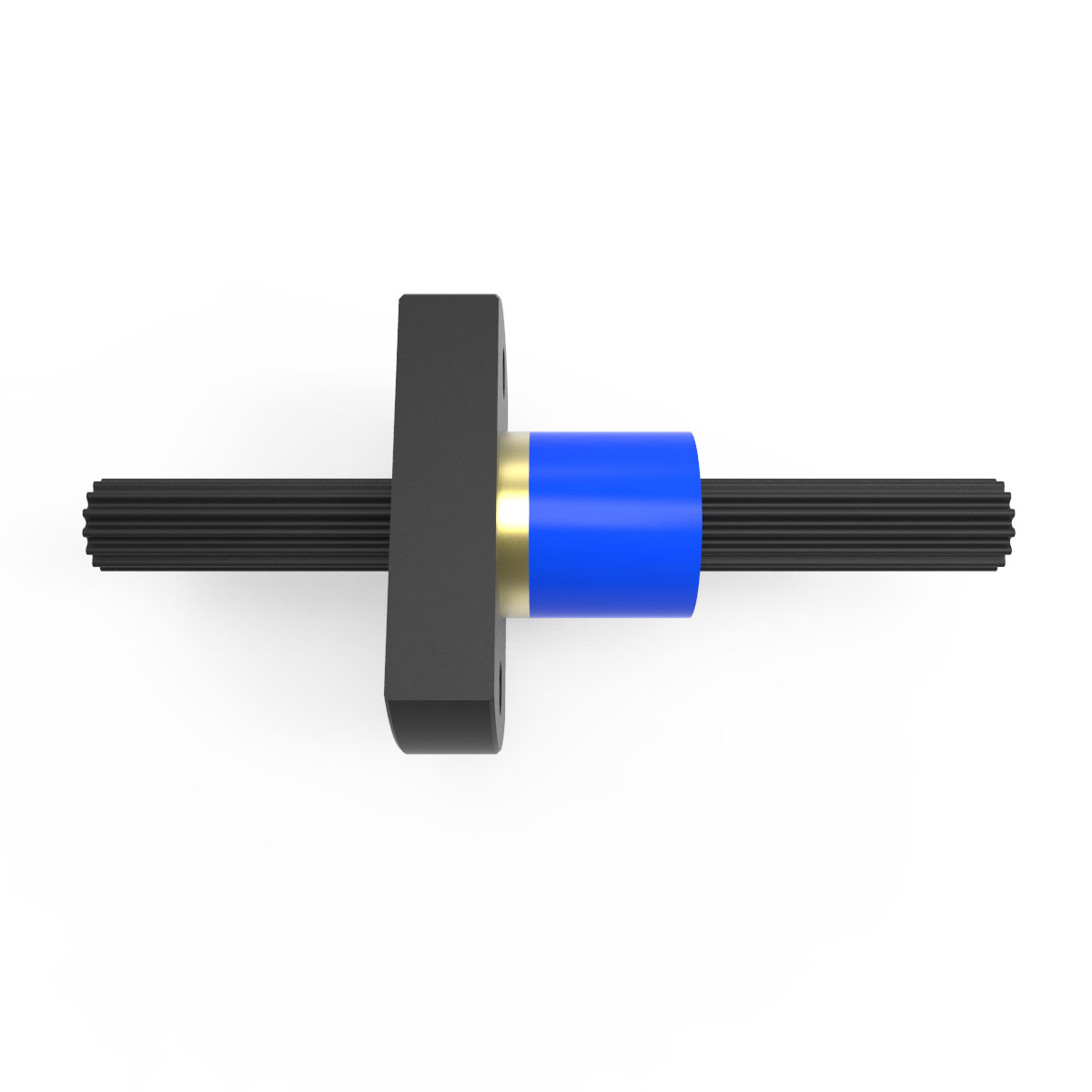

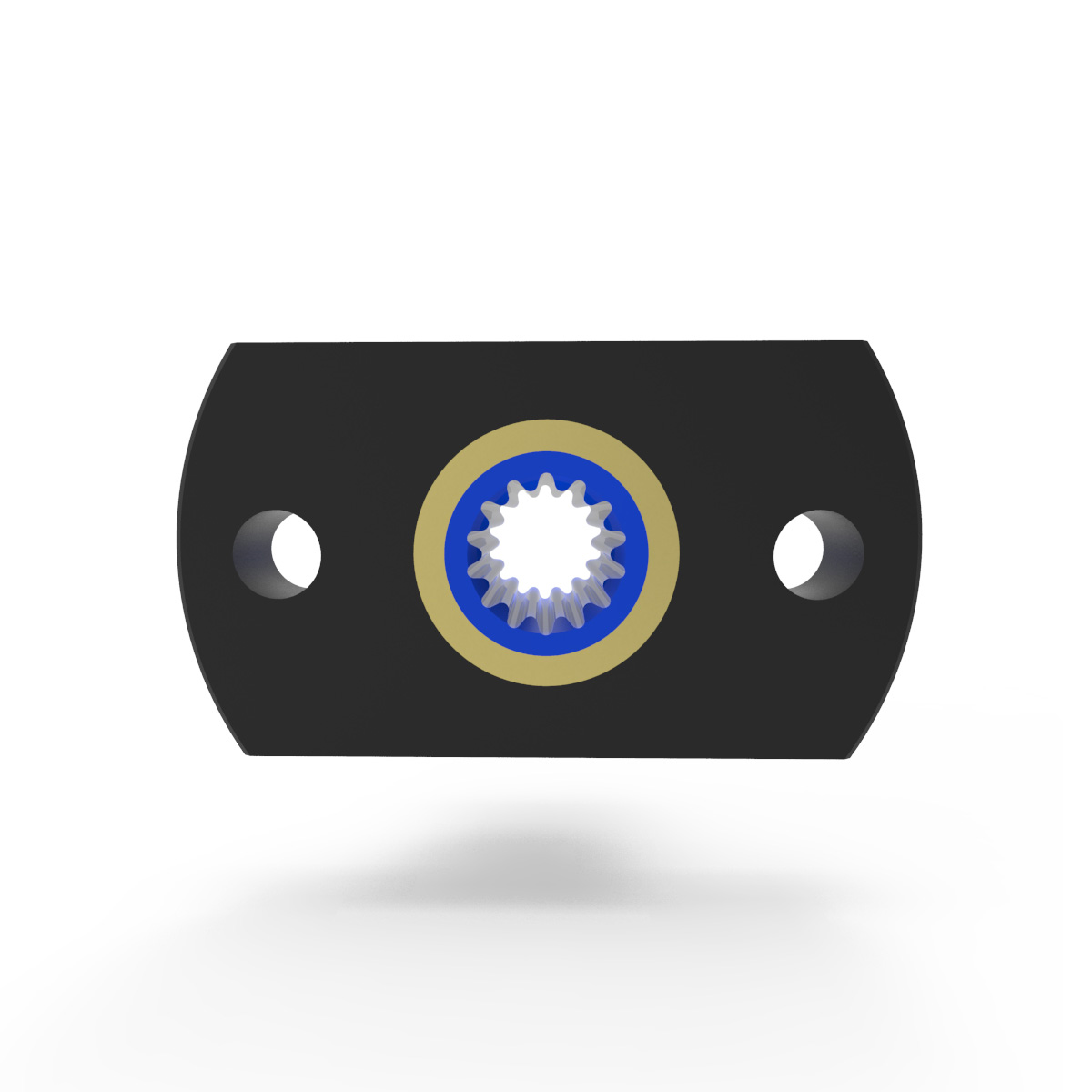

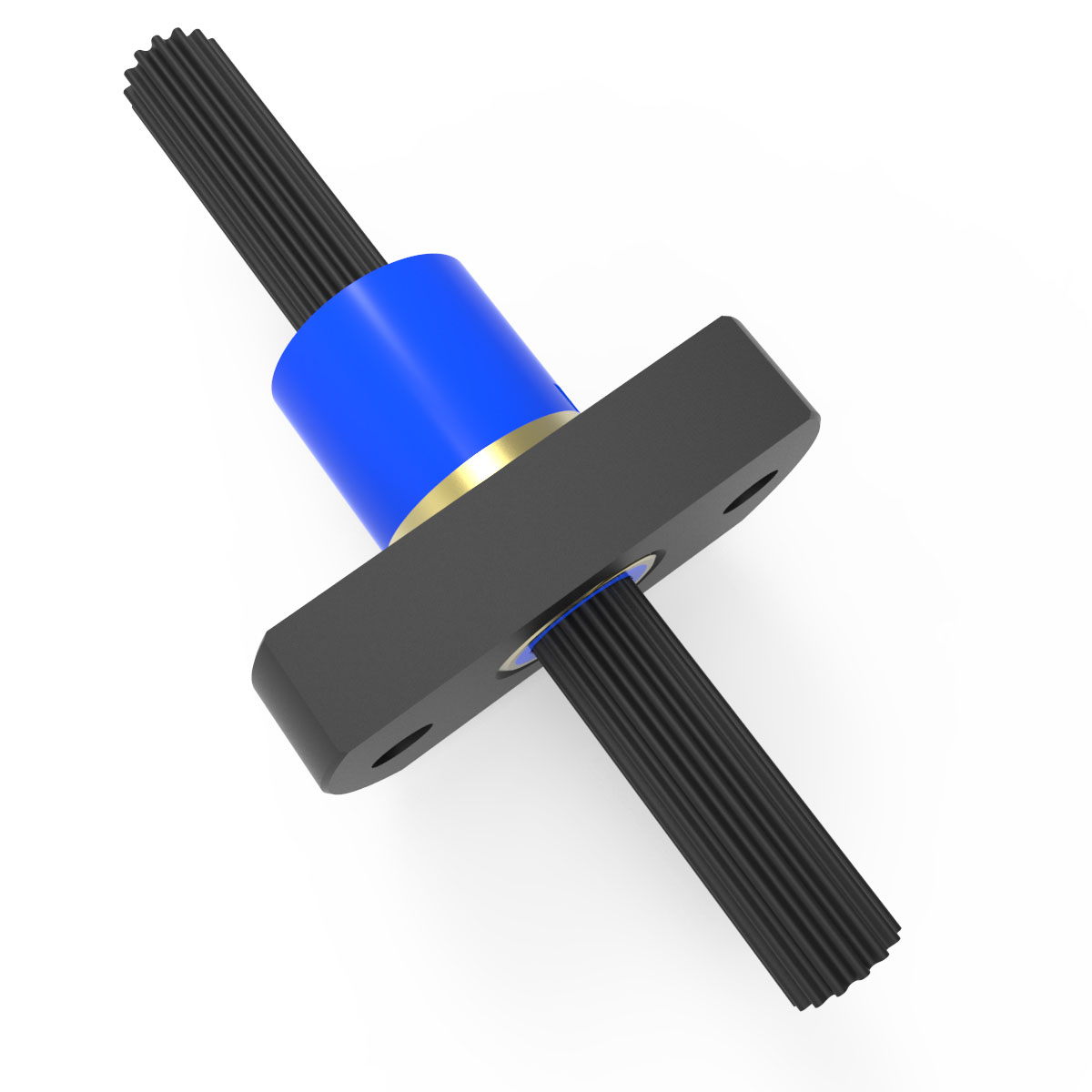

Name: Precision Torque Spline Assembly
SKU: 262327
Price: 286.21 USD
Availability: InStock

Anti-Backlash	No

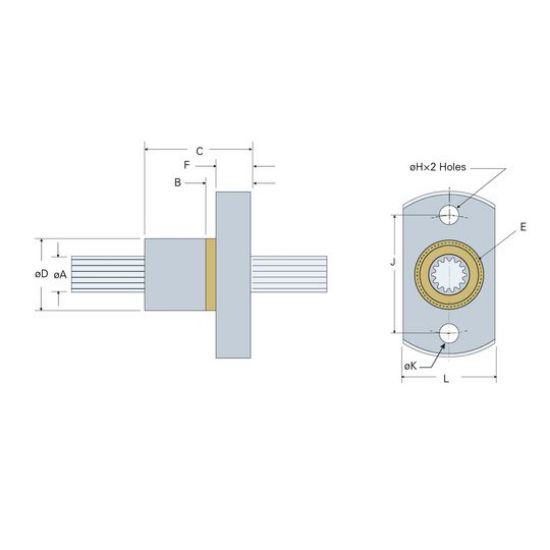

Bushing Diameter D (in)	0.813
Bushing Diameter D (mm)	20.640
Bushing Length C (in)	1.500
Bushing Length C (mm)	38.100
Bushing Material	High strength bronze and composite polymer
Bushing Style	PTS - Standard Bushing
Compact Flange Part Number	HFSD50
End Machining	Cut to length (request a quote for standard and custom end machinging options)
Equivalent Diameter (in) ± .002	0.460
Equivalent Diameter (mm) ± .05 mm	11.680
Flange F	0.500
Flange G (in)	1.375
Flange H (in)	0.266
Flange OD (in)	1.950
Flange W	1.070
Lead Time	2 Weeks
Length - IN	51
Mount Surface Length B (in) ± .005	0.625
Mount Surface Length B (mm) ± .13 mm	15.880
Root Diameter (in)	0.419
Root Diameter (mm)	10.640
Rotational Lash (in)	.005 to .009
Shaft Diameter A (in) ± .002	0.500
Shaft Diameter A (mm) ± .05 mm	12.700
Spline Material	304 Stainless Steel with H10X Teflon Coating
Spline Teeth	18
Straightness (in/ft)	0.005
Temperature Range (°F)	-65 to 185

Precision Torque Spline Assembly PTS-08C-02T-51.00
