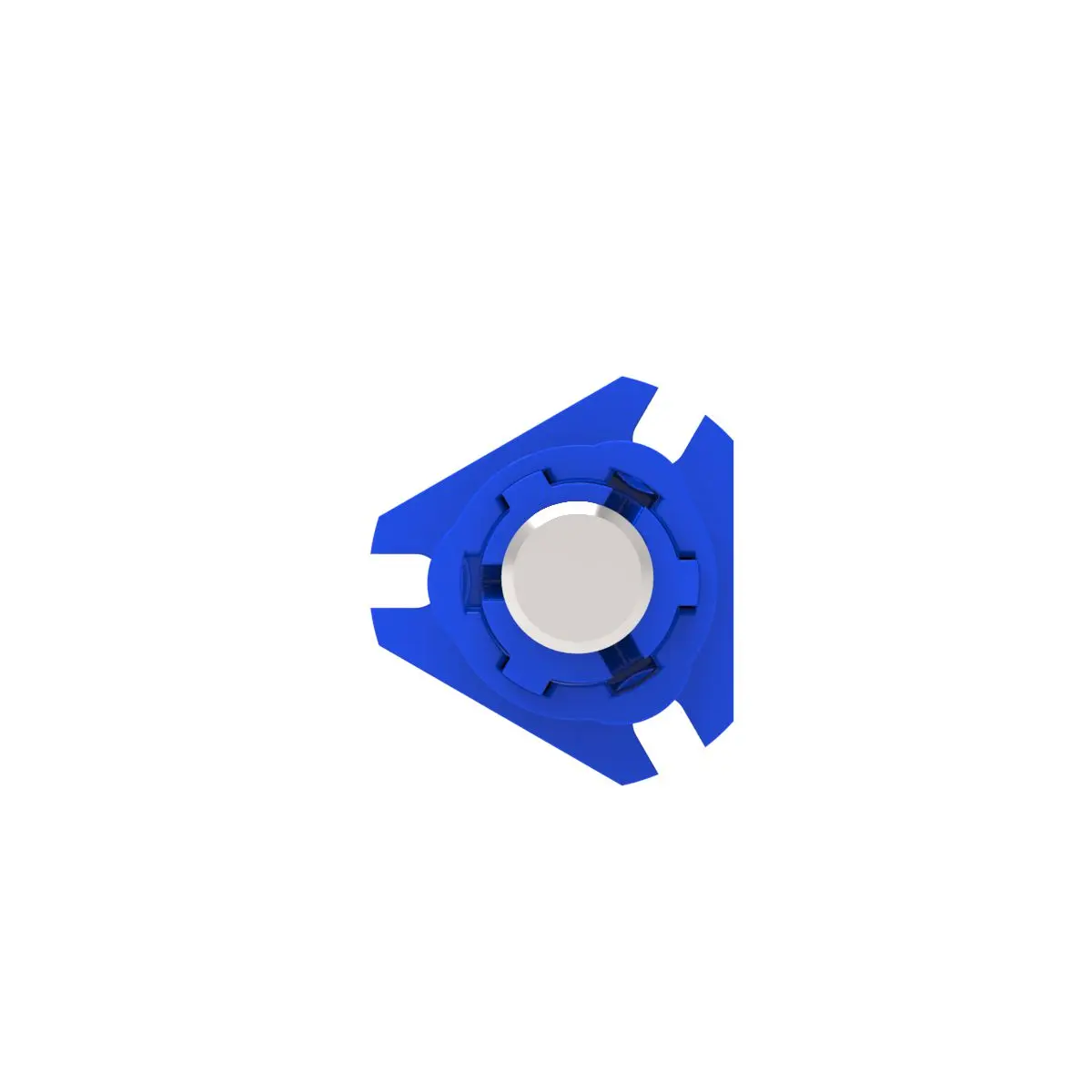

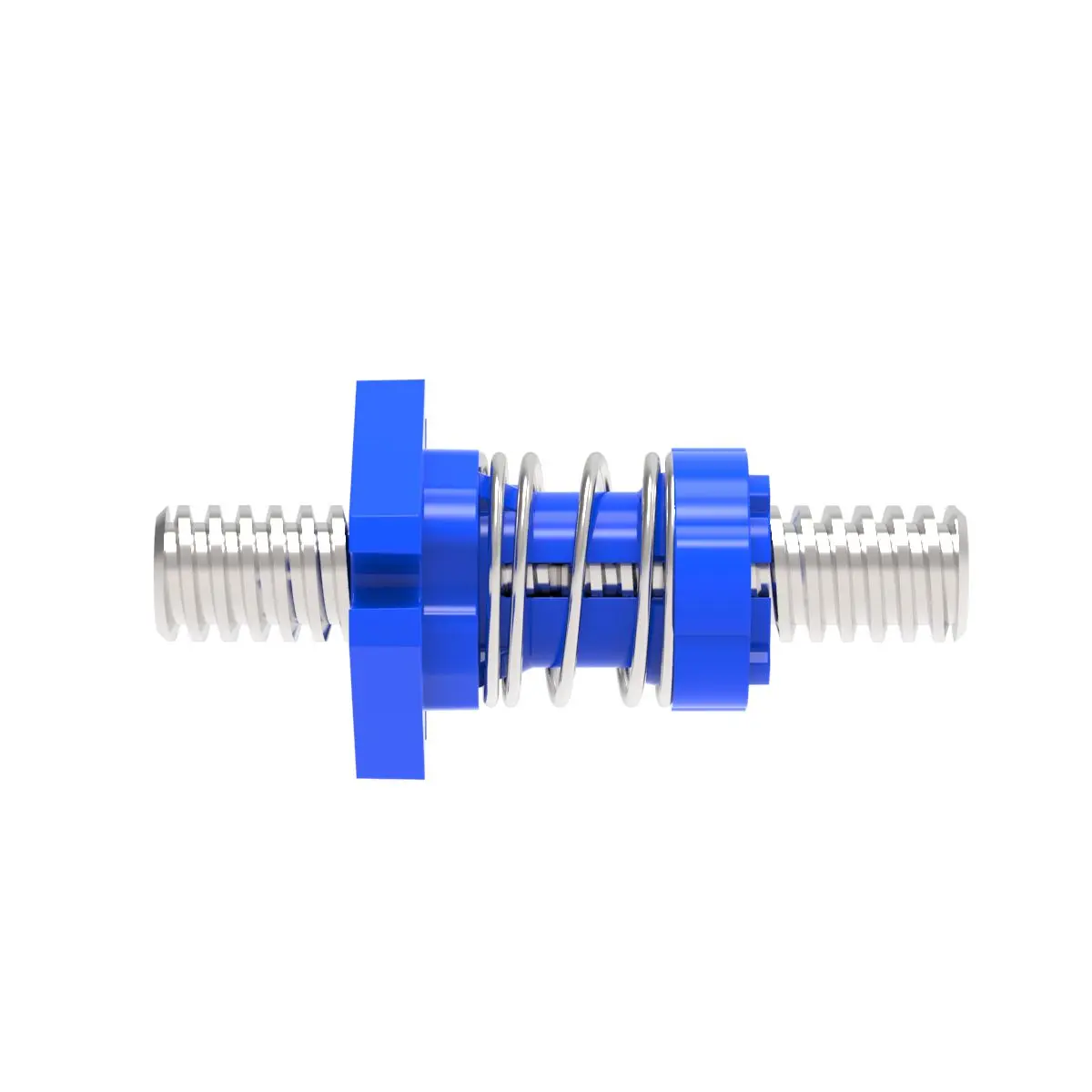

Name: Flanged Radial Anti-backlash Nut (RFA)
SKU: 268172
Price: 68.41 USD
Availability: Discontinued

Anti-Backlash Nut Life with H10X Coating (in)	150 to 200 Million
Connection Type	Flanged

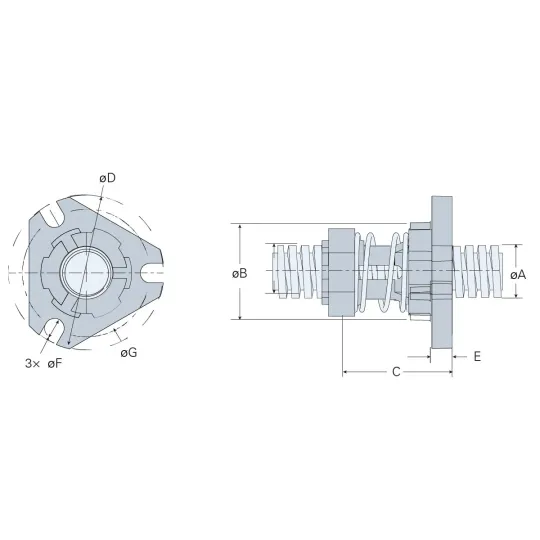

D- Flange Diameter (in)	1
Diameter Code	25
Dynamic Load Capacity (lbs)	75
Efficiency (%)	82.36895239
Flange Part No - Round	HF25
G - Slot Width (in)	0.144
H - Bolt Circle Dia. (in)	0.750
Imperial or Metric	TRUE
Lead (in)	1
Lead Accuracy +/- (in/in)	0.0003
Lead Code	999
Lead Time	2 Weeks
Material	Helital
Mating Screw Part No	RD025999R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.250
Nut Code	RFA
Nut Diameter B (in)	0.610
Nut Length C (in)	0.940
Nut Type	Radial Anti-Backlash Nut with mounting flange
Nut Weight (lbs)	0.02
Pitch (in)	0.125
Pitch (mm)	3.175
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Radial
Standard Operating Temperature Range (F°)	32-200
Starts	8
Thread Class	Centralizing
Thread Direction	RH
Thread Type	High Helix
Threads Per Inch	8
Turns Per Inch of Travel (in)	1

Flanged Radial Anti-backlash Nut (RFA) RFARD025999R
