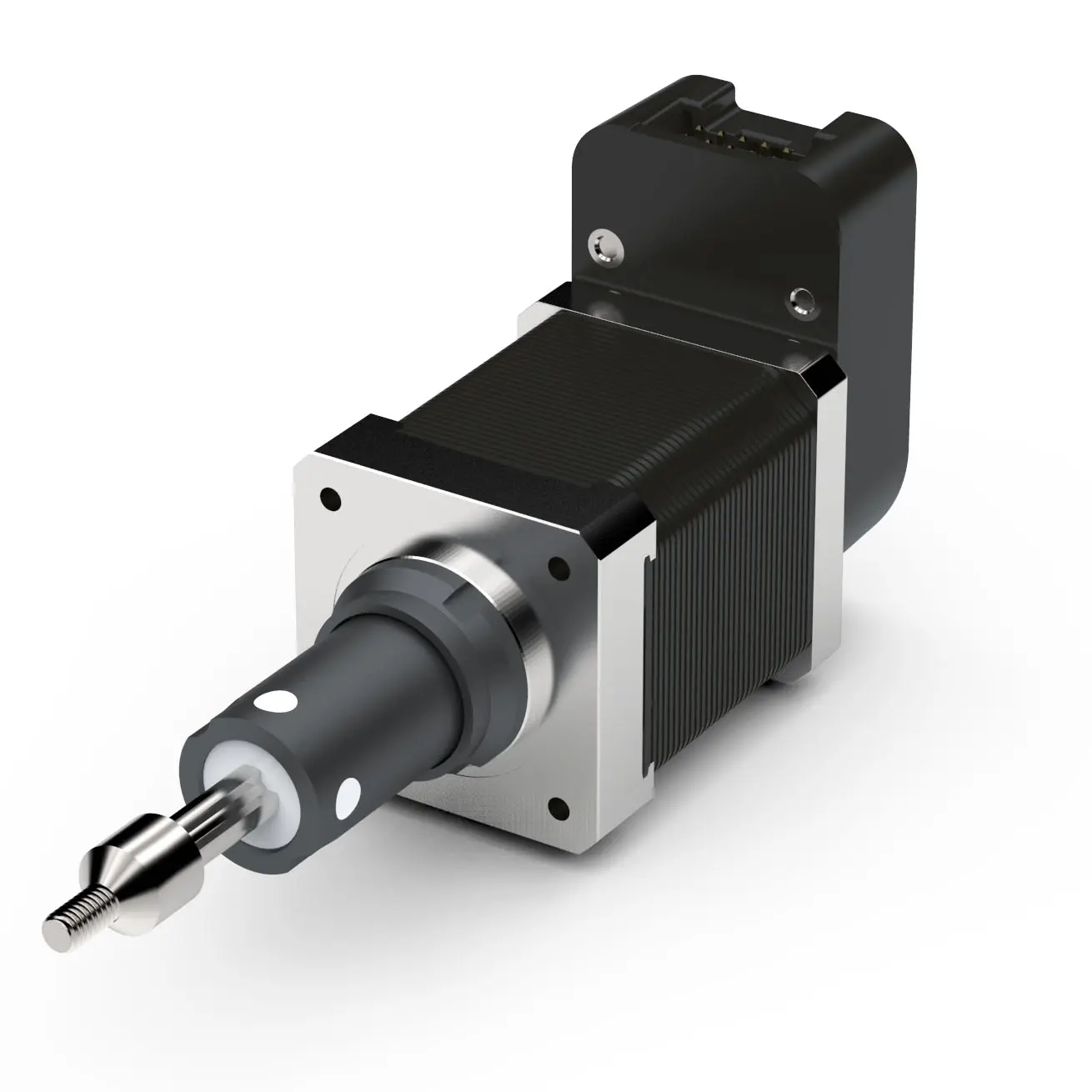

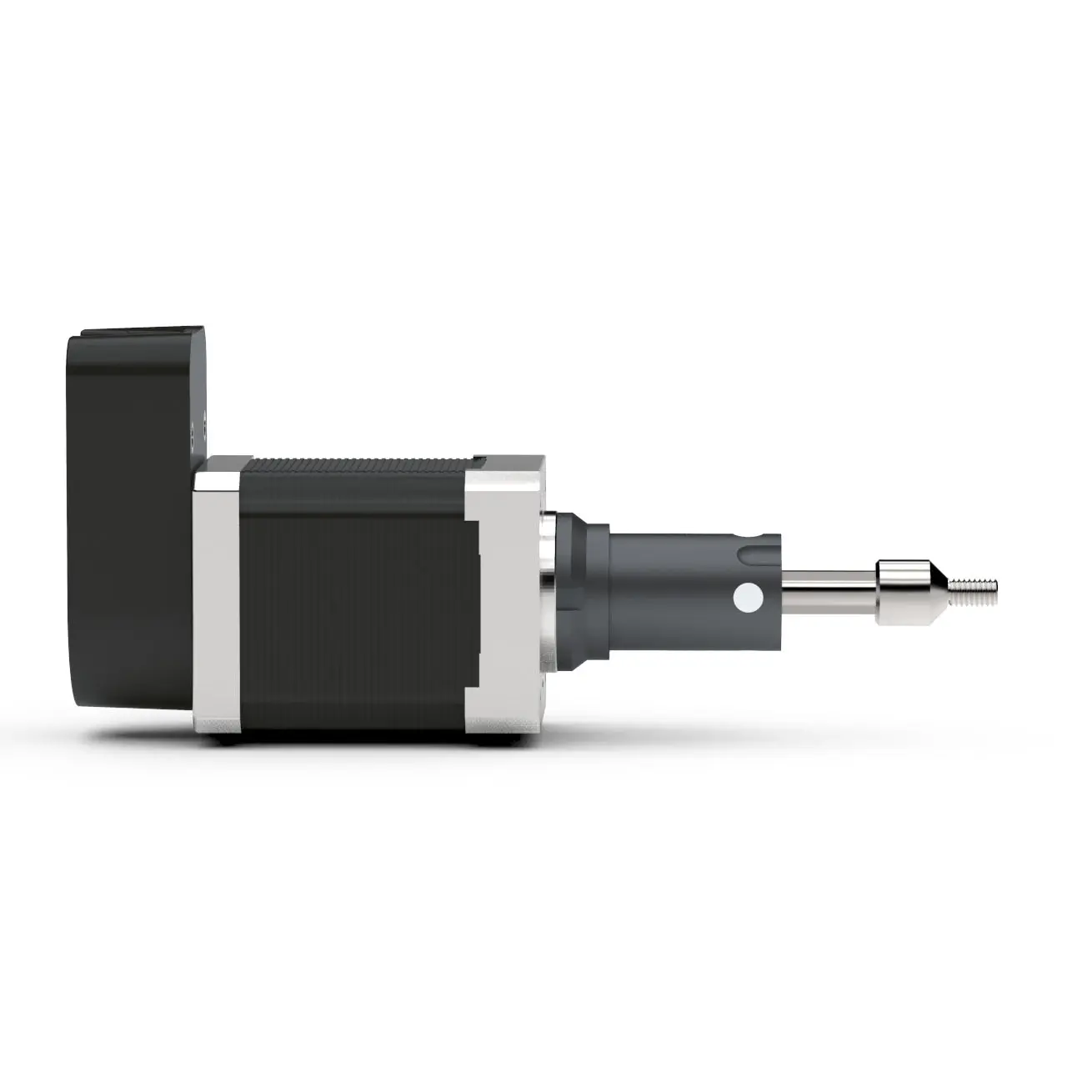

Name: Captive Stepper Motor Linear Actuator
SKU: 98789
Price: 598.28 USD
Availability: InStock

Actuator Style	Captive
Bearing Load Limit (N)	300
Diameter (in)	0.025
Diameter (mm)	0.635
Diameter Code	25
Encoder	500 CPR
End Machining	Standard Imperial End Machining
Inductance/Phase (mH)	7.63
Lead (in)	0.050
Lead (mm)	1.270
Lead Code	50
Lead Screw Lead Accuracy +/- (mm/mm)	0.1/300
Lead Time	2 Weeks
Motor Size (NEMA)	14
Motor Stack	Double Stack
Motor Voltage (V)	5
Motor Weight (g)	240
Power Consumption (W)	9.1
Rated Current (A)	0.91
Screw Drive Type	Lead Screw
Step Angle (°)	1.8
Stroke Length (in)	0.750
Stroke Length (mm)	19.050
Temperature Rise (°C)	75
Temperature Rise (°F)	167
Wiring	Bipolar
Wiring Leads	4

Captive Stepper Motor Linear Actuator SMA-14D5-C-025050-0.75-SE-E500-A
