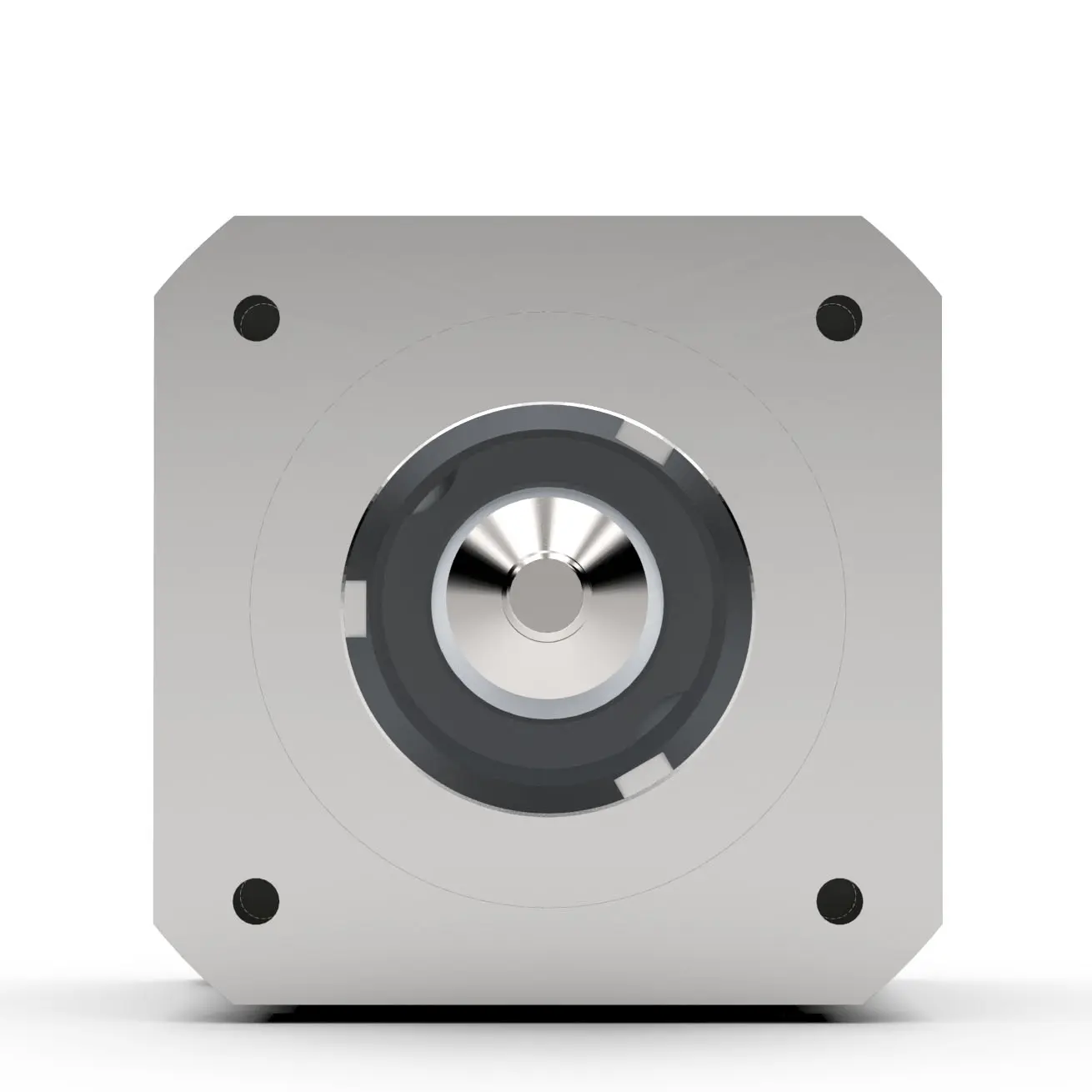

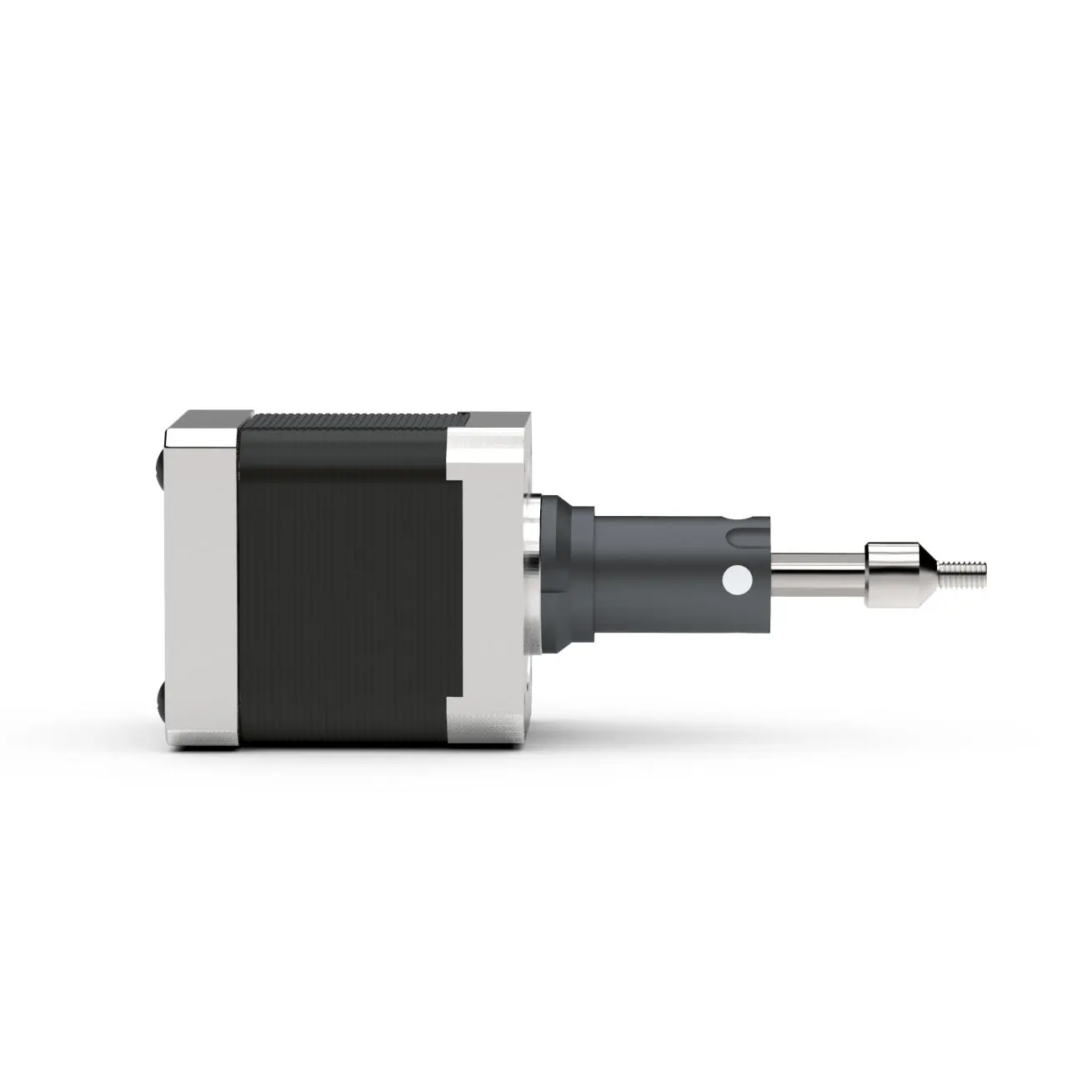

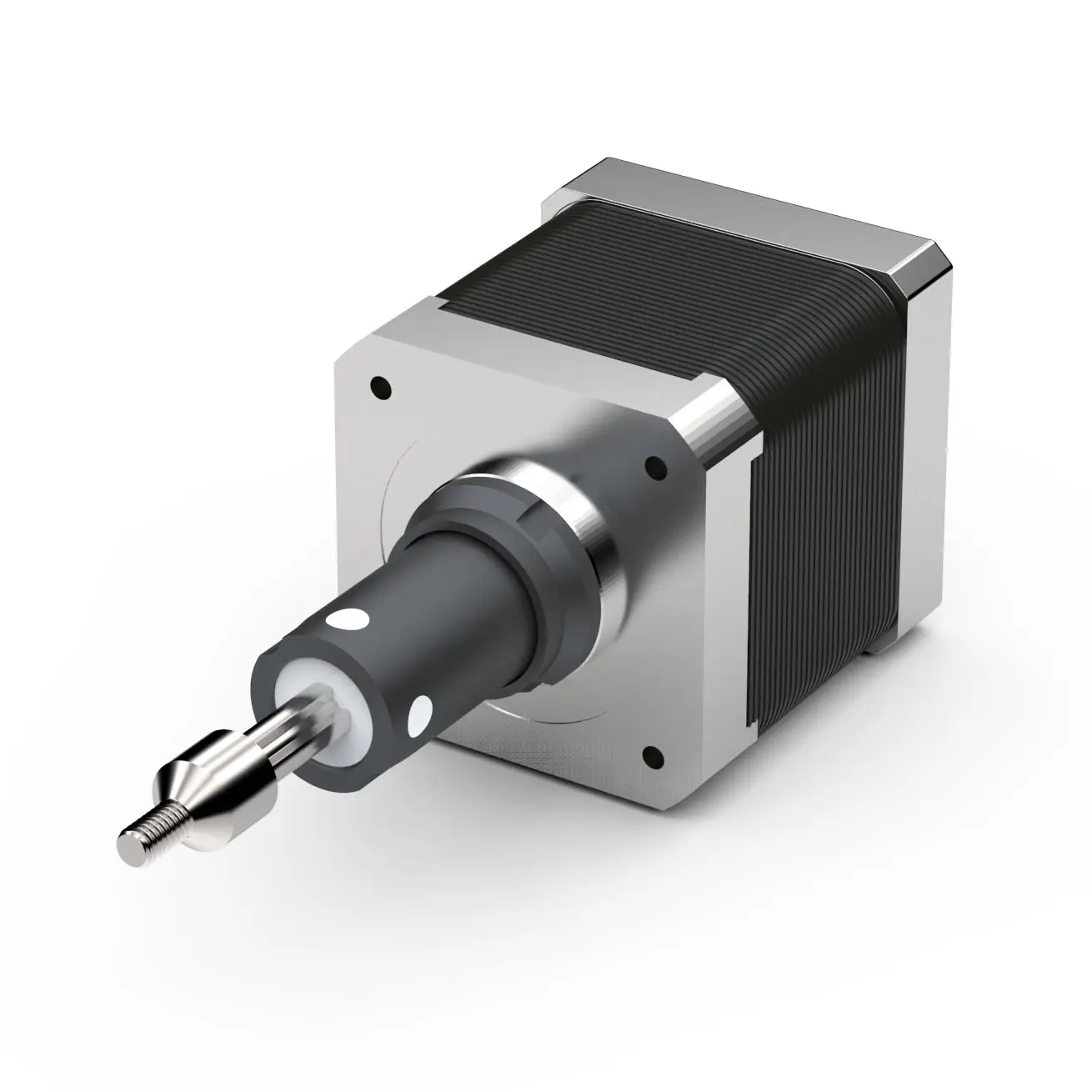

Name: Captive Stepper Motor Linear Actuator
SKU: 117393
Price: 403.67 USD
Availability: InStock

Actuator Style	Captive
Bearing Load Limit (N)	300
Diameter (in)	0.025
Diameter (mm)	0.635
Diameter Code	25
Encoder	Encoder Ready
End Machining	Metric End Machining
Inductance/Phase (mH)	6.6
Lead (in)	0.039
Lead (mm)	0.991
Lead Code	39
Lead Screw Lead Accuracy +/- (mm/mm)	0.1/300
Lead Time	2 Weeks
Motor Size (NEMA)	17
Motor Stack	Double Stack
Motor Voltage (V)	5
Motor Weight (g)	352
Power Consumption (W)	14
Rated Current (A)	1.3
Screw Drive Type	Lead Screw
Step Angle (°)	1.8
Stroke Length (in)	0.750
Stroke Length (mm)	19.050
Temperature Rise (°C)	75
Temperature Rise (°F)	167
Wiring	Bipolar
Wiring Leads	4

Captive Stepper Motor Linear Actuator SMA-17D5-C-025039-0.75-ME-ER-00
