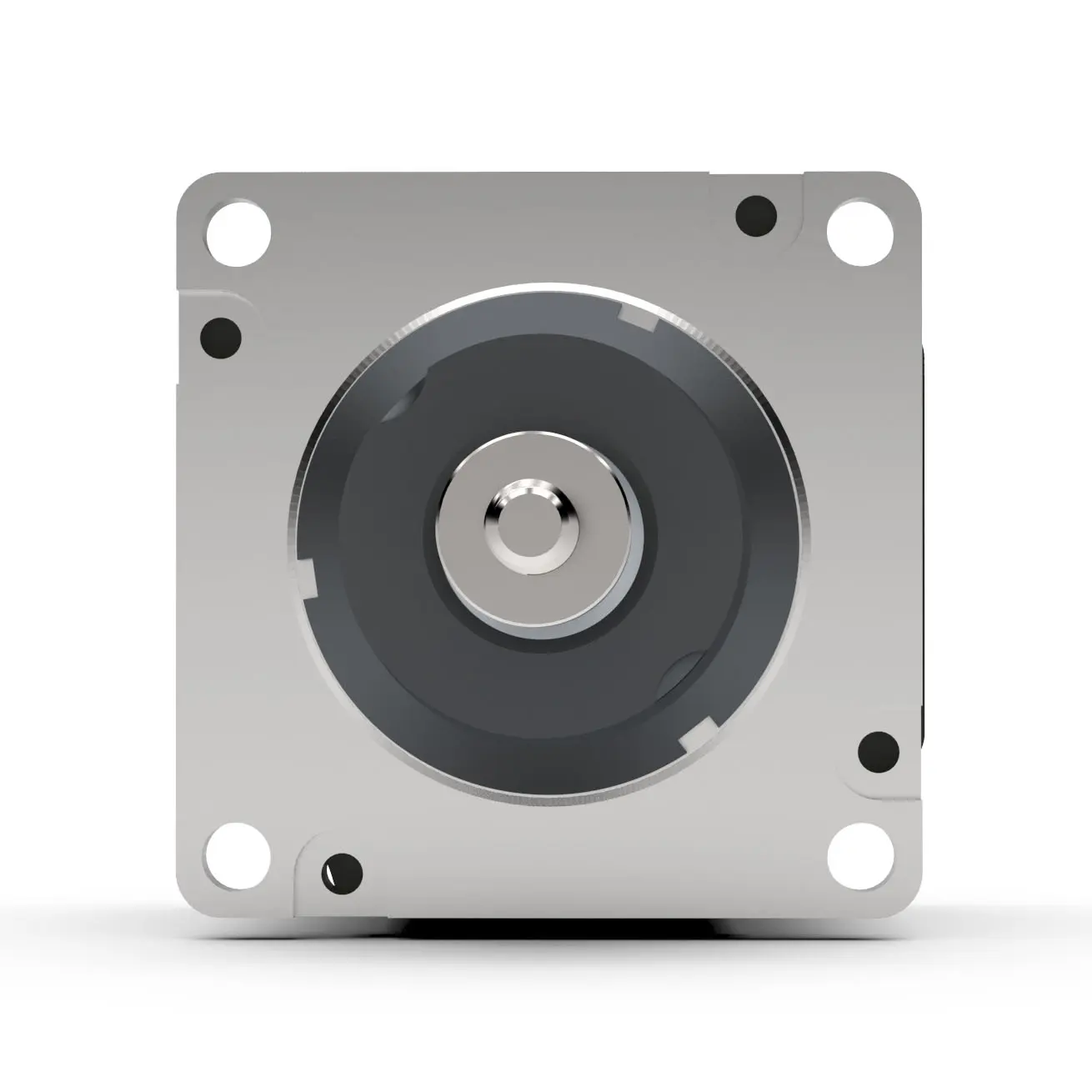

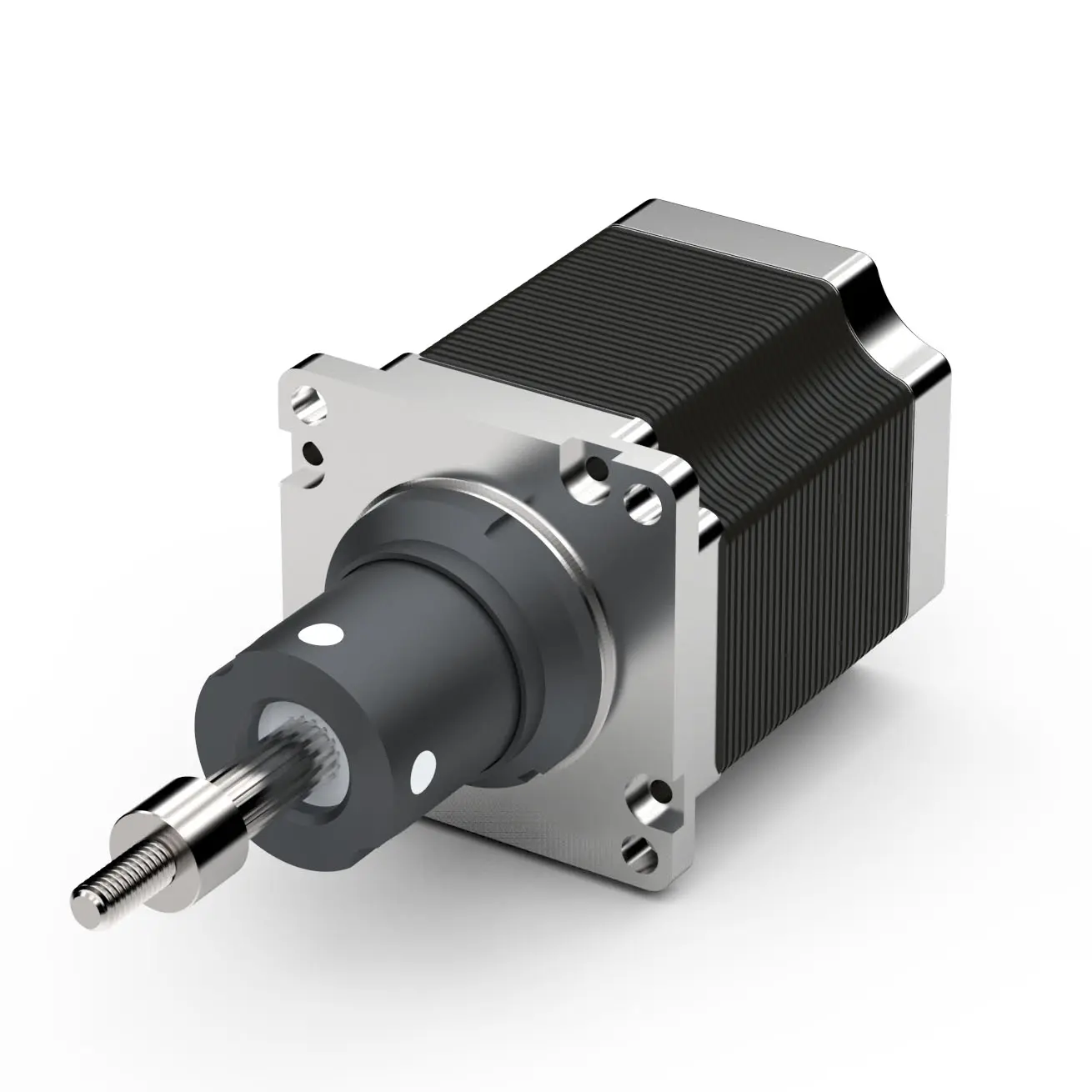

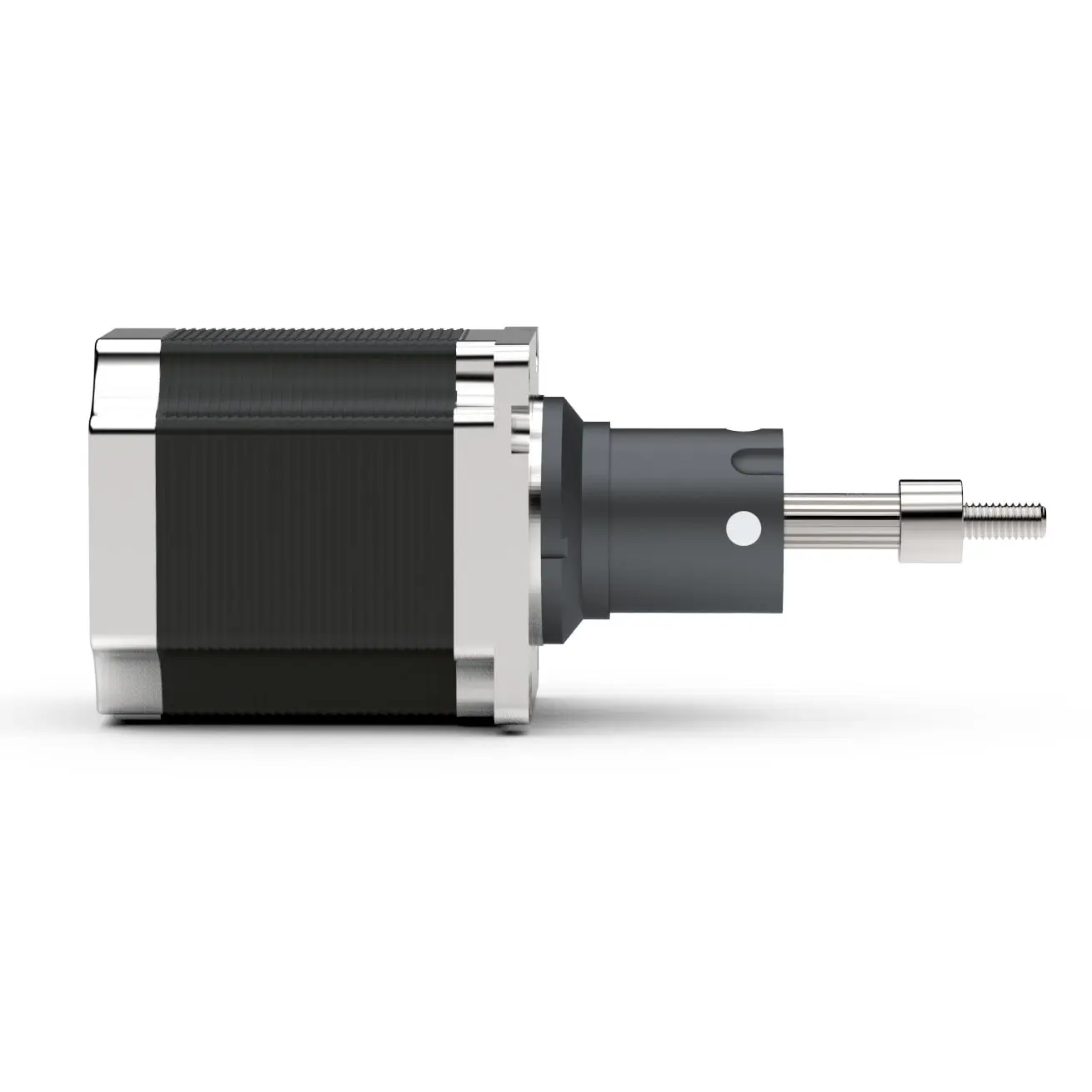

- Captive Stepper Motor Linear Actuator
| Actuator Style | Captive |
|---|---|
| Bearing Load Limit (N) | 975 |
| Diameter (in) | 0.375 |
| Diameter (mm) | 9.525 |
| Diameter Code | W37 |
| Encoder | Encoder Ready |
| End Machining | Metric End Machining |
| Inductance/Phase (mH) | 6.6 |
| Lead (in) | 0.400 |
| Lead (mm) | 10.160 |
| Lead Code | 400 |
| Lead Screw Lead Accuracy +/- (mm/mm) | 0.1/300 |
| Lead Time | 2 Weeks |
| Motor Size (NEMA) | 23 |
| Motor Stack | Double Stack |
| Motor Voltage (V) | 5 |
| Motor Weight (g) | 958 |
| Power Consumption (W) | 14 |
| Rated Current (A) | 2.16 |
| Screw Drive Type | Lead Screw |
| Step Angle (°) | 1.8 |
| Stroke Length (in) | 1 |
| Stroke Length (mm) | 25.400 |
| Temperature Rise (°C) | 75 |
| Temperature Rise (°F) | 167 |
| Travel Per Step (in) | 0.254 |
| Travel Per Step (mm) | 0.010 |
| Wiring | Bipolar |
| Wiring Leads | 4 |
