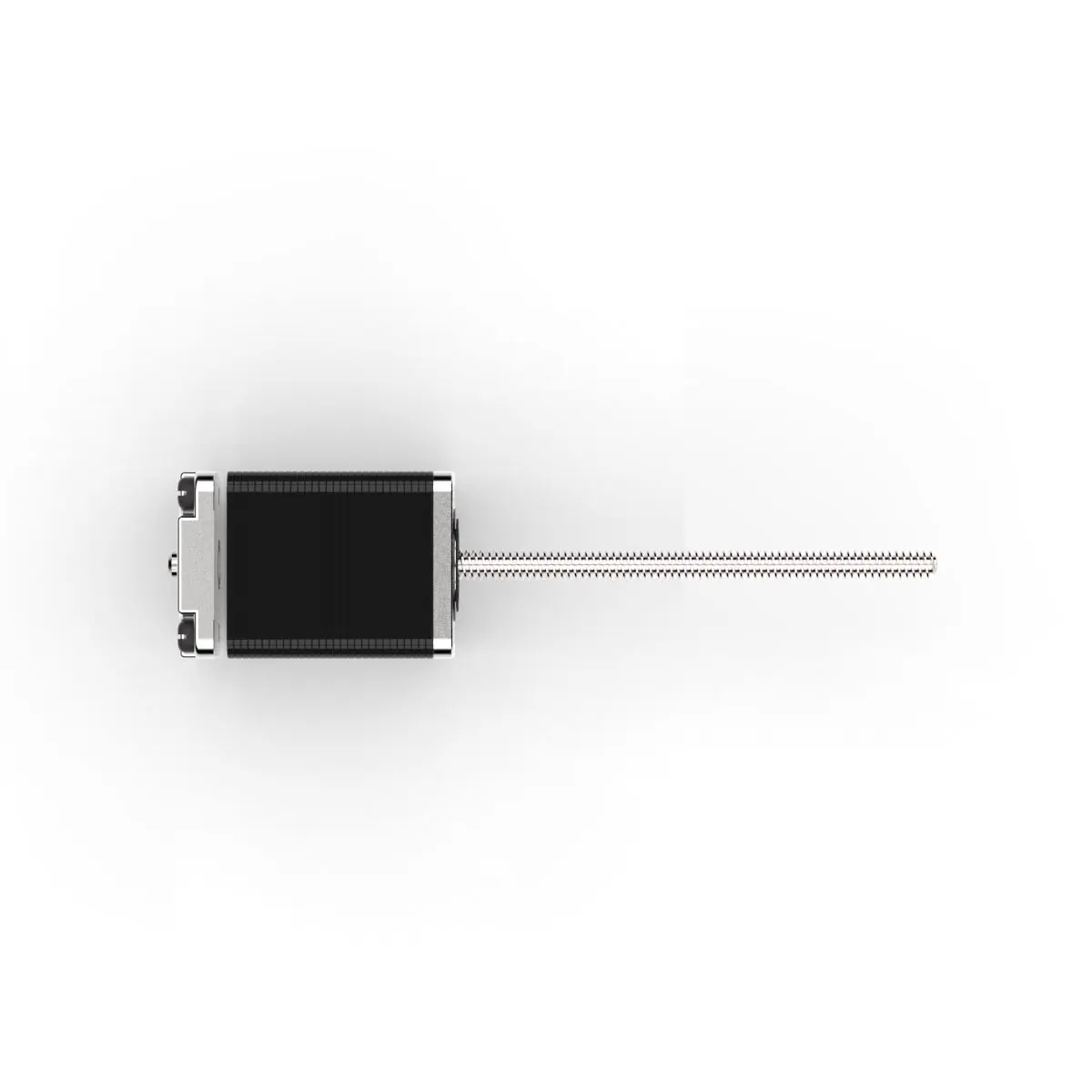

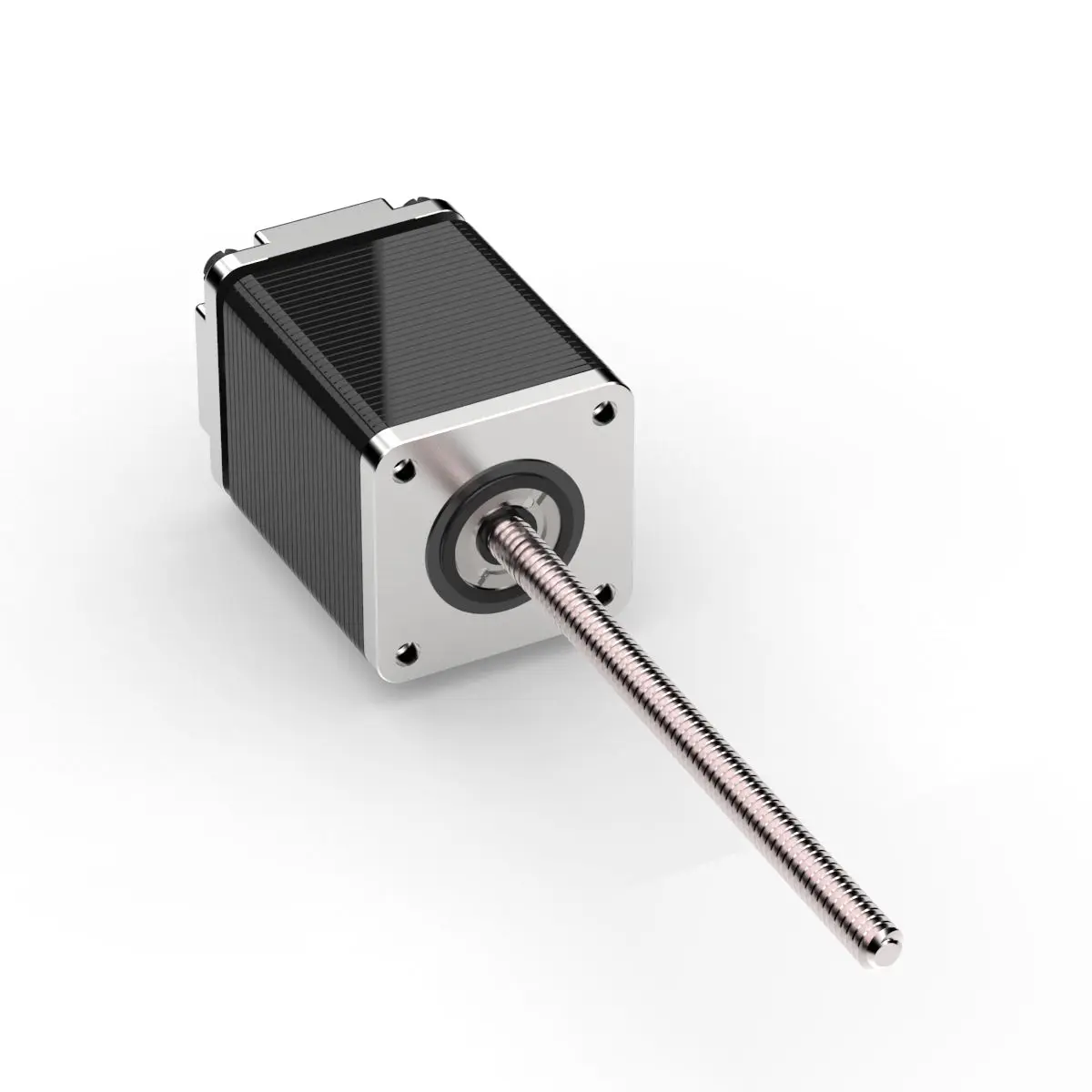

- External Stepper Motor Linear Actuator
| Actuator Style | External |
|---|---|
| Bearing Load Limit (N) | 65 |
| Bearing Support | 0 |
| Diameter (in) | 0.125 |
| Diameter (mm) | 3.175 |
| Diameter Code | 12 |
| Encoder | No Encoder |
| Inductance/Phase (mH) | 5 |
| Lead (in) | 0.019 |
| Lead (mm) | 0.483 |
| Lead Code | 19 |
| Lead Screw Lead Accuracy +/- (in/in) | 0.1/300 |
| Lead Time | 2 Weeks |
| Motor Size (NEMA) | 8 |
| Motor Stack | Single Stack |
| Motor Voltage (VDC) | 5 |
| Motor Weight (g) | 43 |
| Nut Type | 0 |
| Power Consumption (W) | 1.5 |
| Q | AWG28# |
| Rated Current (A) | 0.24 |
| Screw Drive Type | Lead Screw |
| Screw Length (in) | 2 |
| Screw Length (mm) | 50.800 |
| Step Angle (°) | 1.8 |
| Temperature Rise (°C) | 75 |
| Temperature Rise (°F) | 167 |
| Travel Per Step (in) | 0.127 |
| Travel Per Step (mm) | 0.005 |
| Wiring | Bipolar |
| Wiring Leads | 4 |
