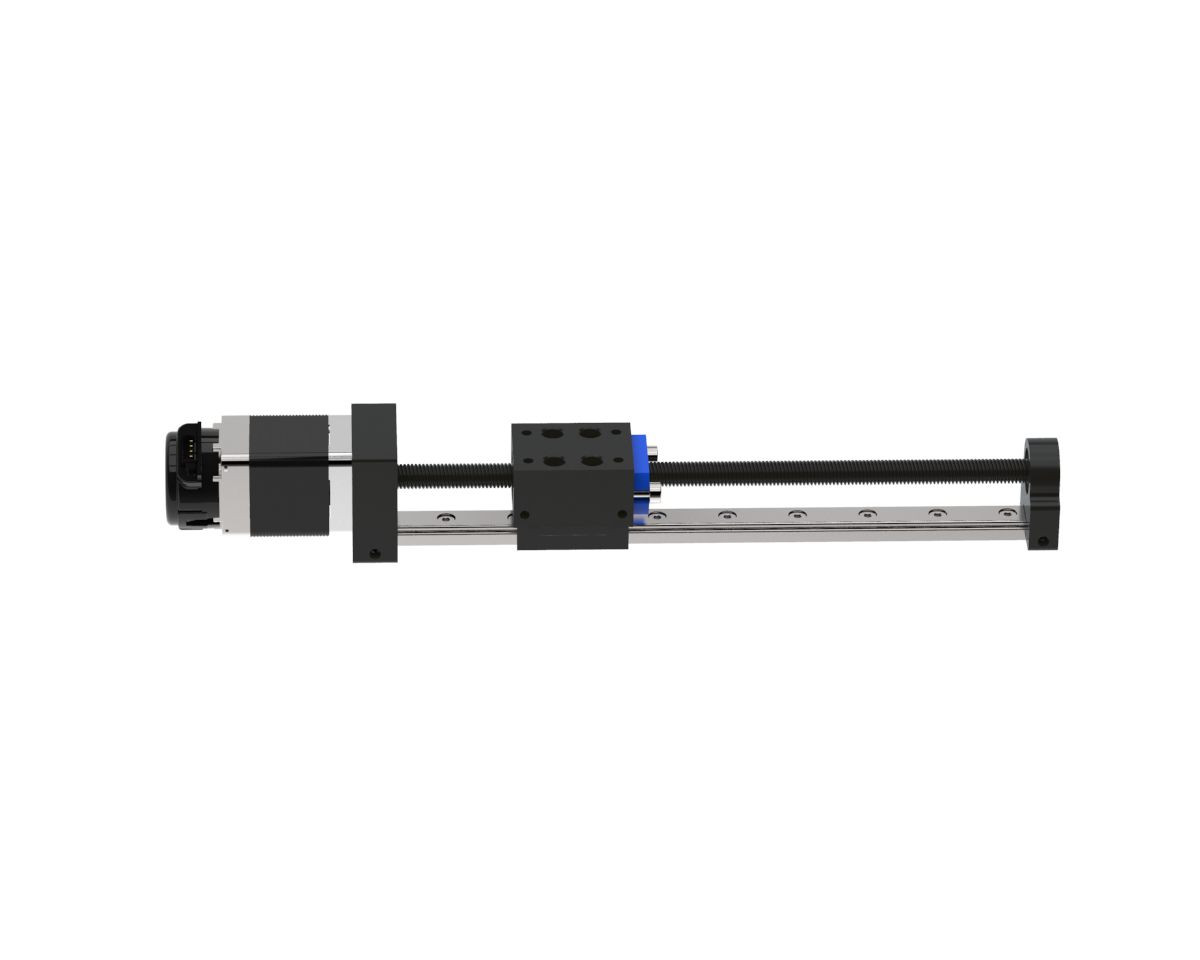

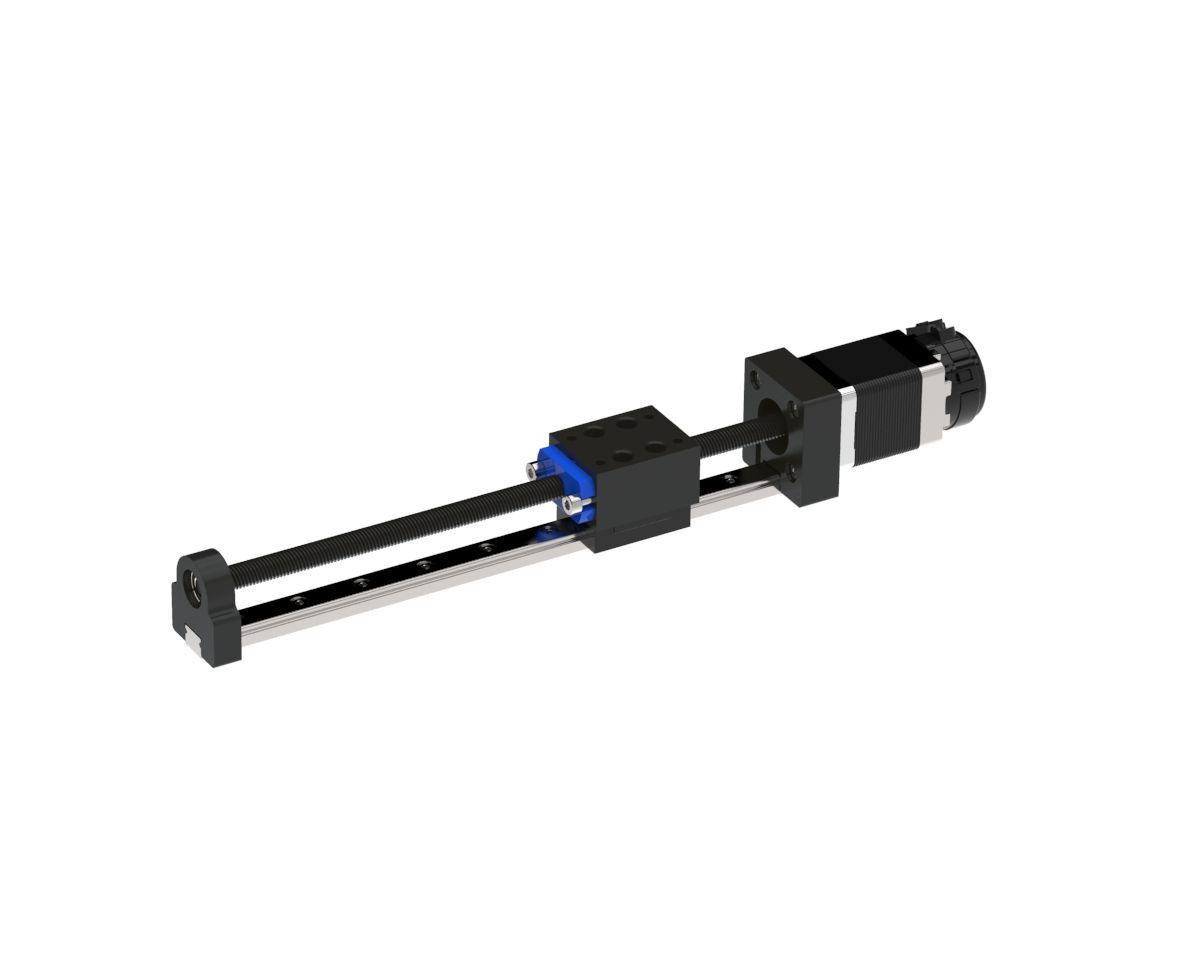

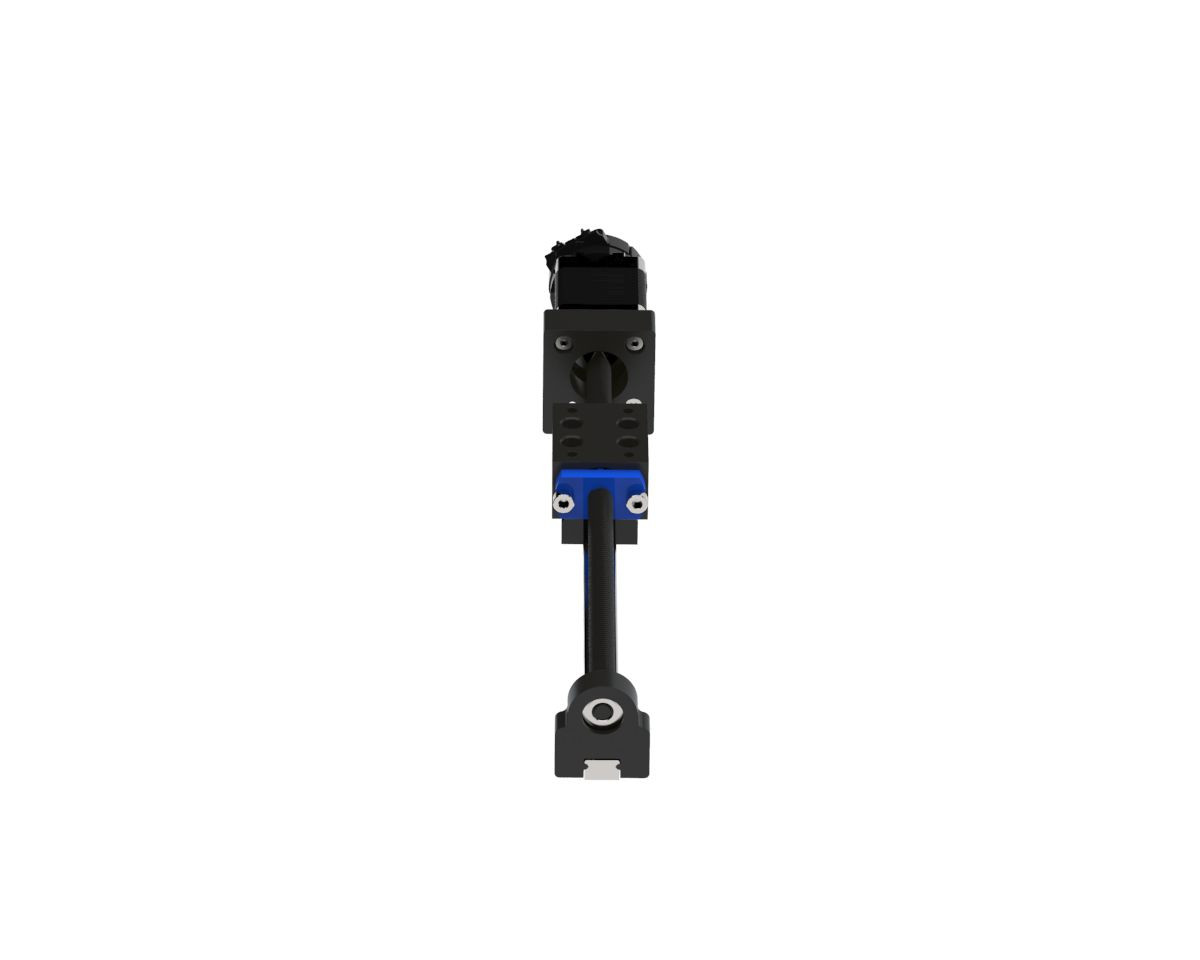

D2 (in)0.13 in
D2 (mm)3.302 mm
D3 (in)0.75 in
D3 (mm)19.05 mm
D4 (in)0.47 in
D4 (mm)11.938 mm
Diameter Code18
Diameter D (in)0.1875
Diameter D (mm)4.7625
E (in)0.8 in
E (mm)20.32 mm
EncoderNo Encoder, 1000 CPR
F (in)1.22 in
F (mm)30.988 mm
Fy - Axial Static Load Capacity (lbs)100.00
Fz - Dynamic Normal Load (lbs)200.00
Fz - Static Normal Load (lbs)323.70
G4-40 UNC
G1 (in)0.13 in
G1 (mm)3.302 mm
H (in)1 in
H (mm)25.4 mm
Inductance/Phase (mH)1.1
K (in)0.55 in
K (mm)13.97 mm
K1 (in)0.19 in
K1 (mm)4.826 mm
K2 (in)0.05 in
K2 (mm)1.27 mm
L (in)2.9 in
L (mm)73.66 mm
Length Adder (in)1.9
Length Adder (mm)48.26
Motor Size (NEMA)8
Motor StackDouble Stack, Single Stack
Motor Voltage (V)2.5, 5
Motor Weight (g)68
Motor Weight (oz)2.4, 1.5
Mx - Maximum Moment Load (in/lbs)29.00
My - Maximum Moment Load (in/lbs)46.00
Mz - Maximum Moment Load (in/lbs)29.00
N (in)0.87 in
N (mm)22.098 mm
Nut TypeAxial Anti-backlash Nut, Standard Freewheeling Nut
P (in)0.86 in
P (mm)21.844 mm
Power Consumption (W)7.5
Profile Rail Linear Actuator Catalogprofile_rail_linear_guidance_system.pdf
R (in)1.14 in
R (mm)28.956 mm
Rated Current (A)1.9, 0.75, 0.49, 0.24
S (in)1.04 in
S (mm)26.416 mm
Screw Drive TypeLead Screw
Temperature Rise (°C)75
Travel (in)1
Travel (mm)25.4
Travel Per Step (in)0.000788
Travel Per Step (mm)0.0200025
U (in)0.45 in
U (mm)11.43 mm
V (in)0.2 in
V (mm)5.08 mm
W (in)0.591 in
W (mm)14.986 mm
WiringBipolar
Wiring Leads4
X (in)0.66 in
X (mm)16.764 mm
Y (in)0.09 in
Y (mm)2.286 mm
Zero Lash Axial Dynamic Load Capacity (lb)5.00
