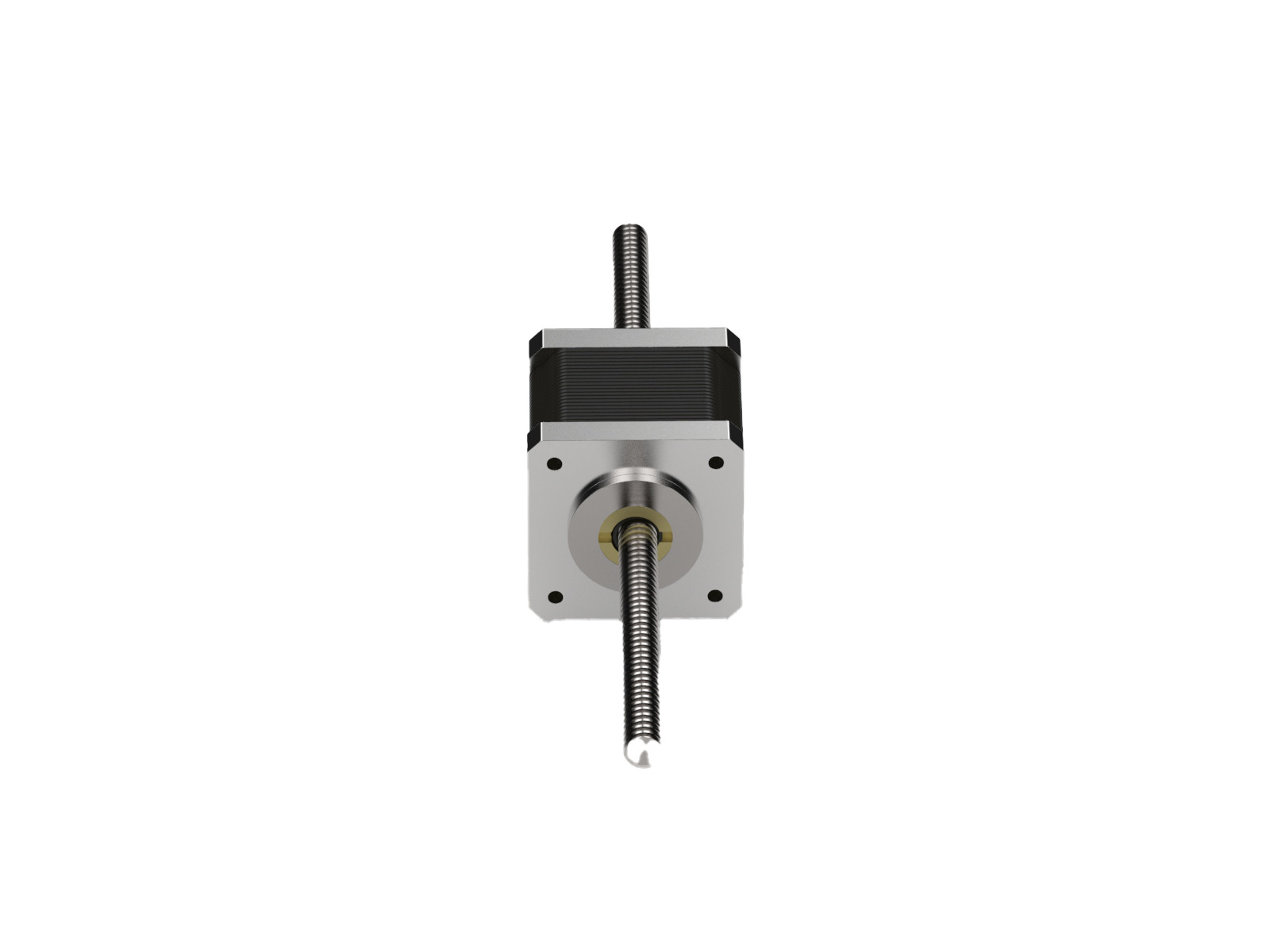

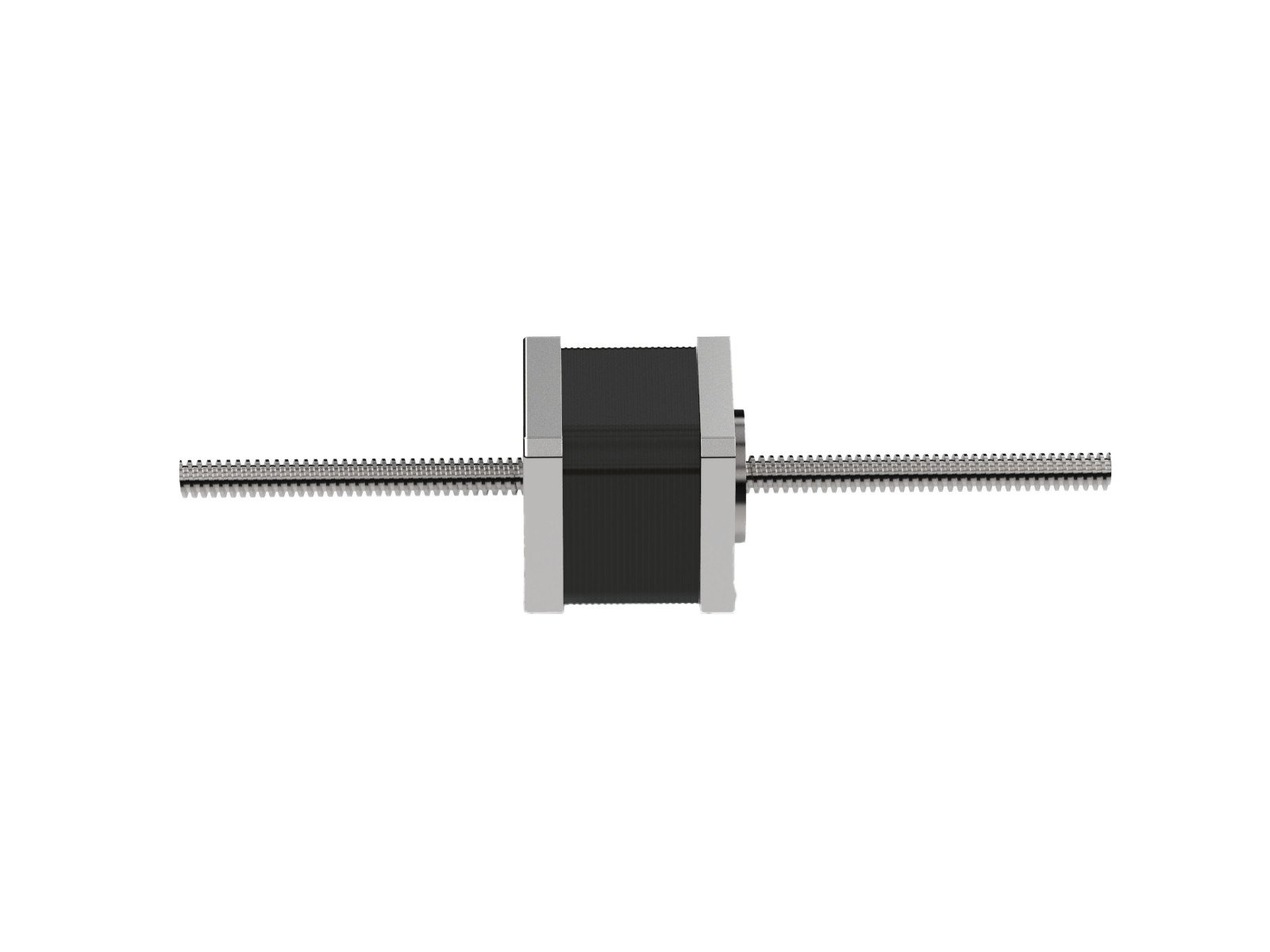

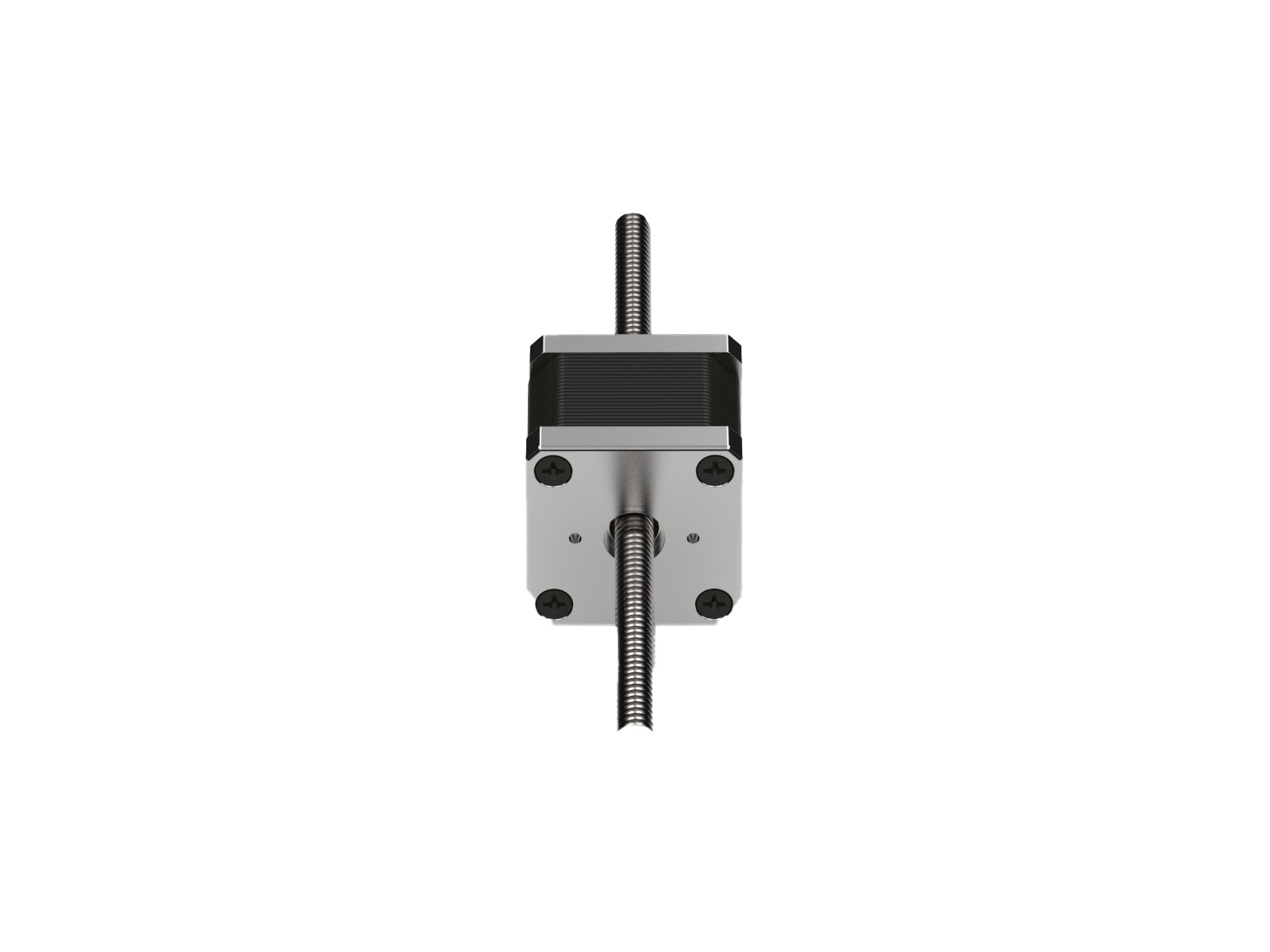

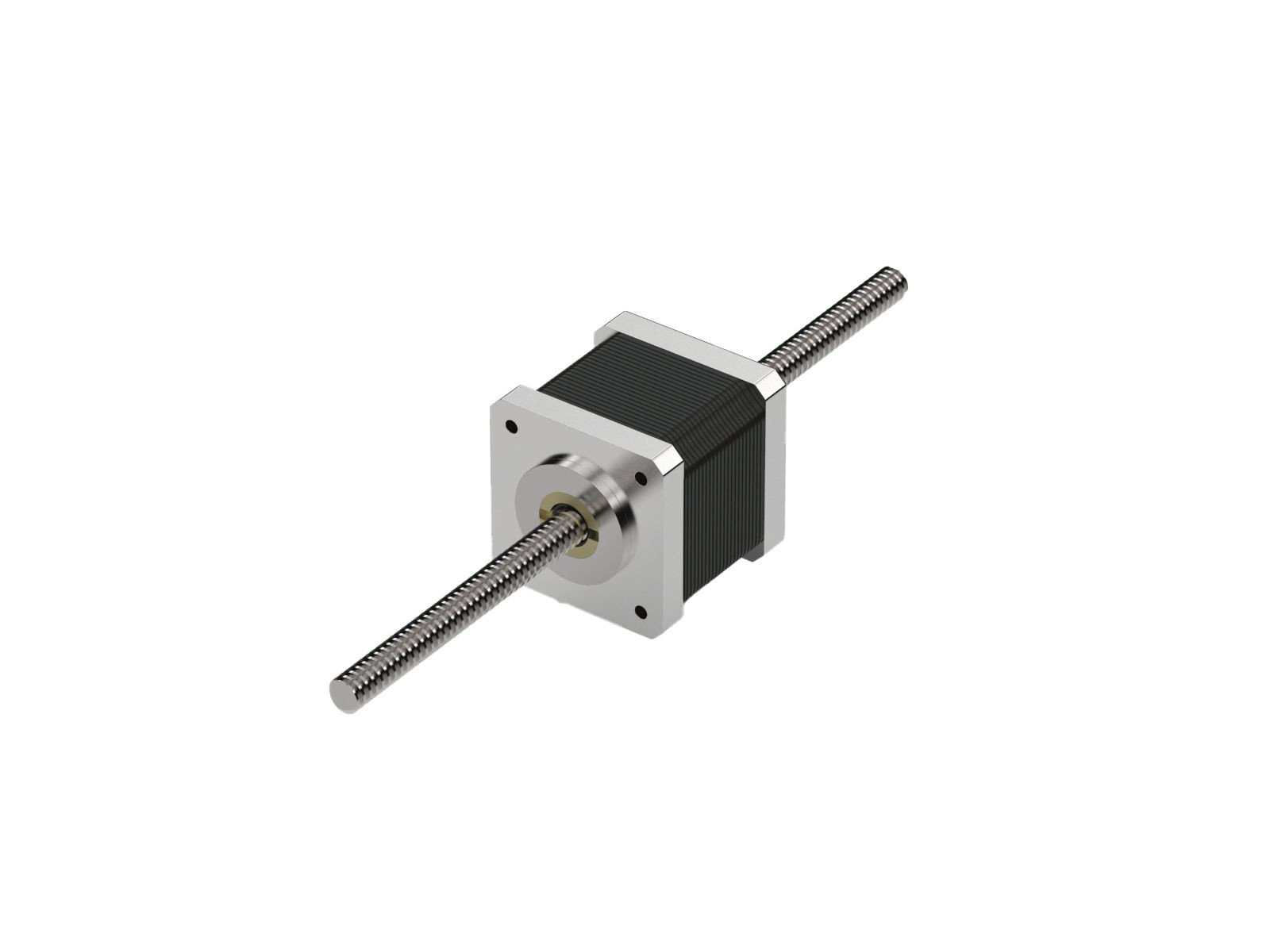

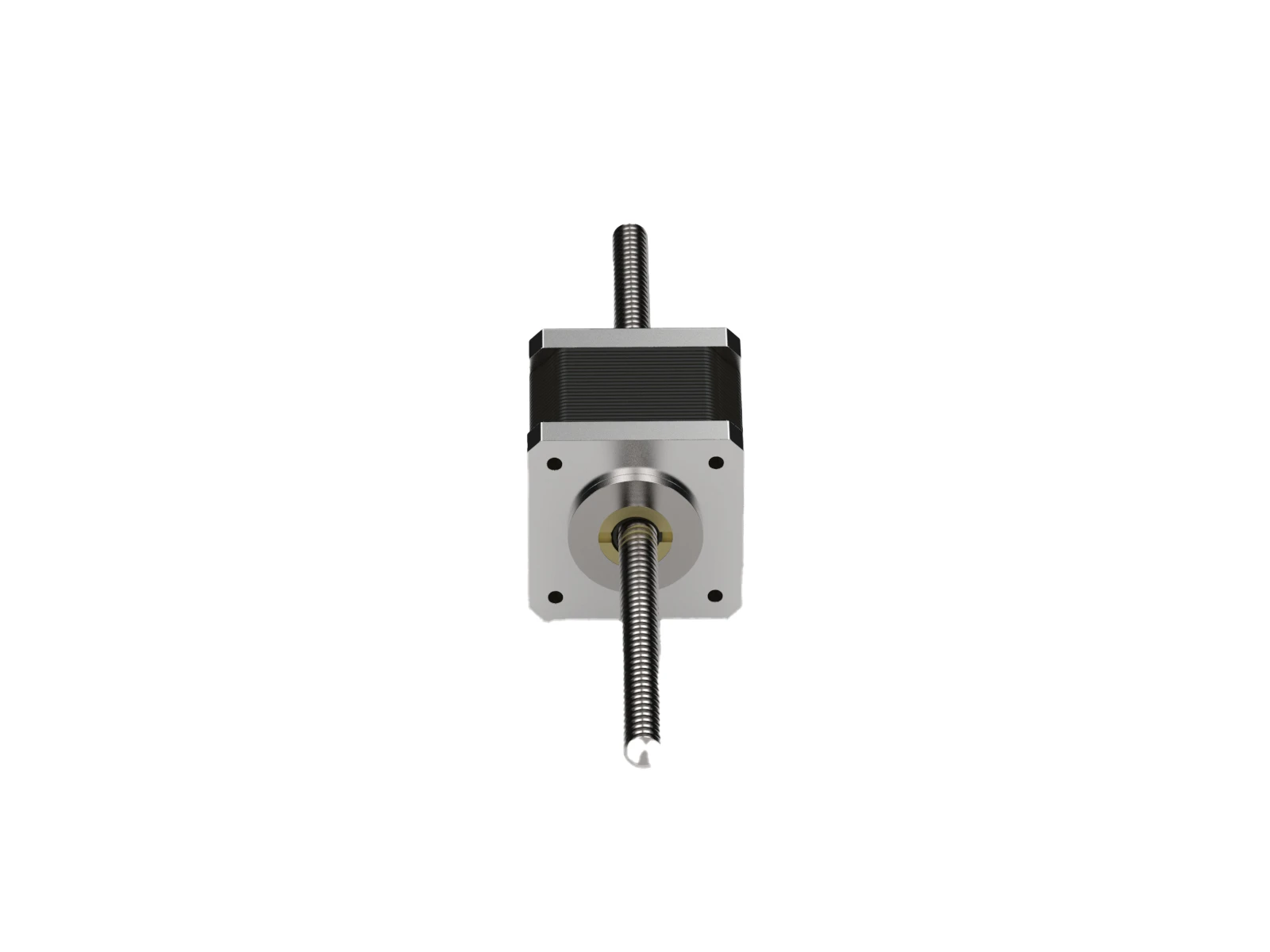

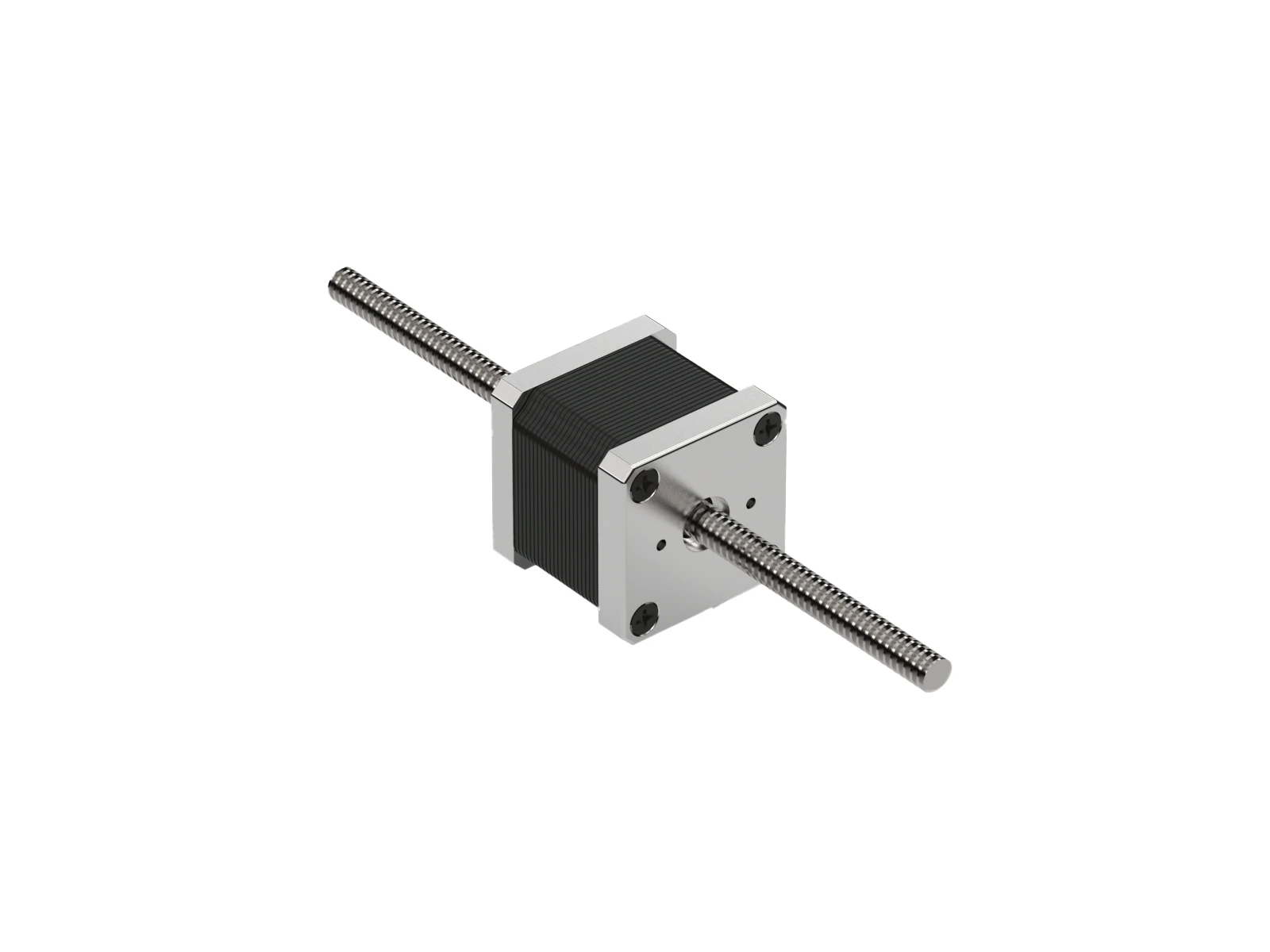

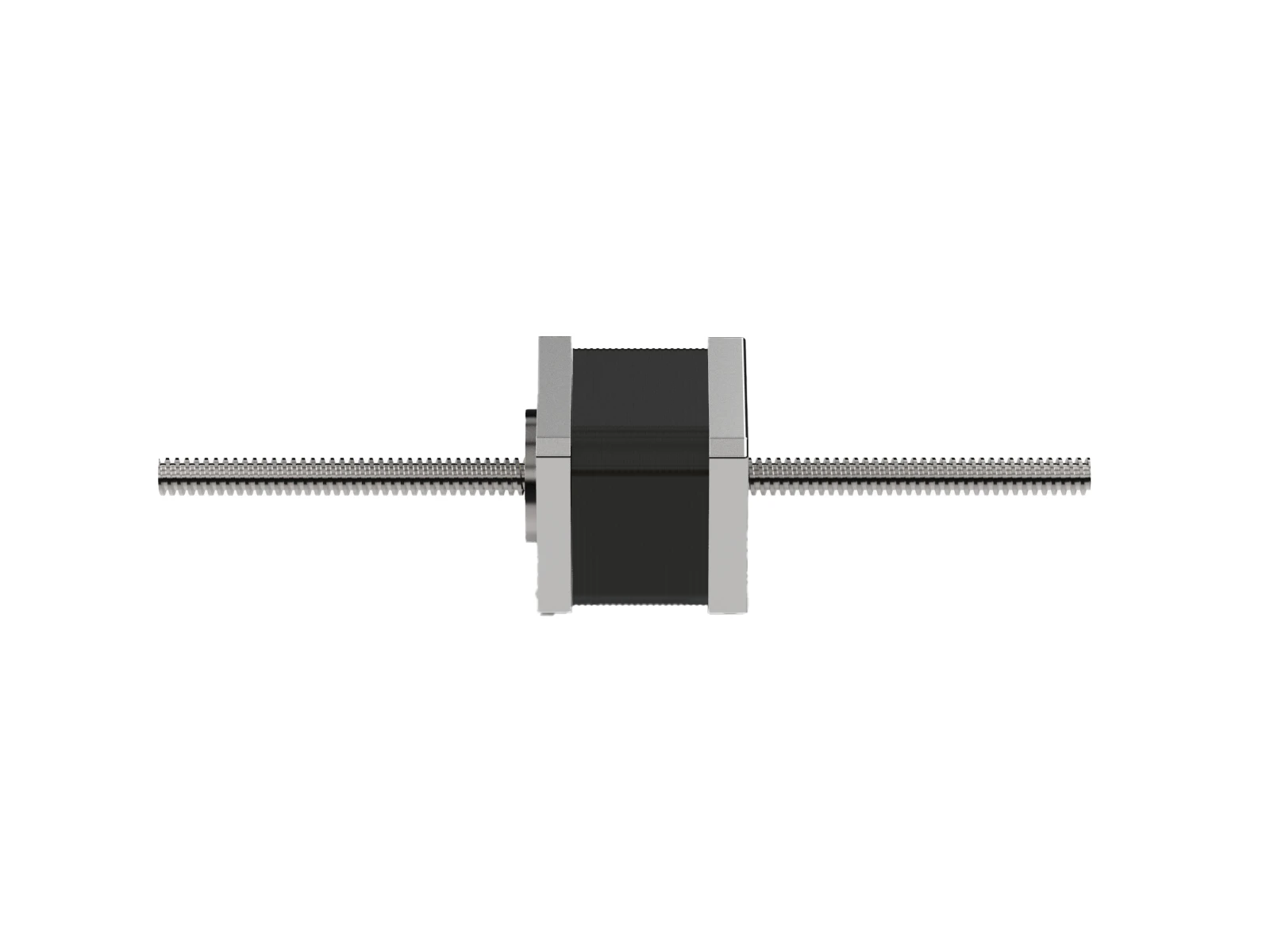

EncoderEncoder-Ready, 500 CPR, No Encoder
Encoder Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/nema14encoder.webp, https://s3.us-west-2.amazonaws.com/catsy.1124/nema17encoder.webp
F (in)0.86
F (mm)21.844
G (in)0.25
G (mm)6.35
Insulation Resistance Œ©20Ω
Inductance/Phase (mH)2.8
J (in)1.37
J (mm)34.798
K (in)1.02
K (mm)25.91
L (in)1.36
L (mm)34.5
Lead Screw Accuracy +/- (in/in)0.1/300
MM3
Motor Size (NEMA)14, 17
Motor StackSingle Stack, Double Stack
Motor Voltage (VDC)2.33, 5
Motor Weight (g)162
N (in)0.14
N (mm)3.5
P (in)11.81
P (mm)299.97
Power Consumption (W)5.7
QAWG26#
Rated Current (A)1.25, 0.57, 0.91, 2
Resistance/Phase Ω1.86
Screw Drive TypeLead Screw
Step Angle1.8
Step Angle (°)1.8
Stepper Motor Actuators Cataloghttps://s3.us-west-2.amazonaws.com/catsy.1124/stepper_motor_linear_actuators.pdf
Temperature Rise (°C)75
Temperature Rise (°F)167
Travel Per Step (in)0.254
Travel Per Step (mm)0.01
WiringBipolar
Wiring Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/sma-wiring-11-14-17.webp
Wiring Leads4
