F (in)1.5
F (mm)38.1
G (in)0.375
G (mm)9.525
Insulation Resistance Œ©20Ω
Inductance/Phase (mH)3.5
J (in)2.21
J (mm)56.134
K (in)1.85
K (mm)46.99
L (in)1.77
L (mm)44.60
Lead Screw Accuracy +/- (in/in)0.1/300
M5.1 mm

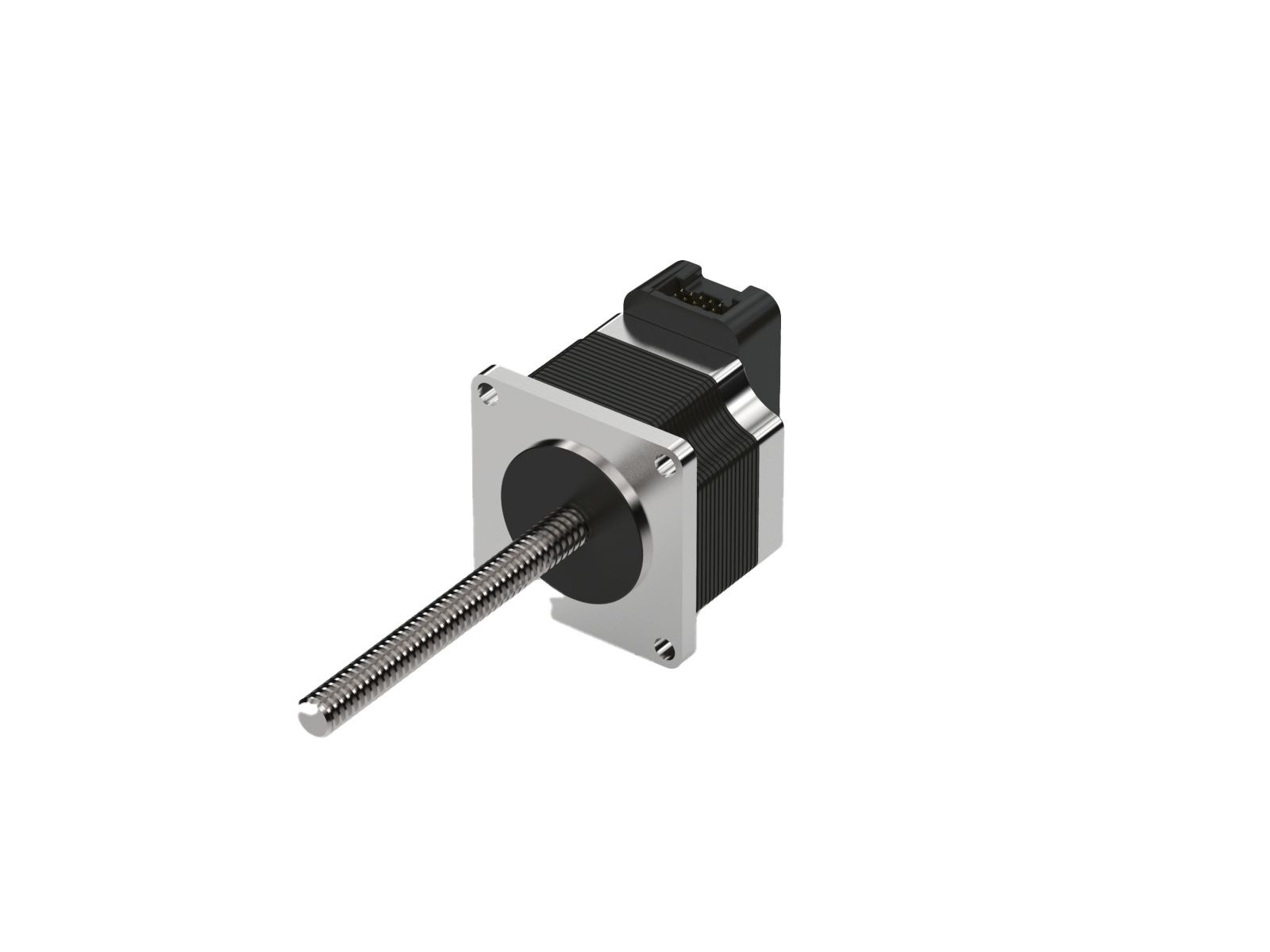

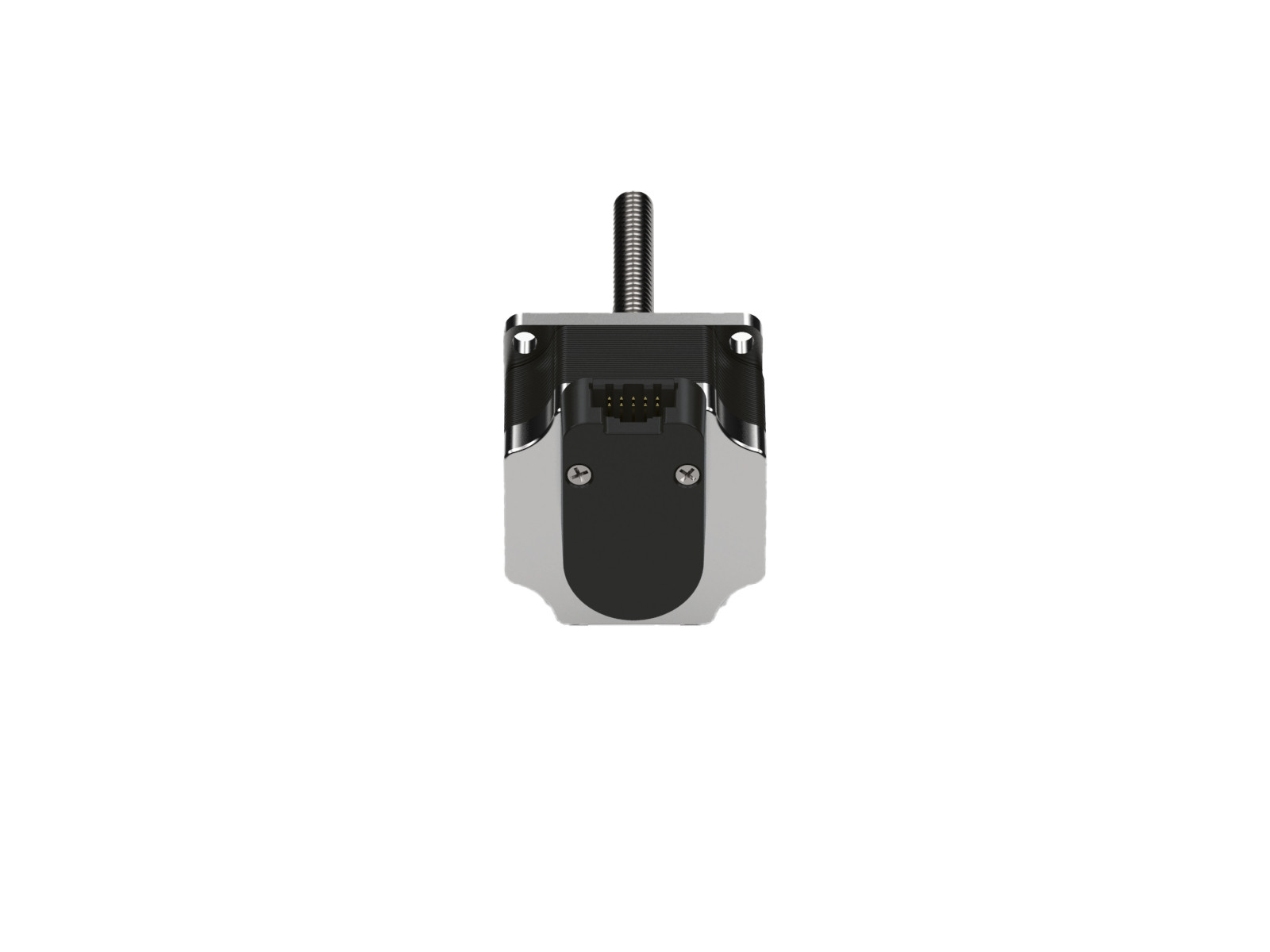

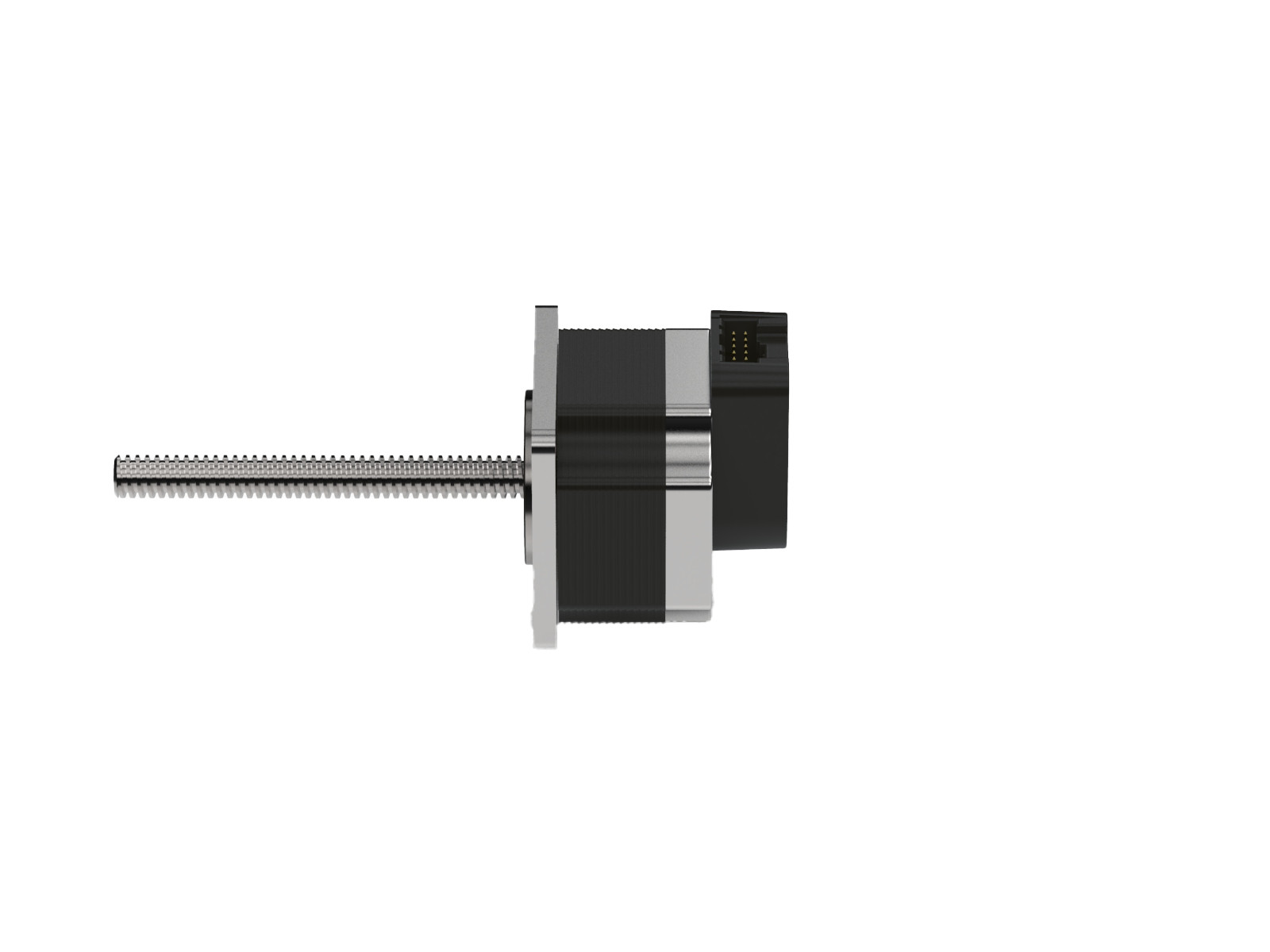

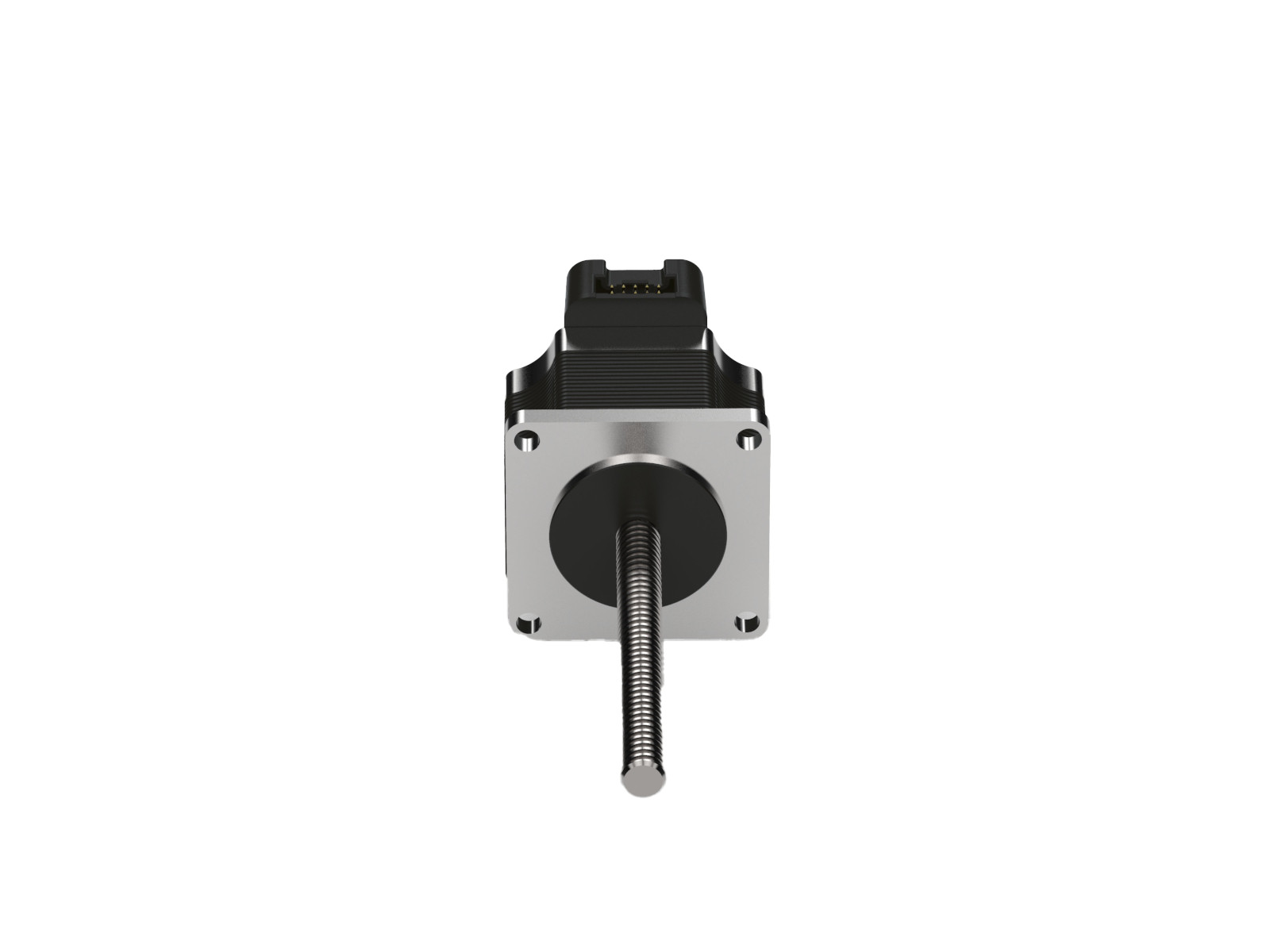

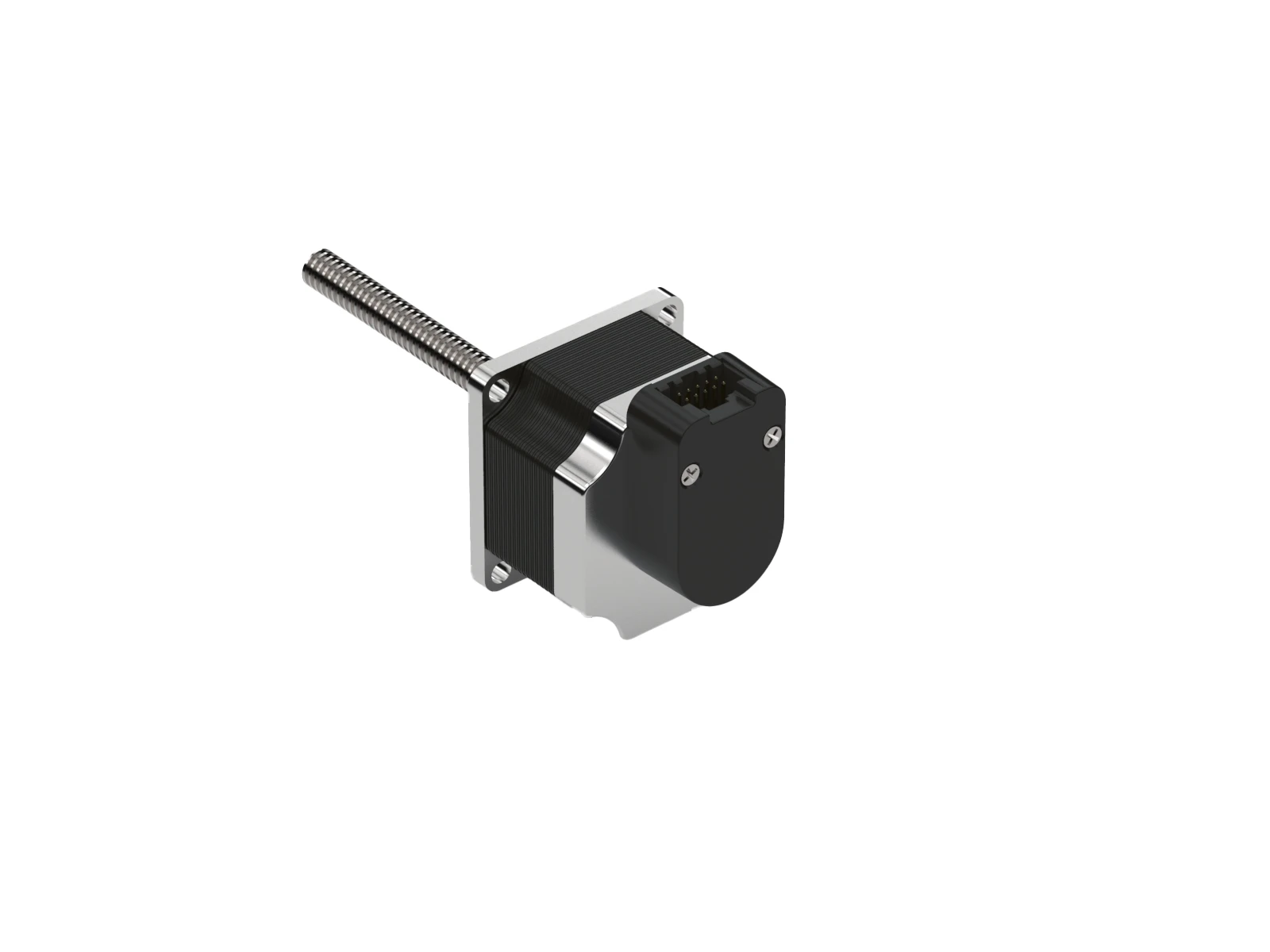

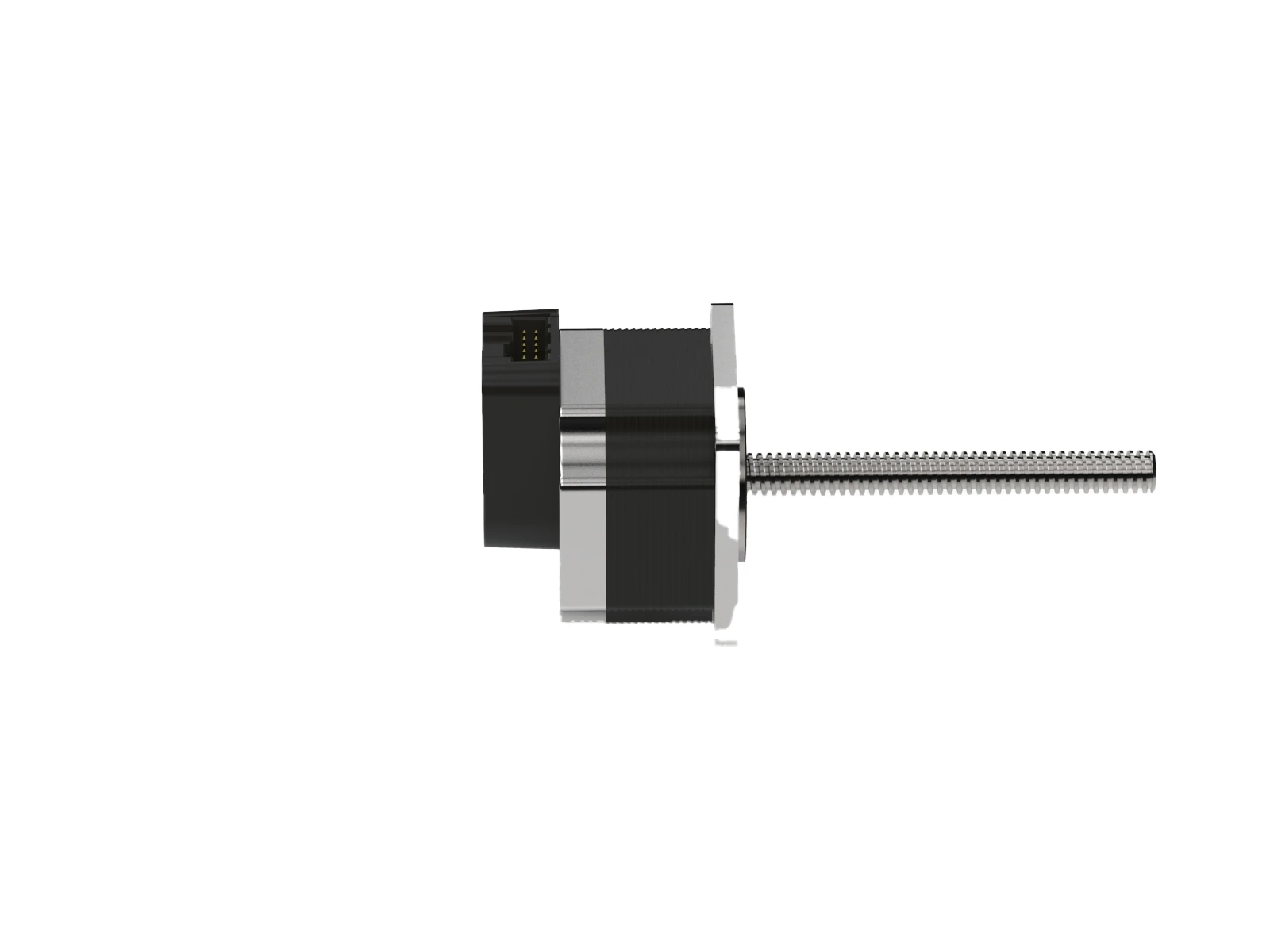

Motor Size (NEMA)23
Motor StackSingle Stack, Double Stack
Motor Voltage (VDC)3.25, 5
Motor Weight (g)511
N (in)THRU
N (mm)THRU
Nut Type0, AFA, KFA, NFA, RFA
P (in)11.81
P (mm)299.97
Placeholder AttributeT, 00
Power Consumption (W)13
QAWG26#
Rated Current (A)2, 1.3, 3.32, 2.16
Resistance/Phase Ω1.63
Screw Drive TypeLead Screw
Step Angle1.8
Stepper Motor Actuators Cataloghttps://s3.us-west-2.amazonaws.com/catsy.1124/stepper_motor_linear_actuators.pdf
Stroke Length (in)12 in
Stroke Length (mm)304.8
Temperature Rise (°C)75
Temperature Rise (°F)167
Travel Per Step (in)0.254
Travel Per Step (mm)0.01
WiringBipolar
Wiring Diagramhttps://s3.us-west-2.amazonaws.com/catsy.1124/sma-wiring-8-23-34.webp
Wiring Leads4
