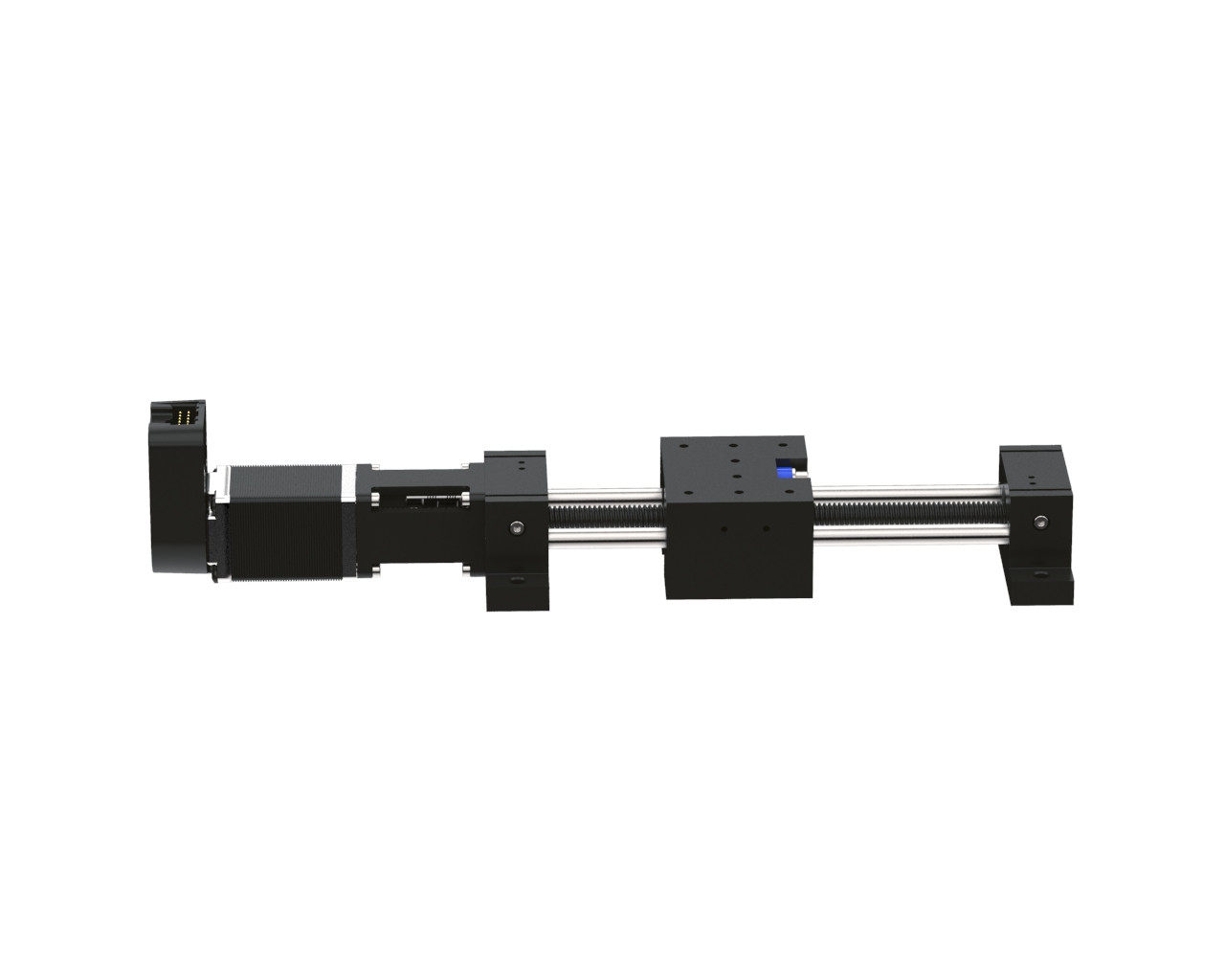

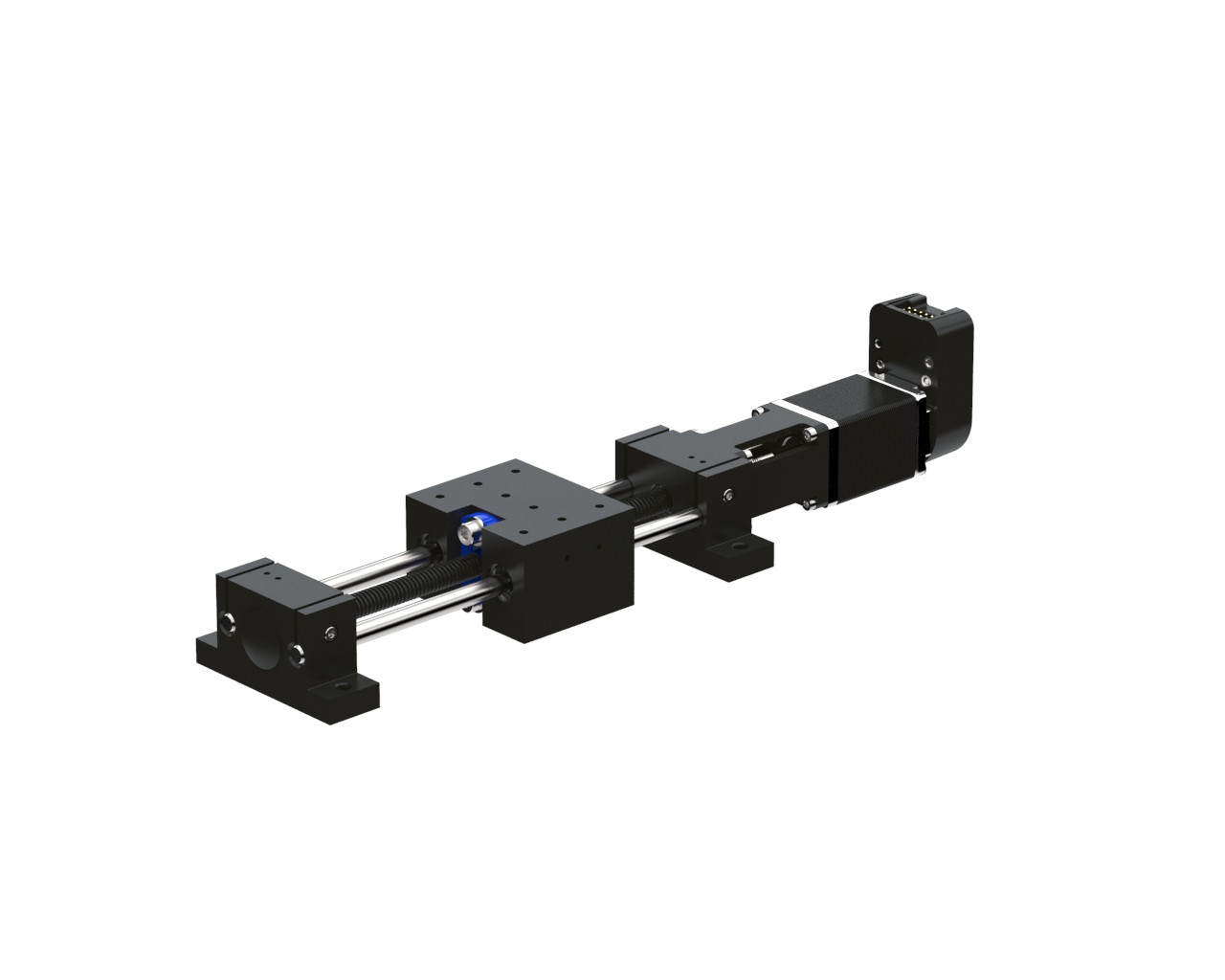

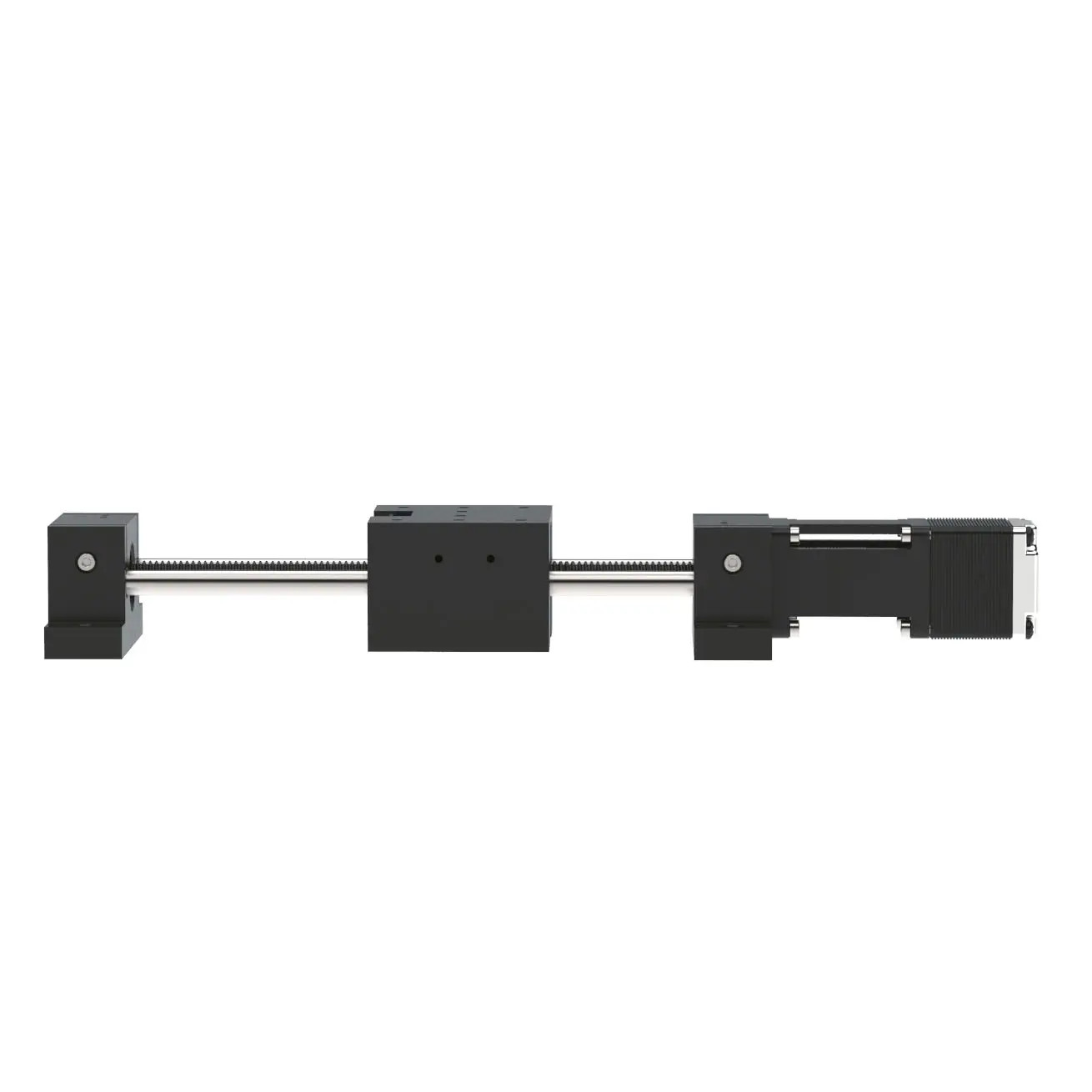

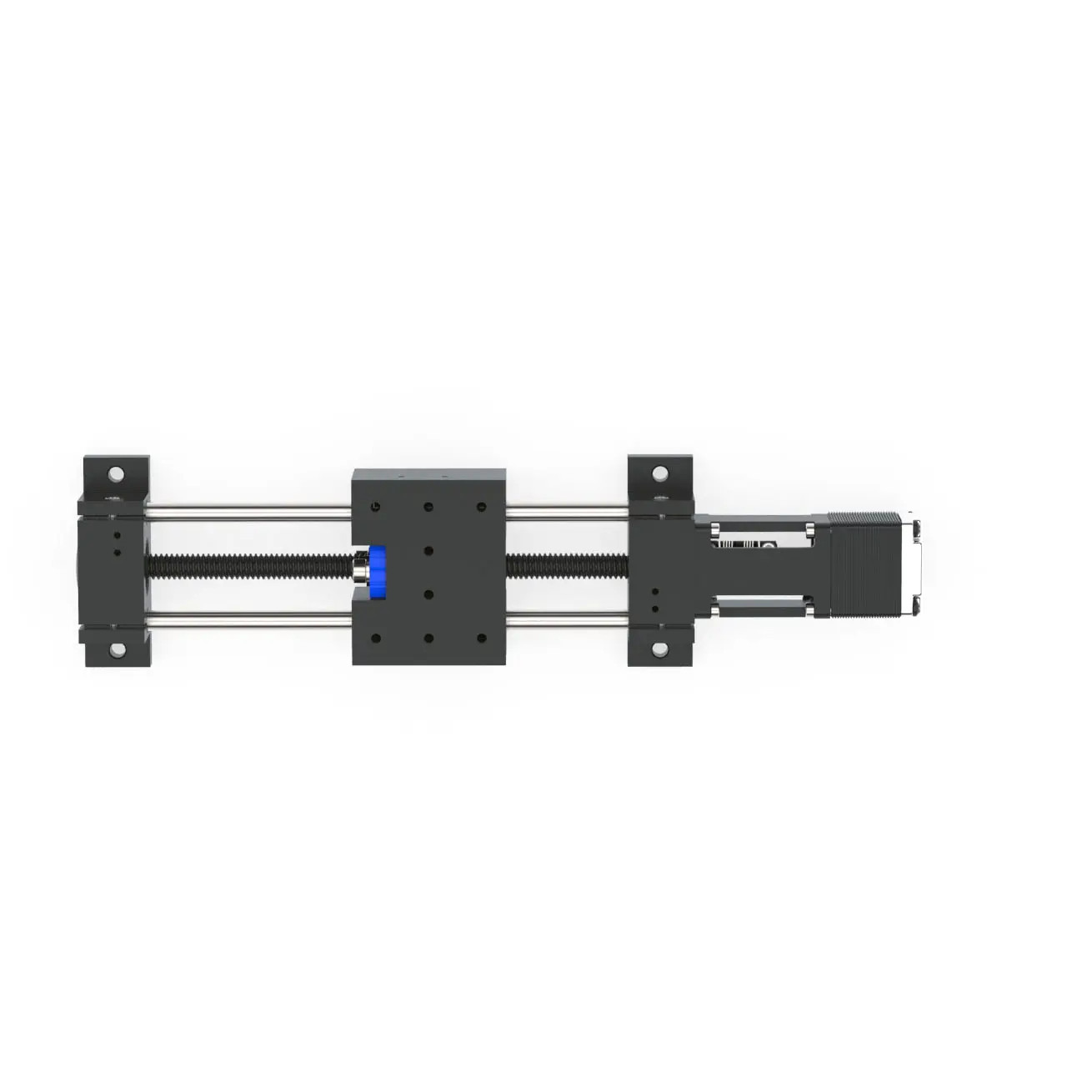

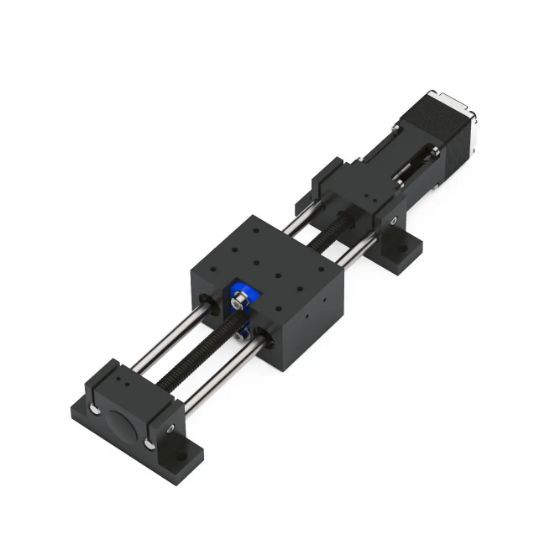

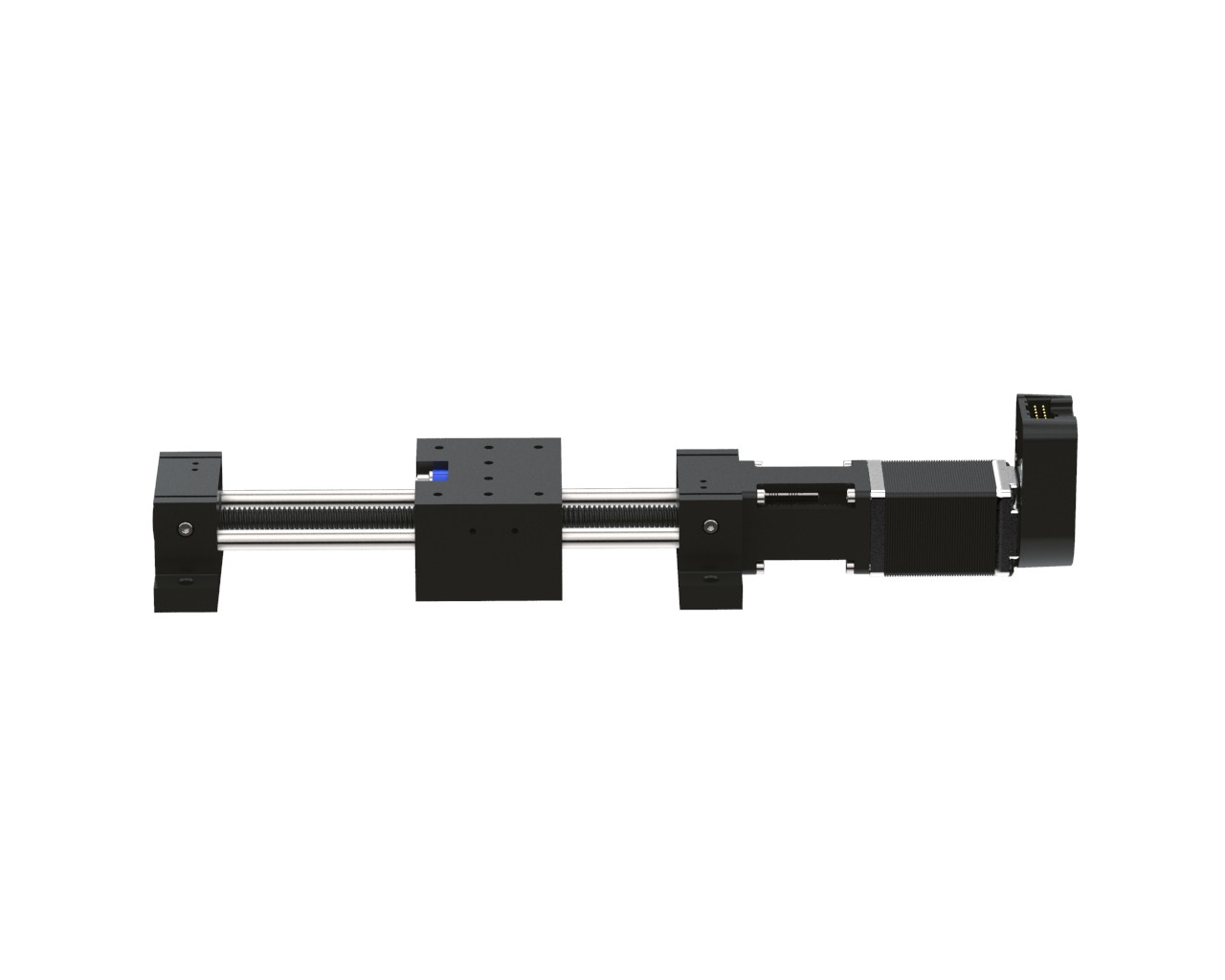

Carriage Block Width Q (mm)53.8
Carriage Height A (in)1.3
Carriage Height A (mm)33
Carriage Mounting Hole Depth X (in)0.28
Carriage Mounting Hole Depth X (mm)7.10
Carriage Mounting Hole Diameter V (in)0.28
Carriage Mounting Hole Diameter V (mm)7.10
Carriage Mounting Hole Internal Thread U6-40 UNF
D (in)1.25
D (mm)31.8
E (in)0.69

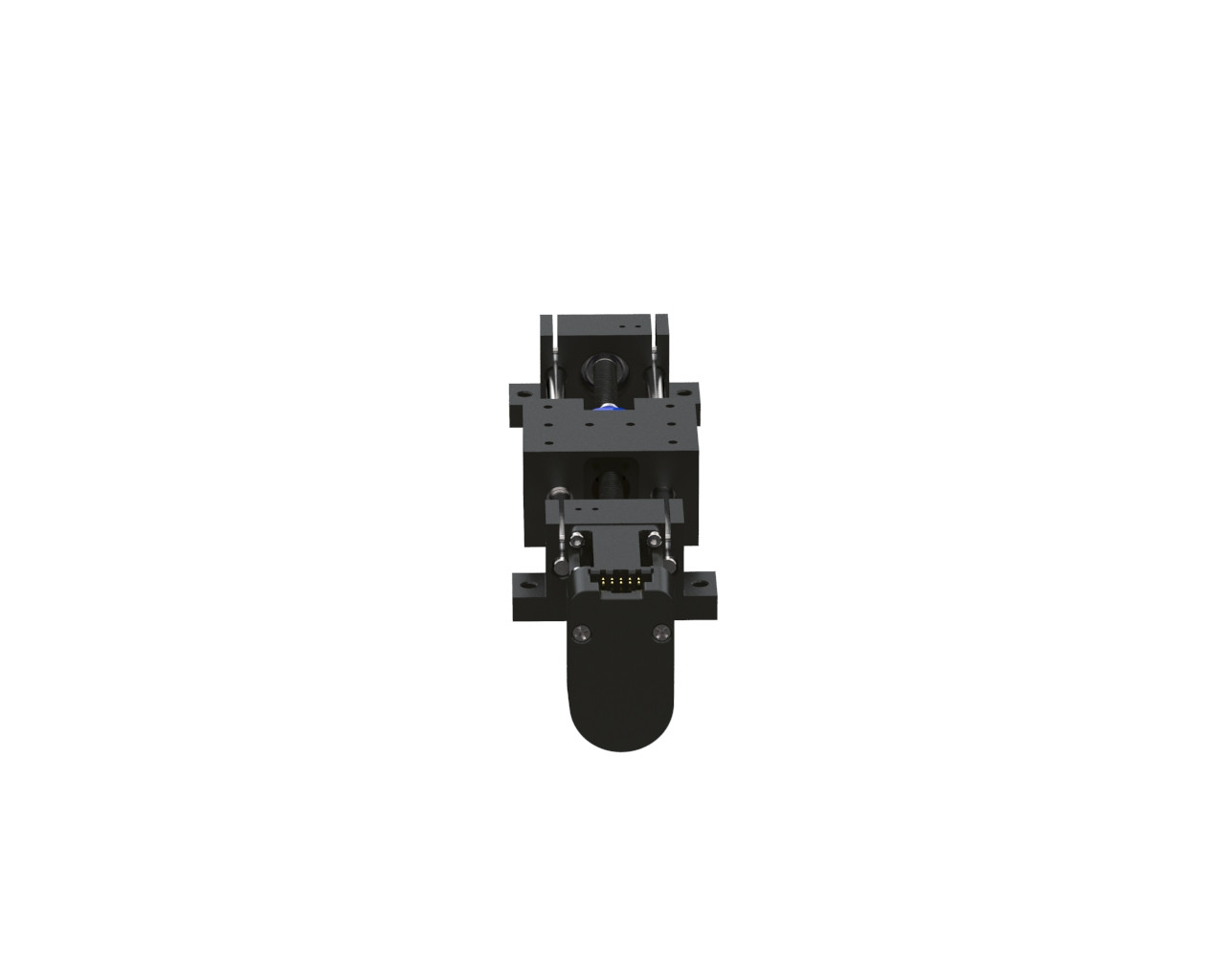

Encoder1000 CPR, Encoder Ready, No Encoder
Encoder PositionA
End Block Depth F19.1
End Block Depth F (in)0.75
End Block Height A1 (in)1.25
End Block Height A1 (mm)31.8
End Block Width B (in)2.43
End Block Width B (mm)61.7
End SensorsNo Sensors
Guide Rod Length (in)9.25
Guide Rod Length (mm)234.95
H (in)0.38
H (mm)9.7
Holding Torque (N-m)0.06
J (in)1.75
J (mm)44.5
L (in)3.25
L (mm)82.6
Model Number311
Motor LengthSingle Stack, Double Stack
Motor Size (NEMA)11
Motor Spacer Depth Z (in)1.54
Motor Spacer Depth Z (mm)39.10
Motor Spacer Width Y (in)1.10
Motor Spacer Width Y (mm)27.90
Motor TypeBipolar
Motor Voltage (V)2.1
Mounting Hole Diameter M (in)0.18
Mounting Hole Diameter M (mm)4.6
Nut StyleBall Nut
Nut TypeBall Nut, Standard Nut, Anti-backlash
Operating Temperature (°C)0 to 93
Rated Current (Amps/Phase)0.67
Resistance/Phase Ω5.60
S (in)0.6
S (mm)15.2
Screw Material52100 Alloy
Screw TypeBall Screw, Lead Screw
Step Angle1.80
T (in)0.5
T (mm)12.7
Travel (in)6
Travel (mm)152.40
Travel Per Step (in)0.00
Travel Per Step (mm)0.01
W (in)2.03
W (mm)51.60
