Lead screws and ball screws are essential for various linear motion control applications, from syringe pumps to pan-and-tilt systems for security cameras. However, one of the most advanced applications of these screws involves their role in missile fin actuation, guiding missiles precisely to their targets.
How Lead Screws and Ball Screws Control Missile Guidance
In missile systems, precision-engineered miniature lead screws and ball screws are used to position the sighting mechanism that identifies and locks onto the target while maneuvering at high speeds. Additionally, these screws control the missile fins, which are responsible for guiding the missile's flight path. The fins function similarly to wings, optimizing the missile’s speed and minimizing drag, especially during transonic and supersonic flight. Beyond directing the missile, lead screws and ball screws are also used to elevate missile-launching systems and deploy critical sighting, range-finding, and antenna equipment.
Why Precision Screws are Ideal for Missile Fin Actuation

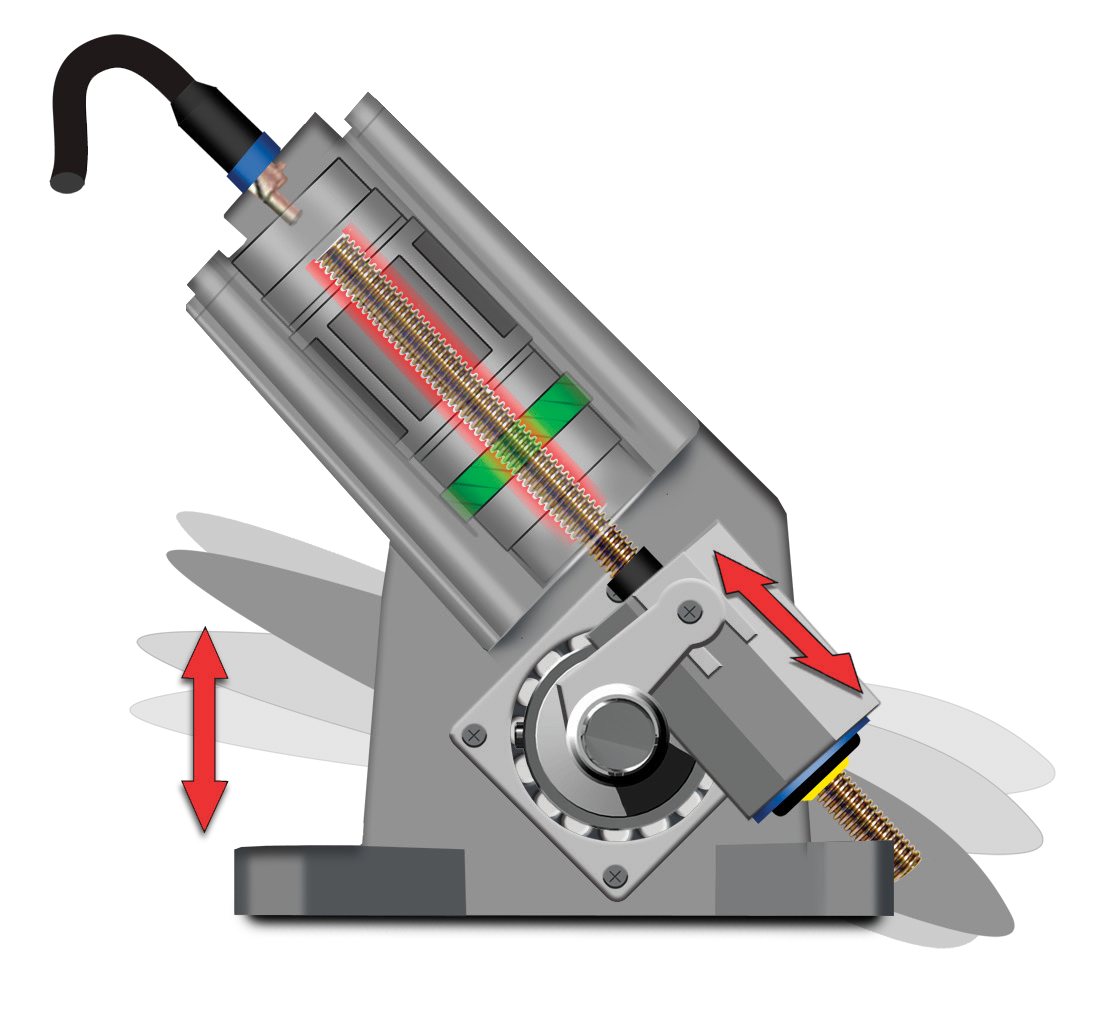

Precision miniature lead screws and ball screws replace hydraulic and pneumatic actuators previously used in this application. Each screw assembly transforms torque into linear thrust, moving the missile fins or other components in precise directions. Because these screw mechanisms reduce sliding friction and eliminate stick-slip, they are highly efficient and require minimal maintenance beyond initial lubrication.
Advantages of Miniature Lead Screws and Ball Screws in Missile Applications
Lead screws and ball screws offer multiple advantages for missile fin actuation over traditional linear motion control systems, particularly in small missile and targeted munition applications. Here’s how Helix Linear Technologies’ precision-engineered screws provide solutions for complex, demanding environments:
- Lower Cost: Helix lead screws generally cost less than pneumatic or hydraulic-driven actuators, providing a more economical solution.
- Custom Design Options: Helix screws can be custom-designed to match specific application requirements.
- Wide Range of Leads and Diameters: Available in leads and diameters from 1/8” to 4”, allowing for flexibility in missile design.
- Corrosion Protection: Helix’s stainless steel screws and internally lubricated Acetal nuts prevent corrosion, increasing the reliability of systems exposed to harsh environments.
- Lubrication-Free: Helix’s internally lubricated plastic nuts operate without the need for added lubrication, reducing maintenance needs.
- Quiet Operation: Helix ball screws and lead screws operate quietly, avoiding the audible noise common with pneumatic actuators.
- Lightweight and Compact: Miniature, lightweight assemblies minimize mass and reduce space requirements, making them ideal for compact missile systems.
- Precision and Accuracy: Precision-engineered lead screws and ball screws deliver high accuracy, with lead accuracy reaching 70 millionths of an inch, essential for precise missile fin guidance.
- Durability and Strength: High-strength materials ensure reliability under extreme environmental conditions and high-speed operation.
- Improved Field Performance: Helix screws feature a unique thread design that enhances contact angle control, leading to lower contact stresses, increased load capacity, and longer operational life.
- Precise Positioning: Enhanced contact angle control ensures tight repeatability and accurate positioning over the entire stroke length.
- Long Life Expectancy: Helix’s lead screws have lower drag torque, increasing their lifespan in critical applications.
- Advanced Engineering and Manufacturing: Helix provides both standard and custom screw assemblies, with options for stock bearing mounts, motor mounts, or complete stage assemblies to suit complex motion control needs.
Trust Helix Linear Technologies for Advanced Motion Control Solutions
For advanced applications such as missile fin actuation systems, Helix Linear Technologies offers a broad selection of precision-engineered lead screws and ball screws. With Helix’s anti-backlash or zero-backlash nut designs, you can achieve high axial stiffness, zero backlash, and minimal drag torque, ensuring unmatched precision and durability for your sophisticated applications.
