Dynamic Load (N)4400, 6400, 1438.78
Dynamic Load (lbs)989, 1438, 6400
E (mm)8 mm, 12 mm
F (mm)3 mm, 3.5 mm, 4.5 mm
G (mm)34 mm
H (thread)M20x1, M28x1.5
J (mm)6 mm
K (mm)6 mm
M (mm)ø4 mm, 4 mm
Maximum Standard Backlash (mm)0.0028, 0.0024
Number of Ball Circulations2x1.5, 2x2.4
Nut StyleThreaded, Round Flanged

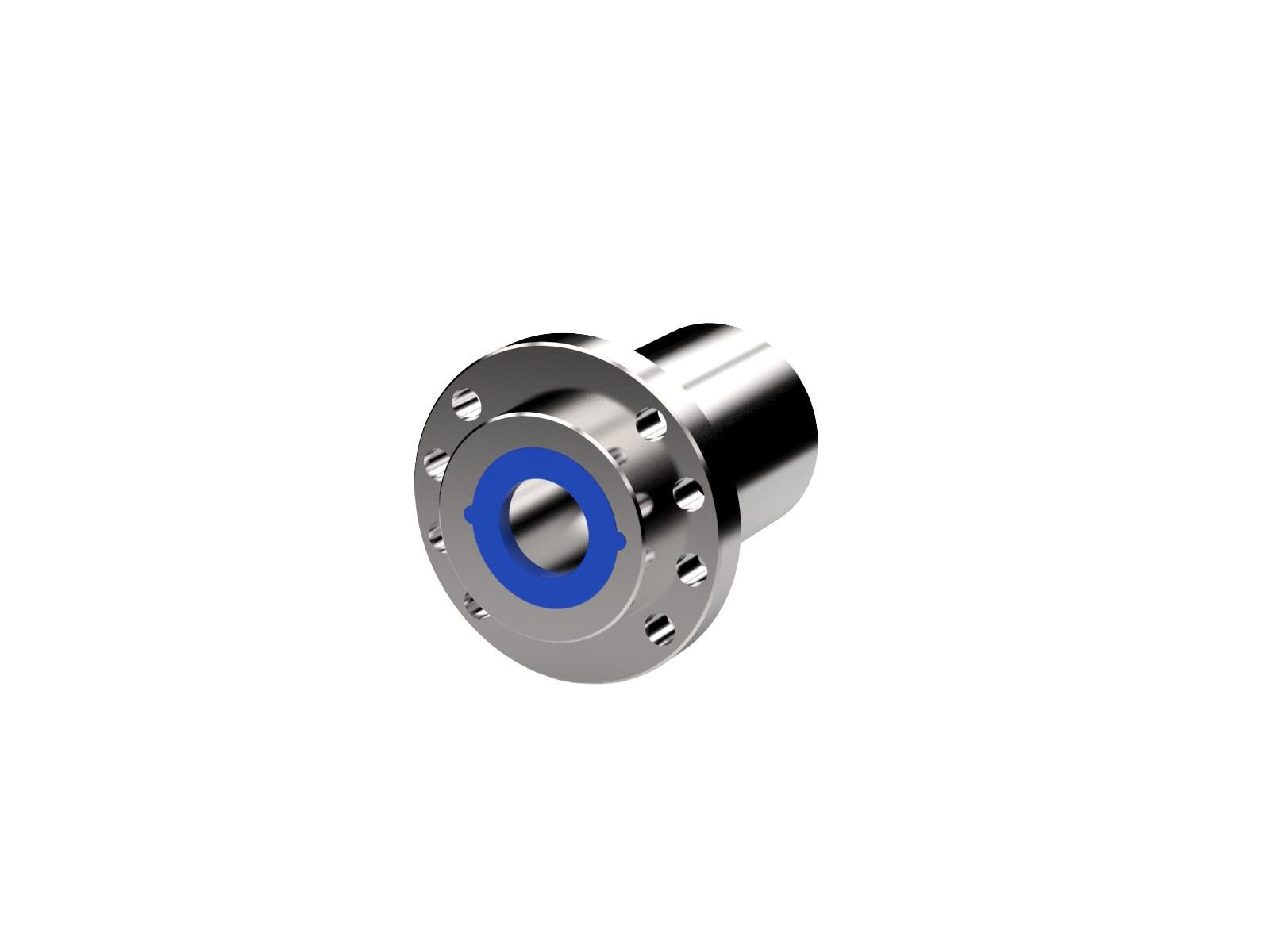

Nut TypeBall Nut
Size12x10
Static Load (N)7700, 12600, 2832.59
Wiper CodeN, S
WipersNo, Yes
