Dynamic Load (N)1400, 2000, 314, 449
Dynamic Load (lbs)314.73, 449.62, 314, 449, 1400, 2000
E (mm)1.2 mm, 8 mm, 6 mm
F (mm)2.5 mm, 3.4 mm
FP9 (mm)2 mm
G (mm)8 mm, 22 mm
H (thread)M14x1
K (mm)4 mm
M (mm)2 mm, ø4 mm
Maximum Standard Backlash (mm)0.05, 0.06, 0.002, 0.0024
Number of Ball Circulations3x1, 1x3.5
Nut StyleCylindrical, Threaded, Rectangular Flanged

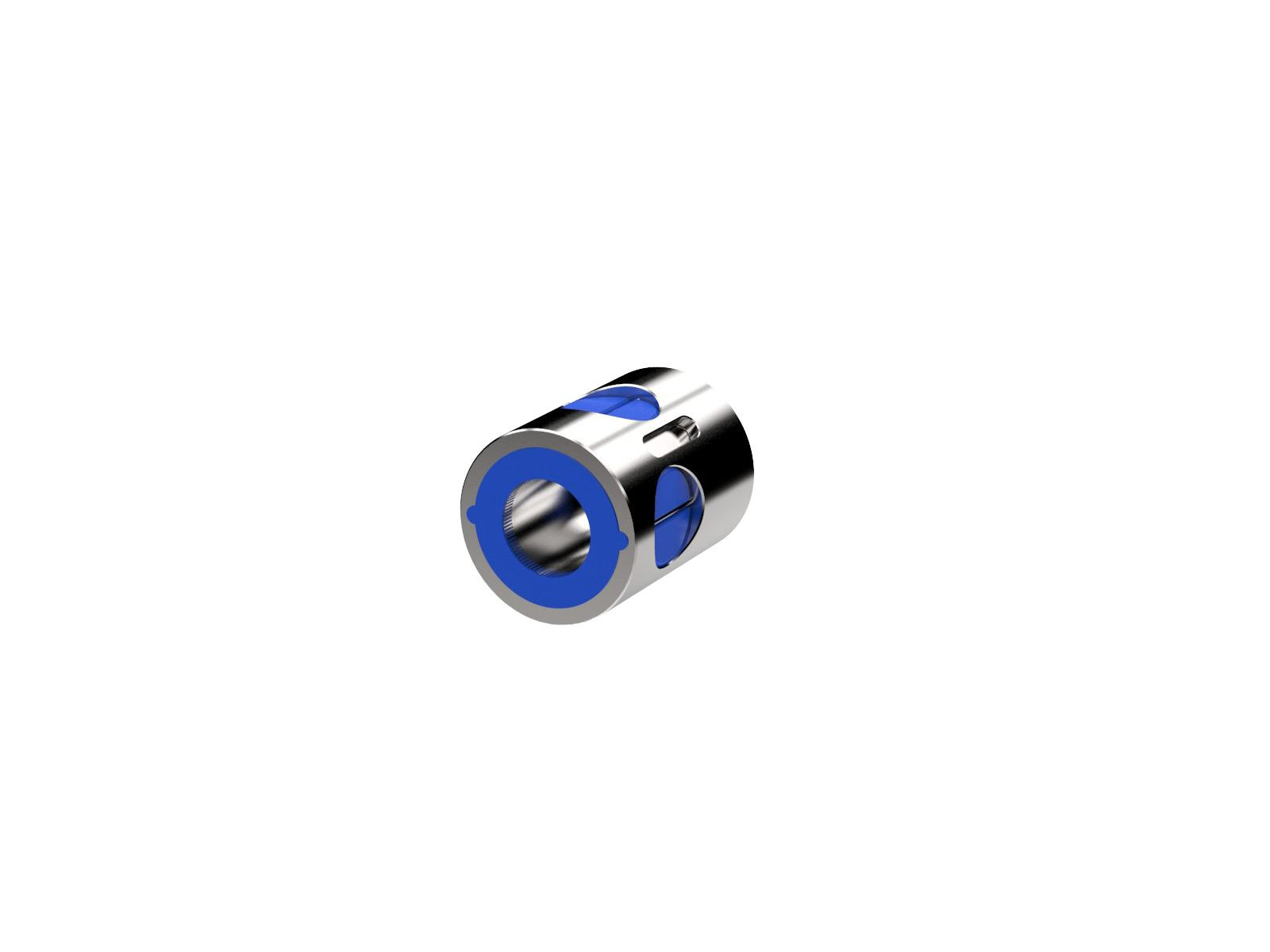

Nut TypeBall Nut
Size8x2
Static Load (N)2000, 3200, 449, 719
Wiper CodeN, S
WipersNo, Yes
