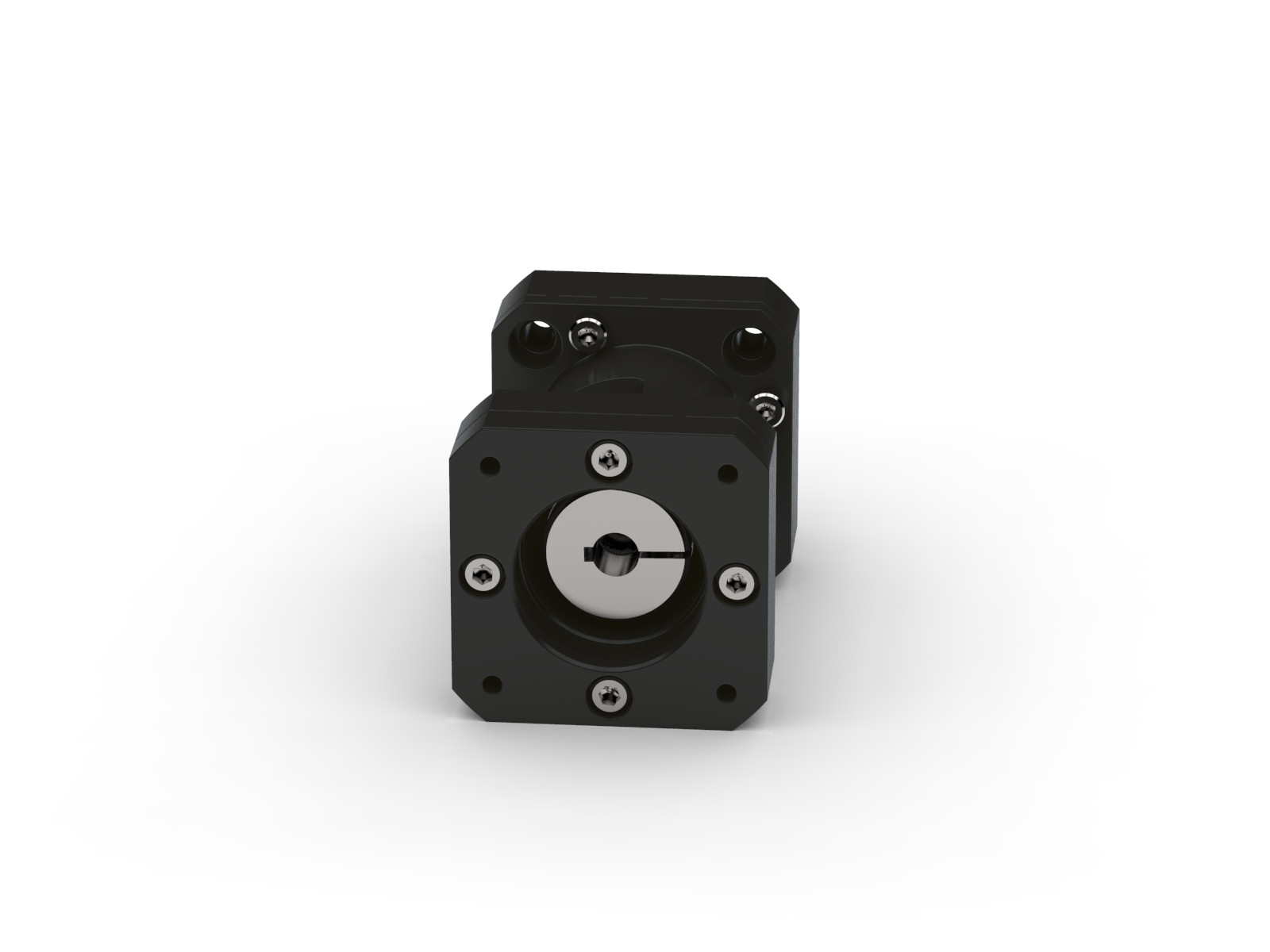

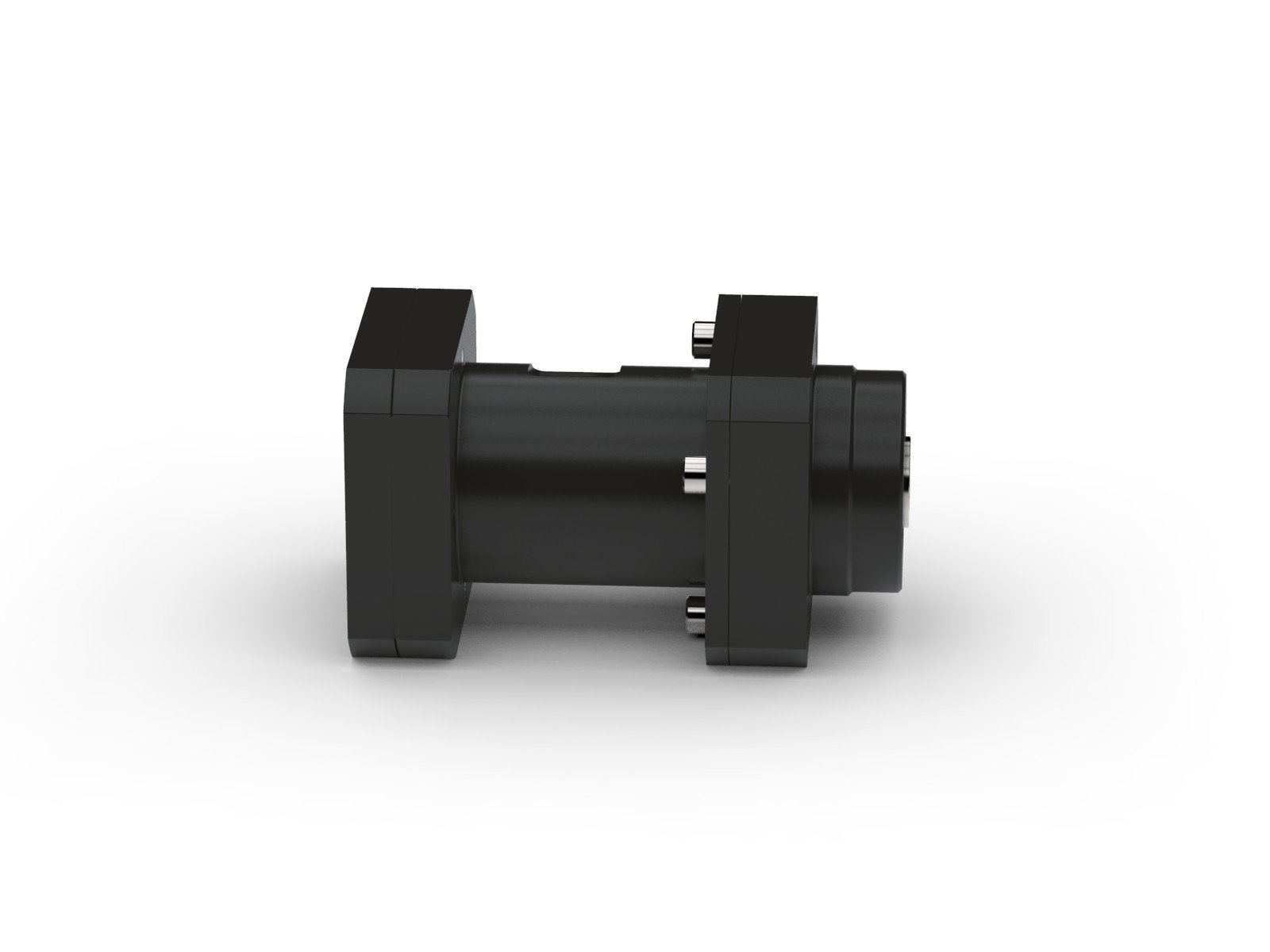

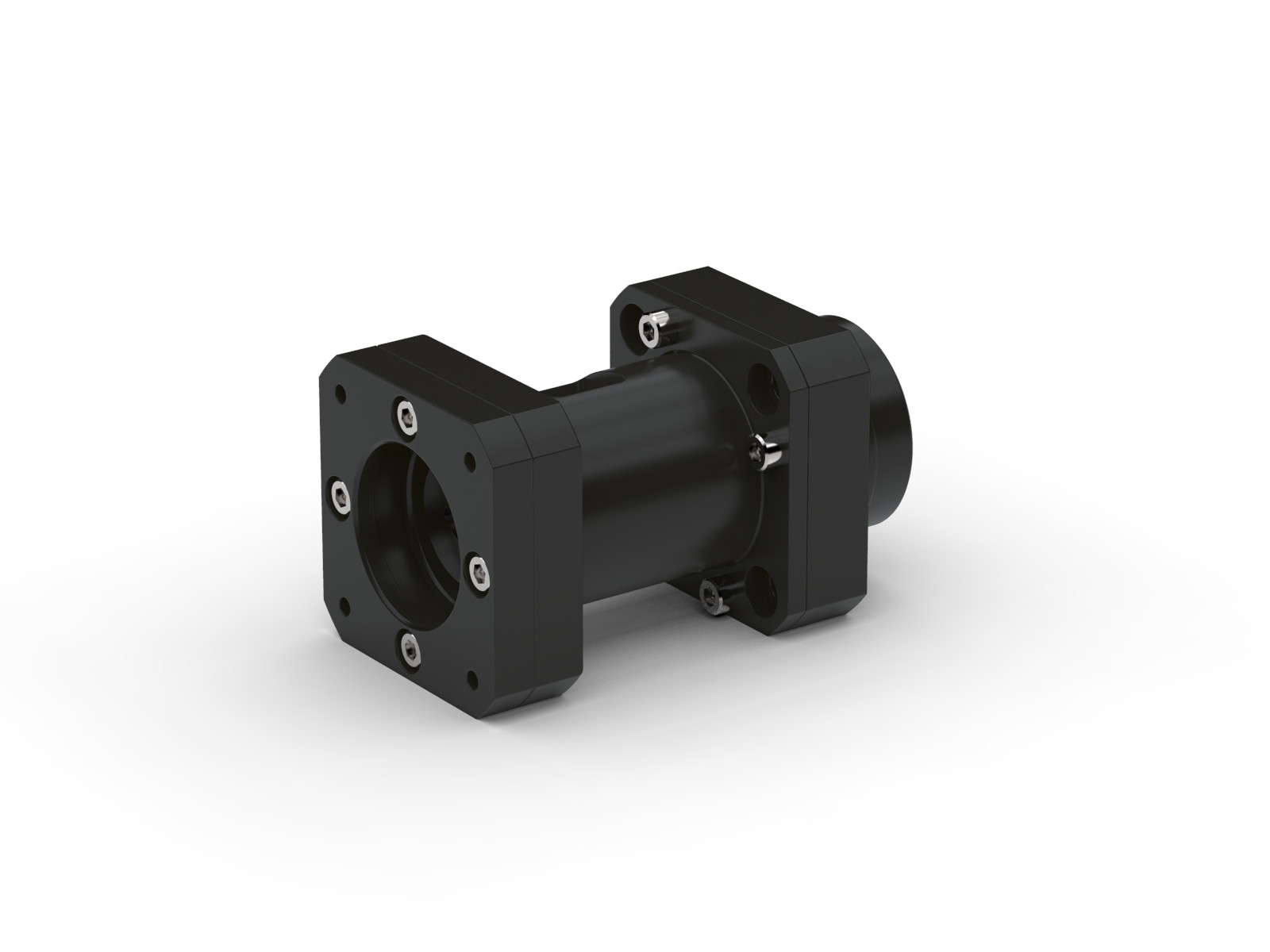

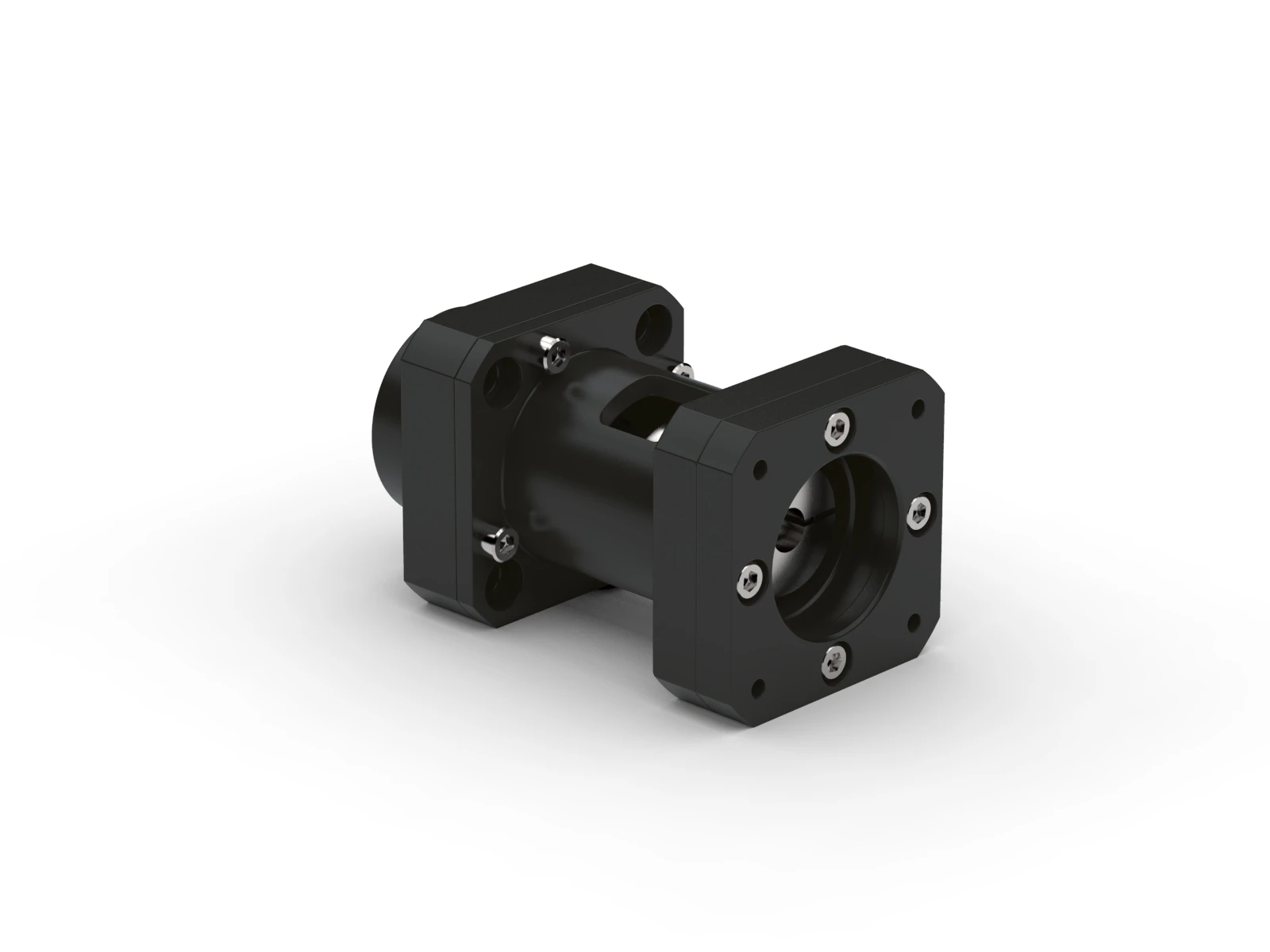

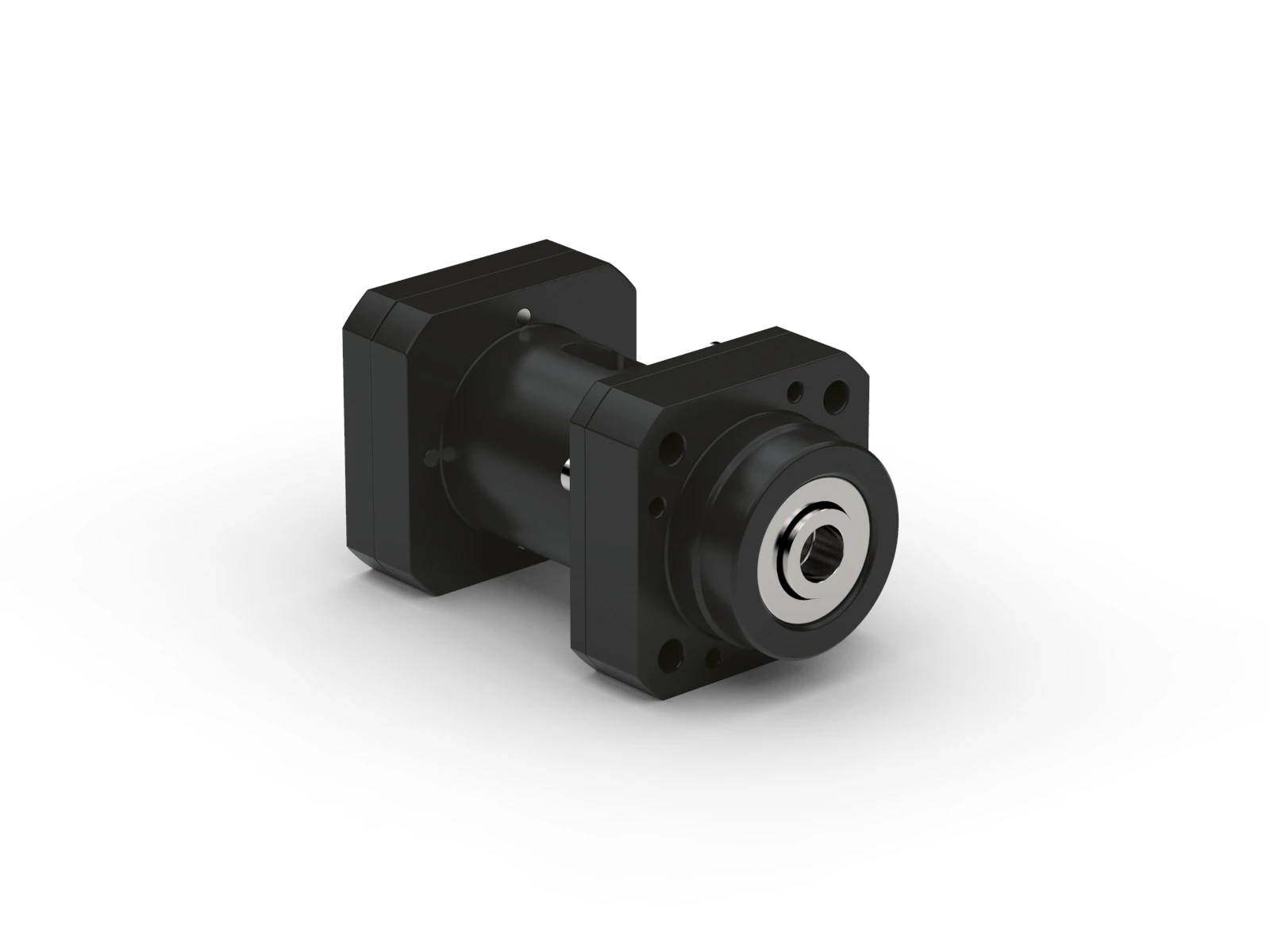

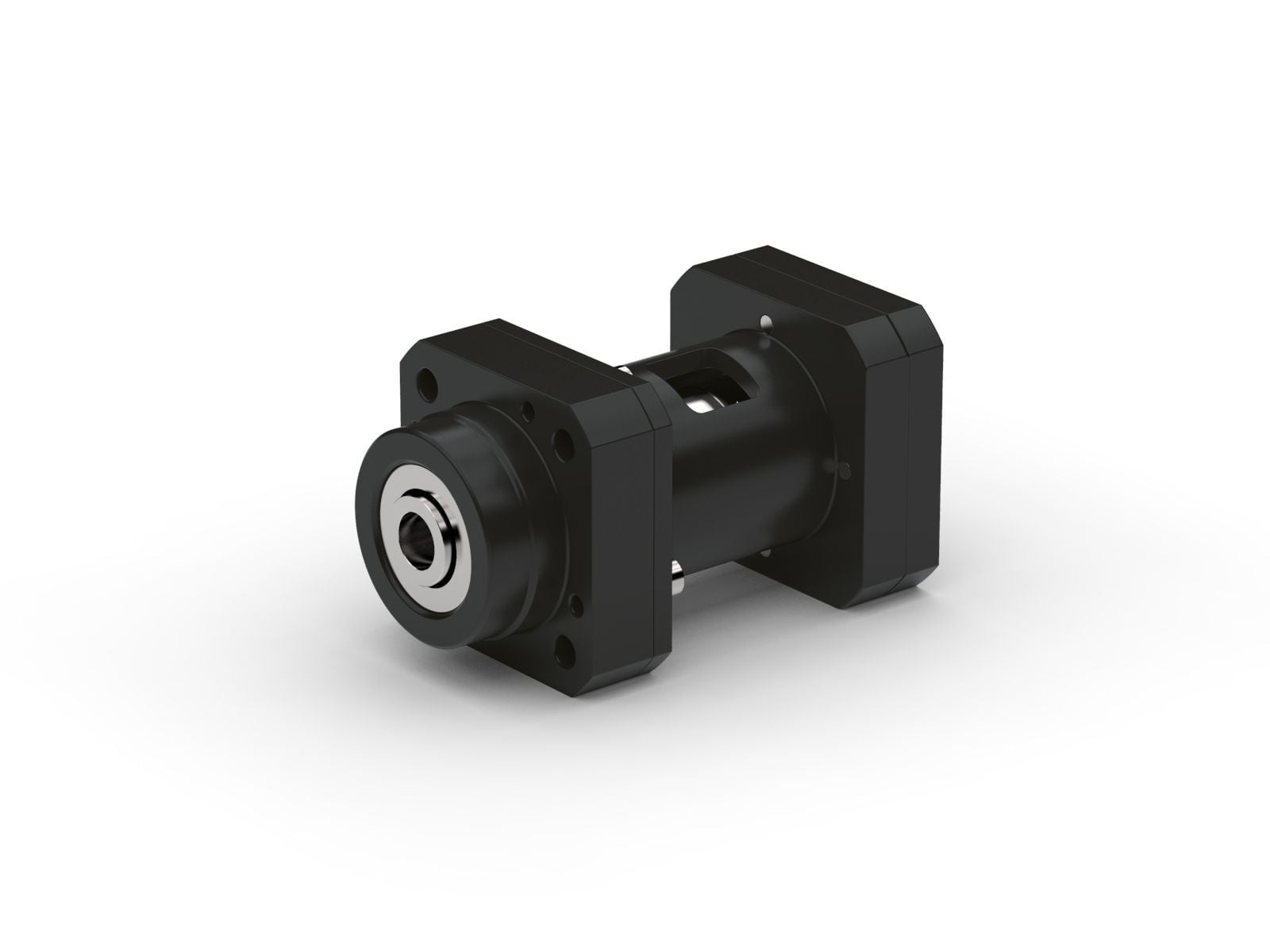

Motor Mount for Flanged Bearing Mount, EZF-2020-34 | Helix Linear Technologies

Diagram
Specifications

A (in)	2.5
A (mm)	63.5
Acme Screw Diameter - (in)	1.125
B (in)	3.84
B (mm)	97.54
Ball Screw Diameter - (in)	1
C (in)	1.98
C (mm)	50.29
D (in)	0.88
D (mm)	22.35
E (in)	–
E (mm)	–
EZZE Mount	EZF-2020
F (in)	0.19
F (mm)	4.83
G (in)	0.38
G (mm)	9.65
H (in)	0.125
H (mm)	3.18
J (in)	1.506+0-.003
J (mm)	38.25+0-0.08
K (in)	2.625
K (mm)	66.68
Lead Time	2 Weeks
NEMA Frame	34
