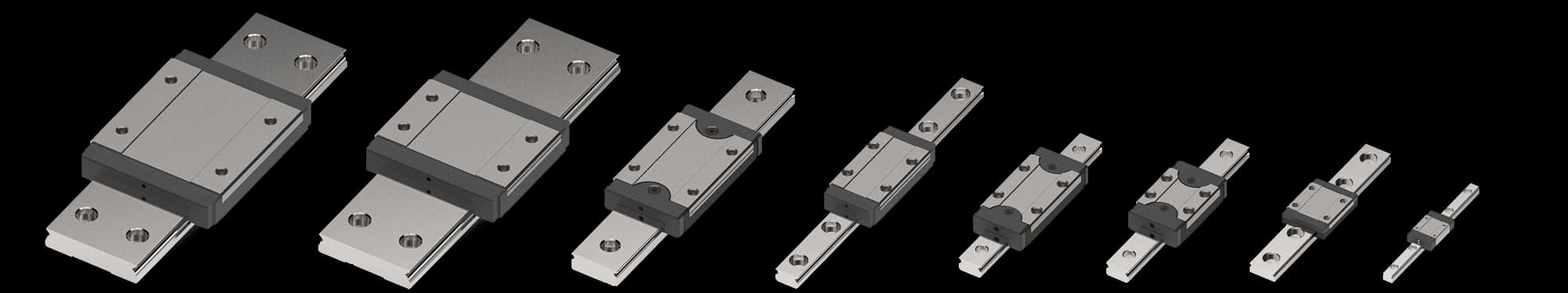

Miniature Linear Guides
Our Miniature Linear Guides are engineered for high-accuracy, high-speed applications where space is limited but performance cannot be compromised. These compact guidance systems are manufactured with heat-treated stainless steel and optimized for durability, smooth motion, and low‐profile integration.
Precision Guidance. Compact Footprint. U.S. Engineered.
Engineered for Your Application
- Ultra-compact rail widths (for example 5 mm and 7 mm series) with low block heights for precision equipment and instrumentation.
- High dynamic and static load ratings to handle demanding applications ~ in some sizes dynamic loads exceed 3,000 N.
- Precision blocks with optional preload, seals, lubrication storage, and reinforcement plates support reliability across many duty cycles.
- U.S. engineering support and full traceability to ensure your system meets exact specification and integration requirements.
Applications & Industry Fit
Perfect for robotics, automation, medical devices, laboratory instrumentation, semiconductor equipment, and other systems needing compact, high‐performance linear guidance. When your design requires smooth, repeatable motion in a constrained space, these miniature linear guides deliver.
Why Choose Helix Miniature Linear Guides?
- American‐manufactured: full quality control and traceability from design through production.
- Compact yet high‐performance: guides designed to handle both high speeds and loads in tightly packaged systems.
- Application engineering support: our team partners with you from concept to production to ensure correct sizing, preload selection, mounting strategy and integration.
- Broad custom capability: while standard sizes support many applications, custom configurations ensure the guide fits your machine. Not the other way around.
Compact by design. Precision by engineering.
