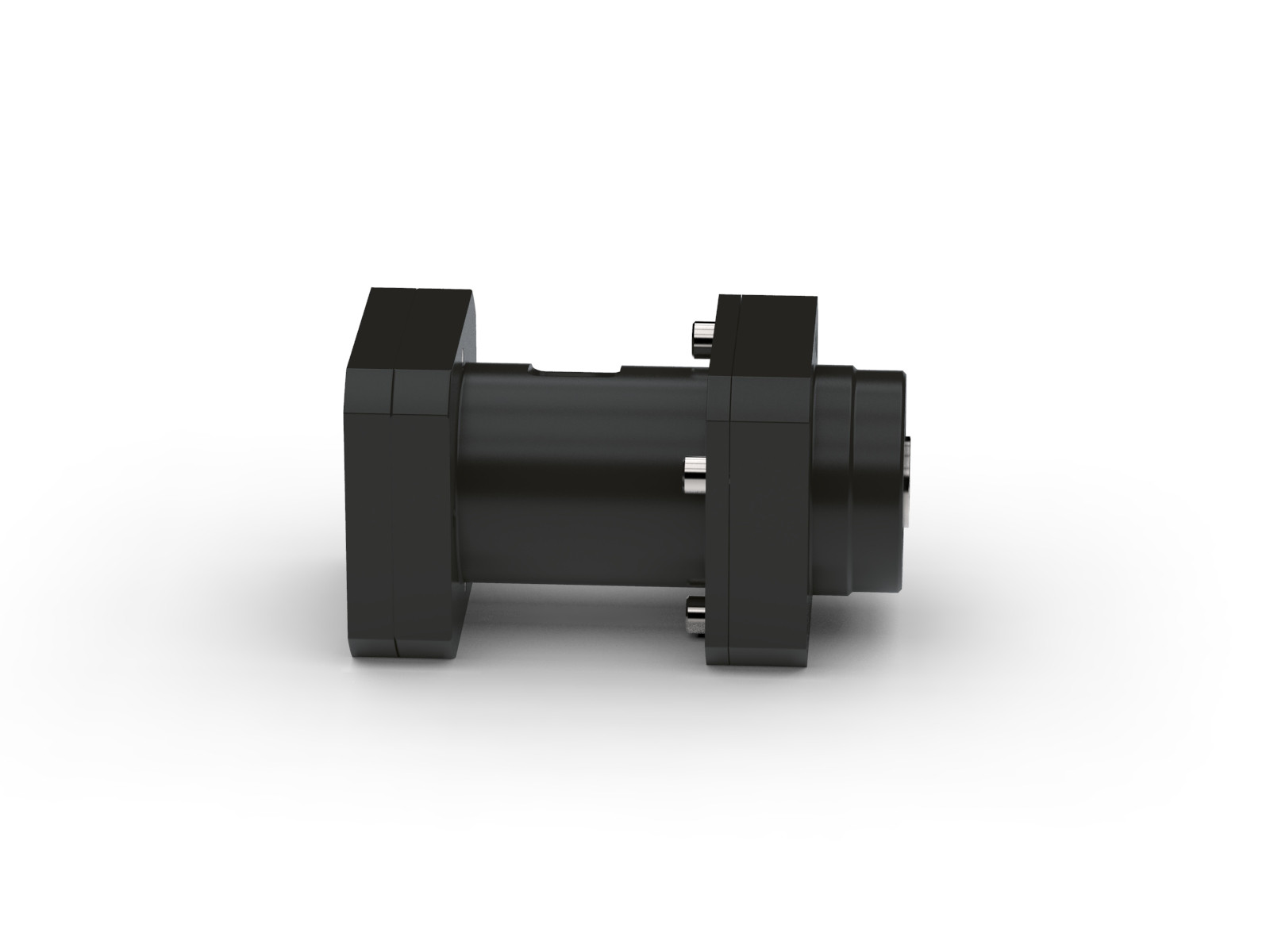

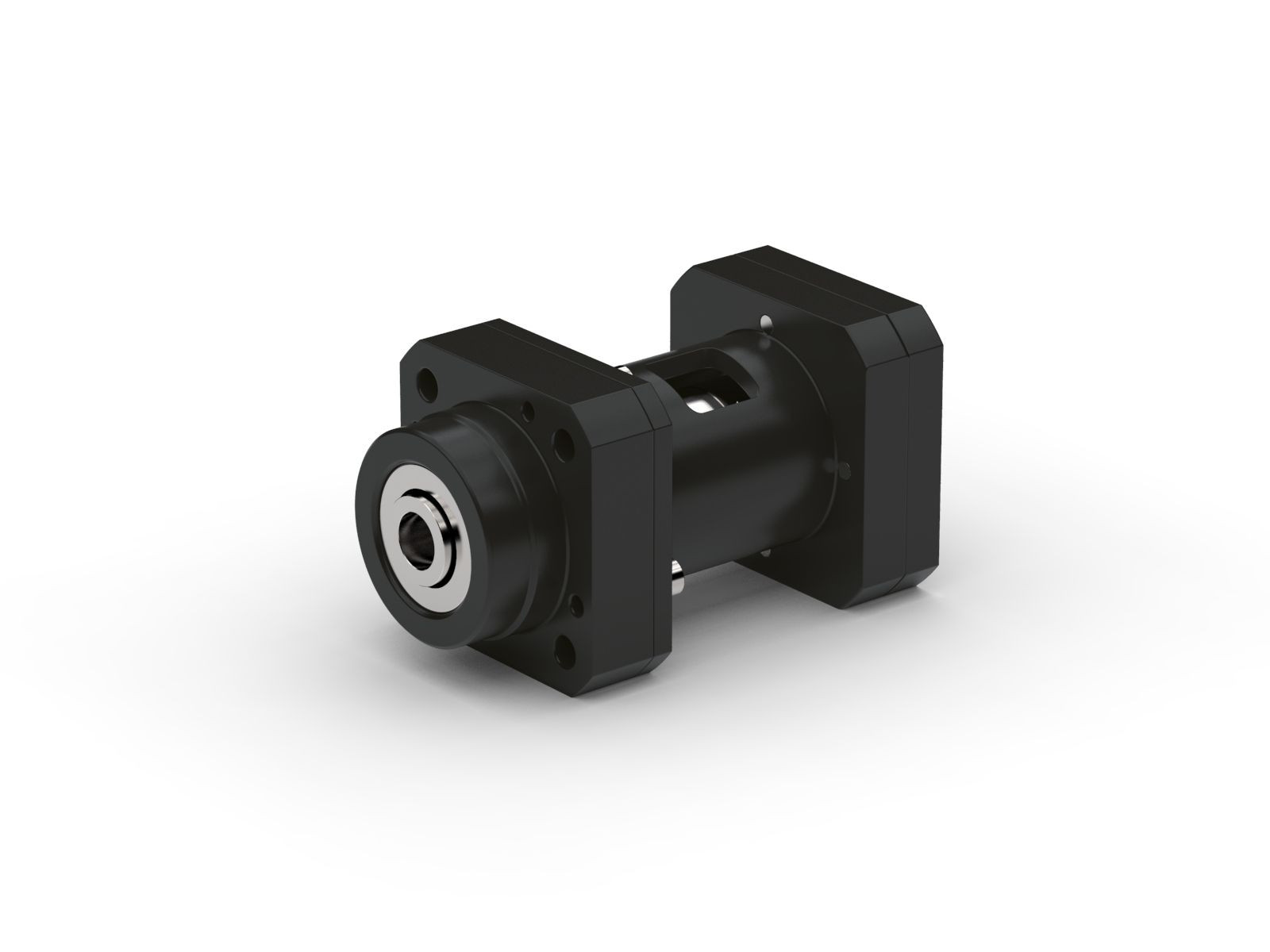

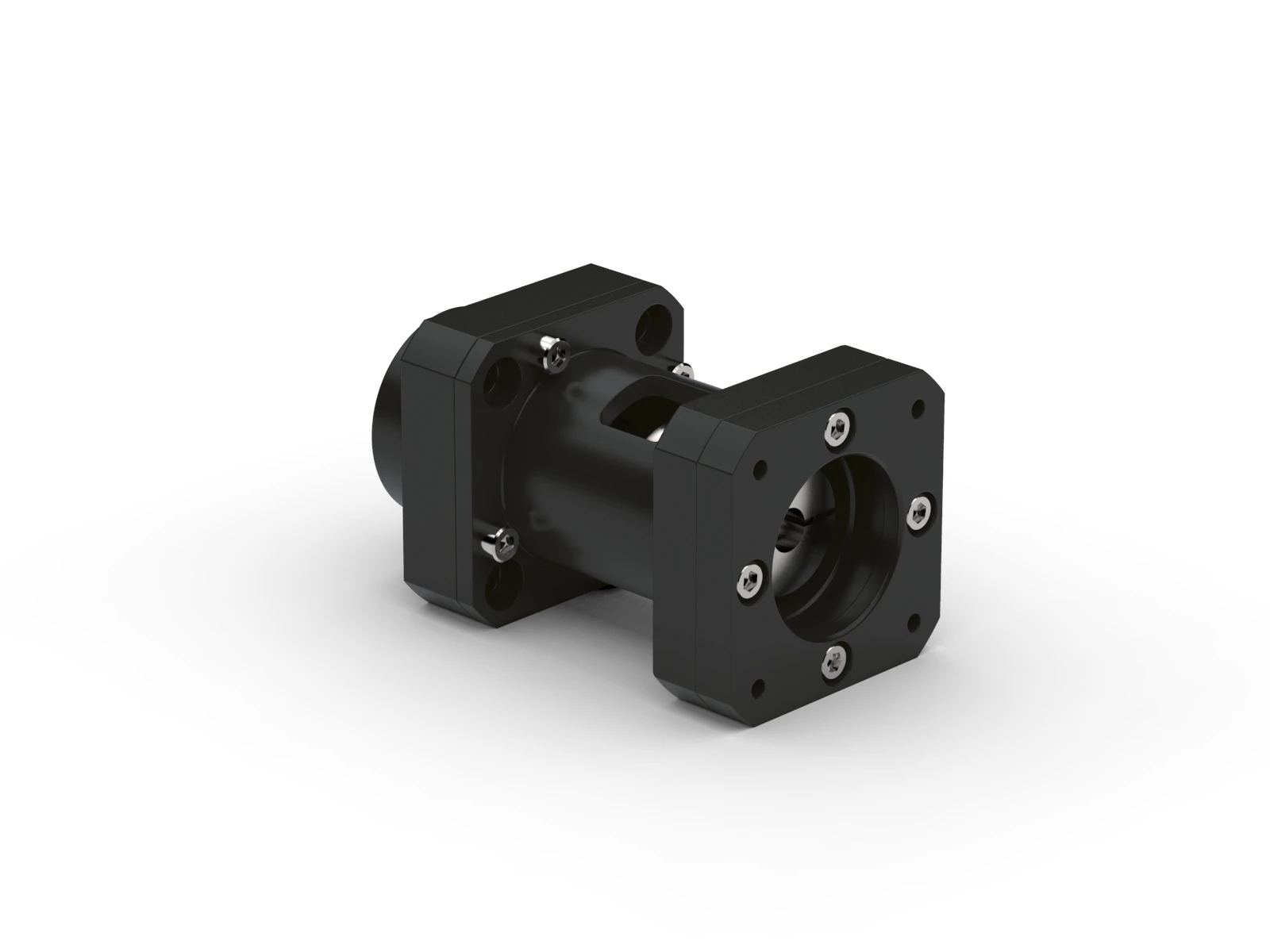

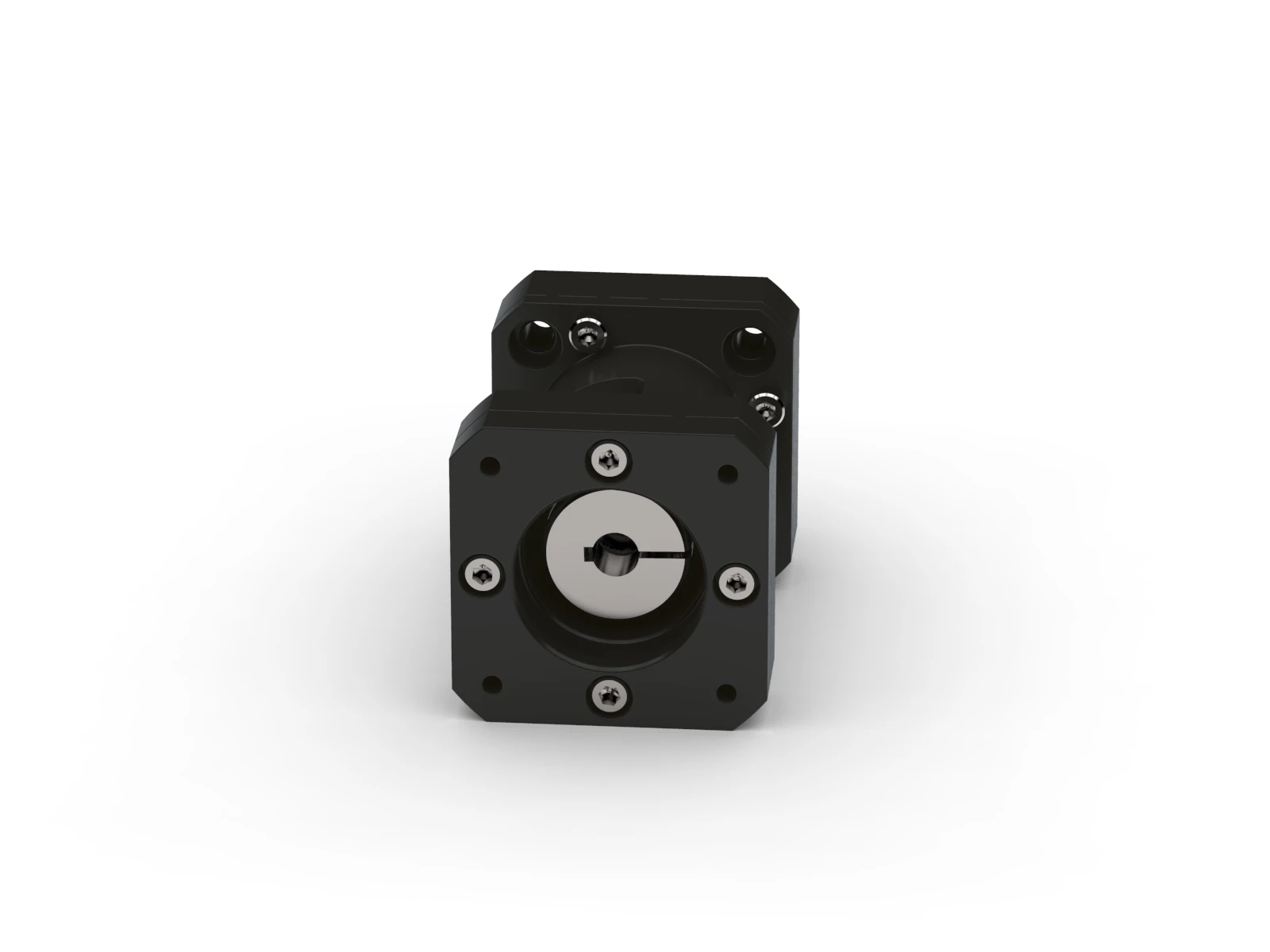

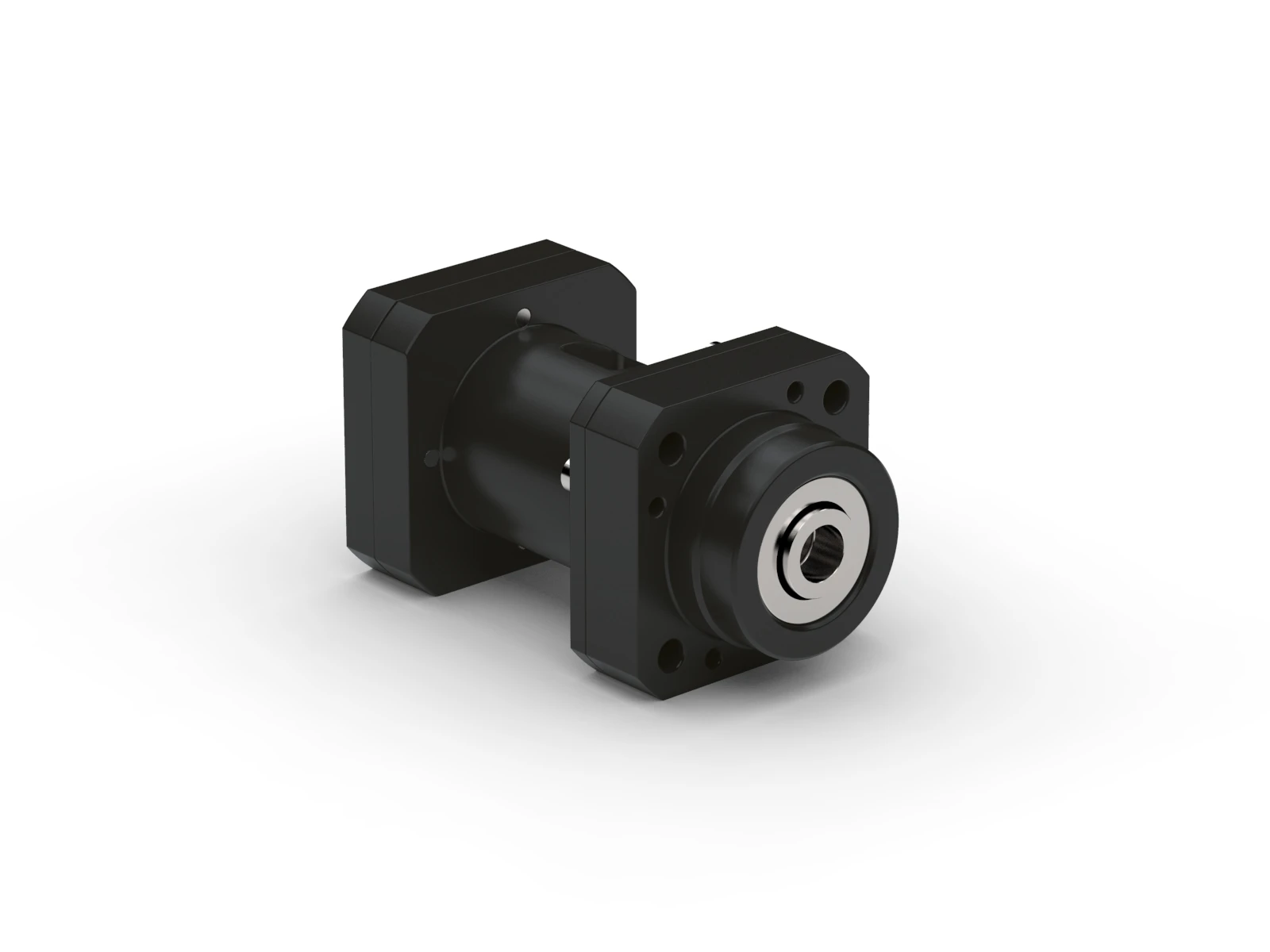

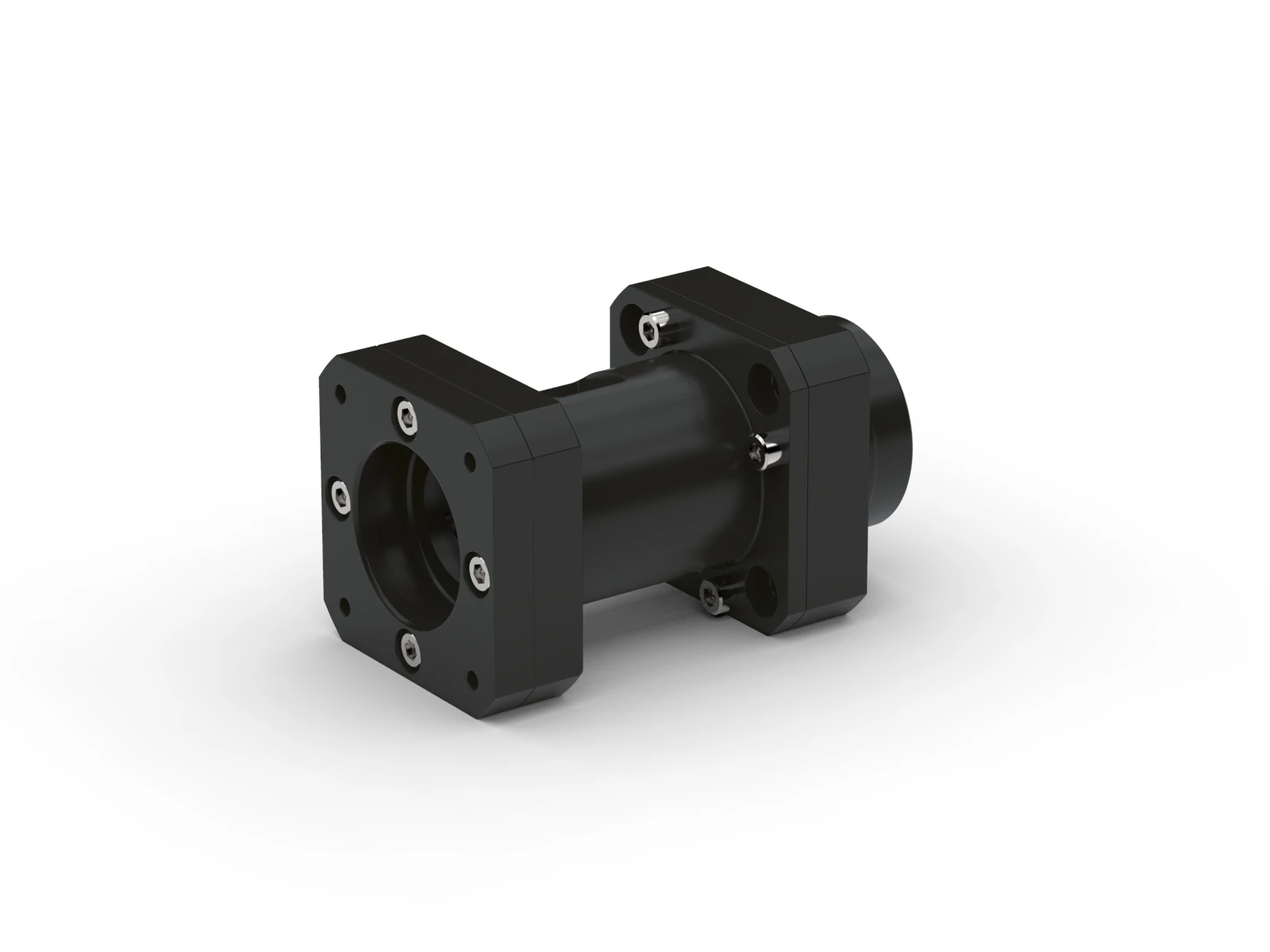

EZF-3012-23 Motor Mount for Flanged Bearing Mount
EZF-3012-23
Motor Mount for Flanged Bearing Mount
Read more
Loading...
Loading...
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Lead Screw Calculator
Torque, speed & efficiency
Print product details
Printable specs & data
Home
Accessories
Stepper Motor Mounts
MM-EZF
Performance & Tolerances
Measurement system
Metric
Product Info
A (in)
4.5
A (mm)
114.3
Acme Screw Diameter - (in)
0.625
B (in)
5.67
B (mm)
144.02
Ball Screw Diameter - (in)
0.75
C (in)
2.37
C (mm)
60.2
D (in)
2.41
D (mm)
61.21
E (in)
–
E (mm)
–
F (in)
0.19
F (mm)
4.83
G (in)
0.38
G (mm)
9.65
H (in)
0.13
H (mm)
3.18
J (in)
1.506+0-.003
J (mm)
38.25+0-0.08
K (in)
2.63
K (mm)
66.68
Show more
Price:
$500.00
Add to cart
Request a Quote
