Dynamic Load (N)1380, 562
Dynamic Load (lbs)310.24, 310, 2500
E (mm)1.2 mm, 8 mm
F (mm)2.5 mm, 4.5 mm
FP9 (mm)3 mm
G (mm)10 mm, 29 mm
H (thread)M18x1
K (mm)5 mm
M (mm)ø4 mm
Maximum Standard Backlash (mm)0.06, 0.0024
Number of Ball Circulations2x1, 1x3.5
Nut StyleCylindrical, Threaded, Rectangular Flanged

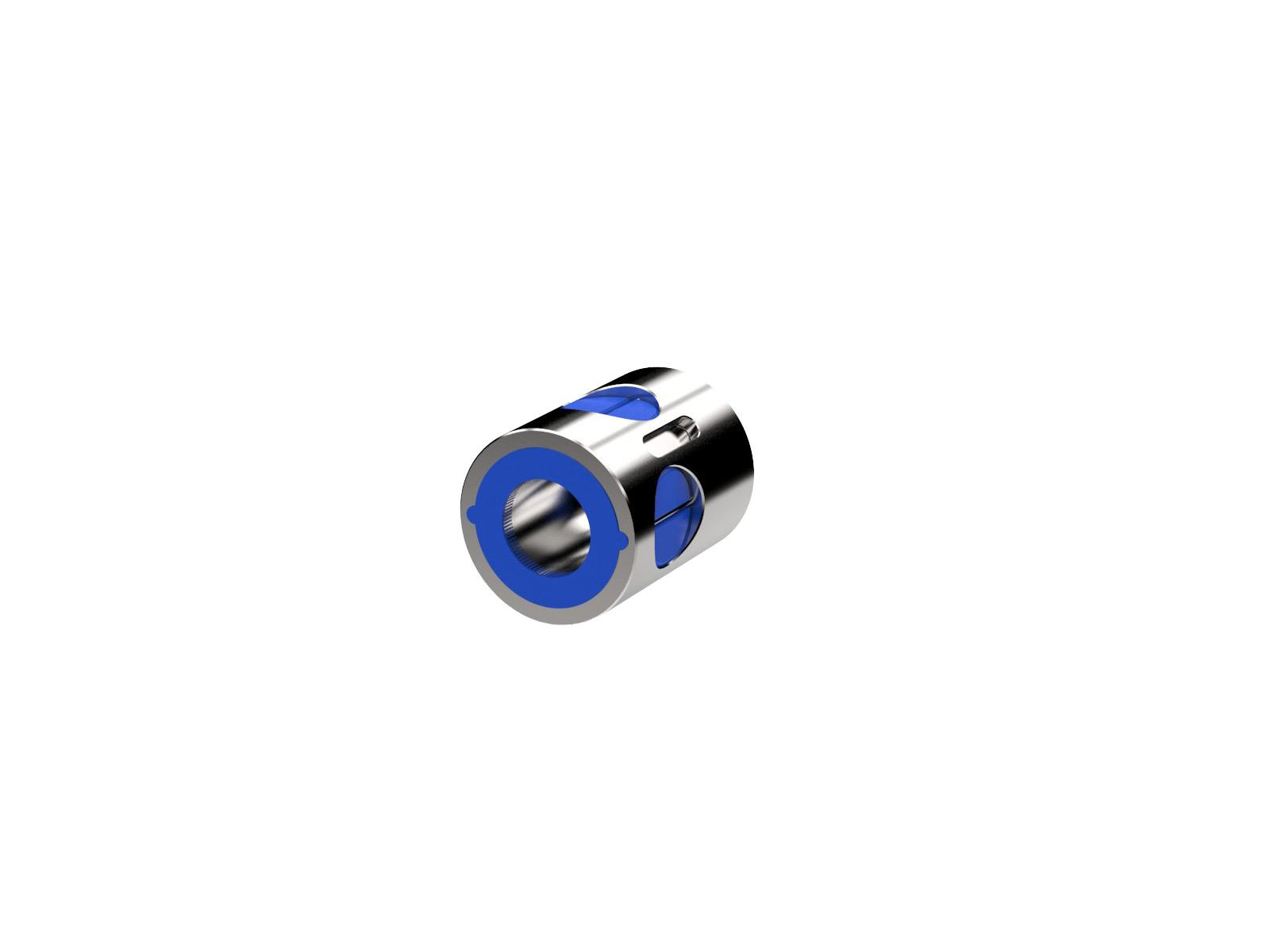

Nut TypeBall Nut
Size12x2
Static Load (N)2500, 1146
Wiper CodeN, S
WipersNo, Yes
