Dynamic Load (N)5500, 4000, 1236
Dynamic Load (lbs)1236.45, 899, 1236, 5500
E (mm)1.8 mm, 10 mm, 8 mm
F (mm)2.5 mm, 4.5 mm
FP9 (mm)3 mm
G (mm)10 mm, 32 mm
H (thread)M20x1
K (mm)5 mm
M (mm)ø4 mm, M5 mm
Maximum Standard Backlash (mm)0.07, 0.0028
Number of Ball Circulations1x3.5, 3x1
Nut StyleCylindrical, Threaded, Rectangular Flanged

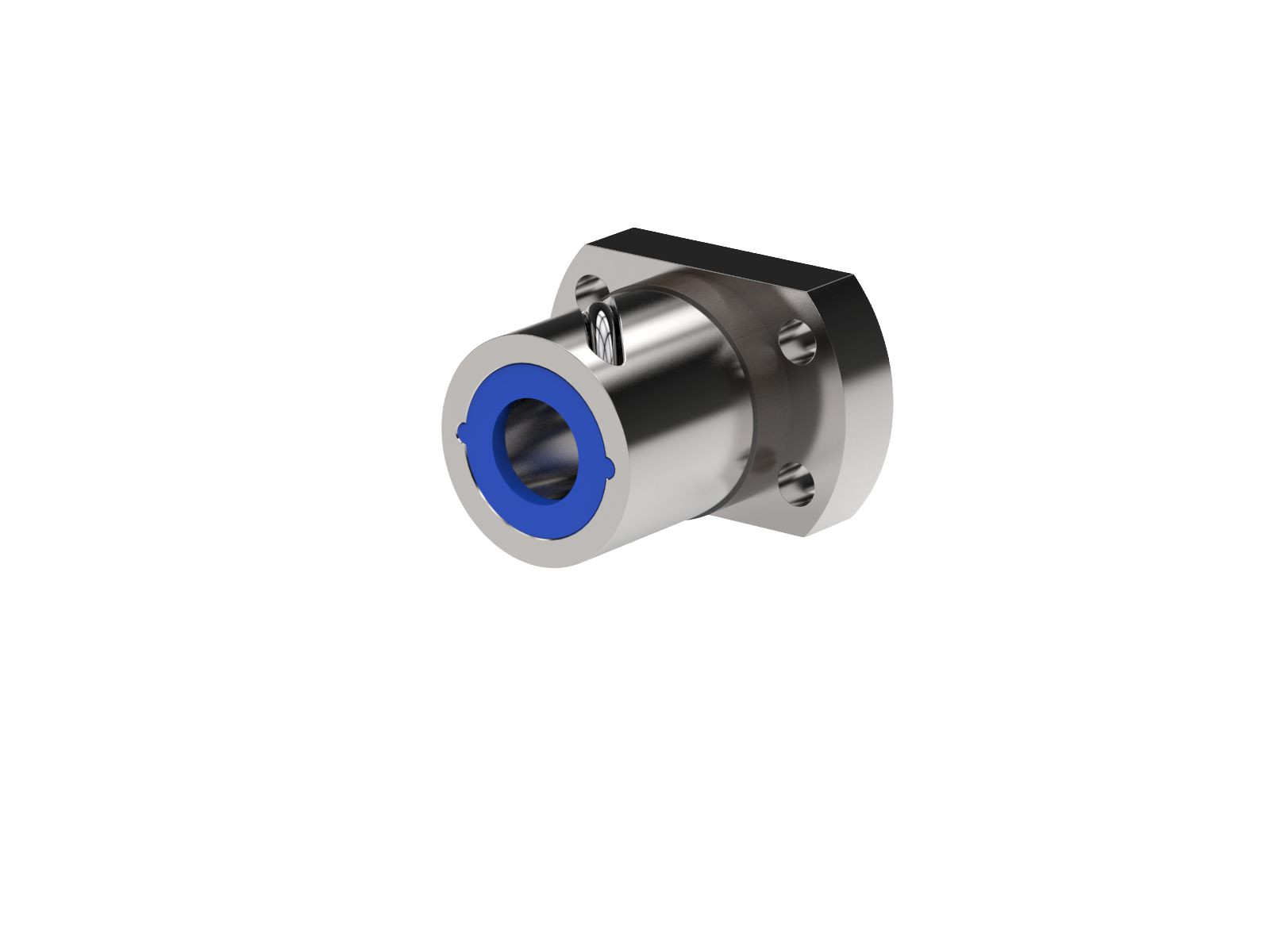

Nut TypeBall Nut
Size12x4
Static Load (N)11000, 6800, 2472
Wiper CodeS, N
WipersYes, No
