Dynamic Load (N)5000, 6600, 5900, 1124, 1483, 1326.37
Dynamic Load (lbs)1124, 1483, 1326, 5000, 6600, 5900
E (mm)10 mm, 8 mm, 12 mm, 7 mm
F (mm)3 mm, 3.5 mm, 4.5 mm
G (mm)32 mm, 34 mm
H (thread)M20x1, M28x1.5
J (mm)6 mm
K (mm)6 mm, 5 mm
M (mm)ø4 mm, M5 mm, 4 mm
Maximum Standard Backlash (mm)0.0028, 0.0024
Number of Ball Circulations3x1, 1x3.5, 1x3.7
Nut StyleThreaded, Rectangular Flanged, Round Flanged

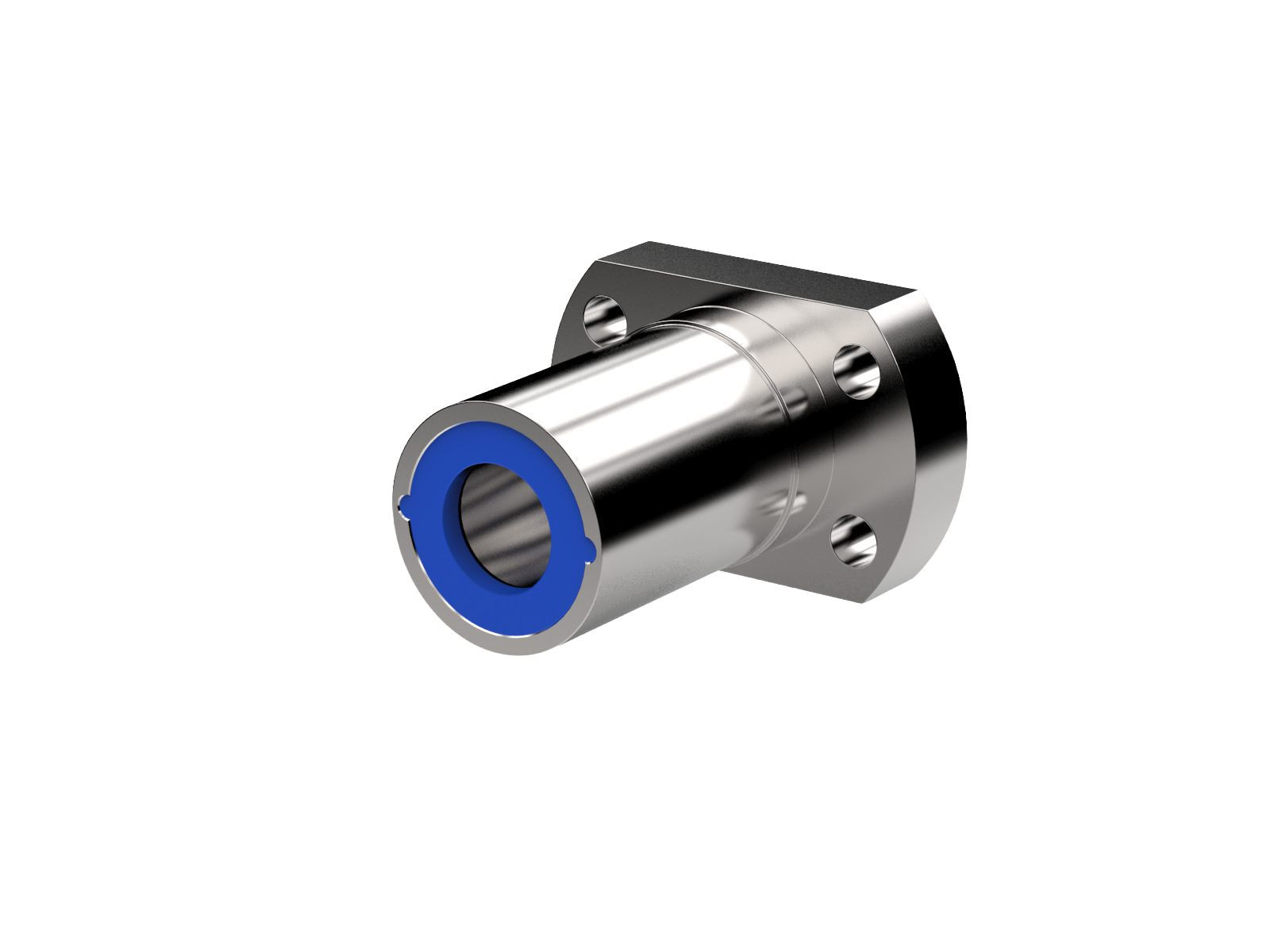

Nut TypeBall Nut
Size12x5
Static Load (N)8600, 12000, 10600, 1933, 2697, 2382.97
Wiper CodeS, N
WipersYes, No
