Dynamic Load (N)9700, 12000, 2180
Dynamic Load (lbs)2180.65, 2180, 2697, 9700
E (mm)2.5 mm, 12 mm, 10 mm
F (mm)3.5 mm, 4 mm, 5.5 mm
FP9 (mm)4 mm
G (mm)16 mm, 38 mm
H (thread)M26x1.5
K (mm)6 mm
M (mm)M5 mm, M6 mm
Maximum Standard Backlash (mm)0.07, 0.0028
Number of Ball Circulations3x1, 1x3.5
Nut StyleCylindrical, Threaded, Rectangular Flanged

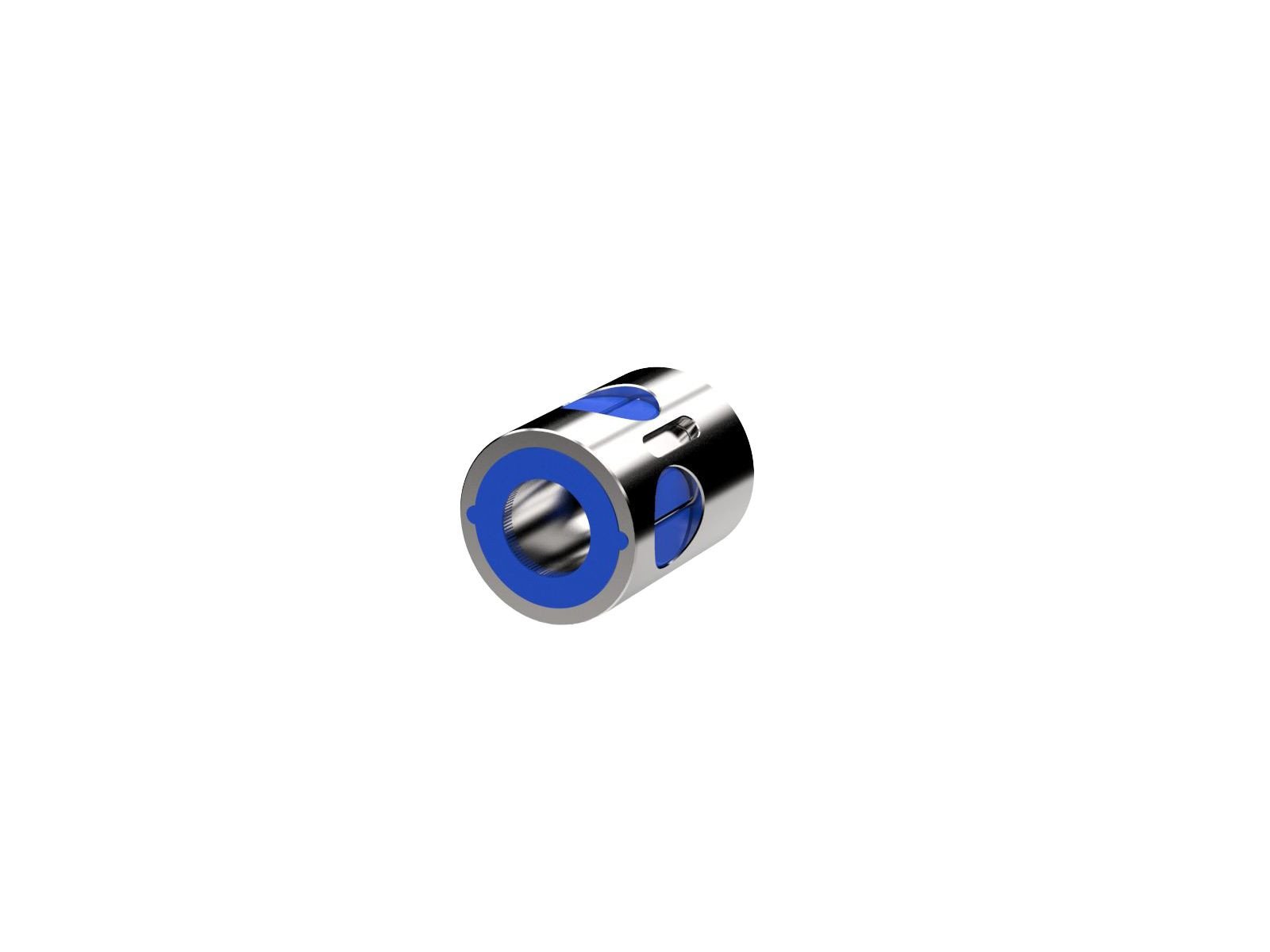

Nut TypeBall Nut
Size16x5
Static Load (N)22000, 25000, 4945
Wiper CodeS, N
WipersYes, No
