Dynamic Load (N)23300, 10000, 2248, 5238
Dynamic Load (lbs)5238.05, 2248, 10000, 23300
E (mm)2.5 mm, 20 mm, 12 mm, 10 mm
F (mm)4 mm, 6.6 mm
FP9 (mm)4 mm
G (mm)20 mm, 56 mm, 51 mm
H (thread)M40x1.5
J (mm)10 mm
K (mm)10 mm
M (mm)ø4 mm, M6 mm
Maximum Standard Backlash (mm)0.06, 0.0031, 0.0024
Number of Ball Circulations4x1.9, 2x1.5
Nut StyleCylindrical, Threaded, Rectangular Flanged

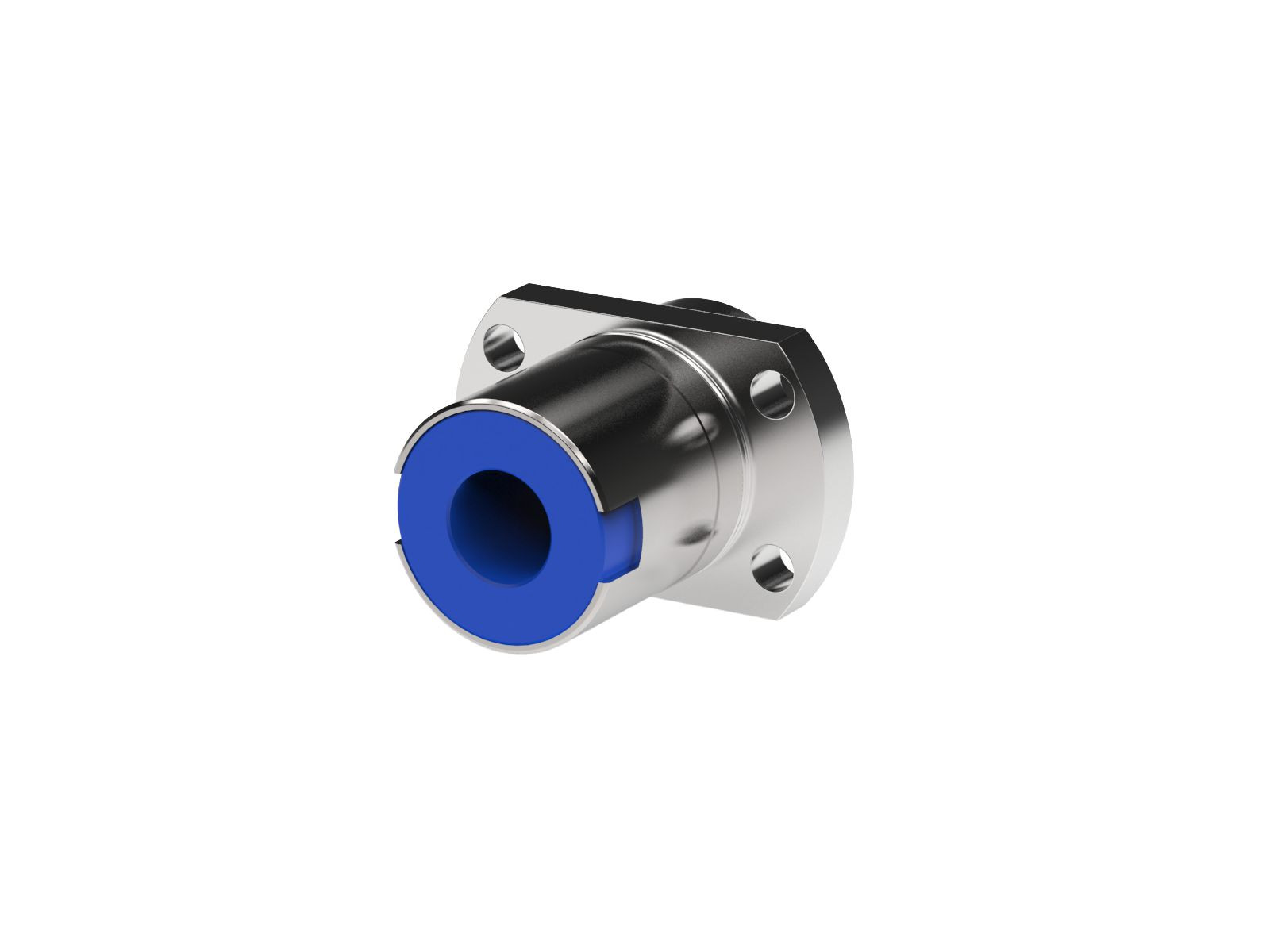

Nut TypeBall Nut
Size25x25
Static Load (N)68000, 24000, 5395, 15287
Wiper CodeS
WipersYes
