Dynamic Load (N)950, 1400, 1900, 427.14
Dynamic Load (lbs)213.57, 314, 427, 1900
E (mm)1.2 mm, 8 mm, 10 mm, 4 mm
F (mm)2.5 mm, 3.4 mm
FP9 (mm)2 mm
G (mm)8 mm, 28 mm
H (thread)M14x1, M20x1
J (mm)5 mm
K (mm)4 mm
M (mm)ø2 mm, 2 mm
Maximum Standard Backlash (mm)0.05, 0.002
Number of Ball Circulations2x1, 3x1, 1x3.7
Nut StyleCylindrical, Threaded, Round Flanged

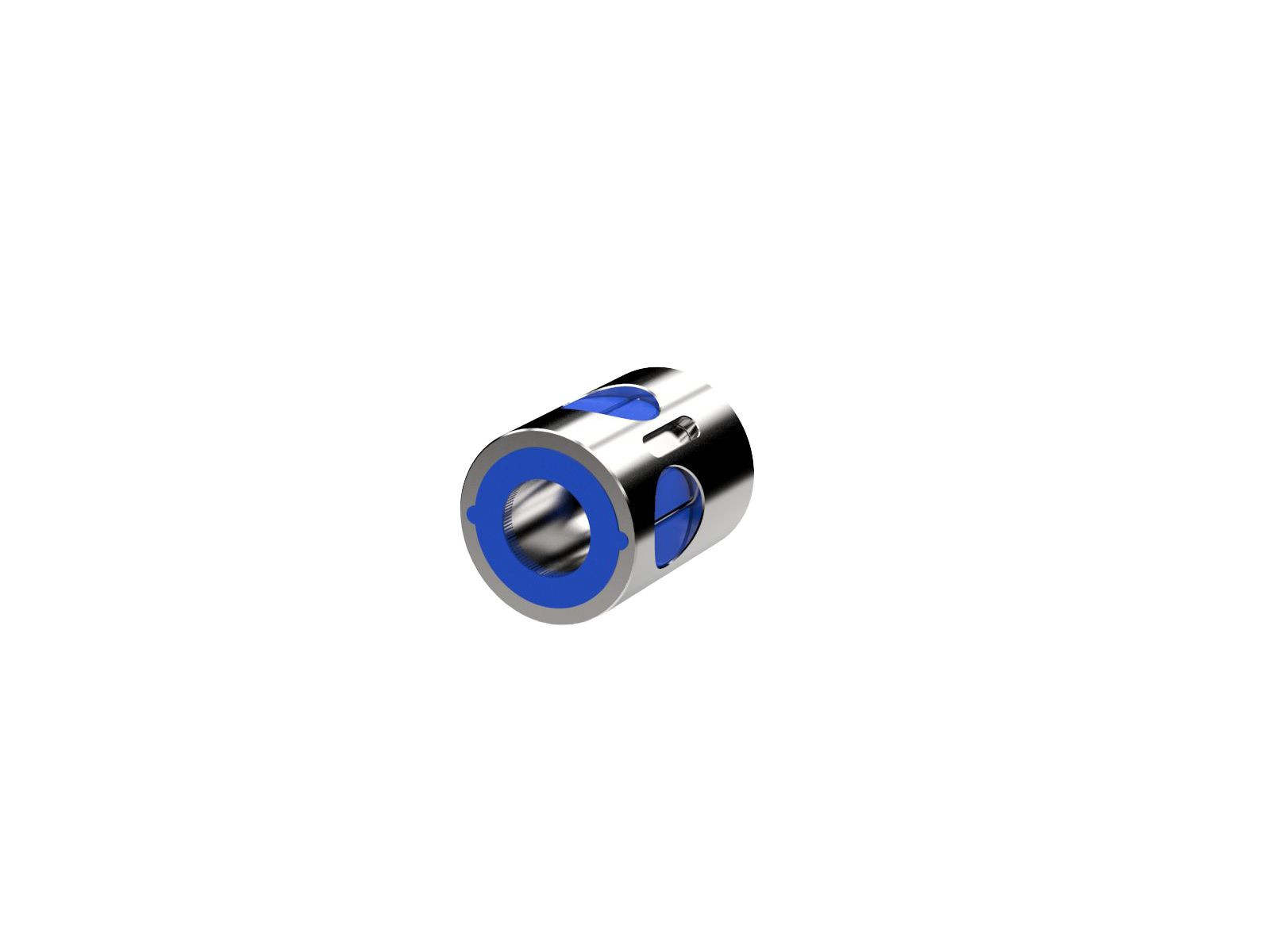

Nut TypeBall Nut
Size8x3
Static Load (N)1500, 2100, 3300, 741.87
Wiper CodeN, S
WipersNo, Yes
