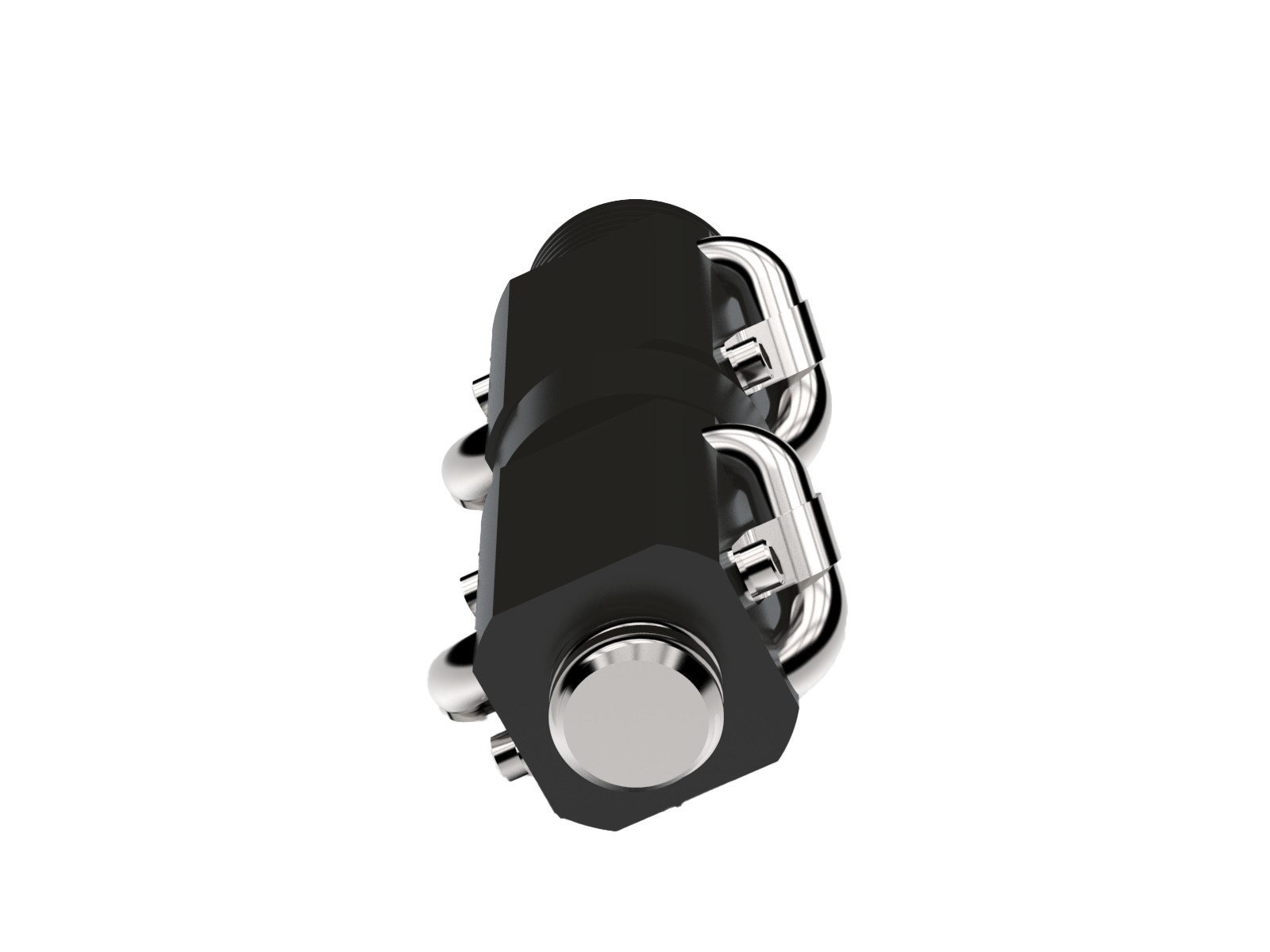

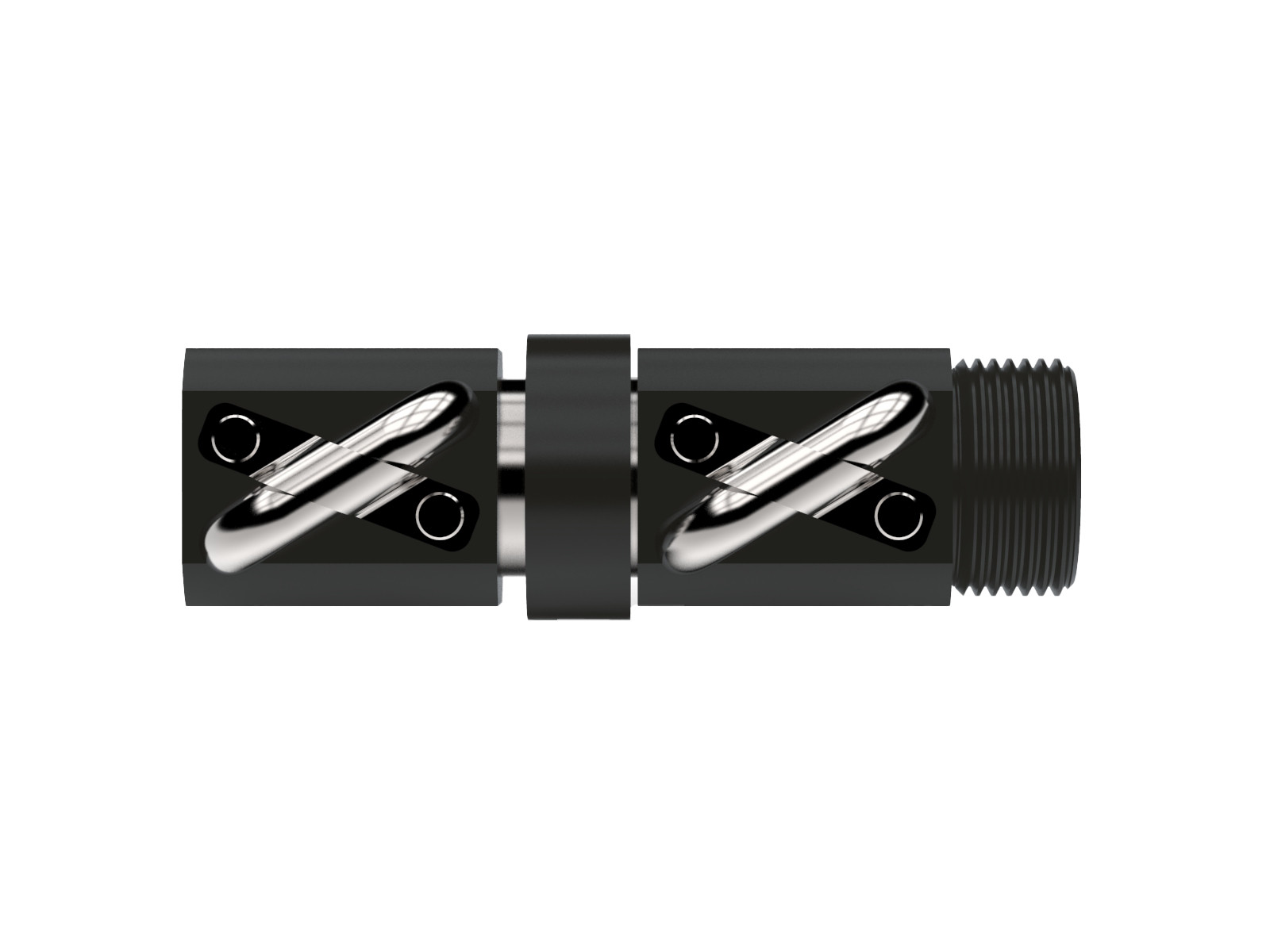

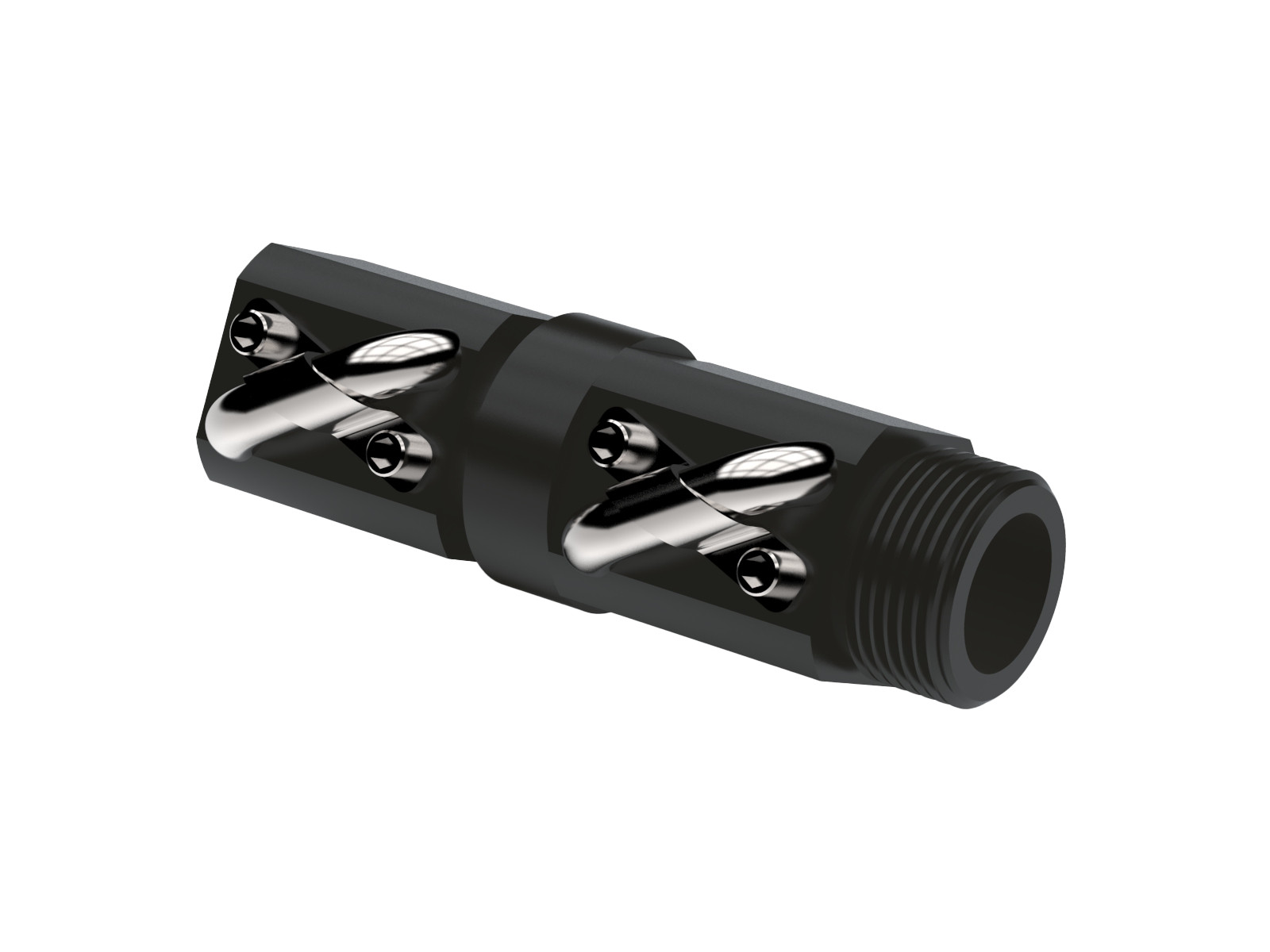

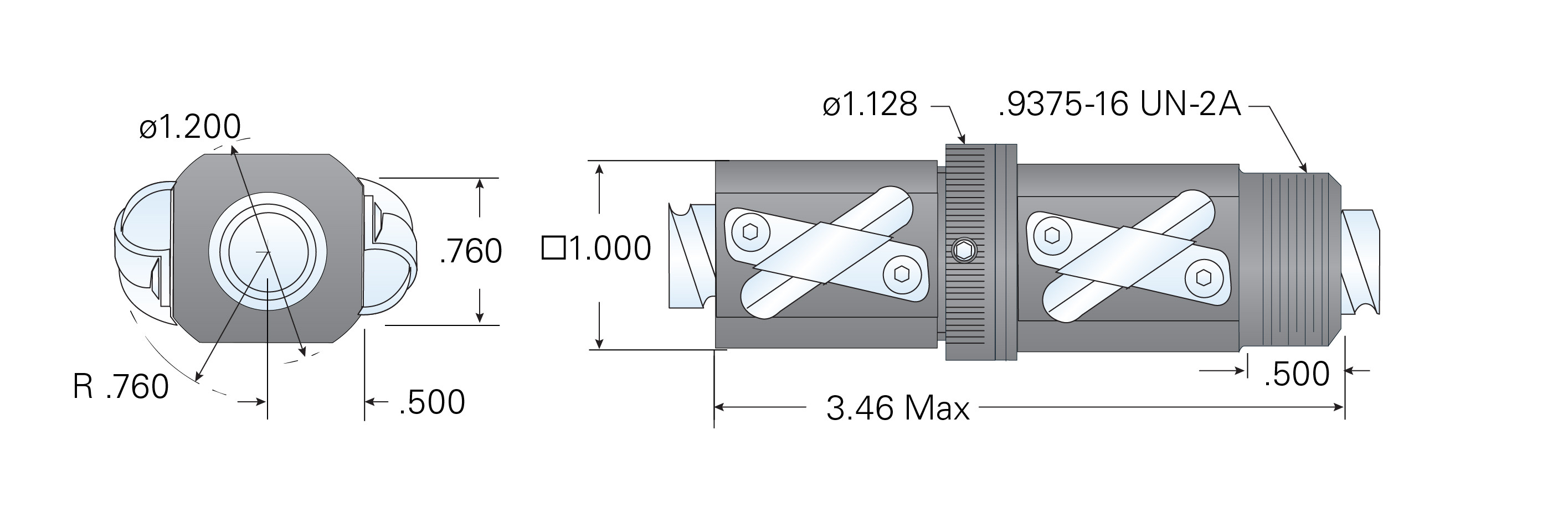

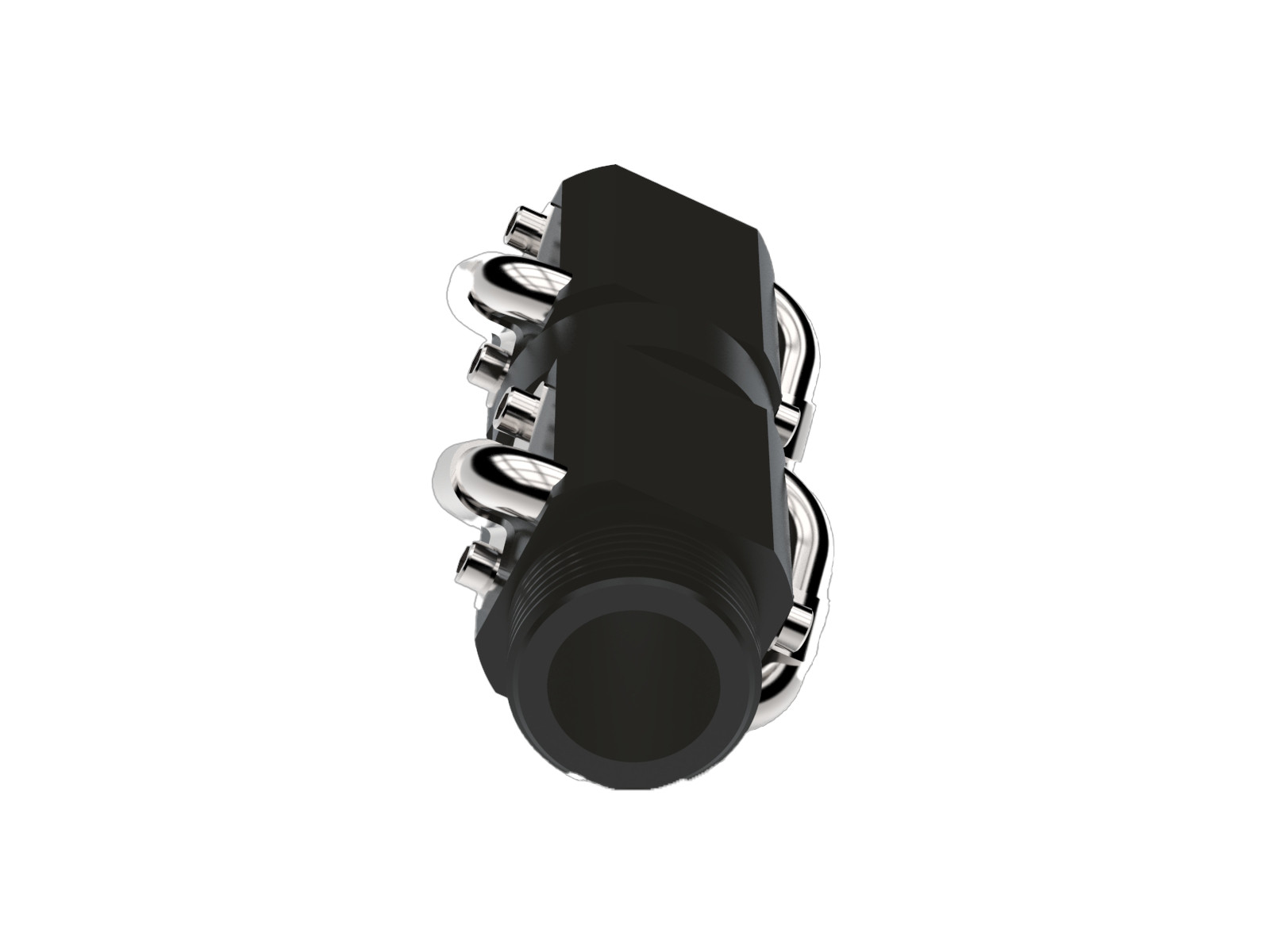

Alloy threaded inch ball screw nut with 0.631 in. diameter, 0.5 in. lead, and 2 circuits

HBN6316

Alloy threaded ball screw nut with 0.631 in. diameter, 0.5 in. lead, and 2 circuit(s). Nut only.

Torque, speed & efficiency

Printable specs & data

HBN6316

Alloy threaded ball screw nut with 0.631 in. diameter, 0.5 in. lead, and 2 circuit(s). Nut only.

Torque, speed & efficiency

Printable specs & data

Lead (in)0.5

Lead (mm)12.70

MaterialAlloy

Measurement systemMetric

Ball Circle Diameter (in)0.631

Ball Circle Diameter (mm)16.0274

Ball Nut Weight (lbs)0.65

Ball Screw Weight (lb/ft)0.81

Circuits2

Dynamic Load (lbs) for 1M (in)960

Preloaded Y/NYes

Screw Minor Dia.0.5

Torque to Raise 1 lb (in-lb)0.088

Max Static Load (lbs)5565

Thread DirectionRH
