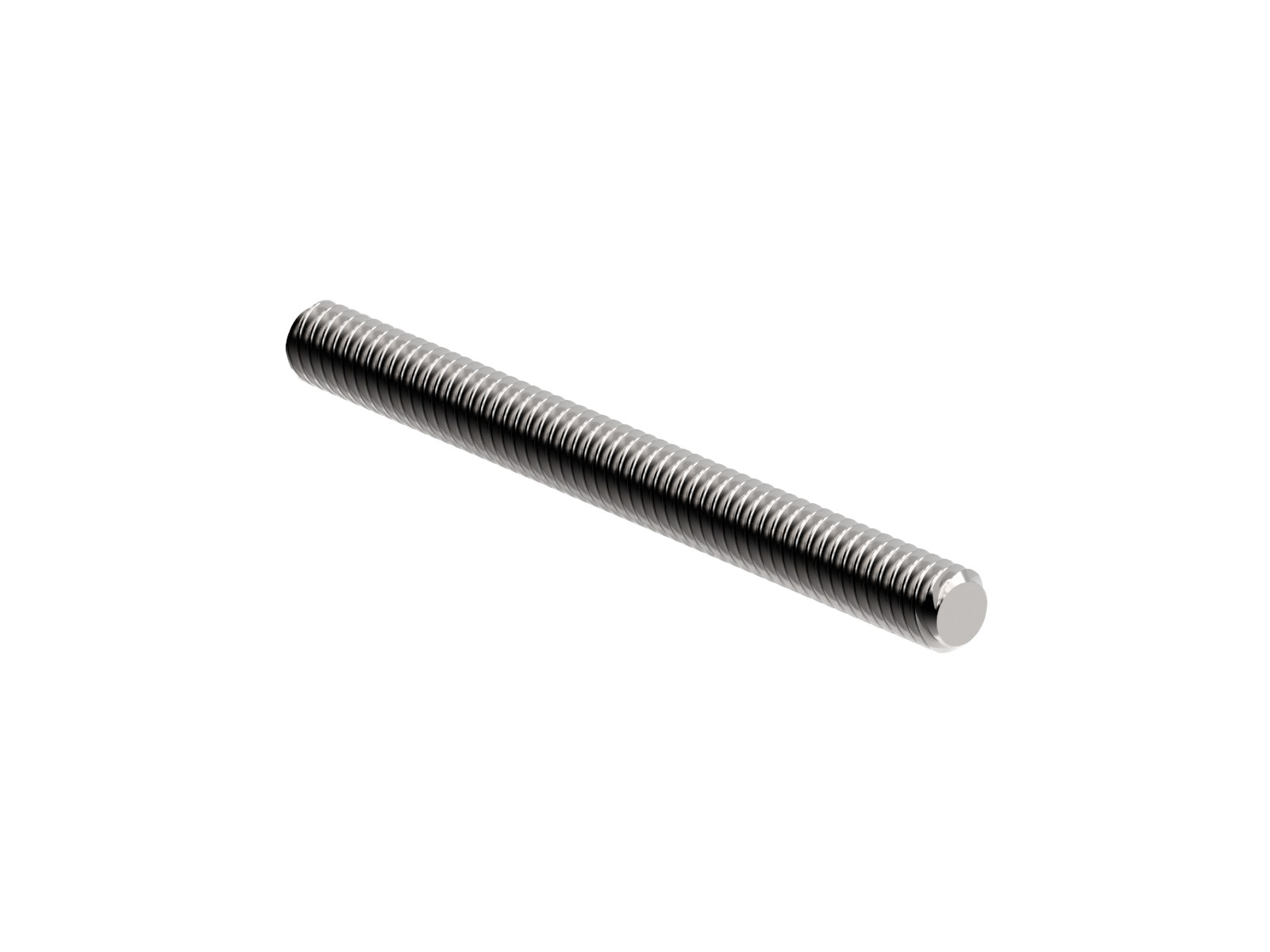

0.32" Diameter x 0.295" Lead - Precision Lead Screw

32295

0.32 inch x 0.295 inch lead screw with 1 start(s), and 0.0003 inch/inch lead accuracy. Screw only. Custom end machining available on request.

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

CAD Specifications Catalog Videos Accessories

0.32" Diameter x 0.295" Lead - Precision Lead Screw

32295

0.32 inch x 0.295 inch lead screw with 1 start(s), and 0.0003 inch/inch lead accuracy. Screw only. Custom end machining available on request.

Lead Screw Calculator

Torque, speed & efficiency

Printable specs & data

Configuration Logistics

Weight (lb./ft)0.18

Dimensions Lead

Screw Length (in)6, 12, 18, 24, 30, 36, 42, 48, 54, 60, 66, 72

Screw Length (mm)152.4, 304.8, 457.2, 609.6, 762.0, 914.4, 1066.8, 1219.2, 1371.6, 1524.0, 1676.4, 1828.8

Turns Per Inch3.39

Length - L (in)6, 12, 18, 24, 30, 36, 42, 48, 54, 60, 66, 72

Length - L (mm)152.4, 304.8, 457.2, 609.6, 762.0, 914.4, 1066.8, 1219.2, 1371.6, 1524.0, 1676.4, 1828.8

Material & Finish

CoatingNo Coating, Yes Coating

Material

A-4140 Series Alloy Steel, S-300 Series Stainless Steel

Performance & Tolerances

Measurement systemImperial

Lead Accuracy (in)0.0003

Lead Accuracy (mm)0.00762

Lead Accuracy +/- (in/in)0.0003

Starts1

Product Info

Screw Diameter - A (in)0.3

Screw Diameter - A (mm)7.62

Screw Lead (in)0.295

Screw Lead (mm)7.4930

Screw Pitch (in)0.295, 0.049

Screw Pitch (mm)7.4930, 1.2446

Screw Thread FormAcme

Screw Diameter (in)0.32

Screw Diameter (mm)8.128

Thread Details

Thread DirectionRH, LH
