Flange Part No - RoundHF60
Flange Weight (lb)0.14
G - Hex Thickness (in)0.25
Mating Screw Part No055708L, 055708R
Maximum Axial Lash (in)FALSE

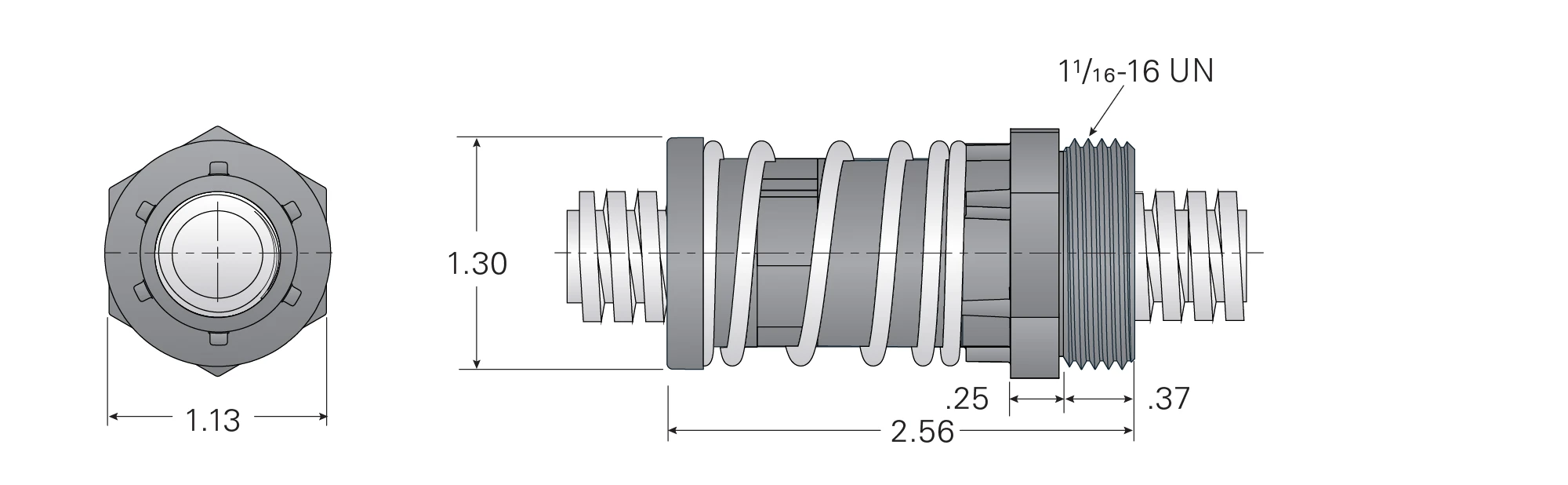

Nut Diameter B (in)1.125
Nut Length C (in)2.34

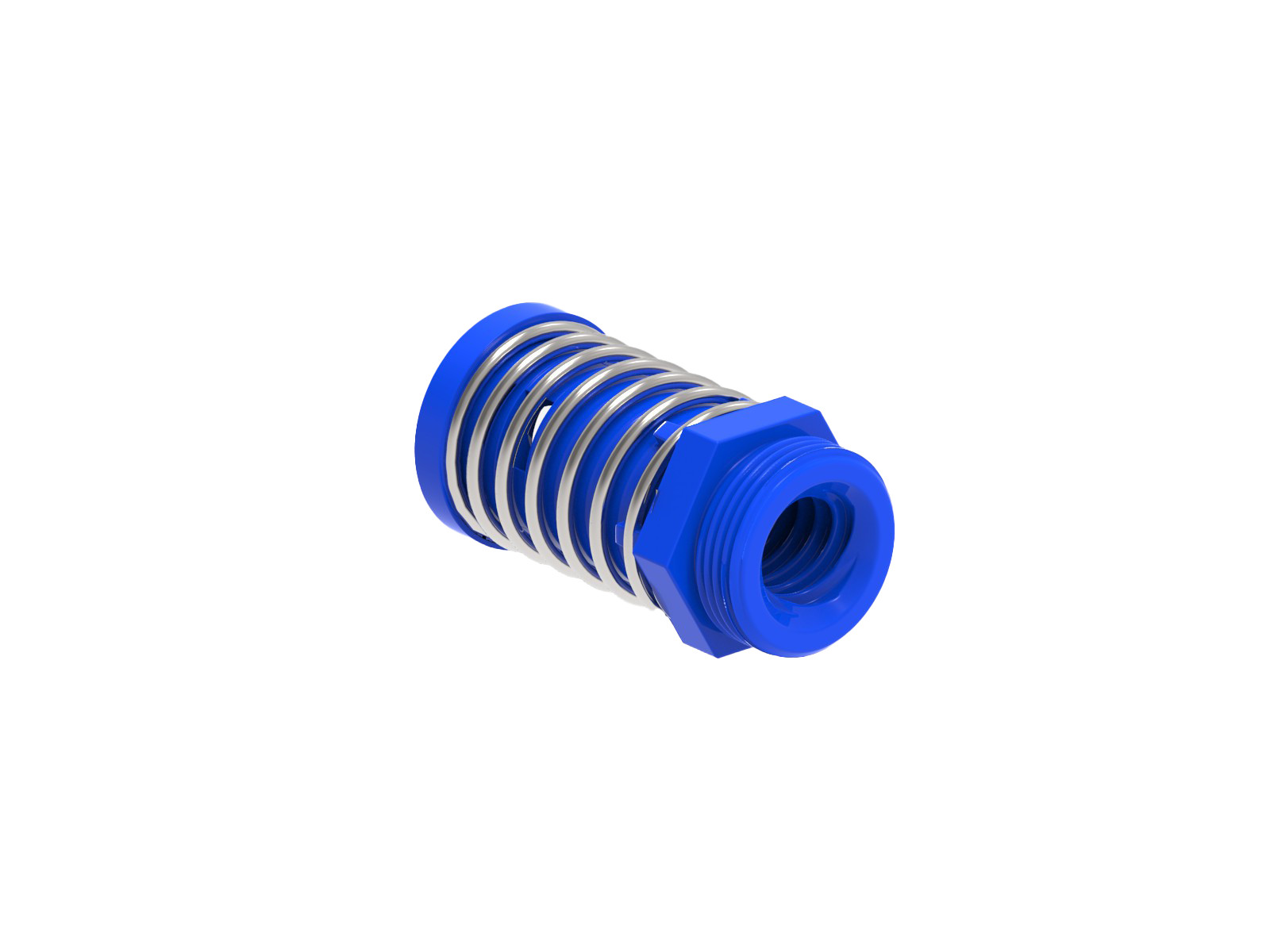

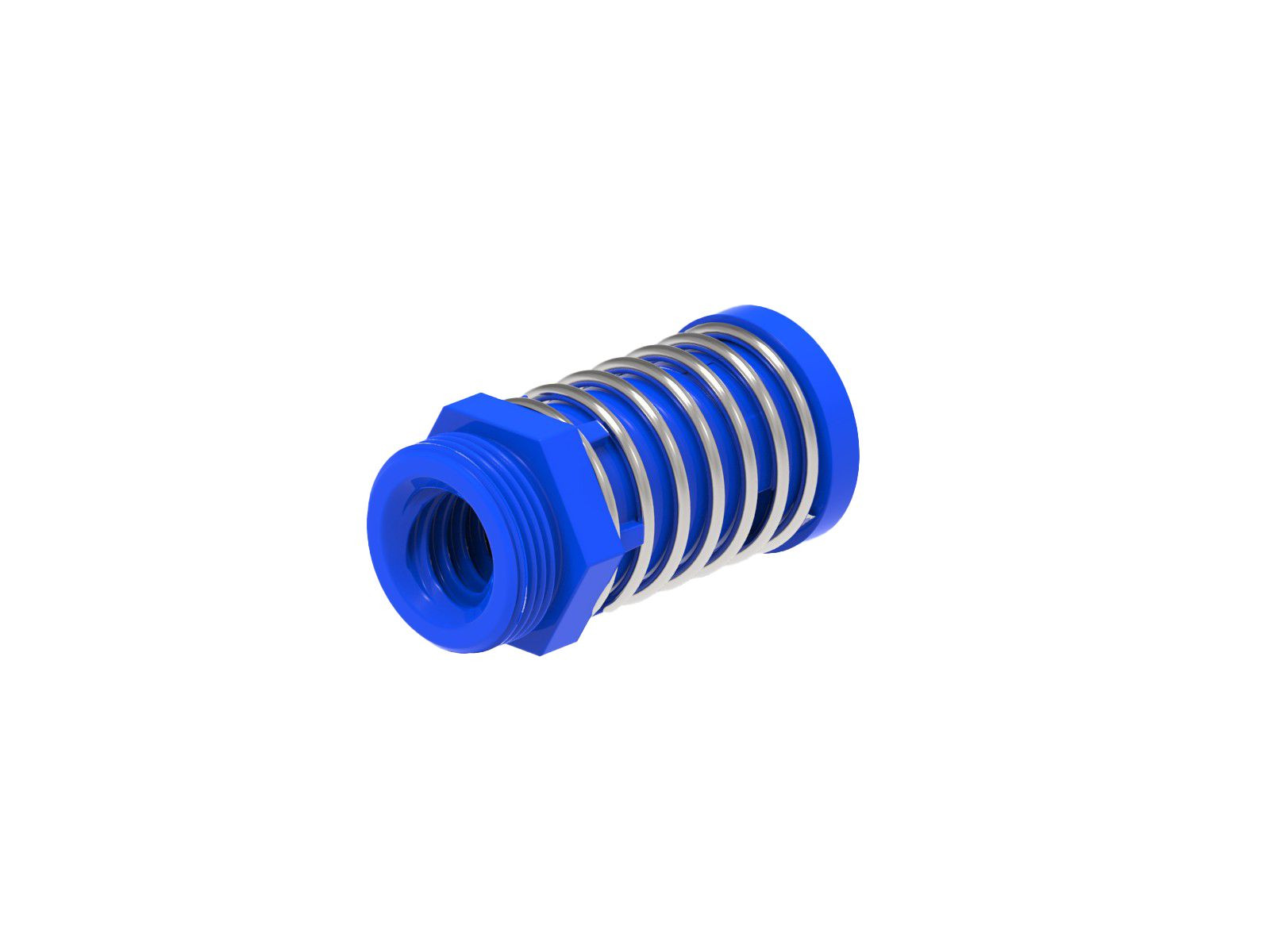

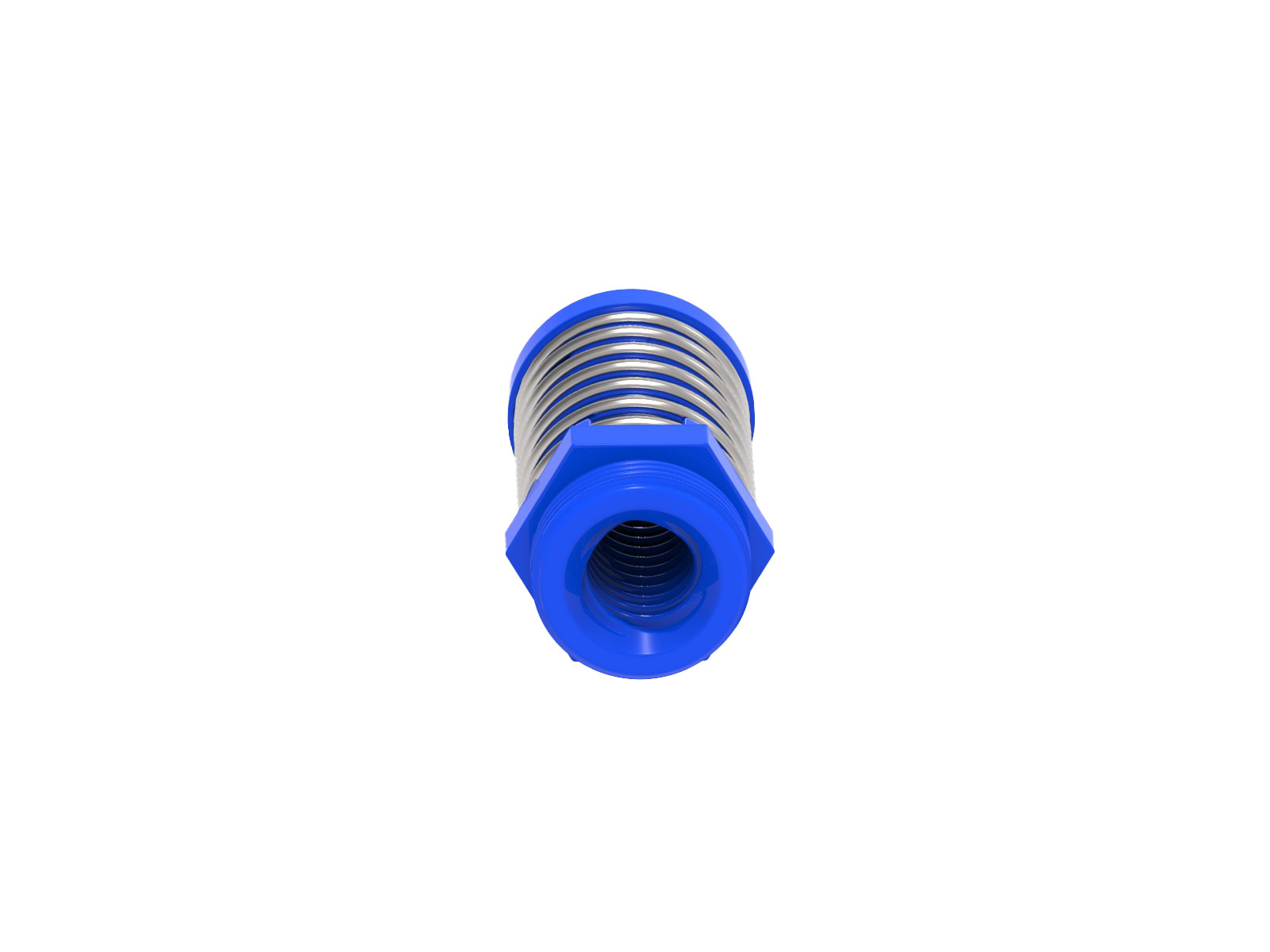

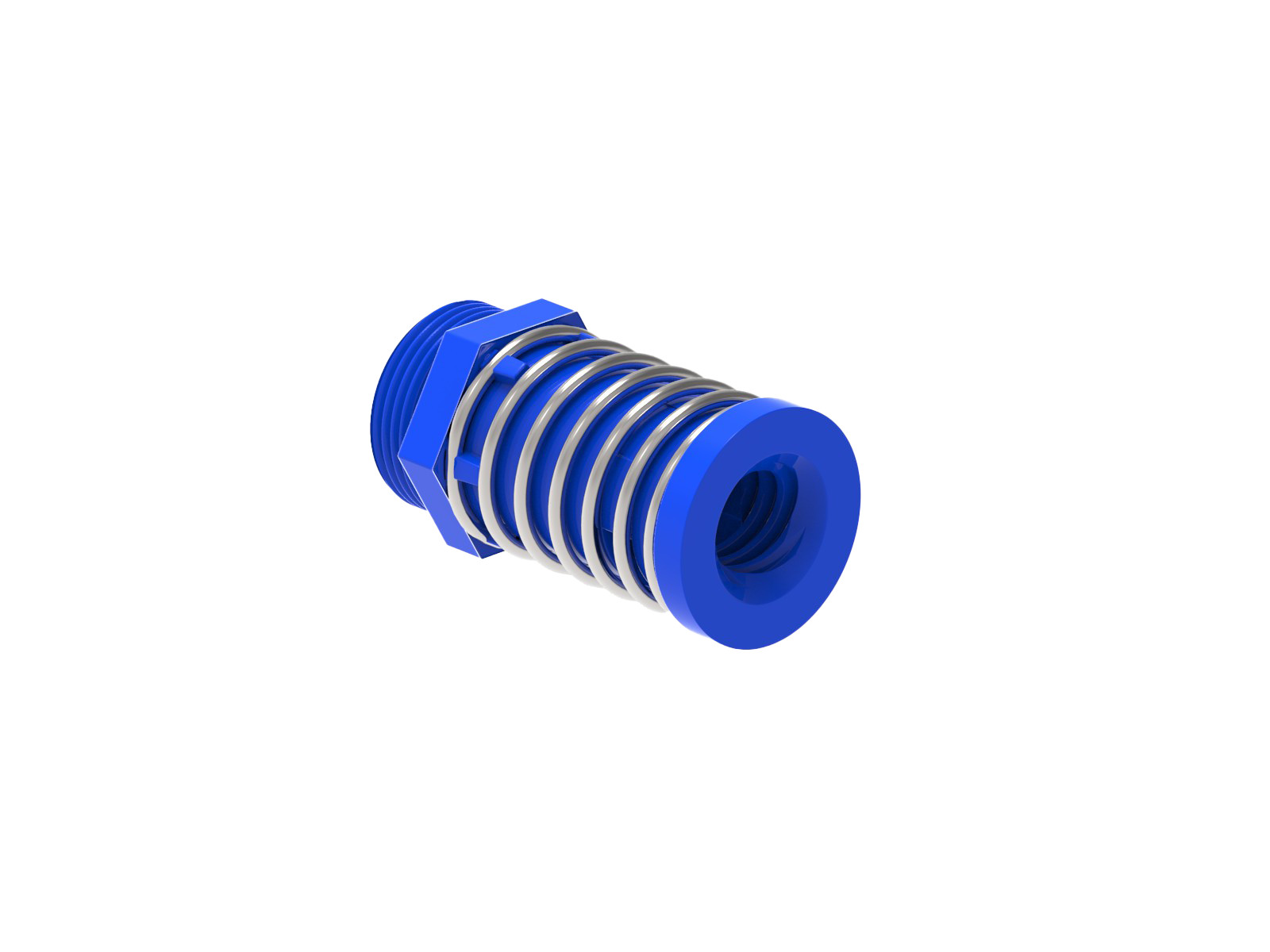

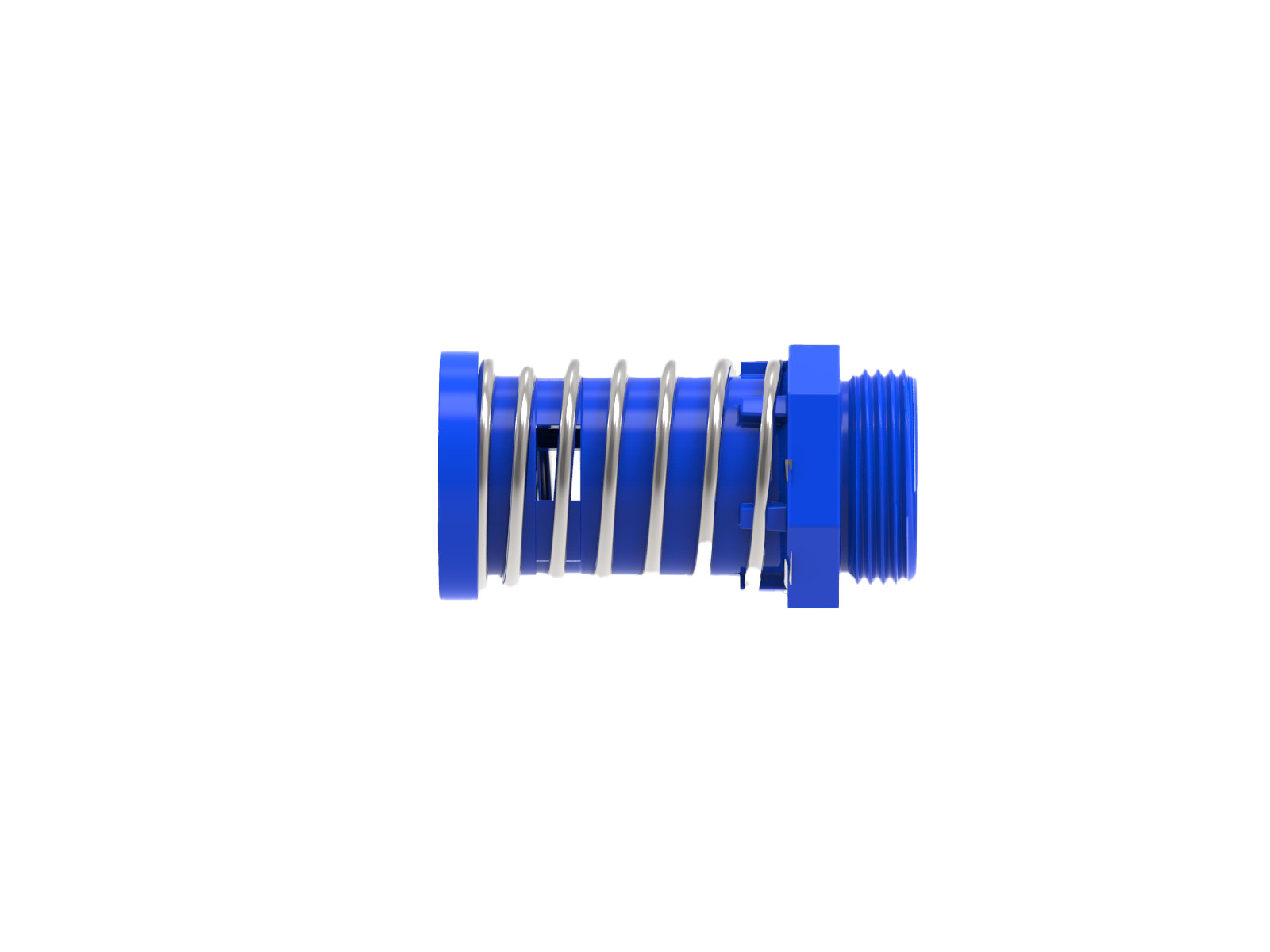

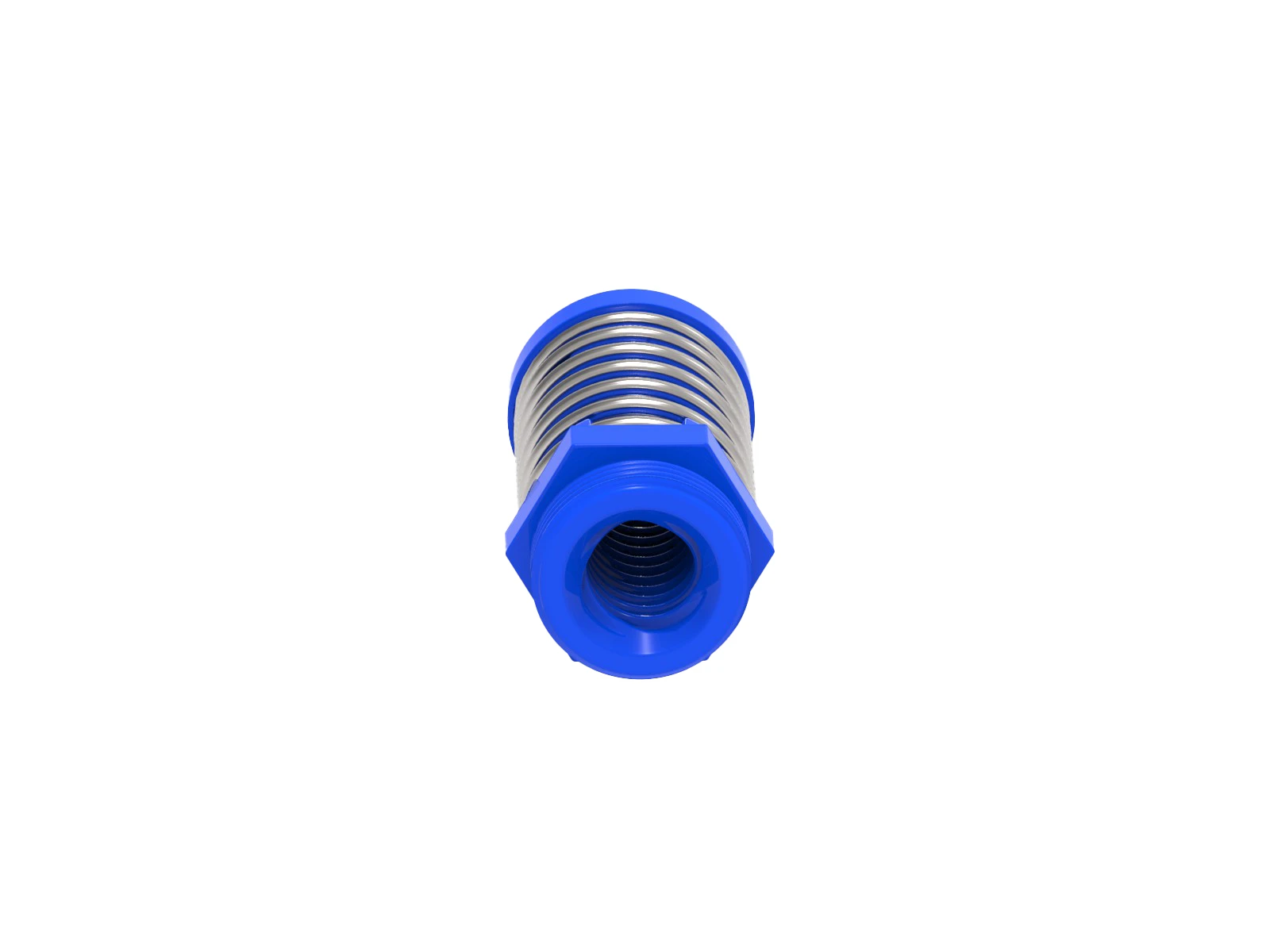

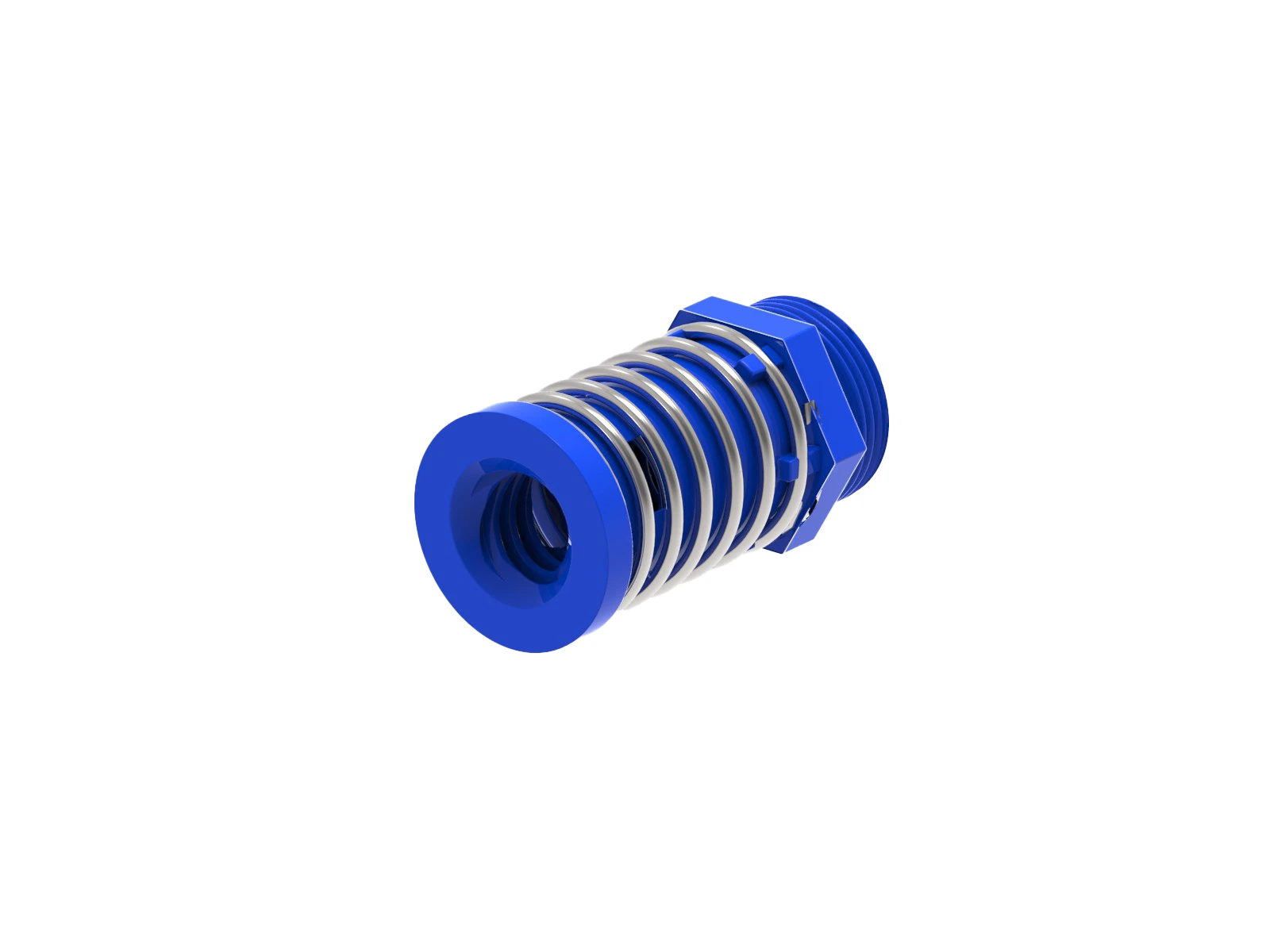

Nut TypeAxial Anti-Backlash Nut with mounting threads
Nut Weight (lb)0.06
Standard Operating Temperature Range (F°)32-200
Torque to Raise 1 lb (in-lb)0.1396317556
