Nut CodeKTA
Anti-Backlash Nut Life with H10X Coating (in)200 to 250 Million
Anti-Backlash Nut Life without H10X Coating (in)100 to 125 Million
Connection TypeThreaded

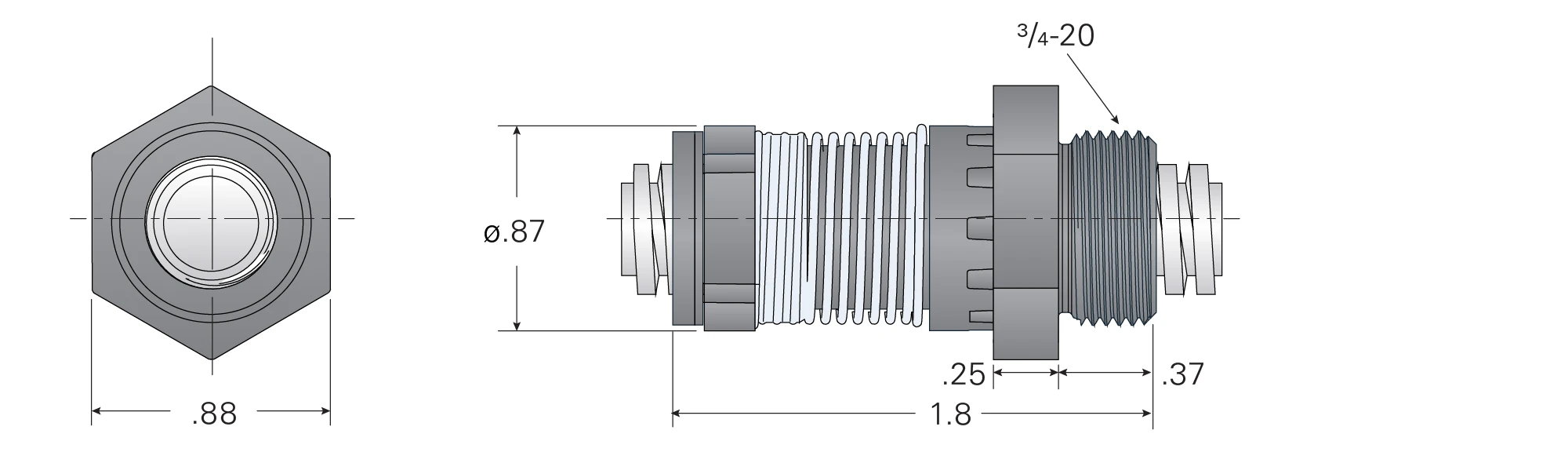

D - Thread Size (in)3/4-20
Diameter Code32
Dynamic Load Capacity (lb)30.00
E - Thread Length (in)0.37
Efficiency (%)83.74275783
F - Hex Across Flats (in)0.88
Flange Part No - RoundHF37
Flange Weight (lb)0.04
G - Hex Thickness (in)0.25
Mating Screw Part No032012L, 032012R
Maximum Axial Lash (in)FALSE
Nut Diameter B (in)0.87
Nut Length C (in)1.6

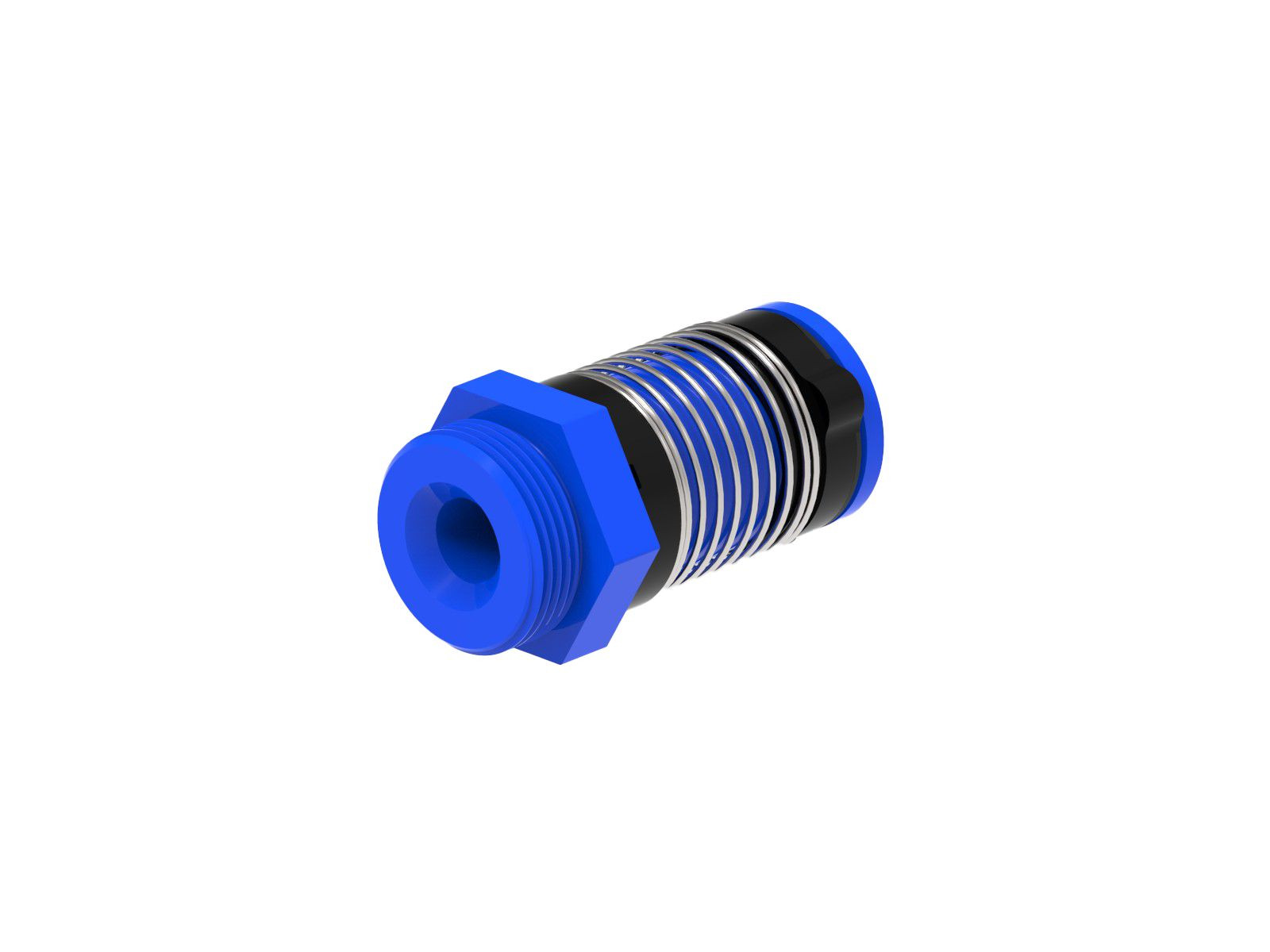

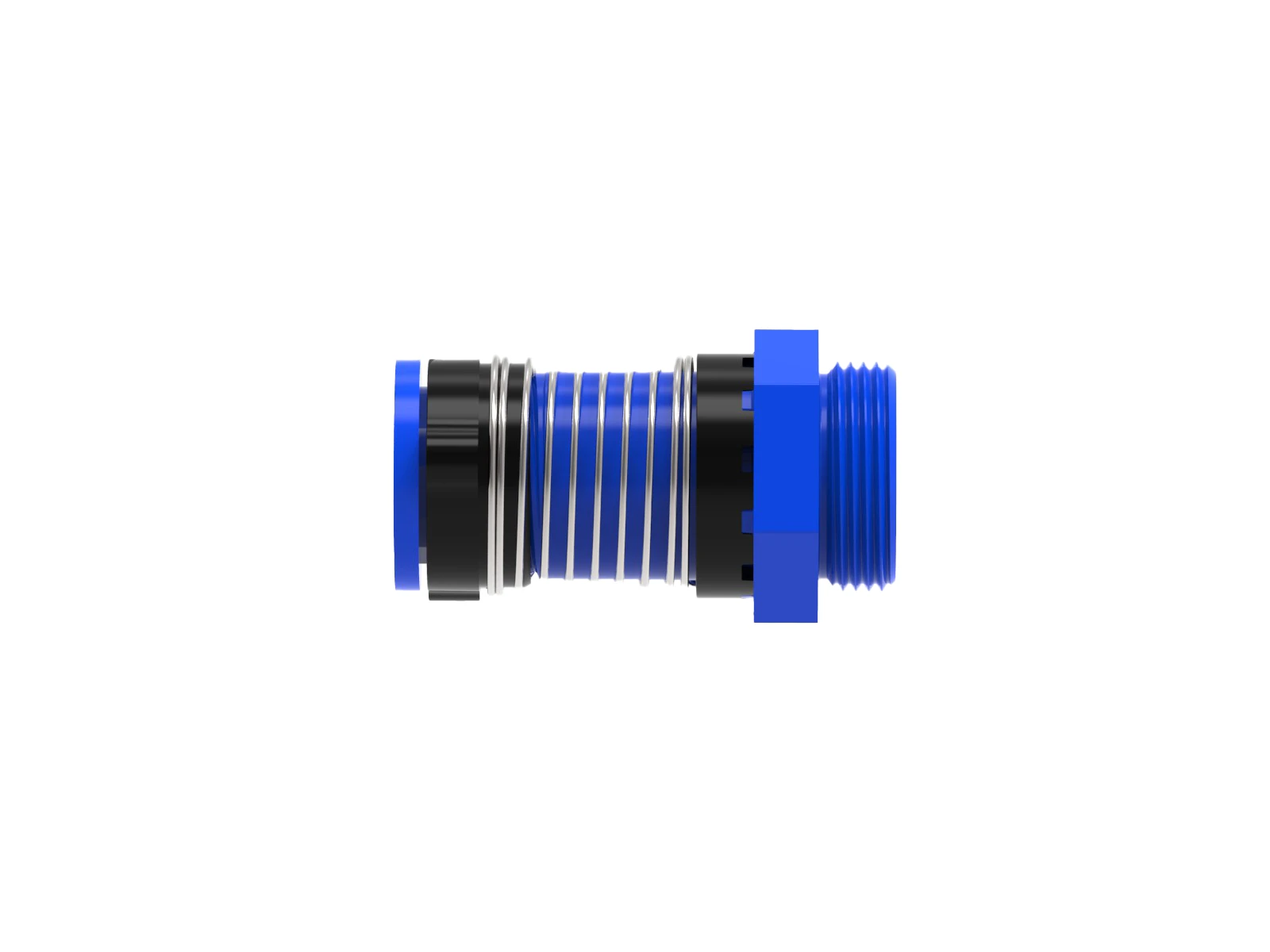

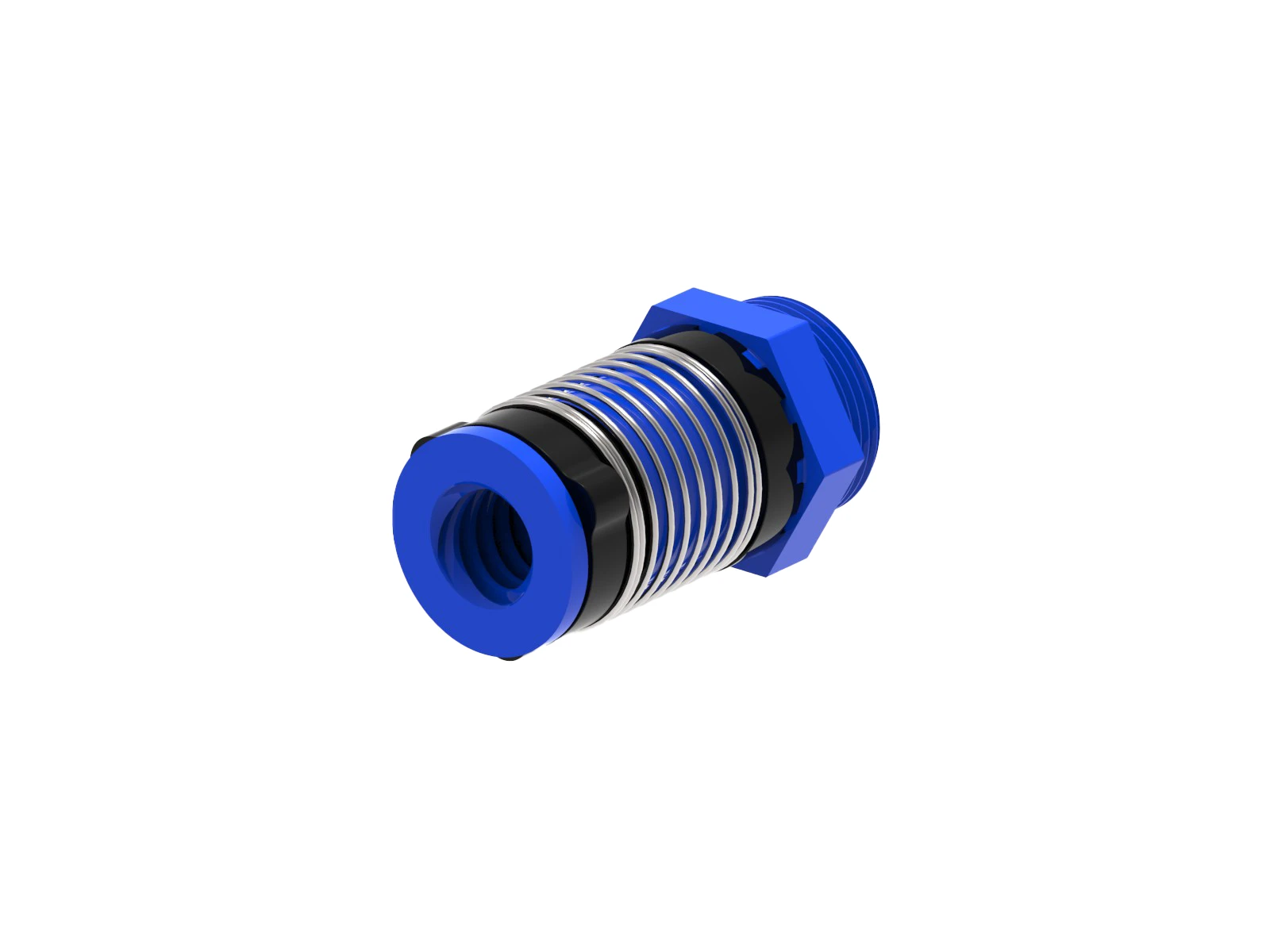

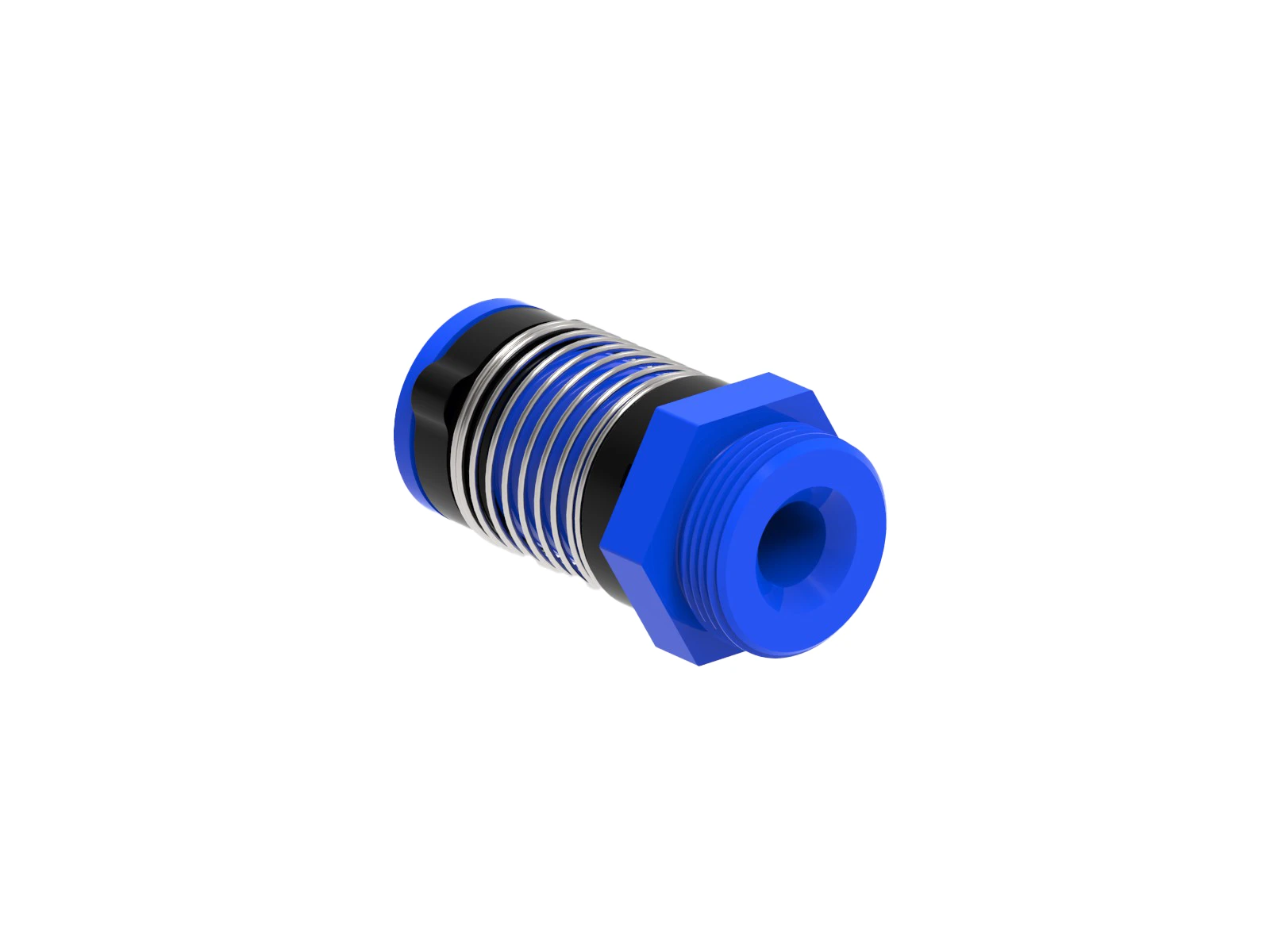

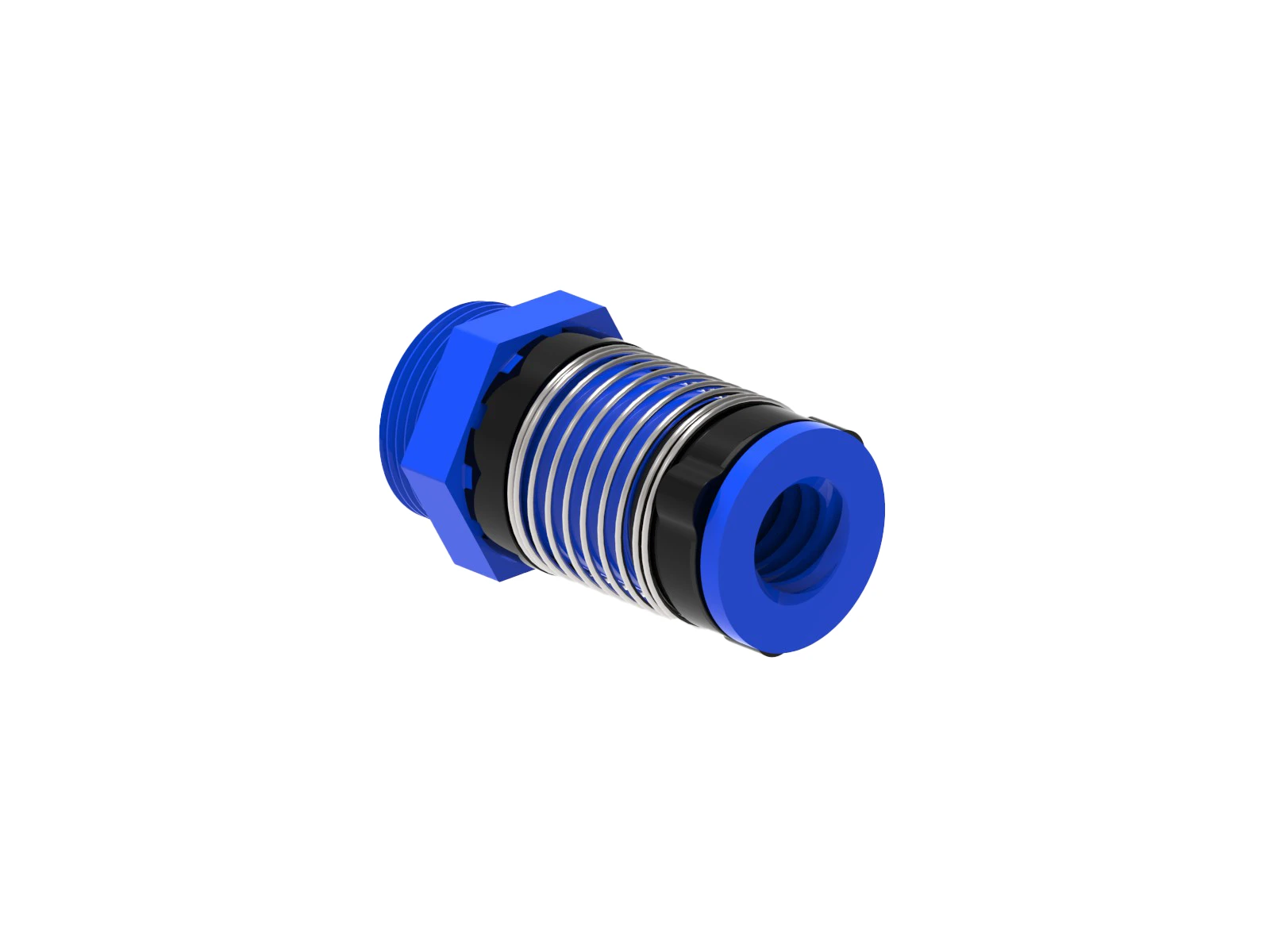

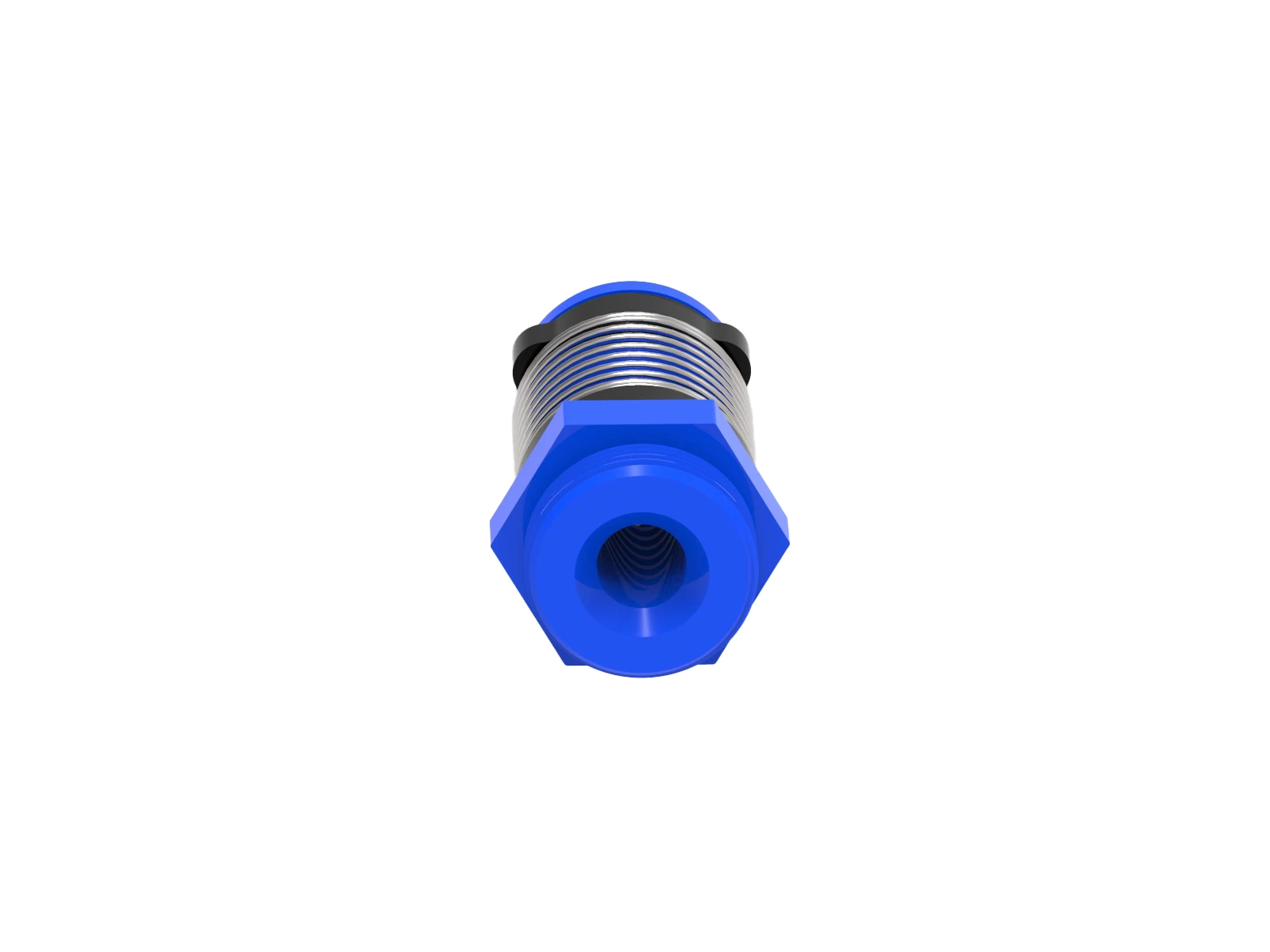

Nut TypeTorsional Anti-Backlash Nut with mounting threads
Nut Weight (lb)0.02
Standard Operating Temperature Range (F°)32-200
