Nut CodeKTA
Anti-Backlash Nut Life with H10X Coating (in)200 to 250 Million
Anti-Backlash Nut Life without H10X Coating (in)100 to 125 Million
Connection TypeThreaded

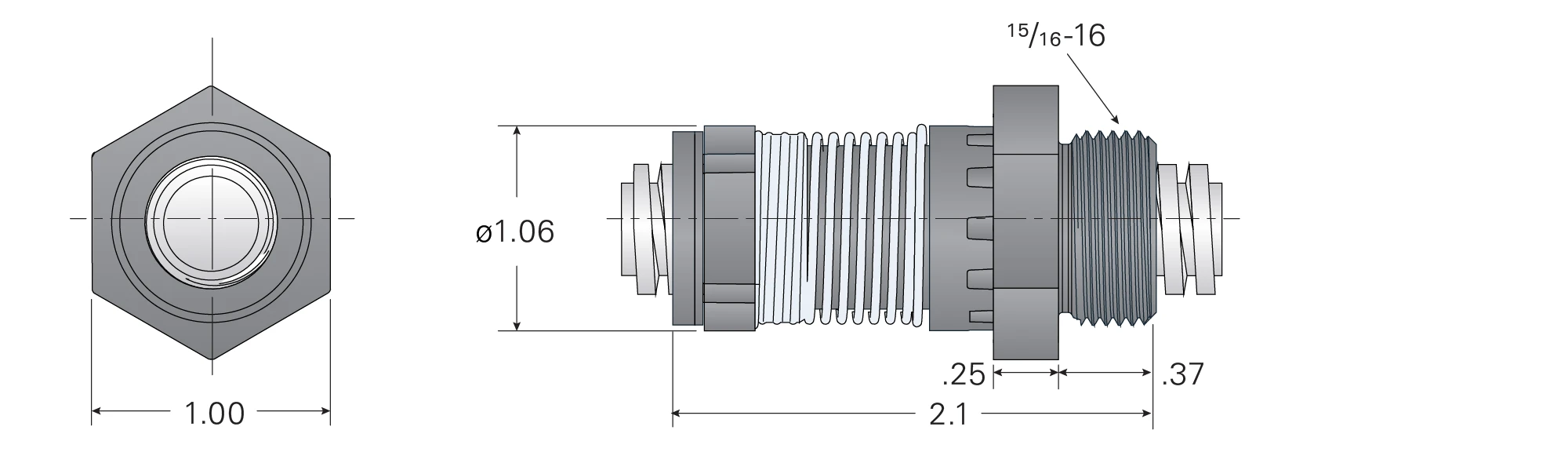

D - Thread Size (in)15/16-16 UN
Diameter Code43
Dynamic Load Capacity (lb)50.00
E - Thread Length (in)0.37
Efficiency (%)80.28801912
F - Hex Across Flats (in)1
Flange Part No - RoundHF50
Flange Weight (lb)0.08
G - Hex Thickness (in)0.25
Mating Screw Part No043236L, 043236R
Maximum Axial Lash (in)FALSE
Nut Diameter B (in)1.06
Nut Length C (in)2.1

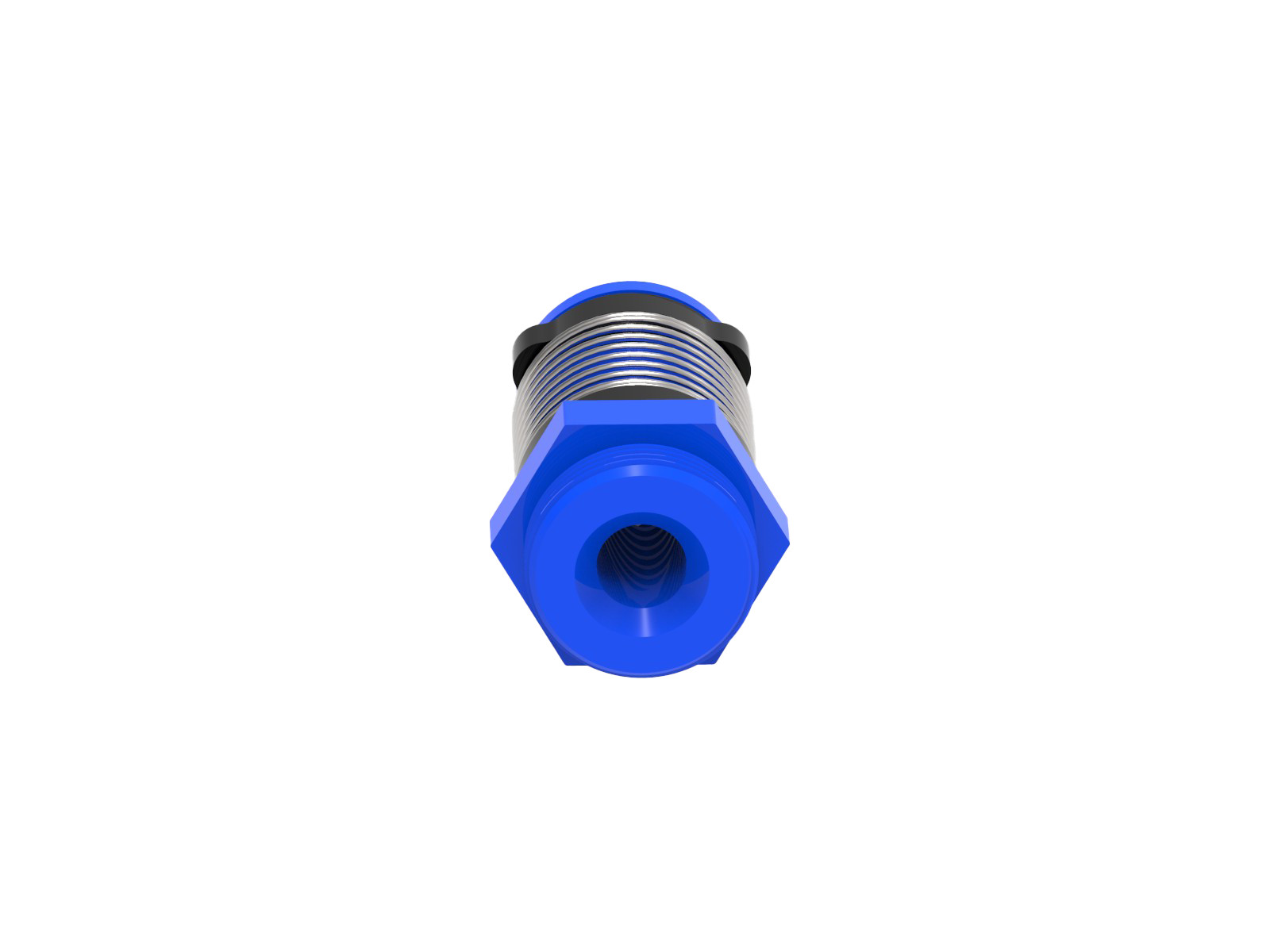

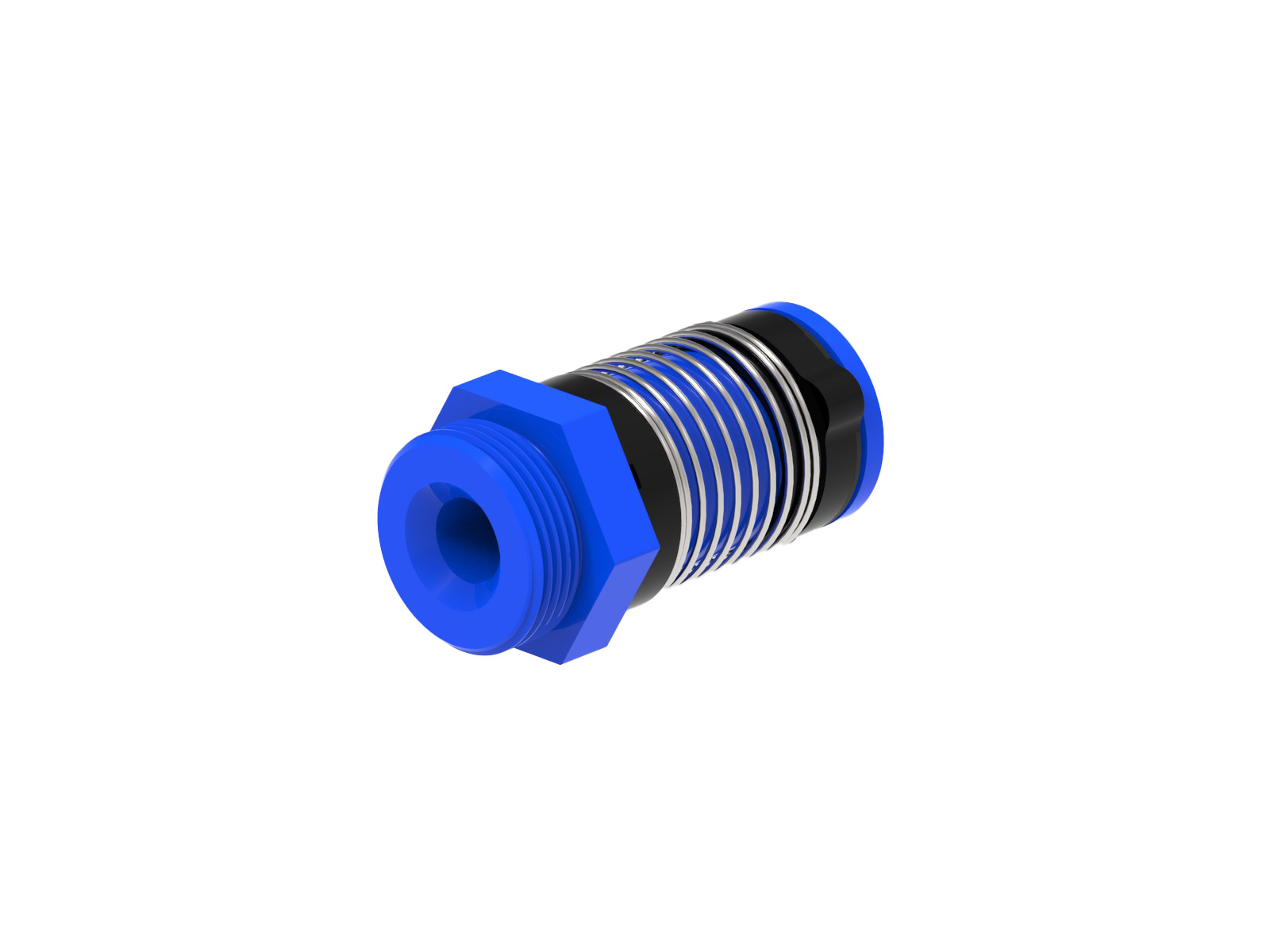

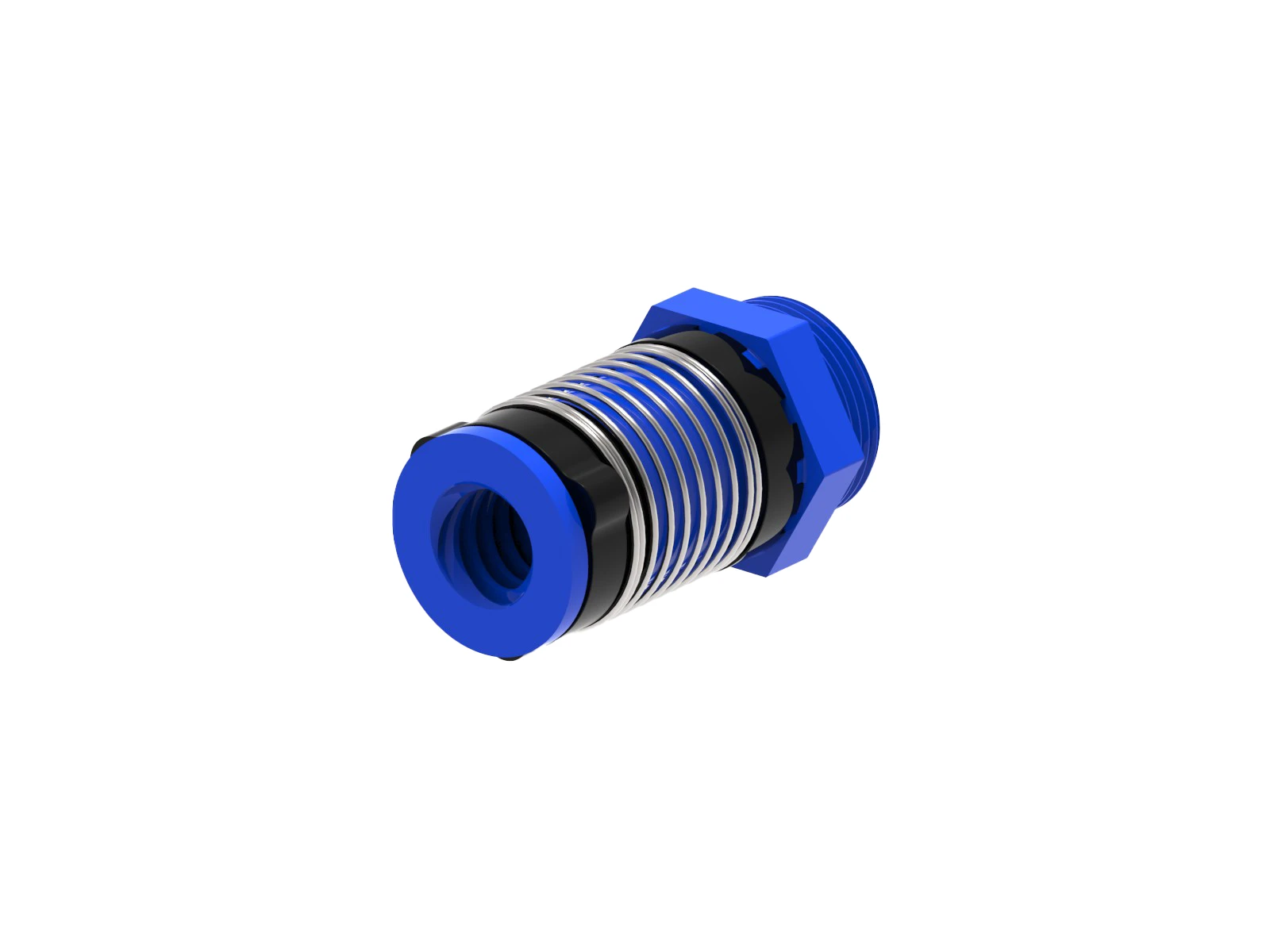

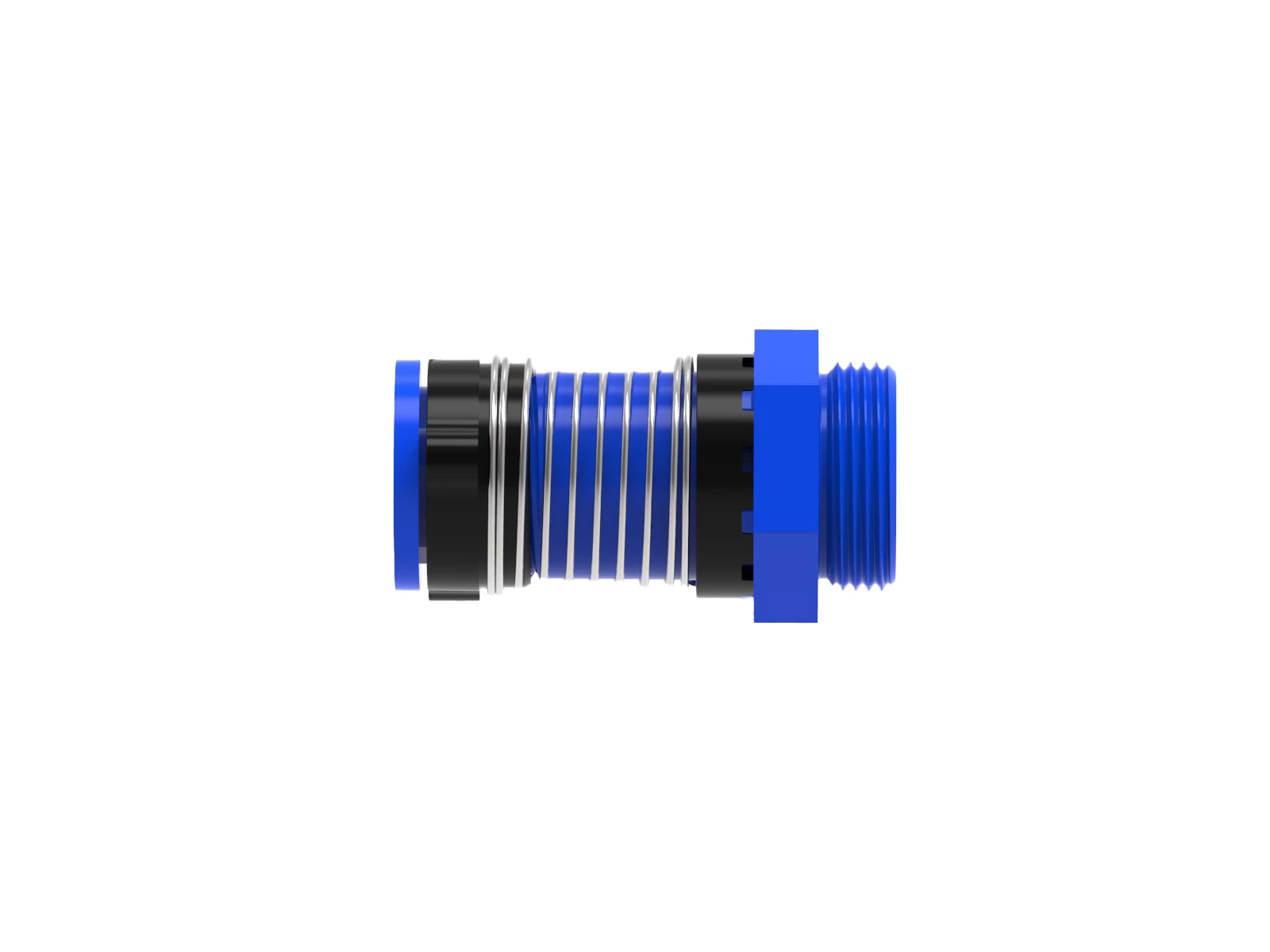

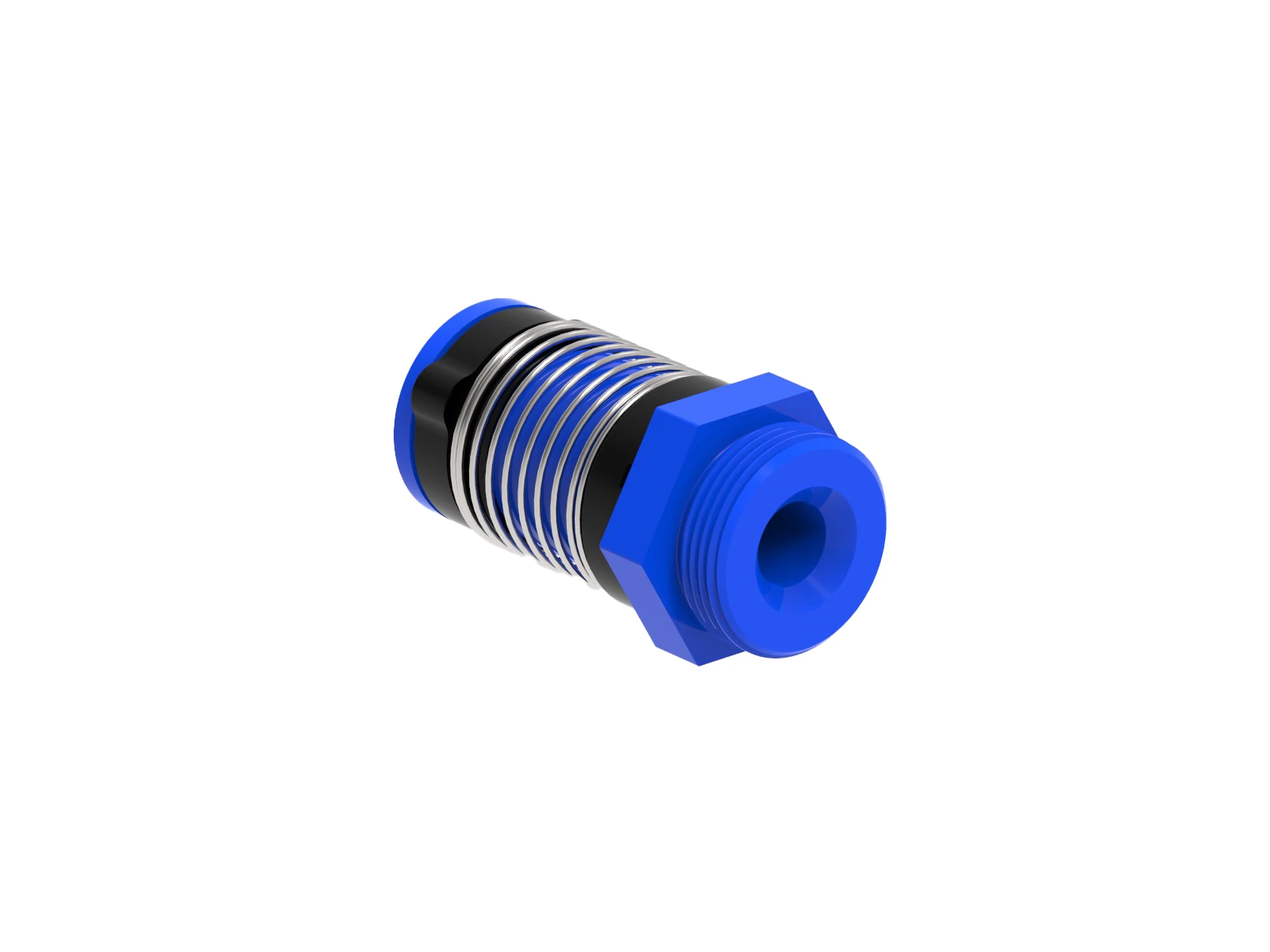

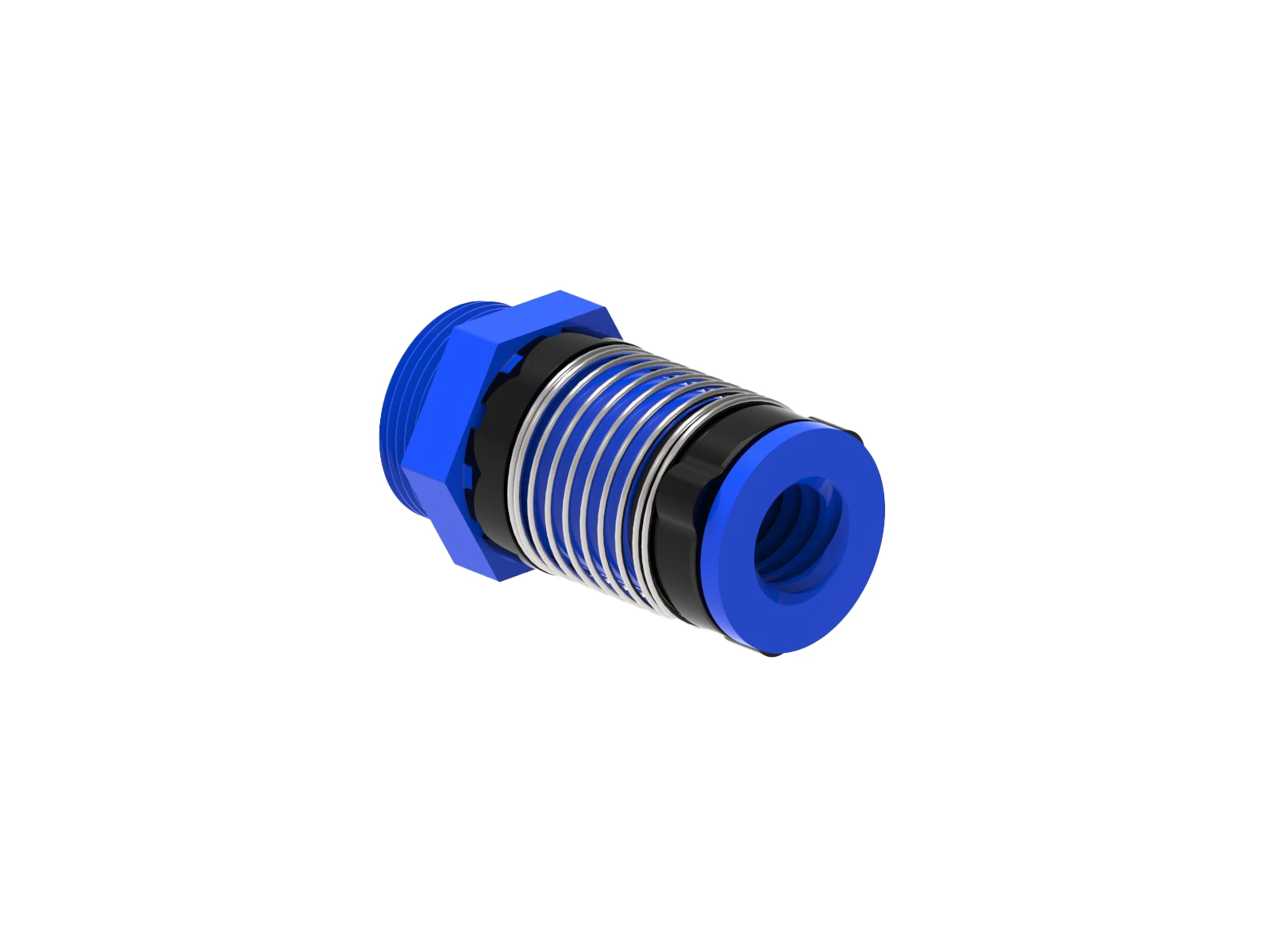

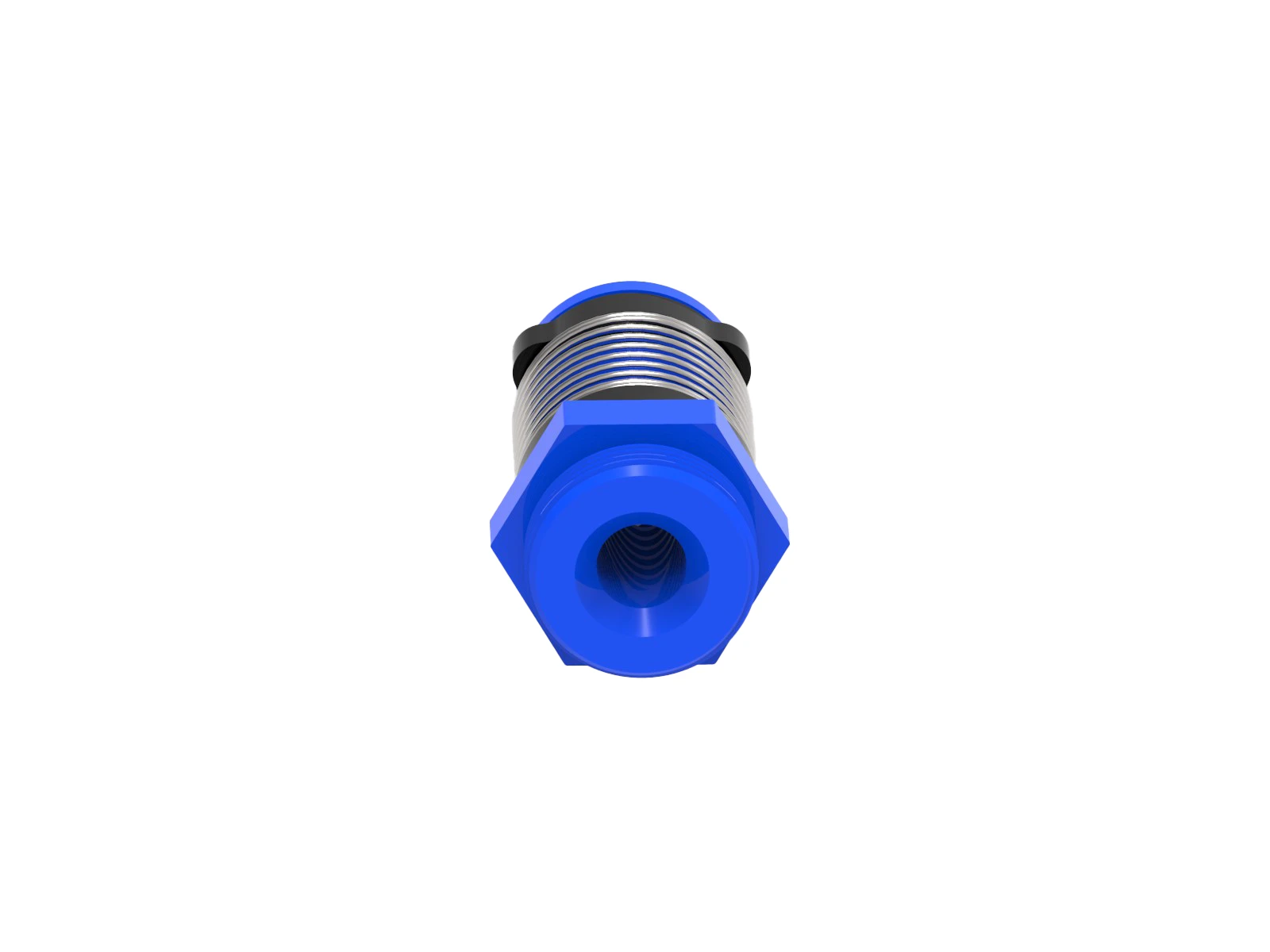

Nut TypeTorsional Anti-Backlash Nut with mounting threads
Nut Weight (lb)0.04
Standard Operating Temperature Range (F°)32-200
